SCHLATTER MG 200 MG24/7C Mesh Welder (Us.) #3692
Sold
SCHLATTER MG 200 MG24/7C Mesh Welder (Us.) #3692
Description
Diameters 4mm to 8mm, from coil, for the long wire
Diameters 4 mm to 8mm, pre-cut wire in cross-feeding units (System Syrocut for cross wire straightening and cutting)
Year: 1998
Very good condition
The line consists of

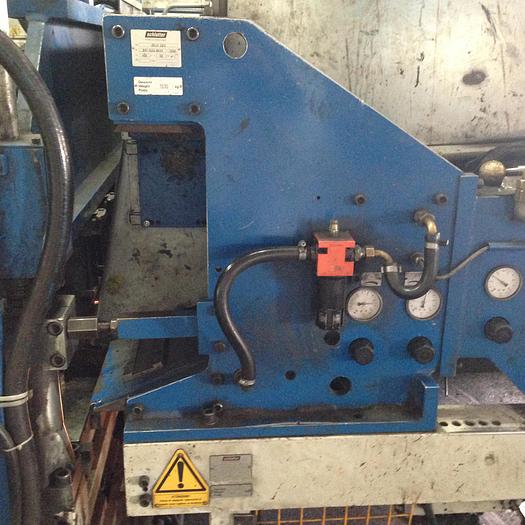

- welding portal SCHLATTER Group mg 24.1 /7c with 7 transformers, each 125KVA
- long wire feeding units mg24.1
- cross wire feeding unit GG QS5/QMD/W12 from 1200 to 2500 mm width 2 Syrocut type 2

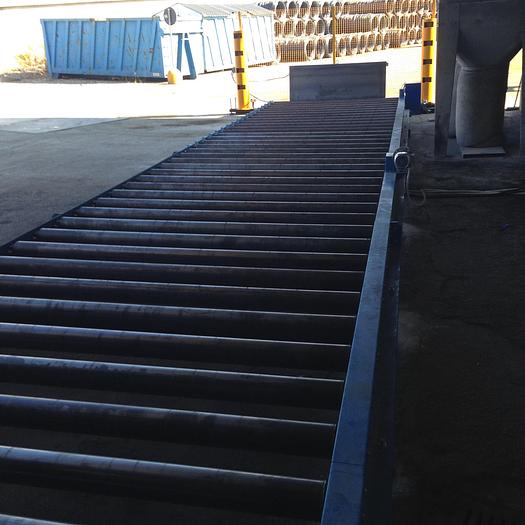

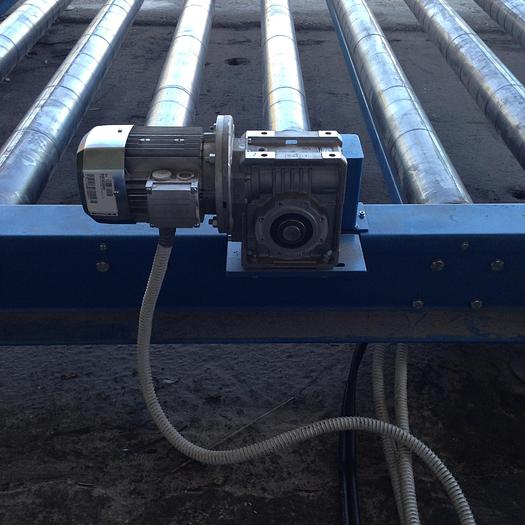

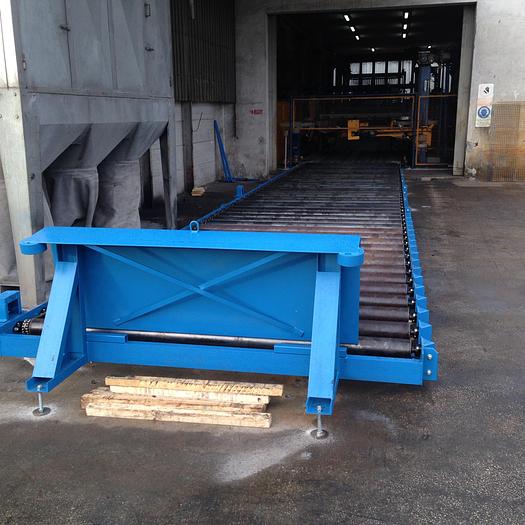

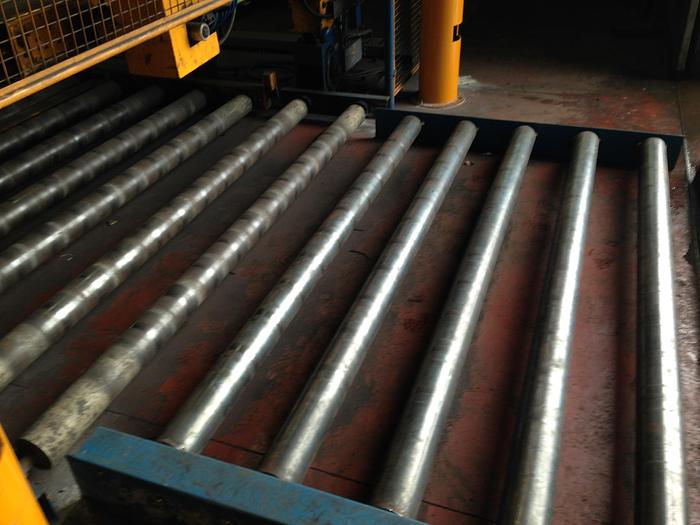

- turning and staking units MWS15/06 --1000-6000mm long
- long wire shear units model MEP

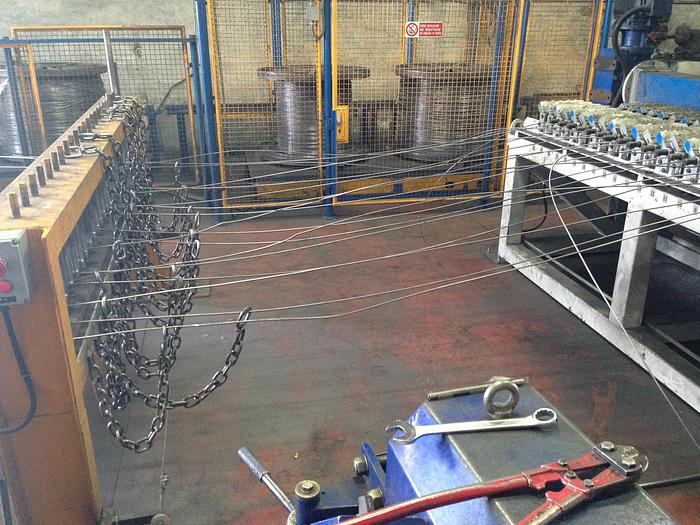

- loop system 24 wire complete of straightening units

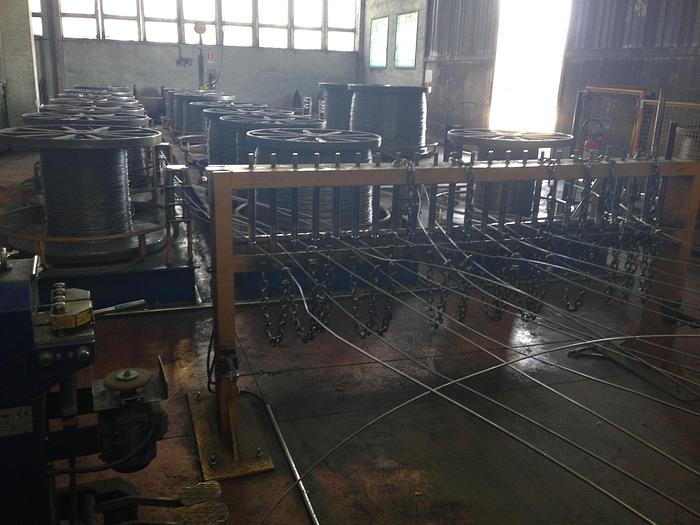

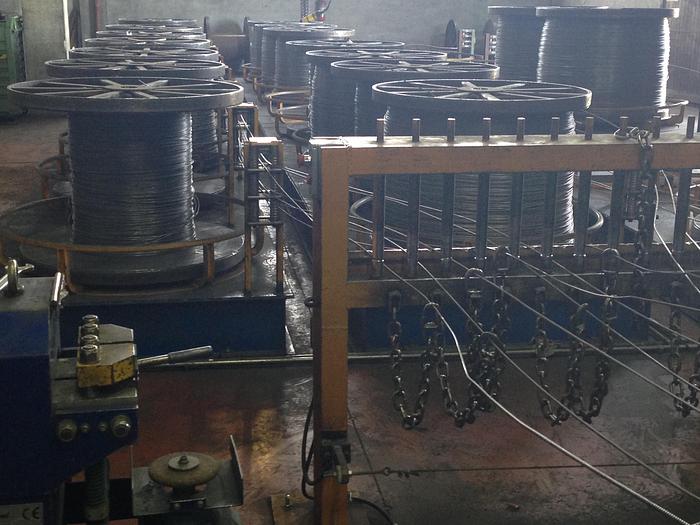

- 12 long wire payoff table (24 units)
- LEU long wire surveillance system

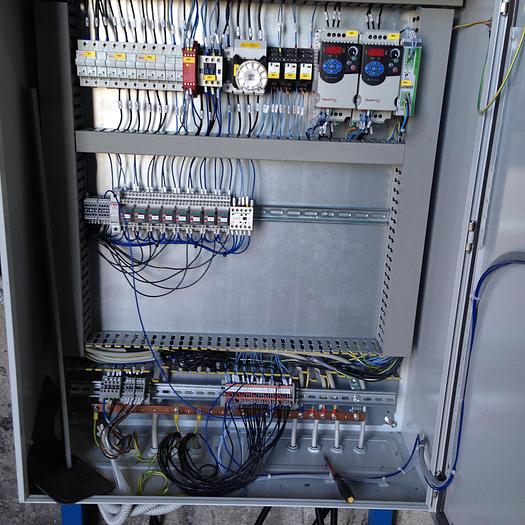

All documentation for use and maintenance and electrical diagrams are available
PLC Siemens Step 5 for: welding machinery, turn and stacking units
PLC Siemens Step 7 for long wire loop and shear units and Syrocut
--
--
Specifications
| Manufacturer | SCHLATTER |
| Model | MG 200 MG24/7C Mesh Welder (Us.) #3692 |
| Condition | Used |
