F&P 1000/1250x1mm Mini Slitting Lines (New) #3507

No longer available

F&P 1000/1250x1mm Mini Slitting Lines (New) #3507

Description

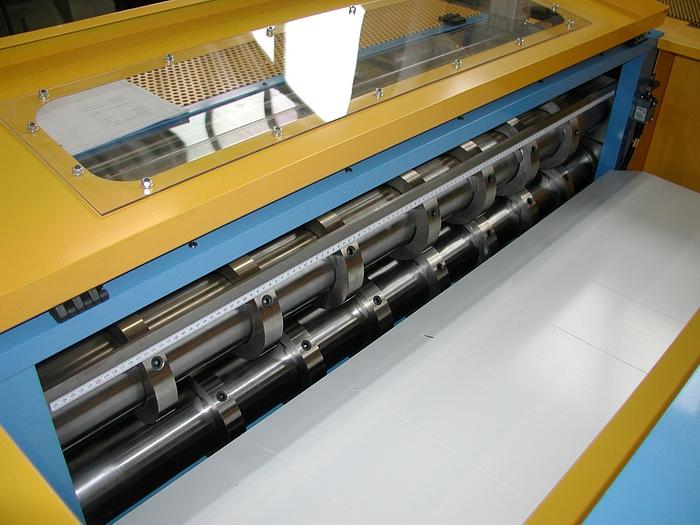

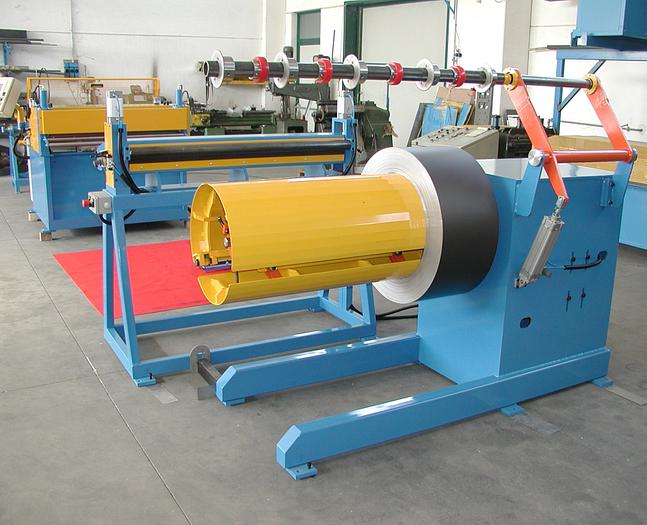

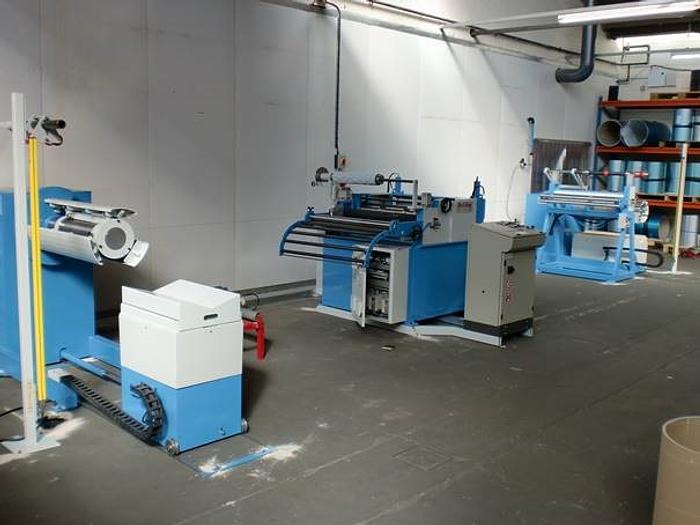

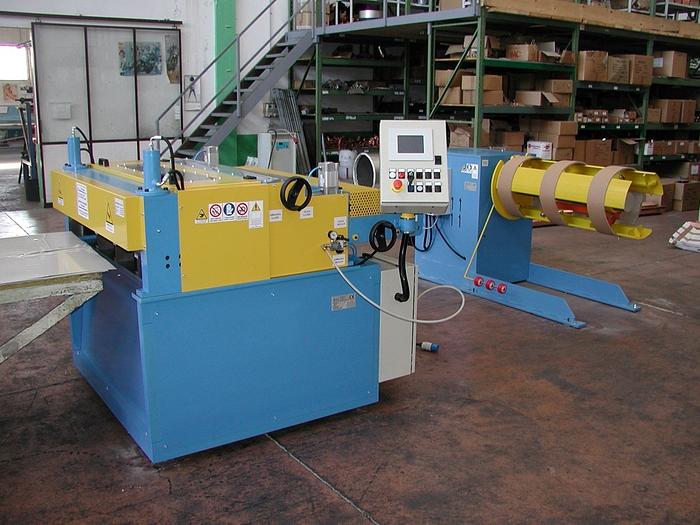

Our Mini Slitting & Multi-Blanking Lines for 1000/1250mm x 1mm coils Recoiling speed up to ca. 22m / min -- > https://youtu.be/u7pS7jKQE-c = Video ( << click ) -- 1000mm and 1250mm Models, for material thickness up to 1.0mm coming with: 3ton or 5ton Decoiler, 1ton Recoiler -- Description: Adjustable entry guide by handwheel Three idle rollers - top roll with 60mm dia. / bottom rolls 50mm Two rubber-coated powered pinch rolls - roll diameter: 110mm Pneumatic cylinders with manual control, to lift rolls Slitter Head - shaft diameter: 100mm (circular knife O.D.: 150mm) - quick-clamp circular knives in special steel - metric rule for the positioning of knives, and handwheel to lift them - max. 'standard' number of slits: 4 (more slits optional on demand) Guillotine shear, hydraulic power type - power pack motor: HP 2.0 Adjustable '0>max.' feed speed controlled by touch screen Numerical control: SIPRO SIAX 80 Interface with the touch screen control panel For multi-blanking: -Enter up to 20 different lengths -Cutting accuracy +/-1mm over 3m length The el. control panel rotates to allow controlling the machine from any position Drive motor: HP 3.00 / 380 Volts 50 Hz Option: protective film dispenser Hardened steel separators "Felt" type strip tension pad with up-down motion, operated by air cylinders; 'manual' valve and air-pressure adjustment Recoiler with max. 1ton capacity - radiused drum segments to allow optimal adherence to coil inside face - hand operated clamp along the full drum length for coil leading edge - drum expansion range: 470mm to 500mm - air operated overarm with separators - dancing arm connected to a potentiometer,with auto.-"stop" when the wanted length has been produced of slit coils Drive motor: HP 3.00 / 380 Volts 50 Hz Option: coil off-load car The lines comply with CE regulations




-

Specifications

ManufacturerF&P
Model1000/1250x1mm Mini Slitting Lines (New) #3507
ConditionNew
