Description

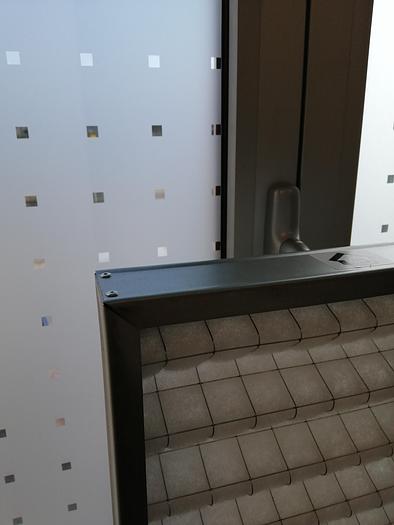

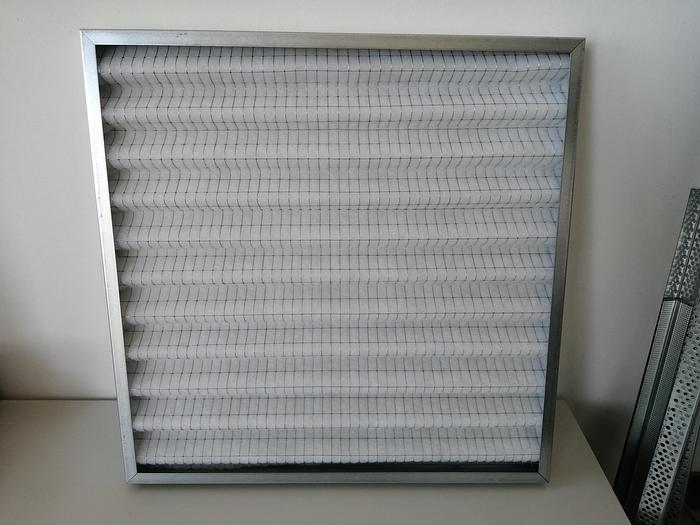

3994-A > ca. 6 parts/minute (with 592mm x 592mm 'standard' frames)

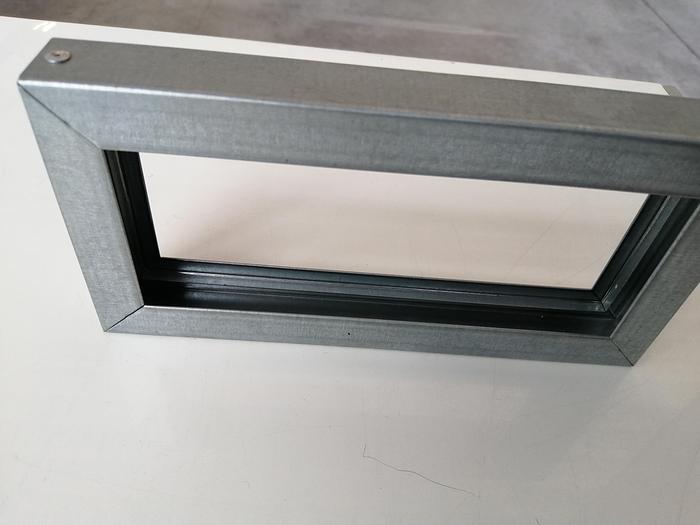

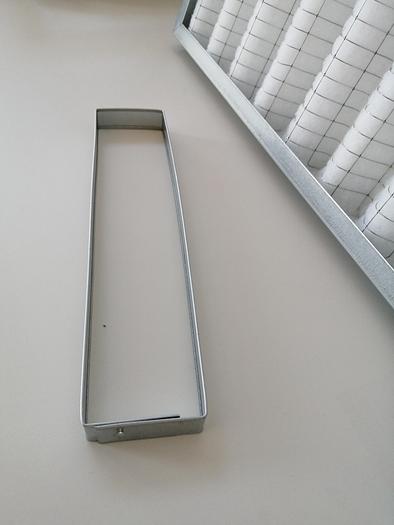

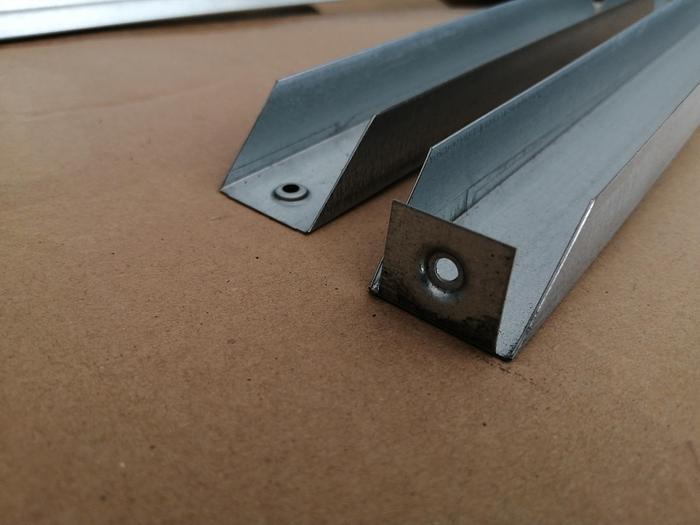

Filter Frame Line Types:

( ^ typically, 45mm to 50mm high )


SIMPLEX


COMBO


COMPACT


DOUBLE COMPACT


DOUBLE COMBO


( for all the above ^ please see the first Attachment below, at the end of the page ) :

--


A standardized range of equipment able to satisfy the different needs of a vast clientele.

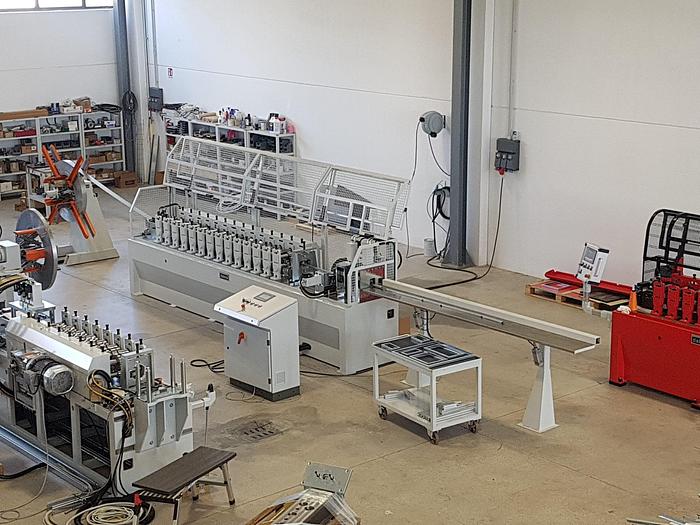

For example, a COMBO Type line for 24-47-97mm base filter frames comes with the following:


  • 1.5ton powered decoiler
  • 8 station rollformer, 0-30m / minute, with material entry guide and lubrication system

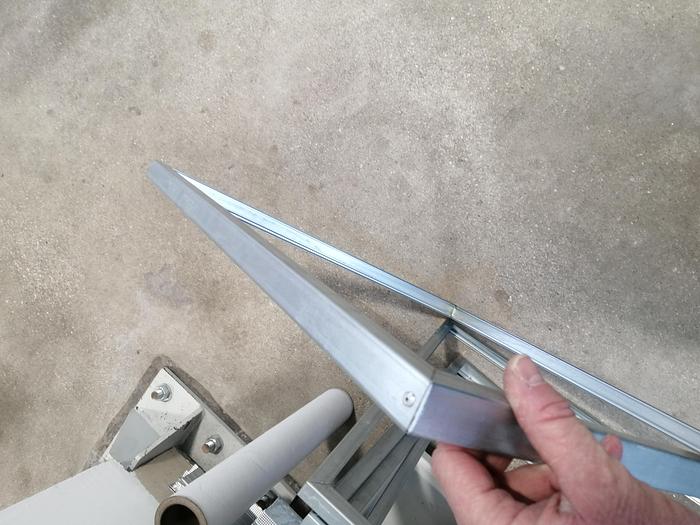

  • combinable notch, section "head & tail" and cutoff/bend tooling for the three a/m product dimensions
  • roll tooling and spacers for the three a/m product dimensions
  • 3m tilting off-load table
  • hydraulic power pack, electrics etc.


and for its installation and commissioning just 1-2 days are required.


It costs less than you imagine.






3994-B > ca. 10m / minute (with 592mm x 592mm 'standard' frames)

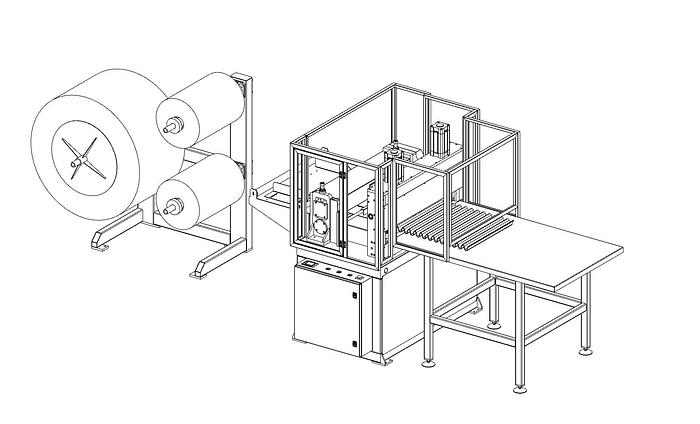

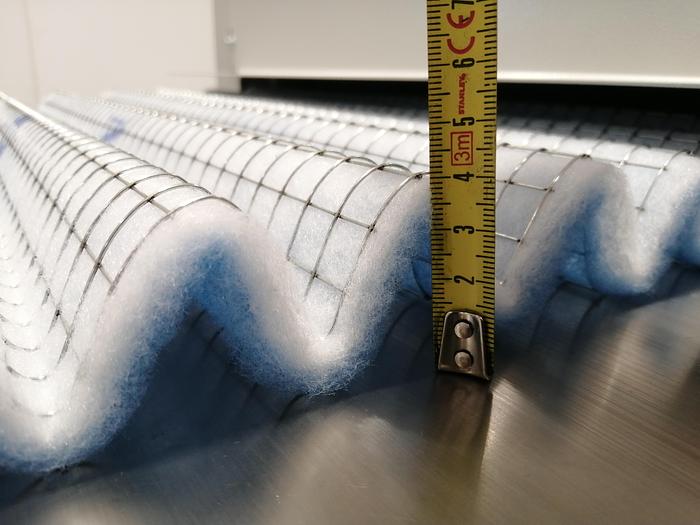

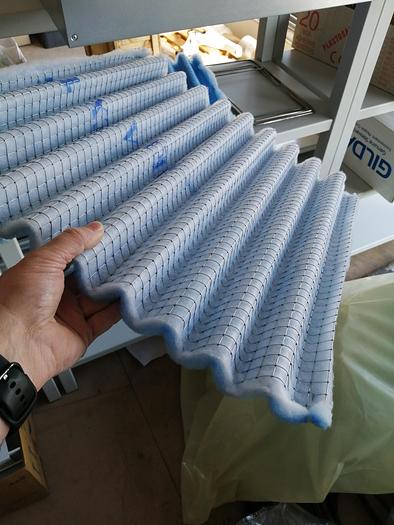

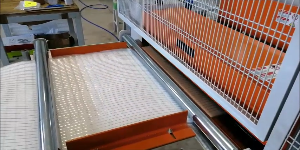

Mesh Corrugator System


  • please enlarge the last image above



The equipment consists of:


  • reel holder
  • 800mm wide roll corrugator complete with roll tooling for one profile, w. 11 waves on a 600mm width. Machine with adjustable center distance, powered forming rolls with programmable controller and replaceable
  • 800mm wide air operated cutoff shear, fixed to the corrugator frame. Guillotine-type cut with blade & counterblade
  • 1500mm long product-exit table
  • safety guarding to CE (Machinery Directive 2006/42/CE)



Direction normally left to right

Paint Colours normally RAL 7035, the guarding RAL 2004




--


Specifications

ManufacturerF&P
ModelAir Filter Pad & Frame Machinery #3994
ConditionNew
