F&P + Other 1620x2mm (Simple) Slitting Lines #4905

< Please click and then click again on images, to enlarge

Line speed max. 120m / minute

Minimum material thickness .4mm

Line composition:

• 12ton coil loading car with floor pit -- vert. stroke: 600mm

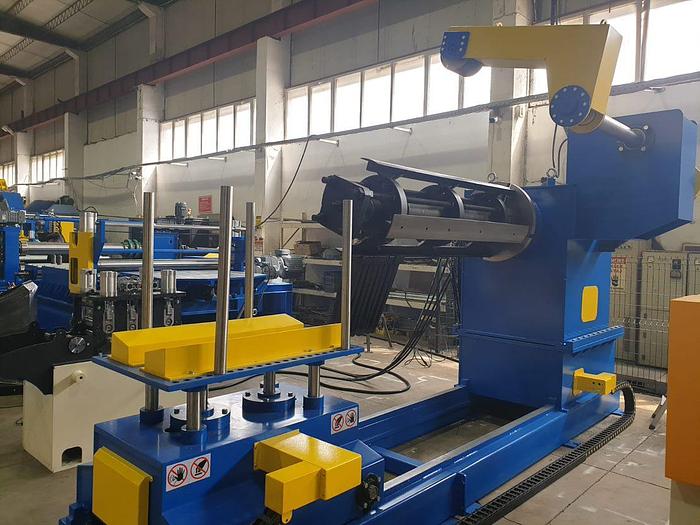

• 12ton powered self-centering decoiler, material entry table & pinch rolls -- with rev. hydraulic motor, also to brake.

Horizontal shift: 200mm. 490mm to 620mm coil ID; max coil OD: 1600mm

• 15kW hydraulic power pack for both the above ^

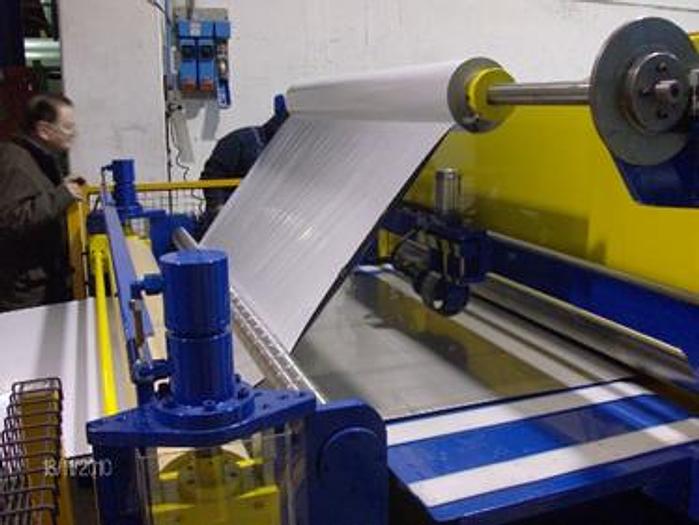

• Plastic protection film applicator

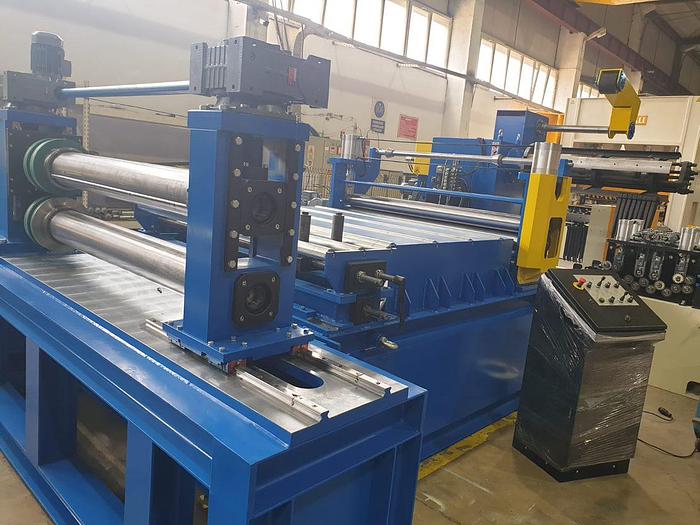

• Slitter -- shaft dia. 180mm. Drive motor: 80kW A.C.

Max. 20 cuts at 1mm material thickness, 15 cuts at 1.5mm, 10 cuts at 2mm

• Scrap baler -- 10kW

• Felt tension pad, hydraulically operated. Burr planishing rolls

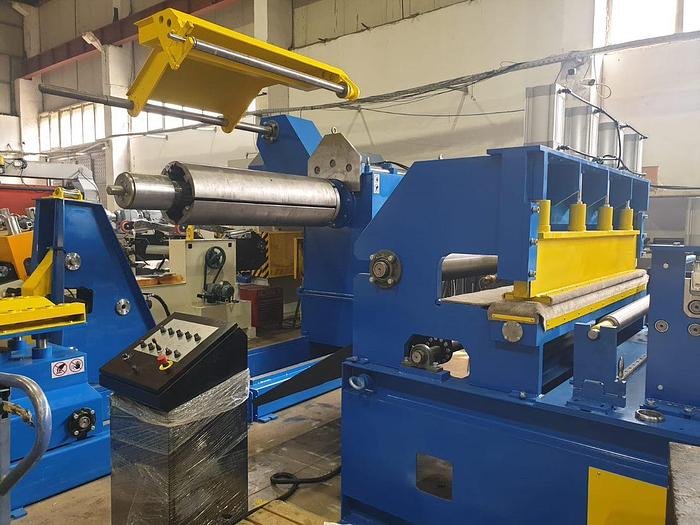

• 12ton recoiler -- 500mm to 515mm coil ID. Drive motor: 120kW A.C.

• 12ton coil off-loading car with floor pit

• 4 arm turnstile

-
