F&P Well Priced 2100x12mm CTL Lines (New) #4910

F&P Well Priced 2100x12mm CTL Lines (New) #4910

Description




Ref.: 11840-23/SR REV.1


< Click to enlarge images




This is a 20m / minute well priced flying shear type cut to length line that we build.

Workable material thicknesses: 6--12mm with a single leveler, 1.5--12mm with two levelers. 30ton decoiler. 20m / minute workspeed.


It is a "basic" line, for which we can quickly make you a proposal if its characteristics are right for you.




Process Material:

Hot Rolled Steel - Steel grade: Q235, 12Mn


Tensile strength max 590 N/mm2

Yield strength max 460 N/mm2

Max elongation 20%



Material Thickness:

1.5÷12mm



Coils:

Weight max 30.000kg



Internal diameter 500-840mm

External diameter max 2.000mm



Product:

500--6.000mm long x 500--2100mm wide sheets, in max. 10.000kg stacks



Line workspeed:

3 to 20m / minute


(Introduction speed:

0 to 5m / minute)

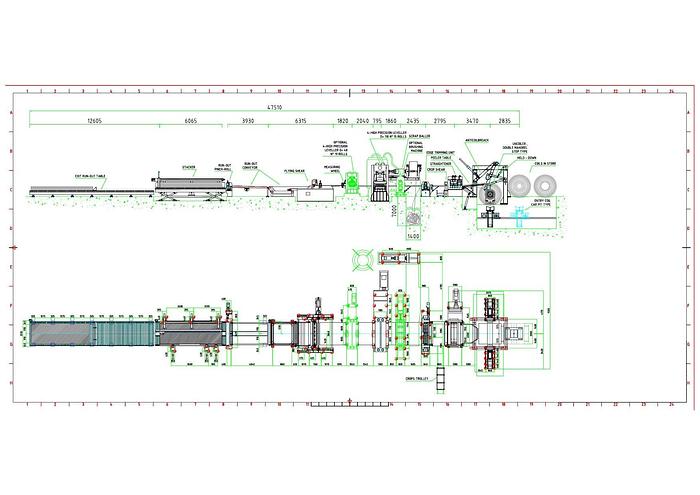

Equipment list:




  1. Coil storage



  2. Hydraulic coil car, floor pit type



  3. Anti-coilbreak self-centering decoiler, "stepped" type



  4. Hold-down with threading table, incorporated straightener and crop shear.



  5. Trimming unit + scrap baler (optional)



  6.  4-HI 11-Roll Leveler (6-12mm)



  7. Flying shear, with sheet run-out belt conveyor and pinch roll



  8. Product-inspection conveyor, 4.500mm



  9. Run-out pinch roll



10.  Stacker with rolls - Length: 6.000 mm.



11. Exit run-out table + weighing machine




Other options:




a)    Brushing machine



b)    4-HI 19-Roll Leveler (1.5-6mm)








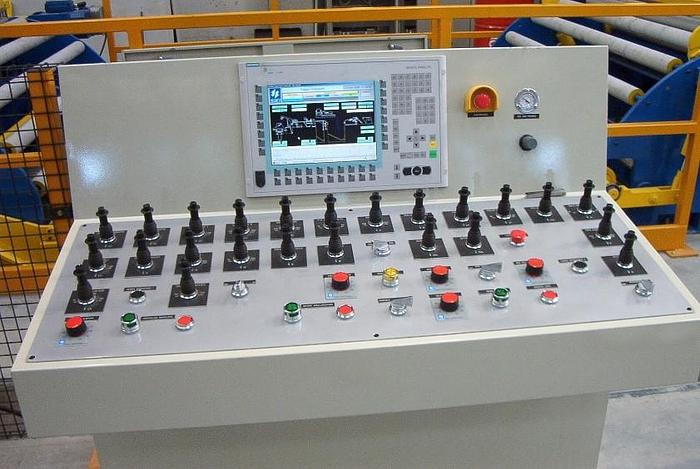

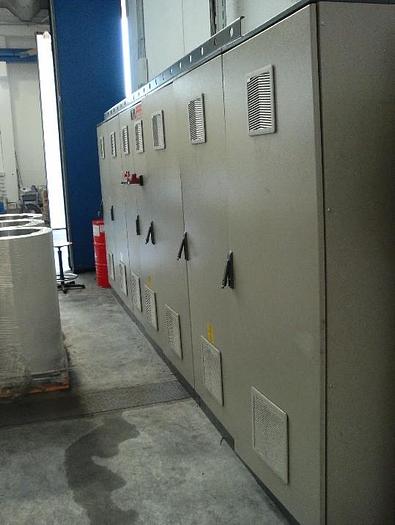

"Standard" electrics, hydraulics and pneumatics:



Three-phase tension

380 V  50 Hz



Auxiliary tension

110 V  50 Hz



Electro-valves tension

24 V  50 Hz





Hydraulic power pack

Pressure of nominal operation 100 to 105 bars




Pneumatics

Pressure of nominal operation 6 bars




-

Specifications

ManufacturerF&P
ModelWell Priced 2100x12mm CTL Lines (New) #4910
ConditionNew
Stock Number4694536
