GASPARINI 3000mm x 165t Press Brake #0088

Year: 1998 . CE .

6 Axis

Hydr. tool clamps

Max. daylight 440mm

€42.500

( ^ If you are looking for lower priced machines, please let us know.

Use the QUESTIONNAIRE )

Pressing machine Gasparini Mod. PBS 165/3000 6-axis + CNC Bending Machine - High Light

Technical Features

- DELEM CNC control - DA 65 model

* Swivel control panel, front right

* 2D graphical programming and product visualization

* Tool and program library

- CNC controlled axes:

* Y1 + Y2 / X / R / Z1 + Z2 axes

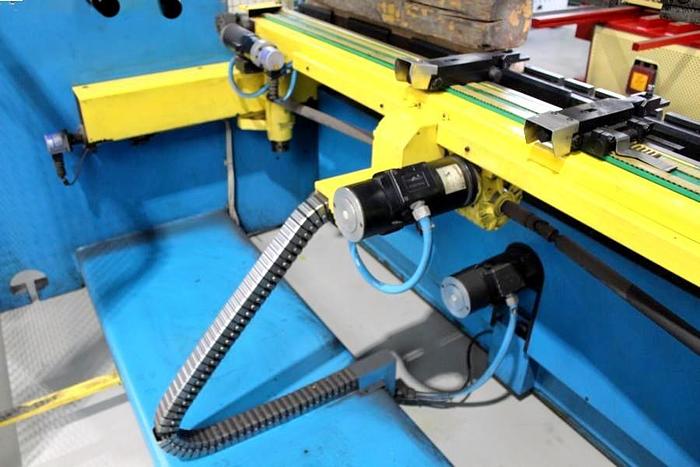

- CNC-controlled backgauge (X-axis)

- CNC-controlled height adjustment from backgauge (R-axis)

- CNC-controlled stop adjustment (Z-axis)

- CNC-controlled pneumatic table bombing (V-axis)

- GASPARINI hydraulic upper tool clamping

- GASPARINI hydraulic lower tool clamping

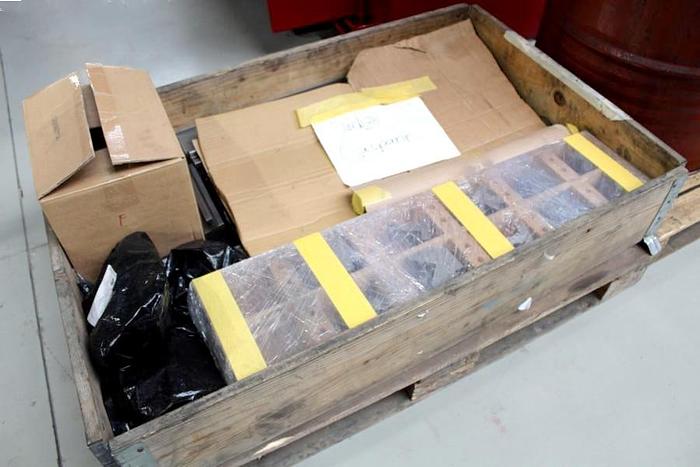

- Upper and lower tooling

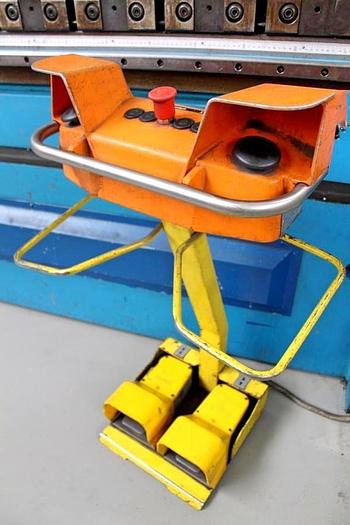

- 1x freely movable 2-hand/pedal control

- 2x stable front support arms

- Rear safety device (lockable door)

- Side safety device (pivoting doors)

- Original operating instructions + spare parts list

Power 165 ton

length 3100 mm

distance between columns 2600 mm

travel 250 mm

light 440 mm

adjustment speed 100 mm/sec

working advance 1-10 mm/sec

return speed 120 mm/sec

table height 950 mm

oil volume 250 lt

operating pressure 265 bar

voltage 380 V

total power required 18,5 KW

weight of the machine about 12600 kg

size L-P-A 3670 x 1830 x 3130mm

Further information and translations of the description into other languages: on specific request

-

-
