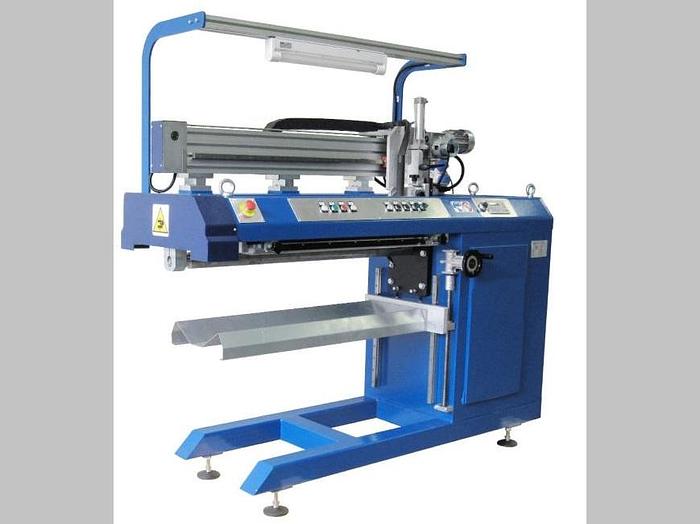

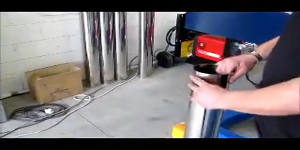

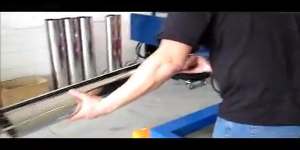

F&P Cylindrical Shell Welders (New) #3693

Models:

for 1000 mm max. part length

Ø80-800mm (1000mm optional)

Machine Dims.: 2100mm x 600mm x 1800mm

Machine Weight: 750kg

for 1250 mm max. part length

Ø80-800mm (1000mm optional)

Machine Dims.: 2350mm x 600mm x 1800mm

Machine Weight: 850kg

for 1500 mm max. part length

Ø125-800mm (1000mm optional)

Machine Dims.: 2600mm x 600mm x 1800mm

Machine Weight: 1050kg

for 2000 mm max. part length

Ø150-800mm (1000mm optional)

Machine Dims.: 3100mm x 700mm x 1800mm

Machine Weight: 1400kg

Material thickness and types: .5mm to 2mm, S.S. / Galv ./ Hot Rolled

Welding speed example: 20 seconds per linear-meter, with AISI 316L stainless steel .5mm thick

 Clamping table with a double row of air operated independent chasers, footpedal-controlled

 Copper bar preset for refrigeration and internal welding gas protection

 Steel mandrel for copper bar

 Motorized precision guide for the translation of the torch unit, by means of a inextensible toothed belt on recirclulating ball runners

 Welding head holding car, operated by a gearmotor with inverter system and potentiometer for speed adjustment (280 to 3000mm/min)

 Air operated linear centering unit

 Air operated spindle-support gripper

 CNC-PLC for machine control and data entry

 Axial air slide to lift torch

 Workpiece support sliding on guides

 "Cebora" Brand WIN.TIG DC 250T welder + Plasma PW30 digital consolle

 220 V single-phase + earth 50/60 Hz

 El. connection of welding unit: 380V three-phase + earth 50/60 Hz

Options & Accessories:

 Machine frame for 1000mm max. part diameter ^

 Machine arrangement for welding rectangular parts

 Electrode sharpener complete with head for Ø 4.8mm
