F&P Profile Packaging Syst.-A / 2012-2020 #3517

Sold

F&P Profile Packaging Syst.-A / 2012-2020 #3517

Description

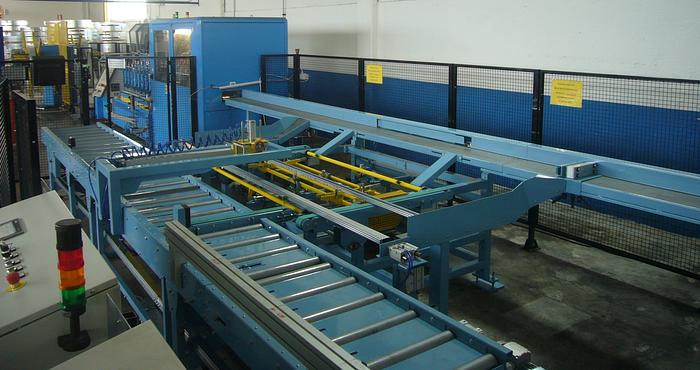

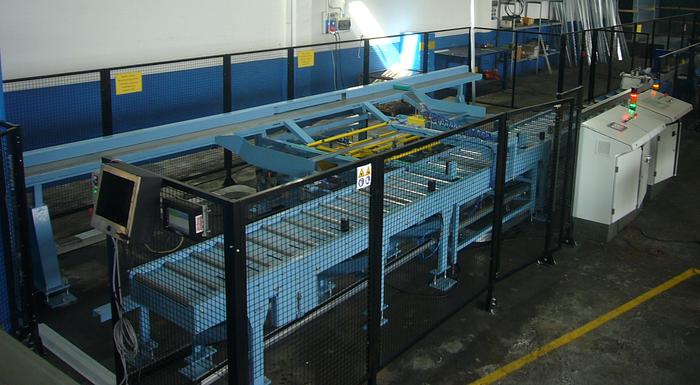

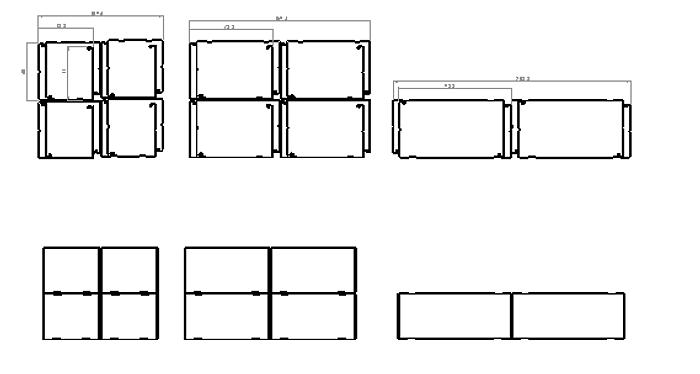

Drywall Profile Packaging System-A [MODEL REPLACED BY NEW SYSTEM >> SEE: #3996] (GHT-SIC) - suitable for a 65m / minute max. speed of the production line -- in the Video, the auto. packaging system composed of: profile extraction rolls, mounted after cutoff shear profile collection table coupling unit + transfer belts for the 'module' of 2 profiles having been coupled together 2-'module'^ bundle forming unit transfer belts with vertical and horizontal displacement to form stacks of 'modules'* (*those profile types that cannot be stacked, will be placed one beside another on a same horizontal plane) powered roll tables, stack equalizer automatic strapping machine, capable of 65 operations/minute max. strapped stack off-loading roll tables and cylinders -- Minimum/Maximum Profile Length: 2500mm/6000mm

Specifications

ManufacturerF&P
ModelDrywall Profile Packaging Syst.-A / 2012-2020 #3517
ConditionNew
