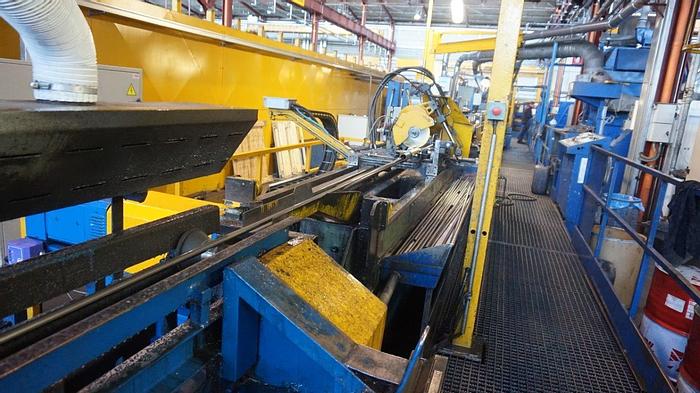

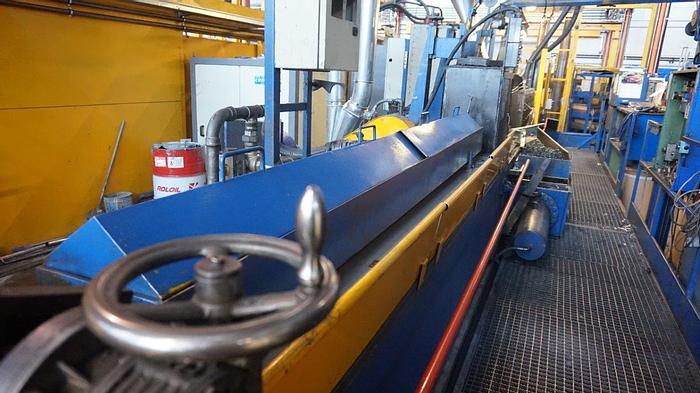

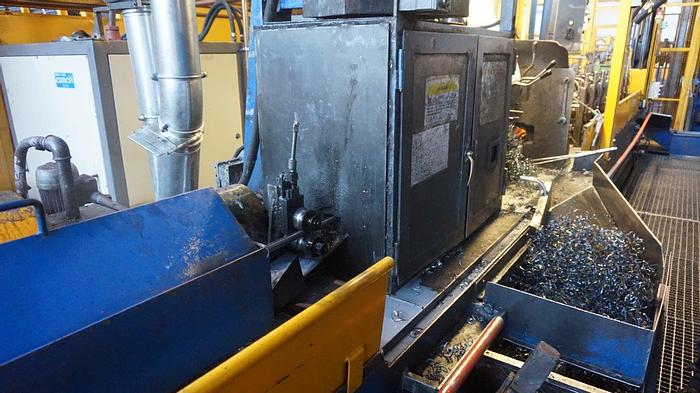

F&P 10-32mm ERW Tube Mill (Used) #4278

Min. tube Ø

10mm

Max. tube Ø

32mm

Min tube wall thickness

.5mm

Max. tube wall thickness

2.5mm

Tube length

6–10m

Max. production speed

110m / minute

Welder

250kW

EQUIPMENT LIST :

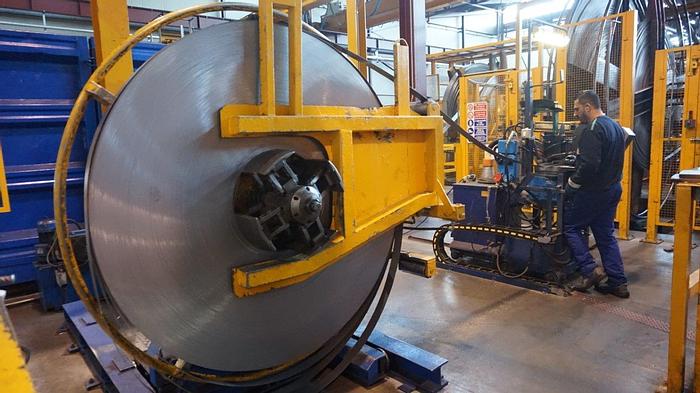

01.         Single mandrel decoiler

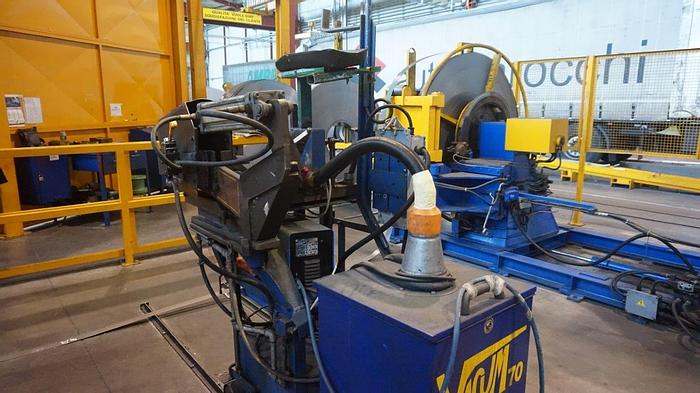

02.         Semi-automatic coil end joiner (shearwelder)

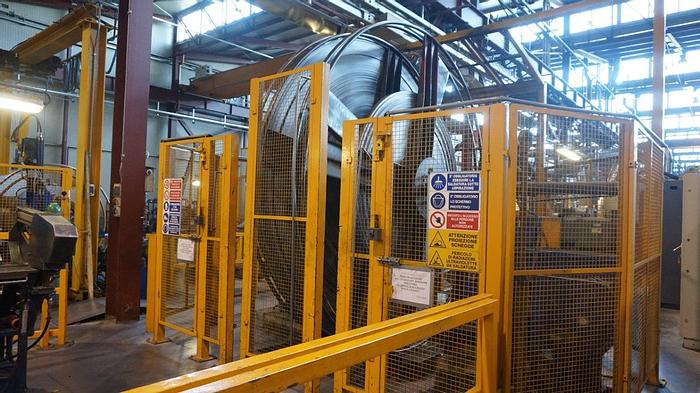

03.         Double, vertical strip accumulator

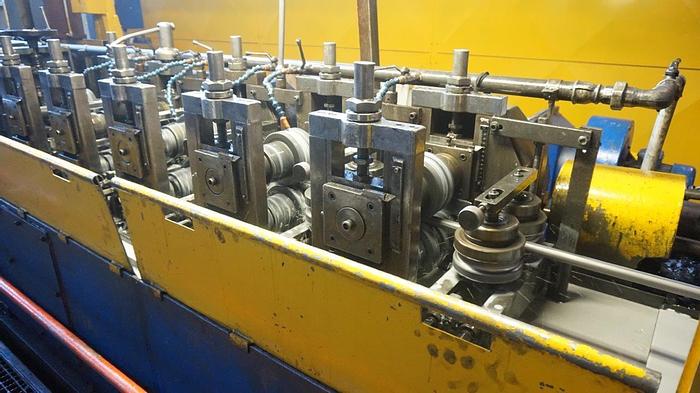

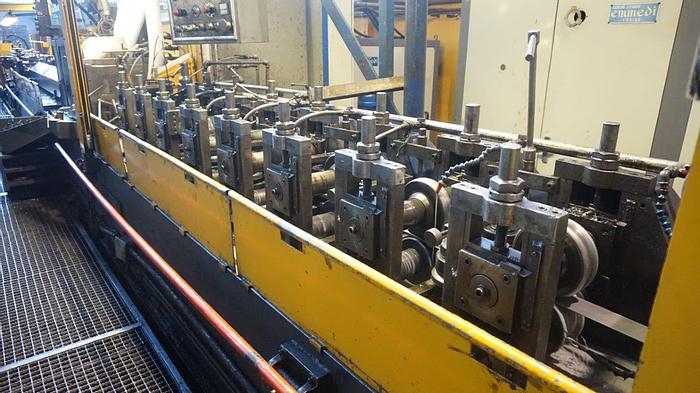

04.         Forming section complete of:

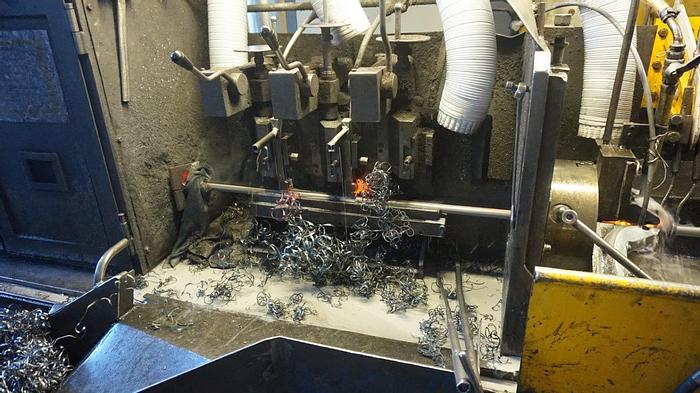

• scarfing unit
• 4+4 profiling heads
• 8 lateral guides
• 1 side guide
• 1 welding vice - 2 rolls
• 1 welding cord removing heads (3)
• zinc spraying system

05.     Main motorization - 2 motors (1 breakdown / 1 fin-pass)

06.     Welding machine - 250kW

07.     Cooling tunnel

08.     Chip hydraulic press

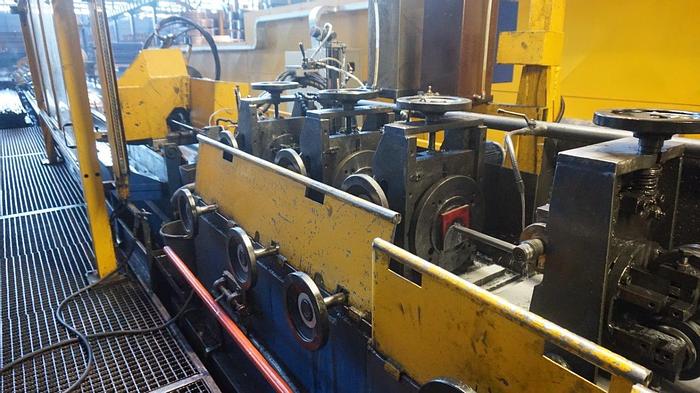

09.     Calibration section complete of:

• 1 anti-twist guide (weld straightener)
• 6 calibration heads
• 3 turksheads
• 1 cooling tunnel

10.   Motorization of calibration section

11.      Cutoff machine

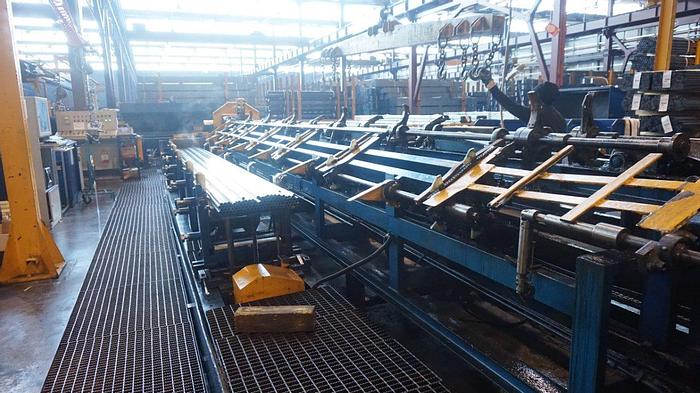

12.   Tube off-loading system with powered rollers, complete with parts-stop unit and extracting bars

13.      2 lateral storage craddles, lifting to drain emulsive

14.      Emulsive collection tank complete with pumps

15.      Electrical cabinet

16.      Control desks

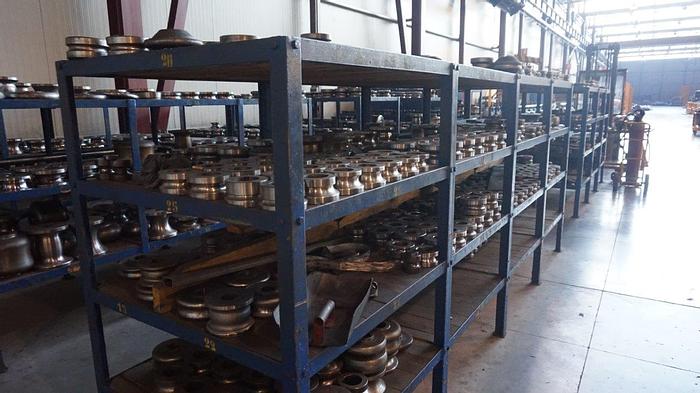

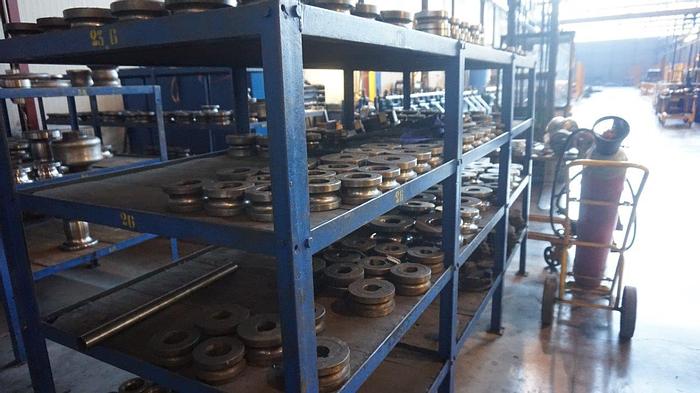

==> USED ROLL TOOLING FOR DIAMETERS:

10 - 14 - 15 - 16 - 18 - 19 - 20 - 21 - 21.25 - 21.5 - 22 – 23.6 - 25 - 26 - 28 - 28.6 - 30 - 32mm

-
