F&P 1250x1.0mm Multi-Blanking Line #3193


F&P 1250x1.0mm Multi-Blanking Line #3193


“Stop/Start” Type

Capacity with alu., copper, galv., prepainted stock…: .5mm to max. 1mm thick material; - with stainless steel: .4mm to max. .7mm --

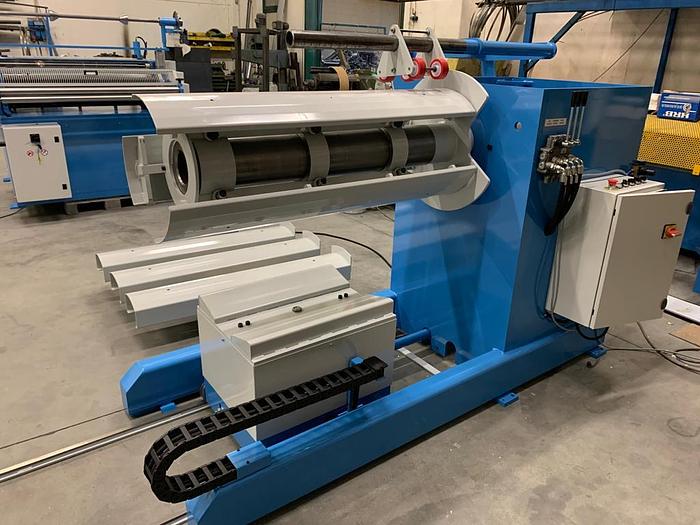

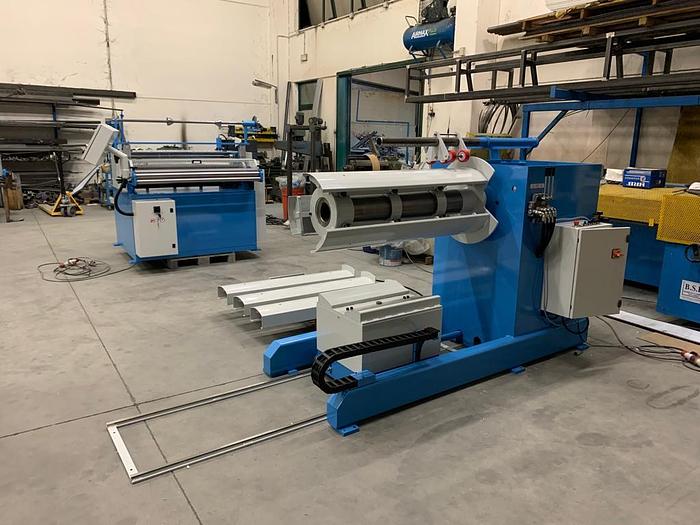

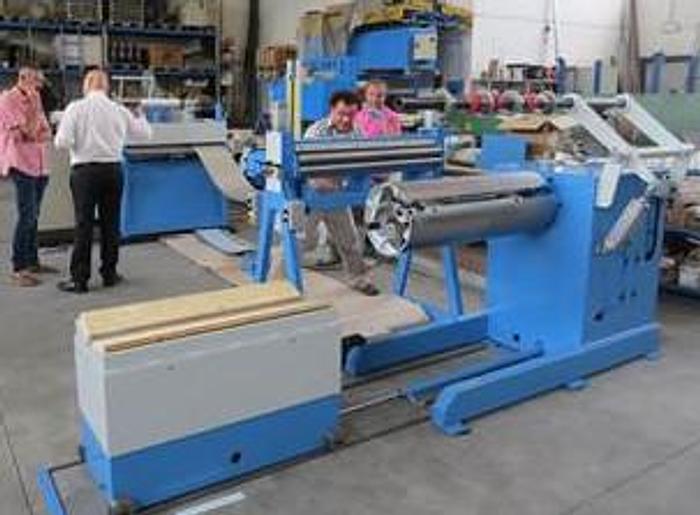

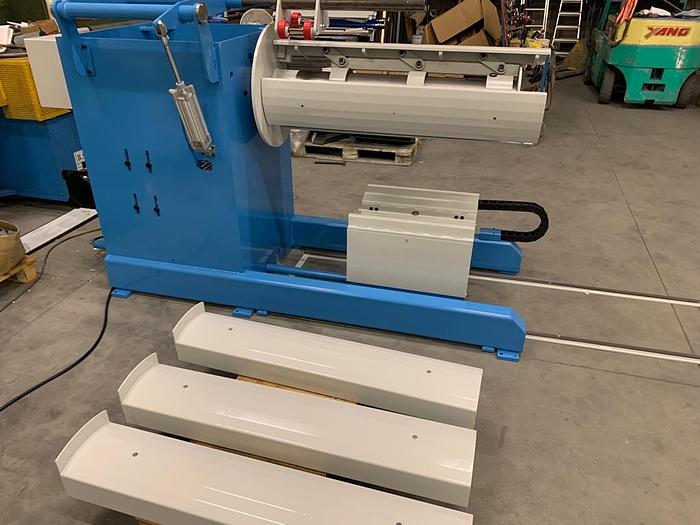

-Powered Decoiler with 5 t cap.

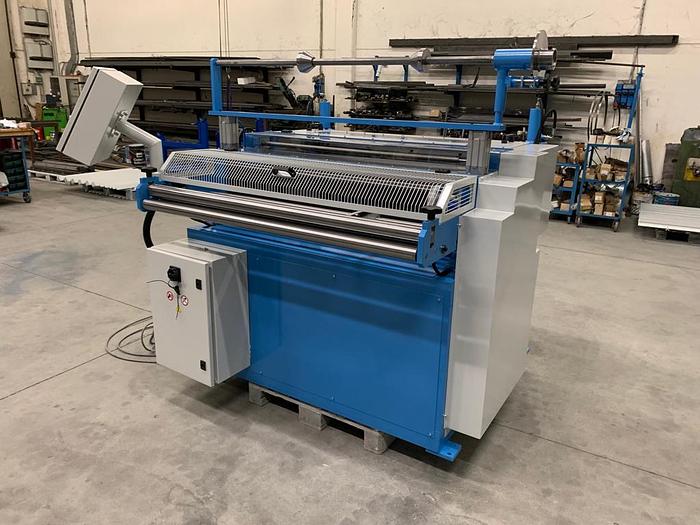

-Adjustable entry guide with handwheel and trapezoidal screw -Three undriven entry rolls of tempered steel -- the top roll, 60mm dia. / the bottom rolls, 50mm dia. -Two rubber coated pinch rolls operated by a 3 HP geared motor

(able to pull the material from also undriven decoiler/s) - roll diameter: 110mm

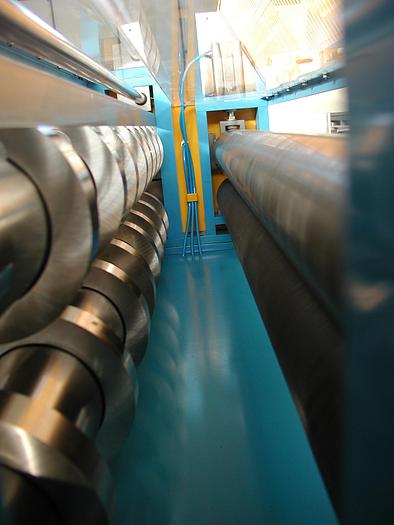

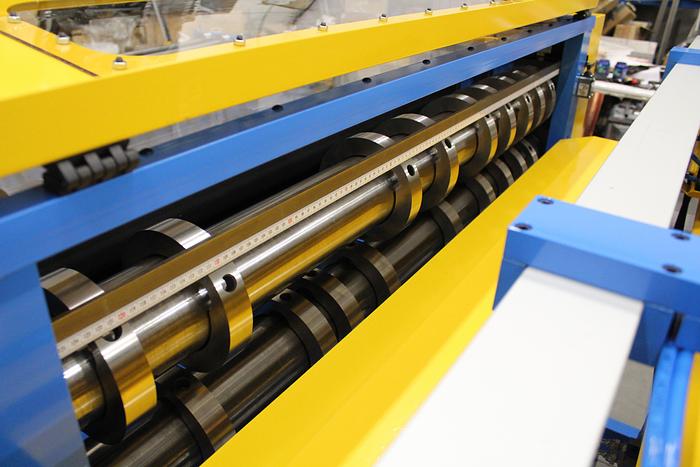

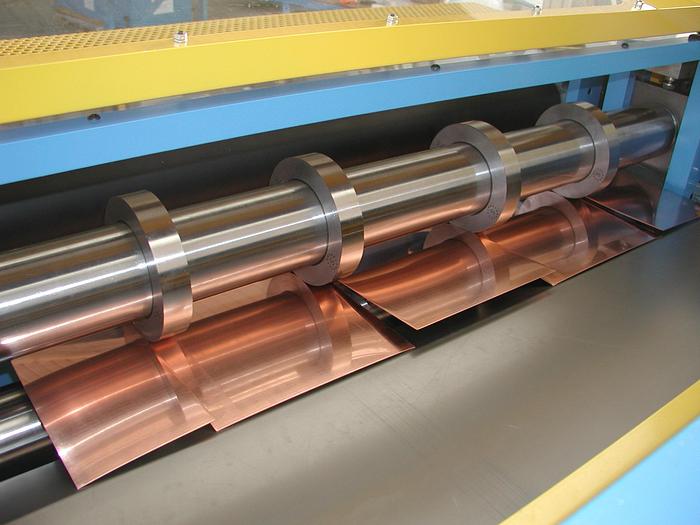

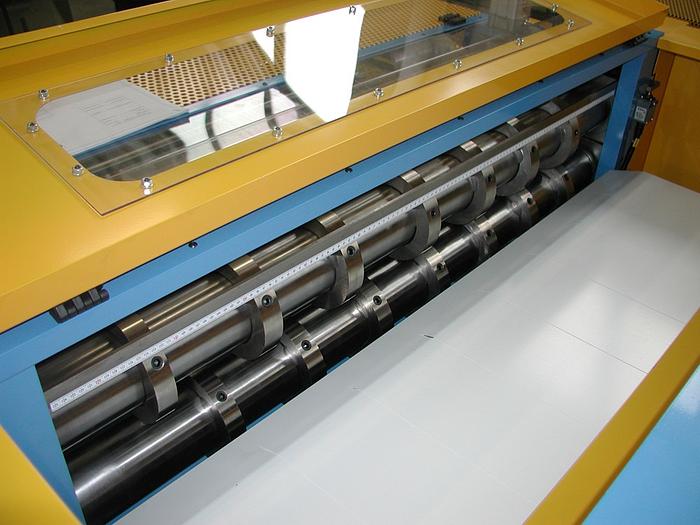

Pneumatic cylinders with manually controlled electrovalves to lift upper pinch roll -Slitter Head with ground steel shafts -- shaft diameter: 100mm; circular knife O.D.: 150mm -- quick clamp (by screw) circular knives in special steel, with wear-compensation block -- metric rule for positioning of knives, and handwheel to lift these by means of synchronized jacks

-Three pairs of special steel circular knives (suitable for also stainless steel) are the "standard" slitter tooling, included in price.

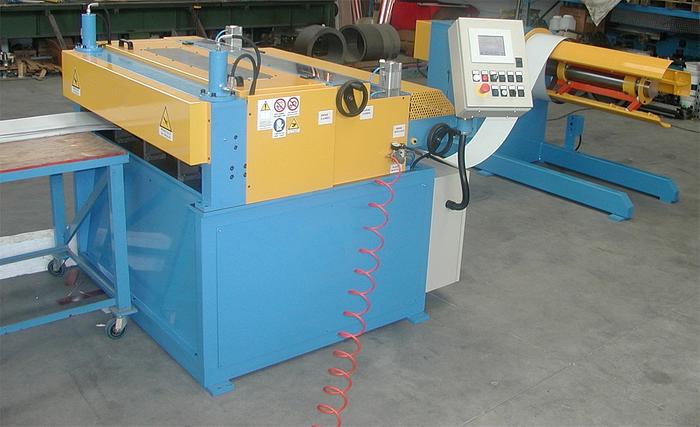

Extra charge for more pairs^ (Automatic stopping of the line when the last part to be made is under the circular knives. From the control panel the warning is given, that knives must be lifted up; only once this is done the material is fed to shear.) -Guillotine Shear, hydraulic power type -- power pack motor: HP 2.0

-- angle of inclination of the cut: 1 degree, for a perfect and "flat" result

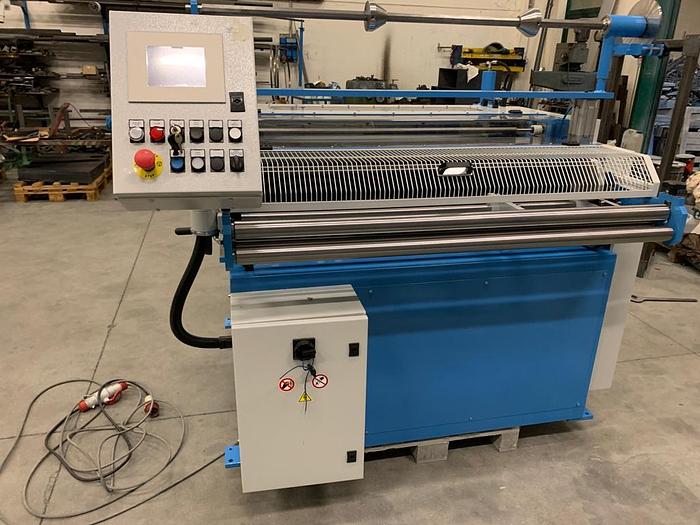

Numerical Control: SIPRO SIAX 80 Interface with the Touch Screen Control Panel, to enter the lengths and quantities of the sheets to be produced --Enter up to 20 different lengths; with unlimited quantity of parts per-length

Cutting accuracy + / - 1mm over a 3m sheet length

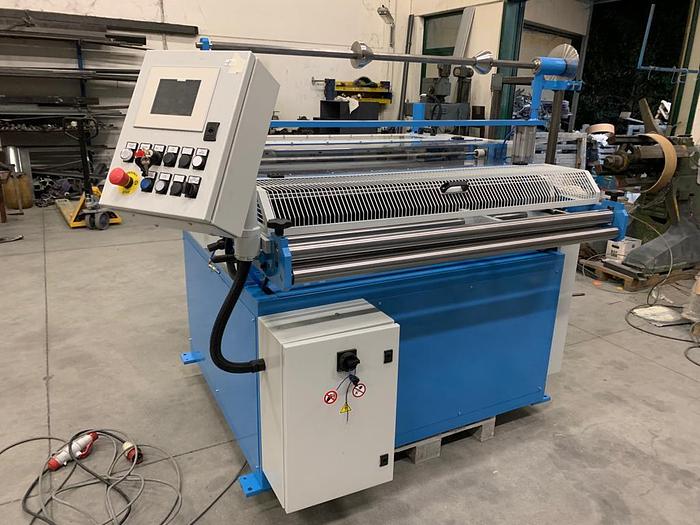

The electrical control panel rotates to operate the line from all positions Drive motor: HP 3.00 / 380 Volts 50 Hz



Model1250x1mm Multi-Blanking Line (New)#3193
