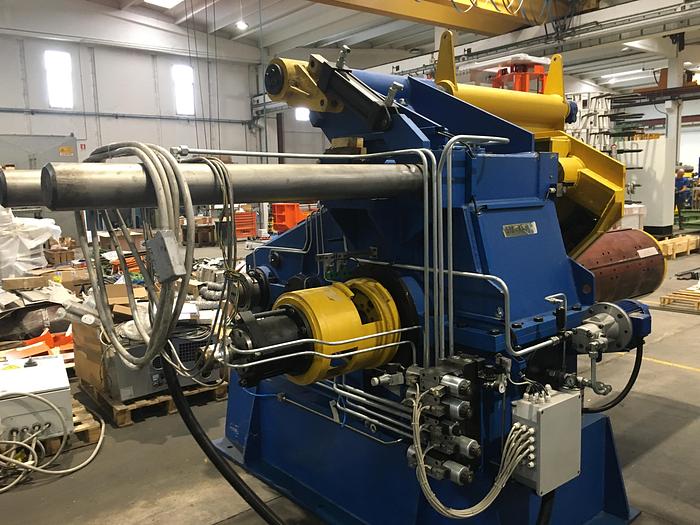

FIMI 1000x3mm Slitting Line (Us./Revamped) #4357

FIMI 1000x3mm Slitting Line (Us./Revamped) #4357

orCall +39 393 577 2205

Description


< to see it:

the meeting point is at the intercontinental airport of Milan-Malpensa, Italy

  • free shuttle for our visitors



RE-MANUFACTURED, LIKE NEW


Dual Head


150m / minute 15ton Decoiler & Recoiler - direction: left to right


Lot of tooling


in stock. warehoused

ready for delivery

(if an acceptance test is required: delivery possible from January 2023)


for material thickness range : mm .3 ÷ 3, with tensile strength : N/mm² 450

aluminium, carbon steel, electric steel, galvanized and prepainted steel



- Coil max width : mm 1000

- Coil max weight at entry & exit : kg 15000

- Coil max outside diameter at entry & exit : mm 1650

- Coil inside diameter, decoiler : mm 508 and 610* (* using spacers)

- Coil inside diameter, recoiler : mm 508


- Material feeding speed : m/min 10



  • Number of cuts with thickness mm .3 - .8: 35 - with mm 1 : 27 - with mm 1.,5 : 13 - with mm 2 : 7 - with mm 2.5 : 4 - with mm 3 : 3
  • Min. slit coil width : mm 20





EQUIPMENT LIST


Item 1.1              COIL LOADING CAR

Item 2.1              DECOILER

Item 2.2              SET OF SPACERS FOR DECOILER

Item 2.3              PAPER WINDER

Item 3.1              COIL OPENING TABLE

Item 3.2              ENTRY PINCH ROLL

Item 3.3              CROP SHEAR

Item 3.4              3 RUBBERIZED STABILIZING-ROLLS

Item 4.1              DOUBLE HEAD SLITTER (shafts ø140 mm)

Item 5.1              SCRAP BALLER

Item 6.1              BURR ROLLS

Item 6.2              TENSIONING PINCH ROLLS

Item 6.3              QUADRANT ROLLS

Item 7.1              FELT PAD MOBILE ON CARRIAGE

Item 7.2              SEPARATOR DISC HOLDING SHAFT ON CARRIAGE

Item 7.3              TENSIONING BRIDLE ON CARRIAGE

Item 7.4              DEFLECTING ROLL ON CARRIAGE

Item 8.1              RECOILER

Item 9.1              COIL UNLOADING CAR

Item 10.1            PNEUMATICS

Item 10.2            HYDRAULICS

Item 10.3            ELECTRICS

Item 10.4            TELE-SERVICE for remote assistance

Item 11               SAFETY FENCES

Item 12               SLITTER TOOLING



-


-

Specifications

ManufacturerFIMI
Model1000x3mm Slitting Line (Us./Revamped) #4357
ConditionUsed
