FRIGERIO Wire Drawing Line (Used) #4851

Technical data:

• Entry & exit diameters > entry 5.50/6.50 mm - exit 1.60 mm low carbon / low carbon steel
• Drawing speed > drawing speed max 15 m / s

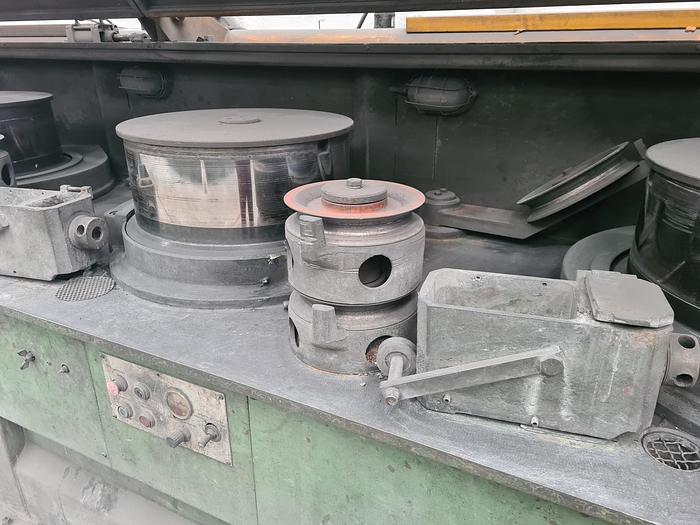

• Drawing blocks > drawing dies mount 43x27mm

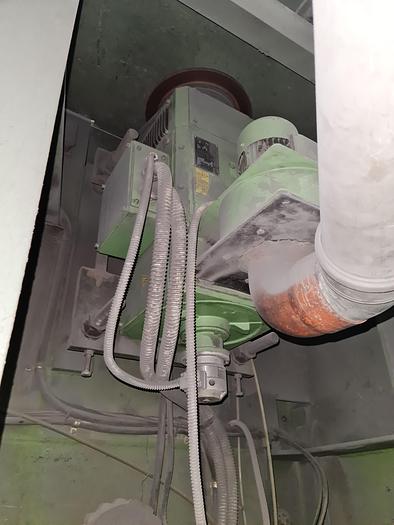

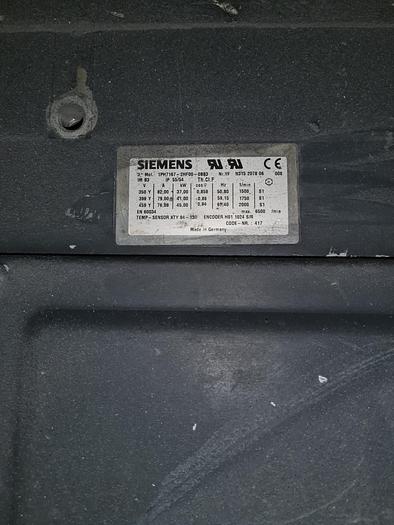

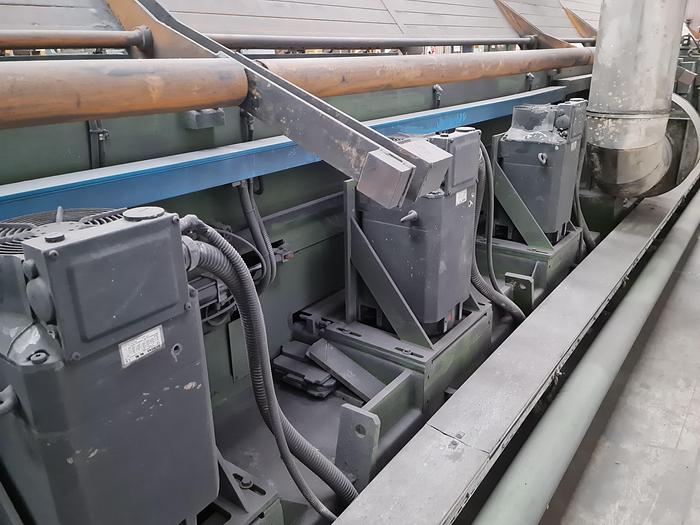

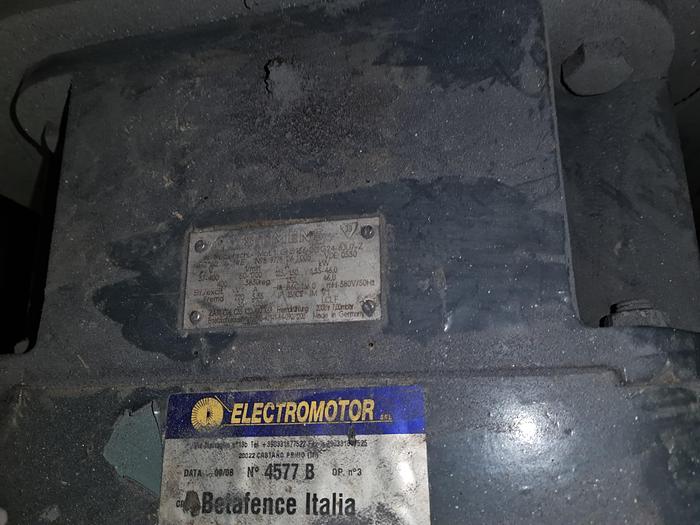

• Motors > Motors: first 7 steps / passes 1-7 > 46 kW DC; last 3 steps / passes 8-10 > 37 kW AC with inverter

Line consisting of: / equipment list:

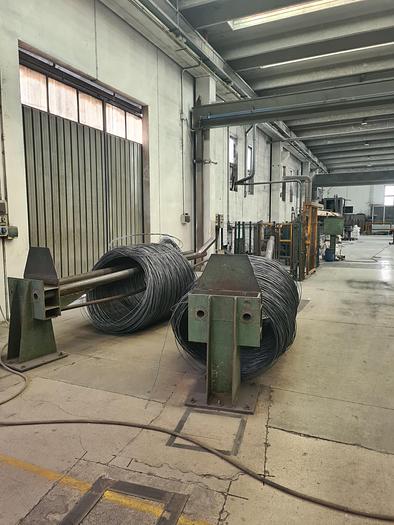

• Unwinder >     Horizontal-axis wire rod uncoiler (alternatively, we can provide a vertical one with two tilting reels for wire rod loading)            / horiz. axis type reel existing; -- alt.: we can supply a vertical one + 2 overturning wire rod decoilers

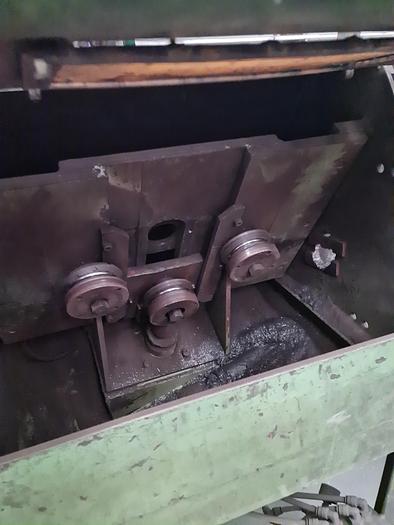

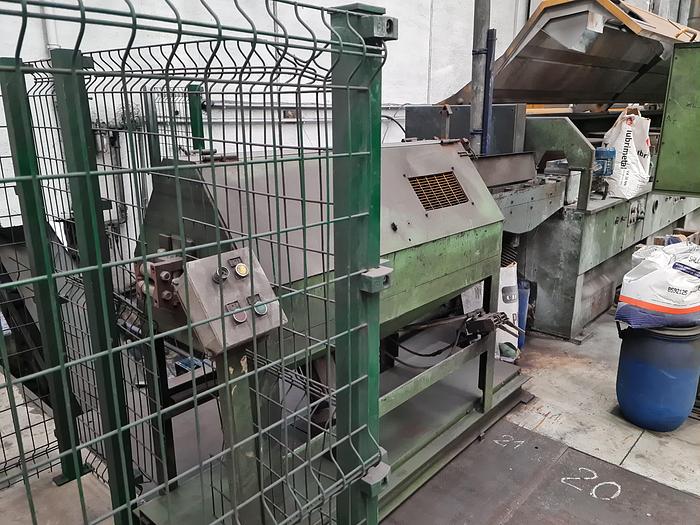

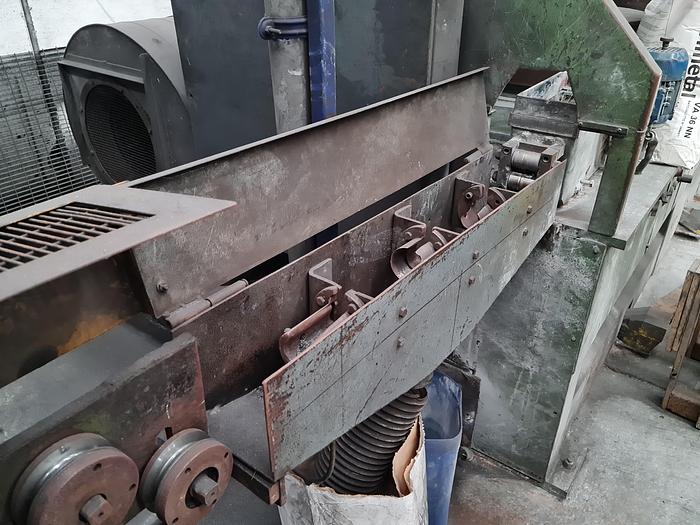

• mechanical descaler > mech. descaler

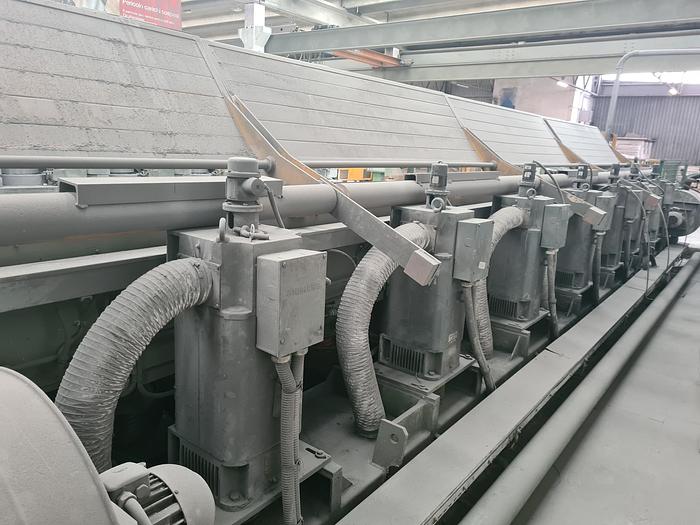

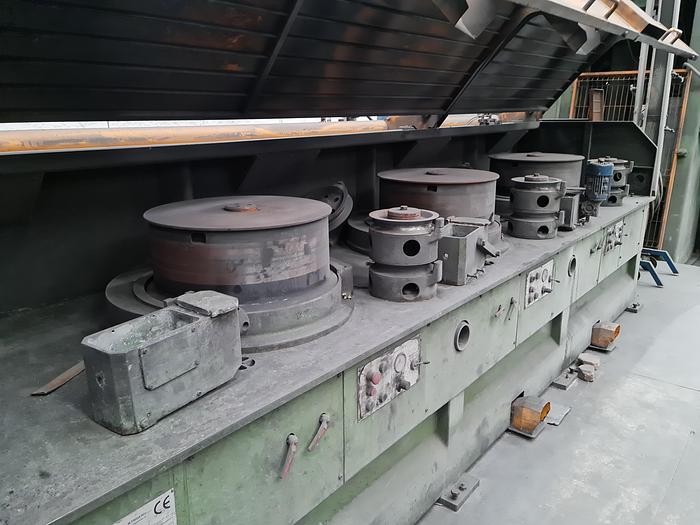

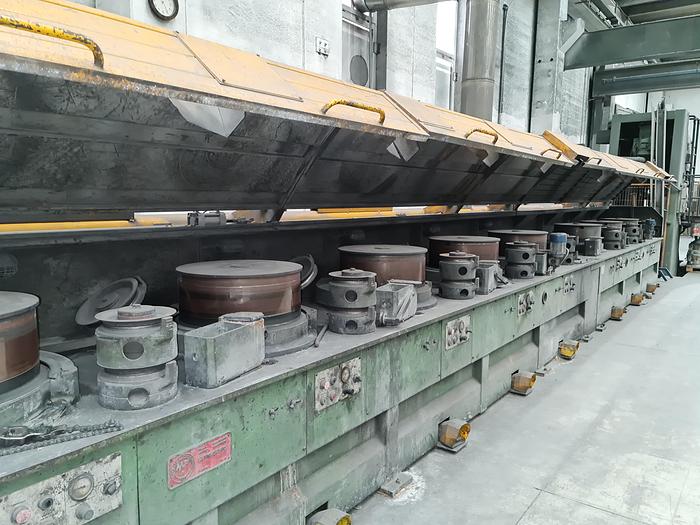

• trail FRIGERIO 10 steps > 10-step drawing m/c

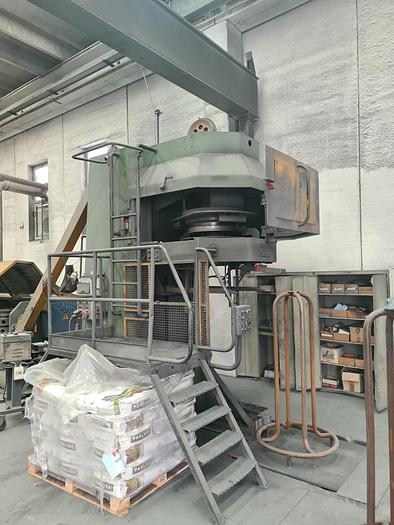

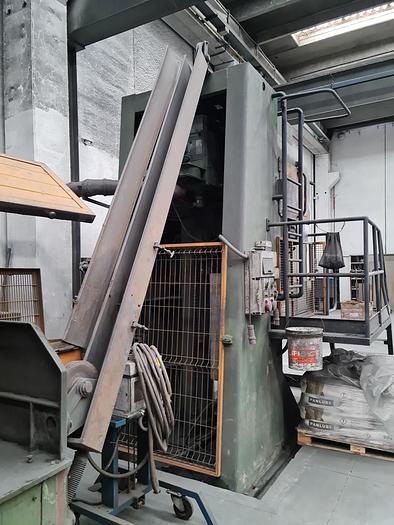

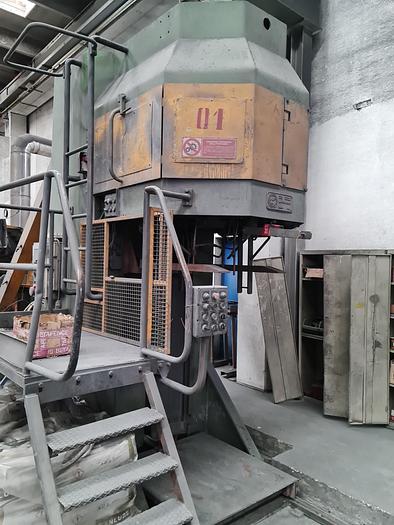

• vertical skein former with wire storage on reels (alternatively, we can provide a horizontal winder for Din 800/1000 iron coils)  > vert. skein former with 59 kW DC motor /  -- alt.: we can supply a horizontal one for Din 800/1000 coils

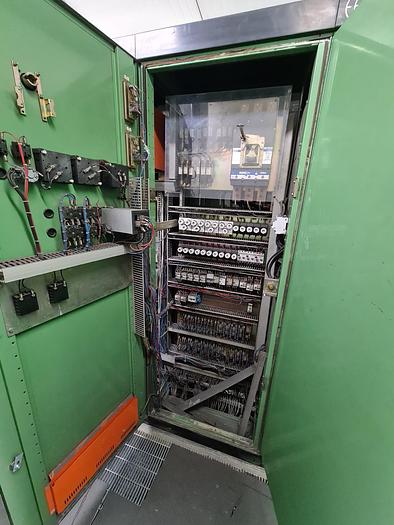

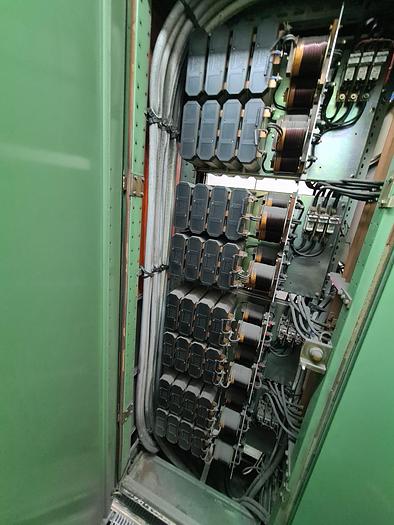

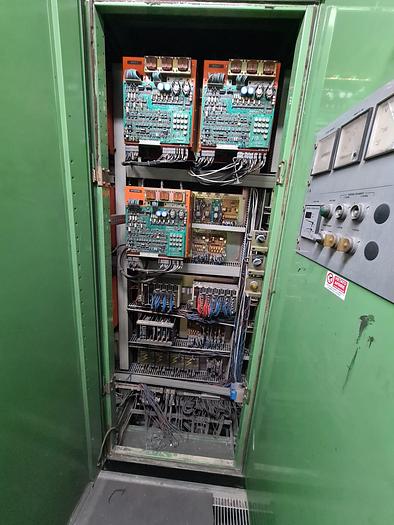

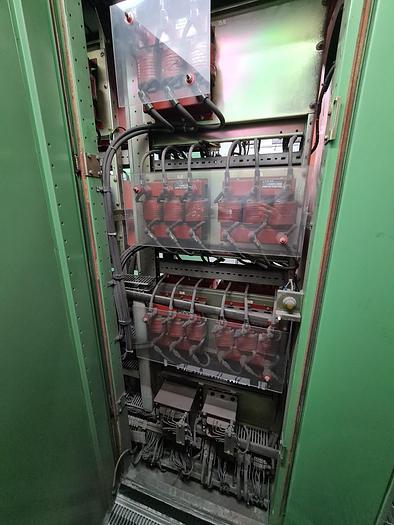

• electrical equipment in DC/AC < electrics

-
