Description

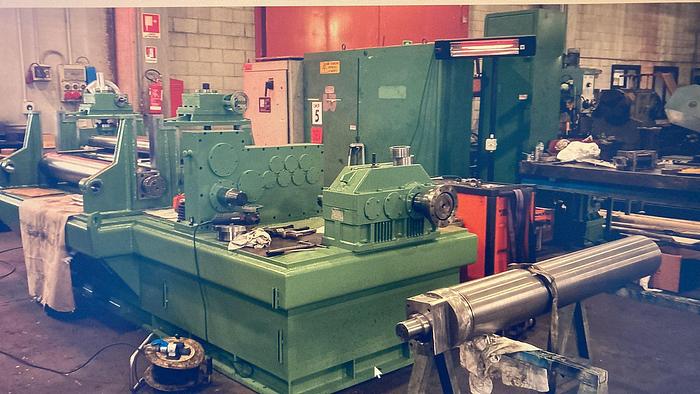

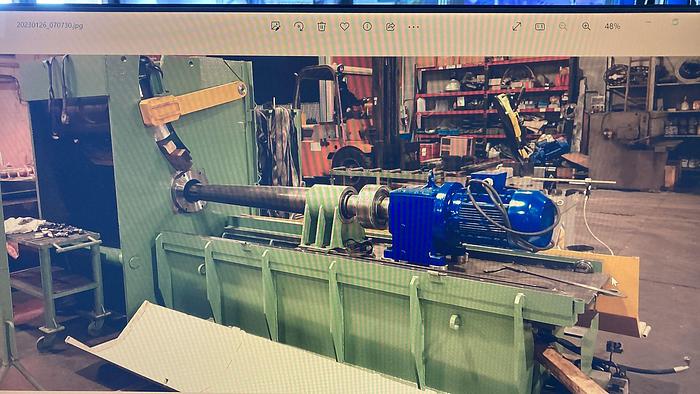

(A "twin" line of it is now being revamped at our Plant 2, in the Milan area - Italy: see the last two photos on the side)



1550mm x .8-4mm

25 ton

100m / minute

Direction: Right to Left


Year when built: 1987

Dismantled: January 2023 - Warehoused


  • no electrics
  • no strip tension unit




1) PROCESS MATERIAL



Max coil width: 1550mm

Thickness min .8mm max 4mm (Rm=500 N/mm2)

Max coil weight: 25 ton

Coil ID: decoiler mm 500-800, recoiler mm 500.




2) LINE SPECIFICATION



Line speed: 0-100 m/min.

Line direction: right-left.

Voltage Supply: 380 V – 50 Hz

Total installed power: 200 kW

Air pressure: required min 6 bar

Working pressure-hydraulic: 100 bar




3) EQUIPMENT DESCRIPTION



- Coil car, underground, hydraulic movements.

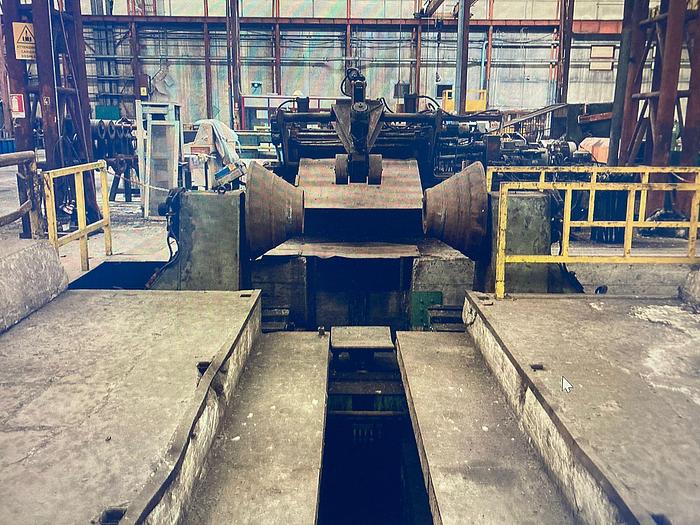

- Decoiler, double cone type

  Disk brake, pneumatic

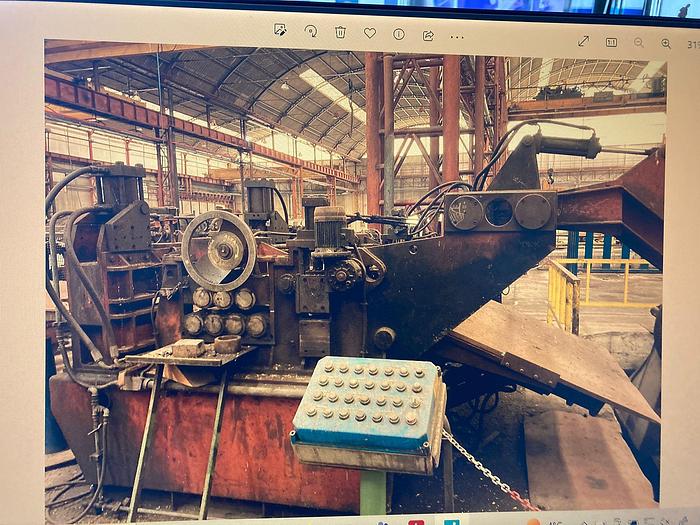

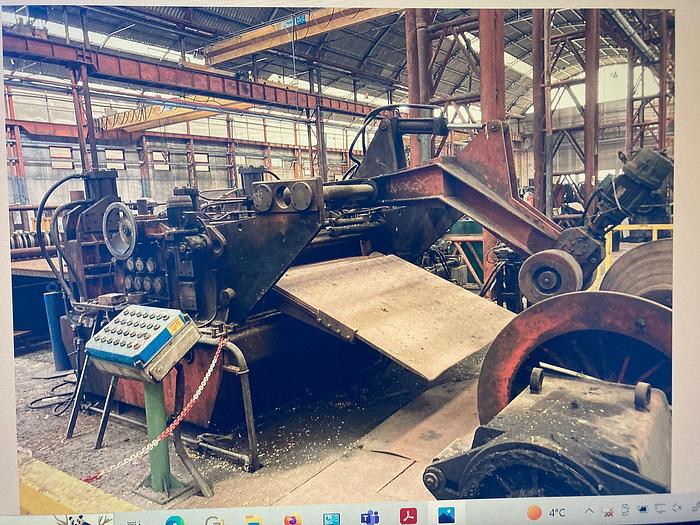

- Material feeding unit consisting of:

  •  coil opener
  • snubber roll, hydraulic
  • pinch-roll, with AC motor

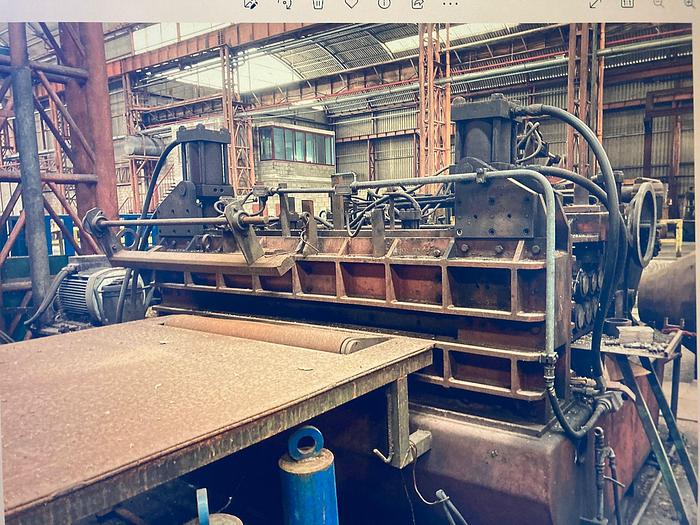

  • 7 roll straightener
  • Crop shear, hydraulic
  • Bypass table to slitter head



 - Strip entry guide before slitter head

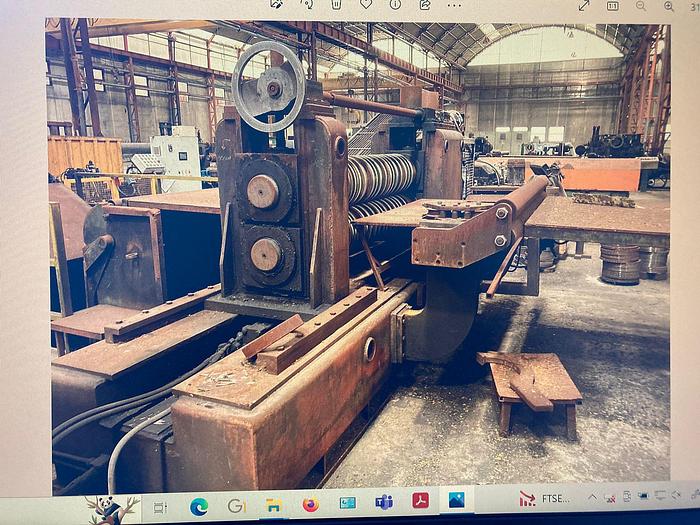

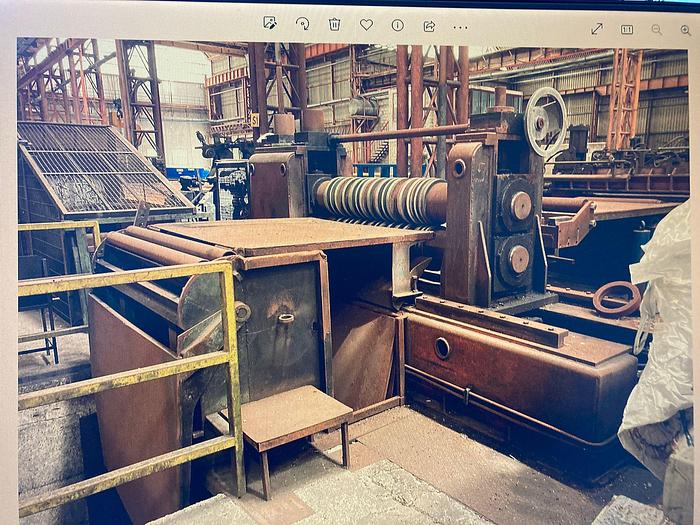

- Slitter head -- mandrel diam.: 200mm

  Knife diam: min310 - max 390mm

  DC motor drive

  Stationary brake.

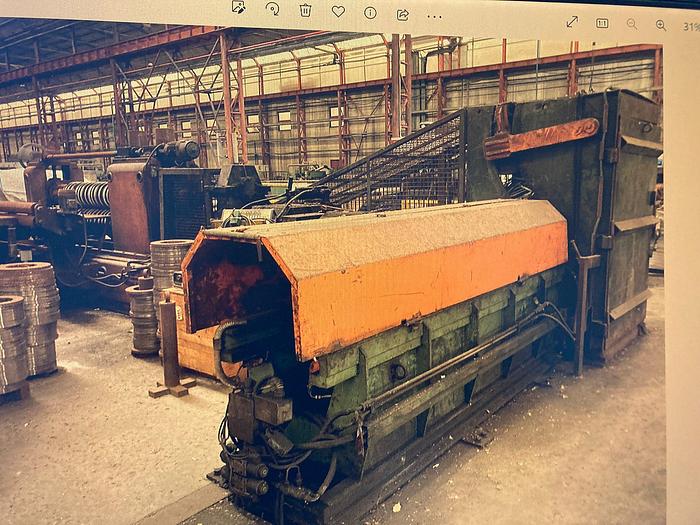

- Scrap baler, single drum 1000mmx800mm

   AC motor drive


 - Roller table over loop pit, with by-pass table



- Braking Unit with deflector roll > no longer available

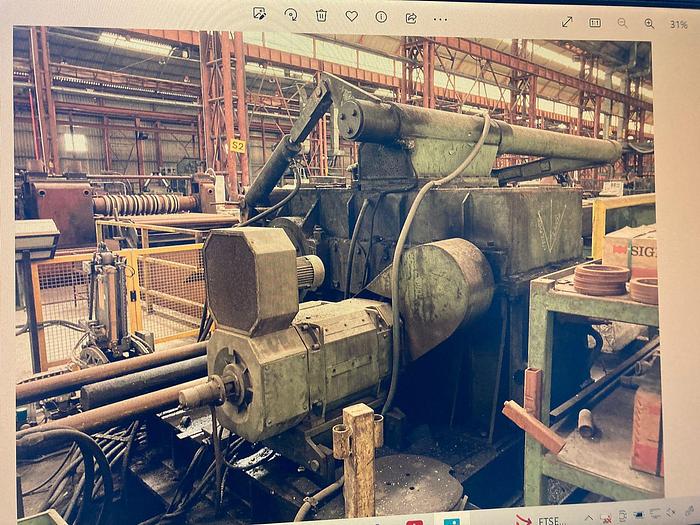

- Recoiler hydraulic expansion, diam. 508 mm.

   DC motor. Stationary disk brake, pneumatic.

  Separating arm.

  Pusher.

  Front support.



   - Coil car, underground, hydraulic movements.

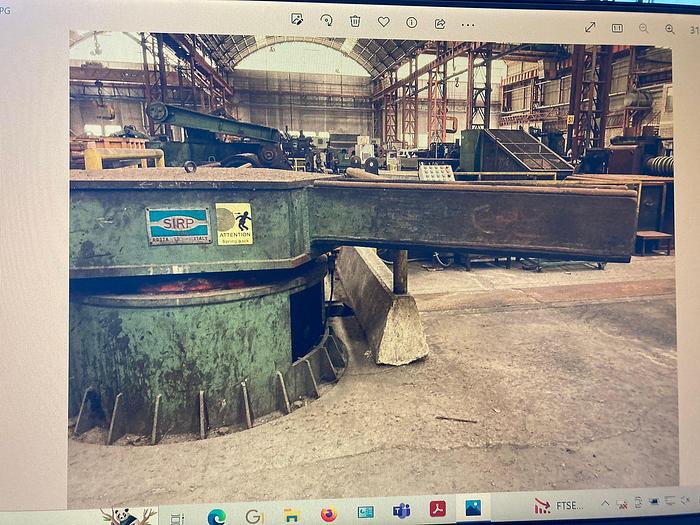

Turnstile arm- 4 arms  25 t/each

   Motorized with hydraulic motor.



- Hydraulic oil unit (power pack) complete with:

  • 3-phase electric motor
  • Pump -- max pressure 120 bar
  • Oil-air cooler
  • Standard accessories



- TOOLING (approx. 100 knifes, rubber rings, spacers; all in poor condition)



The electrical equipment is not available




AVAILABLE TECHNICAL LITERATURE:


- Foundation drawing

- Hydraulic and pneumatic equipment drawings





OME was an established Italian manufacturer of tube mills and slitting lines. The Company activity was then taken over by OTO MILLS



-

Specifications

ManufacturerOME
ModelSlitting Line #4857 --oldish
ConditionUsed
