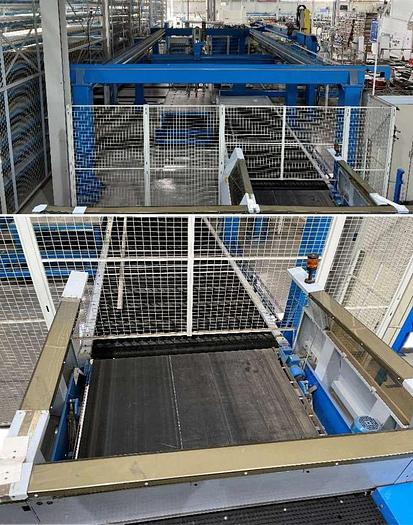

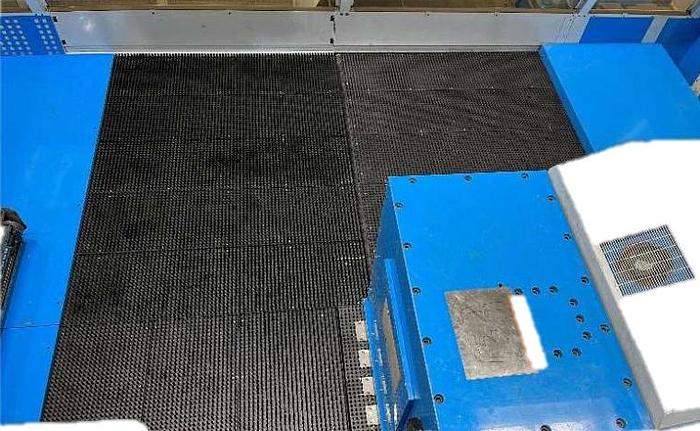

Finn-Power Sheet Metal FMS (Used) #4859

Year 2005

Very good condition and no maintenance backlog: all maintenance work has been carried out regularly by Prima Power.

A very extensive lot of spare parts is included.

Equipment List:

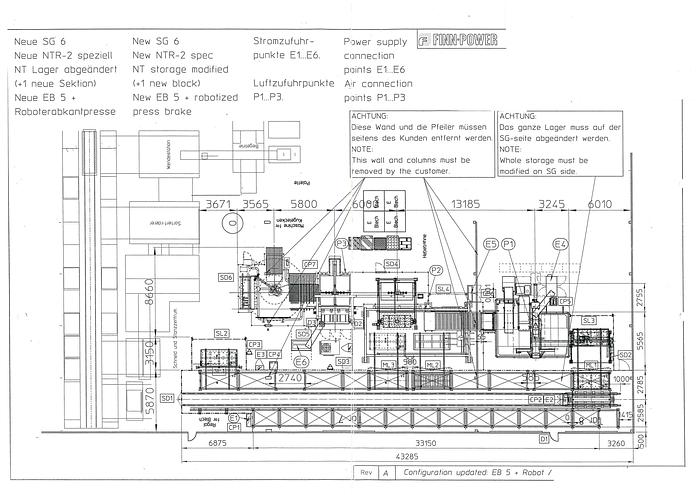

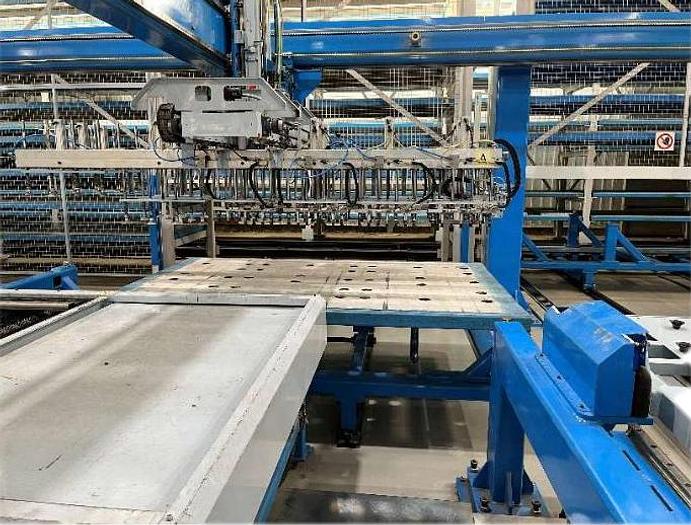

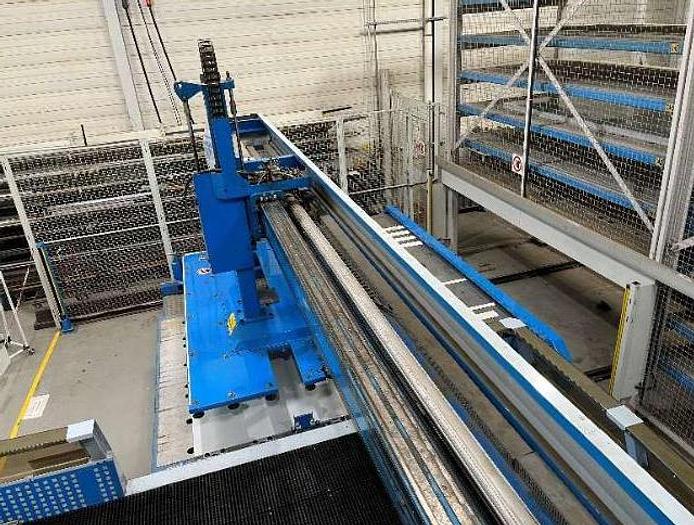

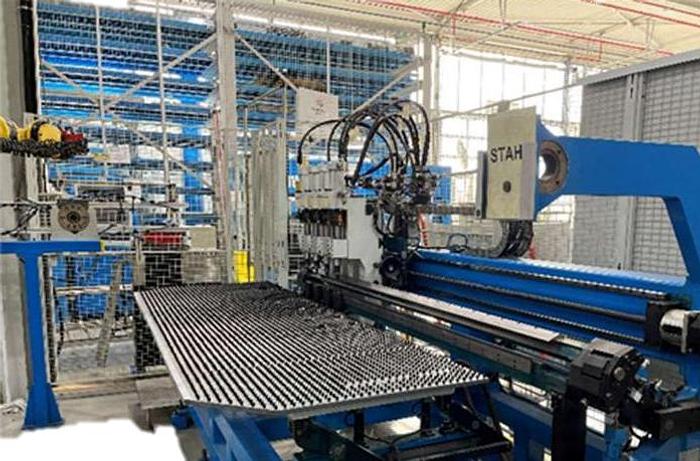

• Finn-Power SG6 punch, • Finn-Power Night Train (240 cassettes ), • Finn-Power PSR-Robot (Picking / Stacking / Robot), Finn-Power EB 5 bending cell, & Fanuc Robot at the clinching station

Jetcam programming software incl. license

Technical data:

Maximum length of bend: 2.550mm

Minimum length between bends: 350mm

Minimum width between bends: 160mm

Sheet length (min.-max.): 370-2,850mm

Sheet width (min.max.): 180-1,500mm

Largest diagonal of sheet: 3,000mm

Maximum height of bend, type SH: 200mm (127mm for type N)

Minimum height of 1st bend: 5 times the material thickness

Max. bending: 55mm

Maximum weight of sheet: 101 kg

Maximum stack height: 220mm

Maximum weight of stack: 3,000 kg

Flatness of sheet: 10mm

Maximum material thickness:

• St37 steel: 3.2 mm
• Stainless steel: 2.2 mm
• Aluminum: 4.0 mm

Minimum material thickness:

• .5 mm

Bending angle: -135 ° to + 135 °

Maximum number of bends per side: 20

Angle tolerance: +/- 0 ° 40 ′

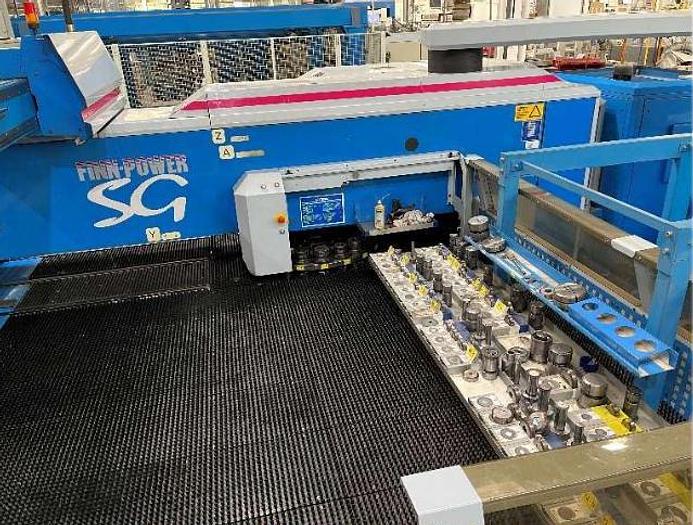

SG6 ^

Series 11, Control 840 D (Powerlink and Control Link) Installation

2005 Revolver 20 Station, 3 Index, 2 Multitool, Mate Nova System

Sheet size 3000*1500; 1 Sorting Station for smaller parts (1500*600)

Programming Jetcam

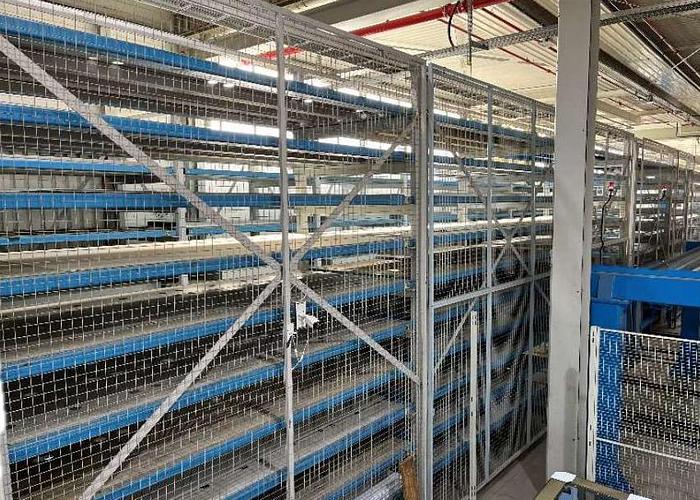

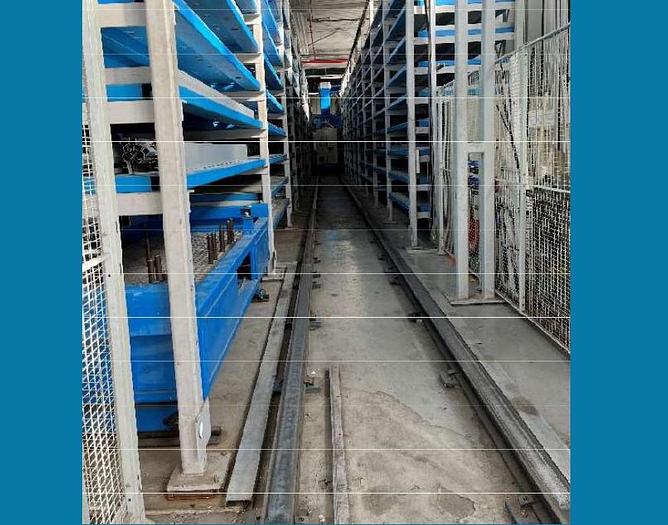

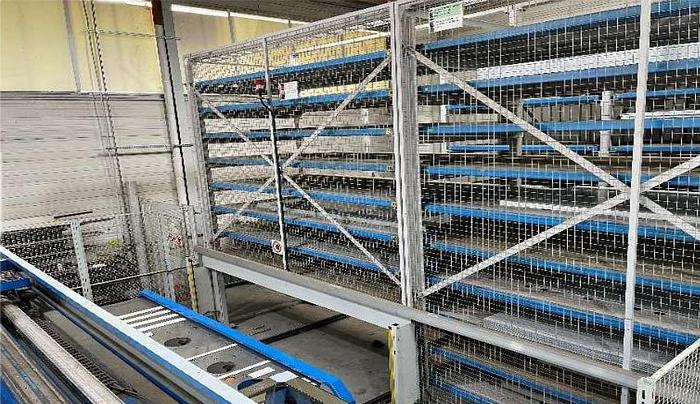

Night-Train ^

240 Cassettes (big for sheet 3000*1500mm and small

cassettes for sheet 2200*1500)

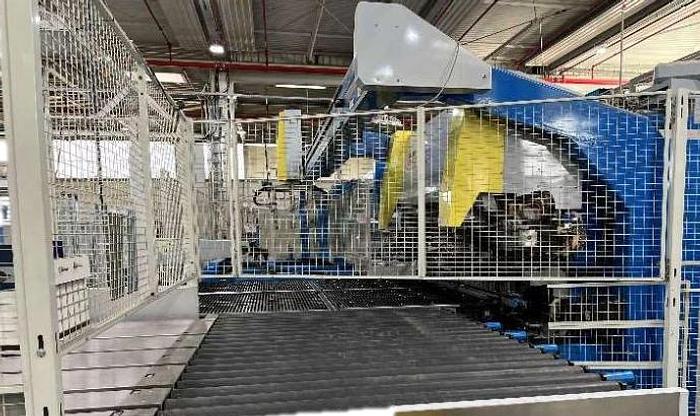

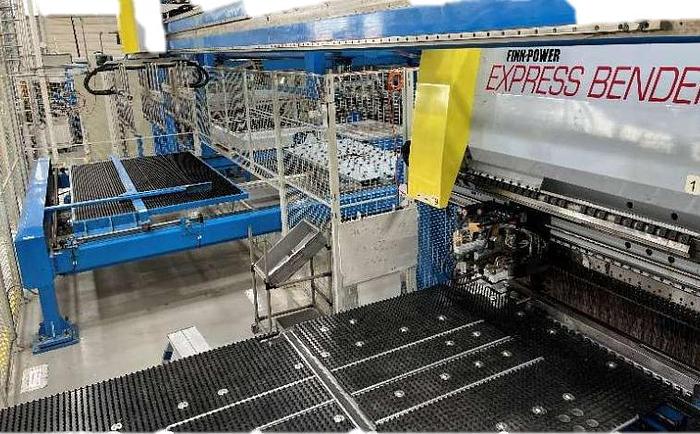

EB5 ^

Bendlink, Bendterm,

Turning device, AUT, ASP, IEU, LBN

-
