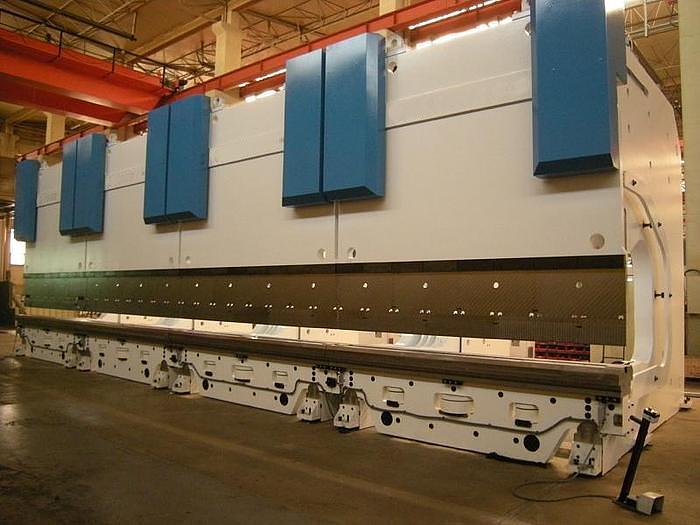

F&P Tandem Press Brakes w. Auto. Part Handling #4878

"One Operator" High Productivity System - specifically designed for production of pole shells

DELEM Controller; simultaneous management of, max. 4 connected machines

No foundations are required

• Plate width up to 2.500mm
• Plate length up to 16,000mm
• Machine gap up to 2,000mm (also: variable)
• Force up to 2.000ton
• 8 hydraulic cylinders
• Hydraulic, controlled crowning-recovery system
• Bilateral part-ejection system (for polygonal pole shells)
• Pole shell lifter, to avoid damaging the die during its extraction
• Anterior and posterior positioners
• Real-time data monitoring system
• Remote assistance via Internet connection

• All tooling is made by ourselves

The machine complies with all CE standards, in terms of safety and environmental friendliness (noise, fume extraction, energy recovery):

- complies with all applicable requirements of Directive 2006/42/EC

- complies with all applicable requirements of Directive 2006/95/EC (low voltage)

- complies with all applicable provisions of Directive 2004/108/EC (electromagnetic compatibility)

- complies with EN ISO 12100 (General principles on the design of machinery)

- complies with EN 60204 (Electrical equipment for machines)

We implement the management system in accordance with the European standard ISO 9001:2015 for the design, construction, installation and maintenance of automated industrial steelmaking equipment (EA 18)

.

-
