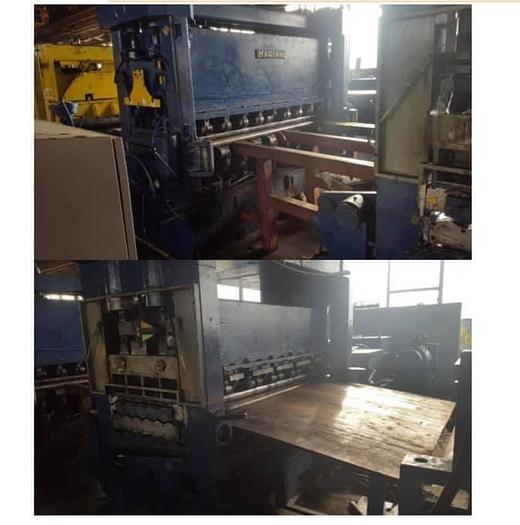

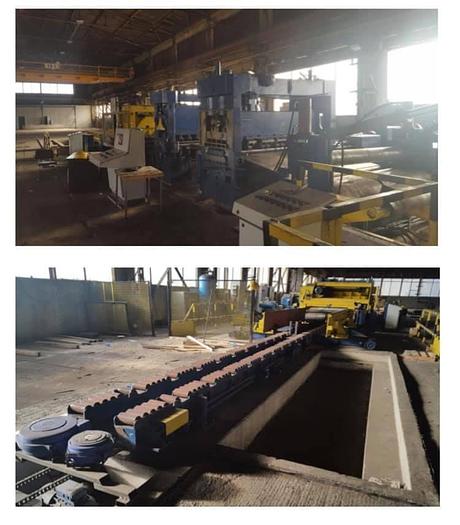

ATHADER+MARIANI 2000x10mm CTLL #4898

Built: 1976

Electrics & Electronics: new in 2017

Direction: right to left

Line disassembled

Flying Shear Type, 15m / minute

30ton Decoiler - Coil ID: 508-850mm; Coil Max. OD: 2000mm

Ready for delivery as is

Location: Eastern Europe

Capacity:

the line can process 800-2000mm x 2-10mm Coils

• material max. tensile strength: 500N/mm2

max. sheet length: 12m

Equipment list:

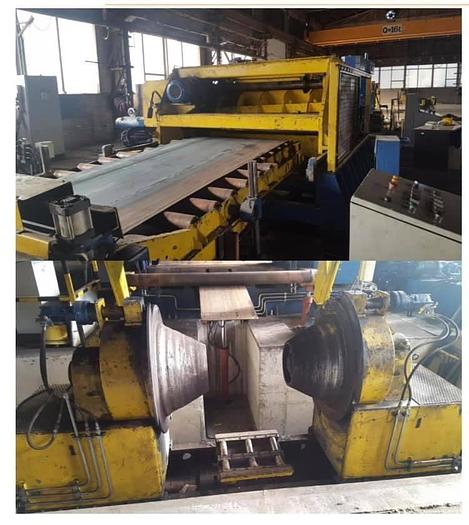

Double Cone Decoiler

Material Threading Telescopic Table & punch Rolls

Leveler 1 for material thickness 6-10mm -- 11 roll with 5+5 back-ups mechanically-controlled, roll dia. 90mm

Leveler 2 for material thickness 2- 6mm -- 17 roll with 9+9 back-ups mechanically-controlled, roll dia. 70mm

Flying shear with mechanical blade gap ajustment

3-Station Sheet Stacker

-
