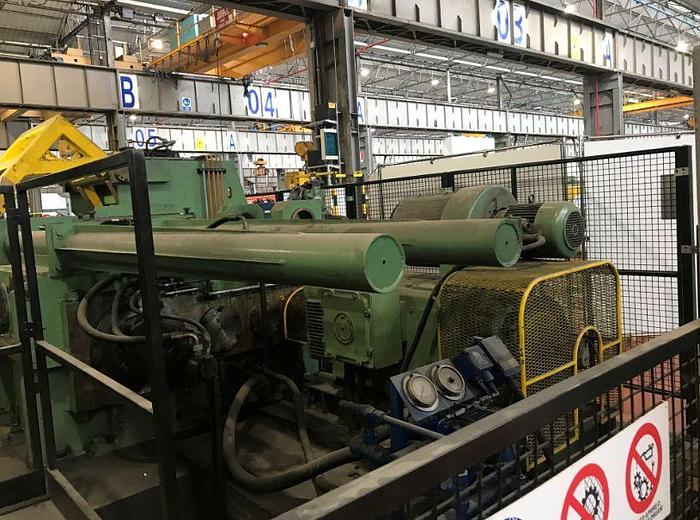

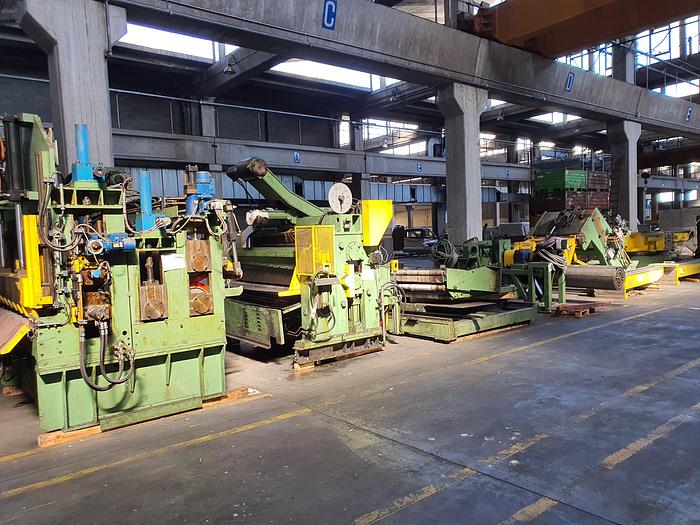

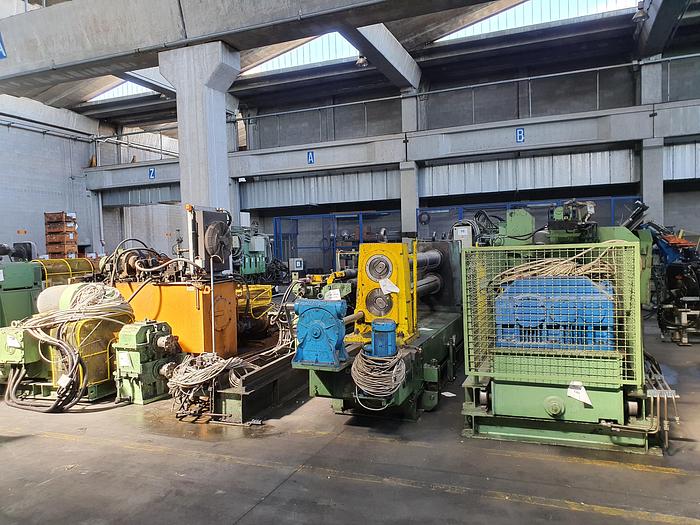

SA.MO.+MINO 1800x3mm Slitting Line (Us.) #4911

Built 1985

For: hot and cold rolled, pickled steel

Direction right to left

300m / minute with material thickness up to 1.99mm

150m / minute with material thickness 2mm to 3mm

Material thickness: .6mm to 3mm

Line footprint 16m x 17.5m

Equipment list:

1. 30ton hydr. coil car

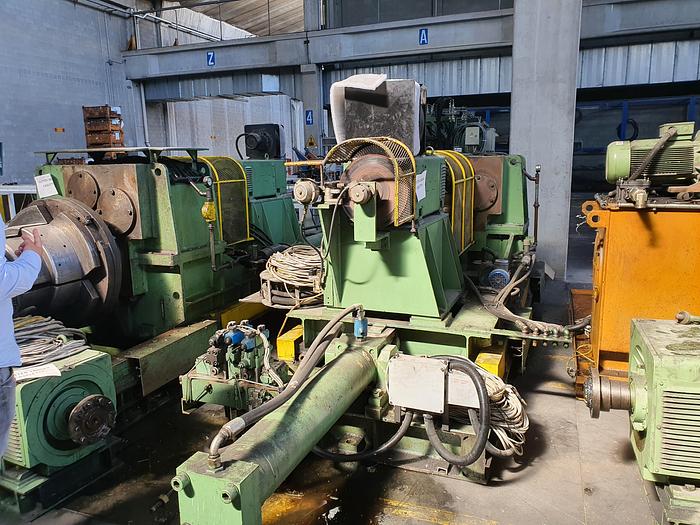

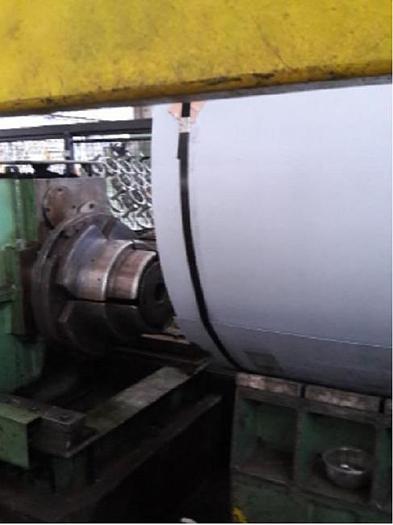

2. 30ton double cone type recoiler - Coil OD: 508-760mm

3. Material threading station with 5 roll straightener & butt shear

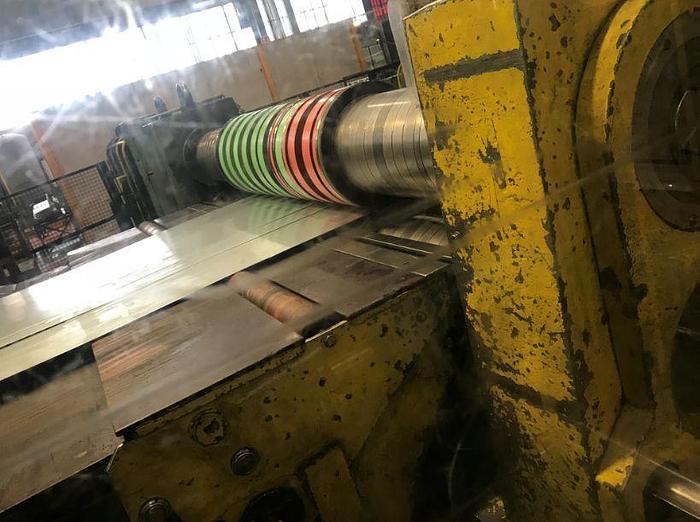

4. Slitter

5. Butt shear overcoming table

6. Mobile table for scrap pit

7. Burr planishing roll

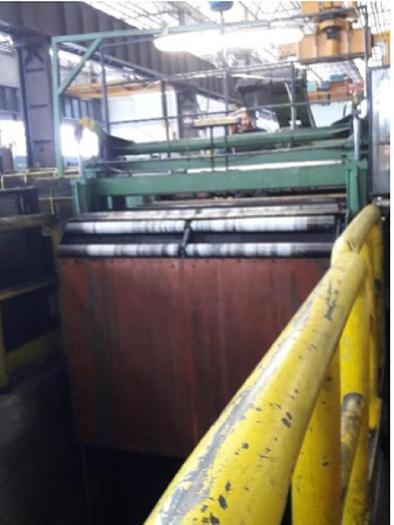

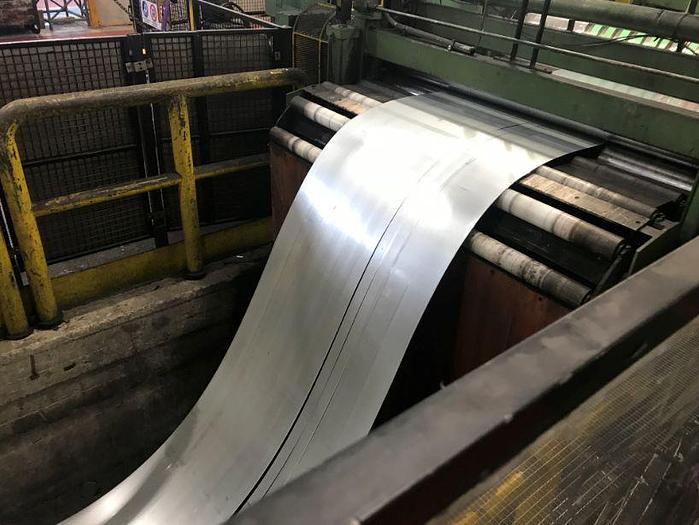

8. Loop pit entry quadrant rolls

9. Lop pit exit quadrant rolls and separator shafts

10. Strip tension bridle

11. Crop shear

12. Deflector roll

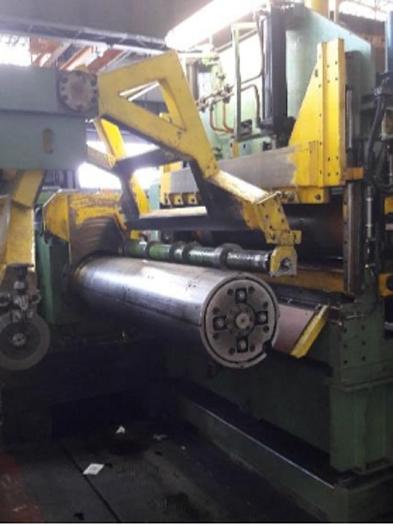

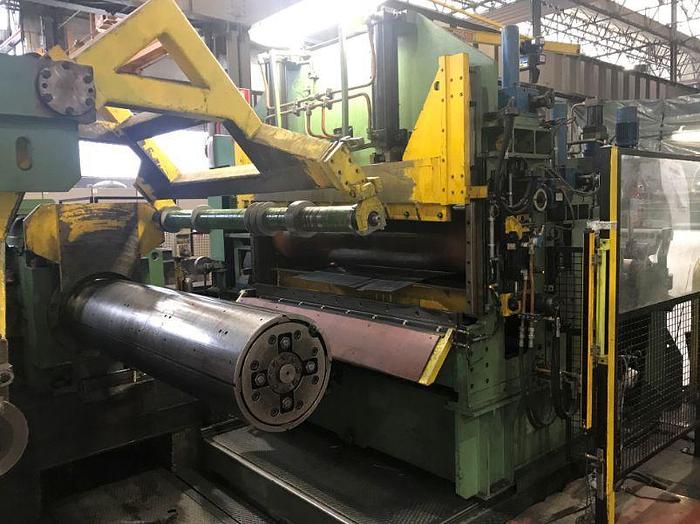

13. 20ton overhung drum recoiler

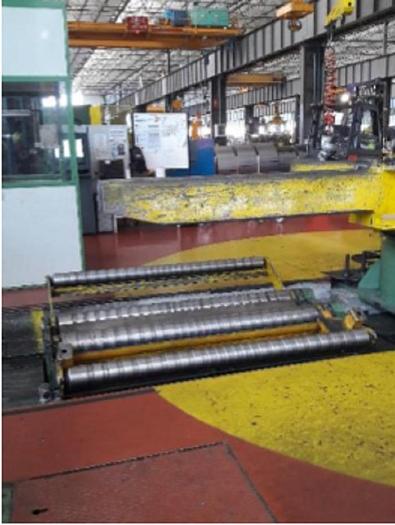

13.1 - Exit turnstile

14. Separator shaft frame

15. Hydraulic power pack

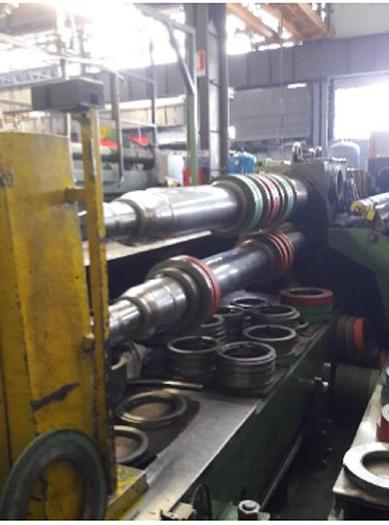

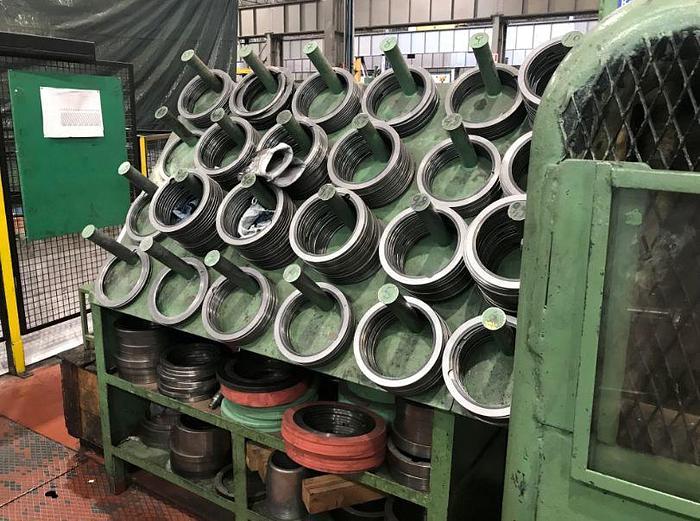

16. Slitter tooling

17. Strip separator tooling

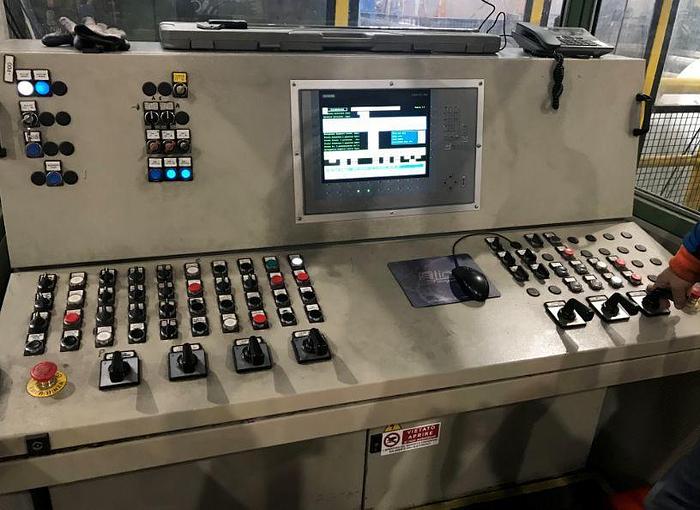

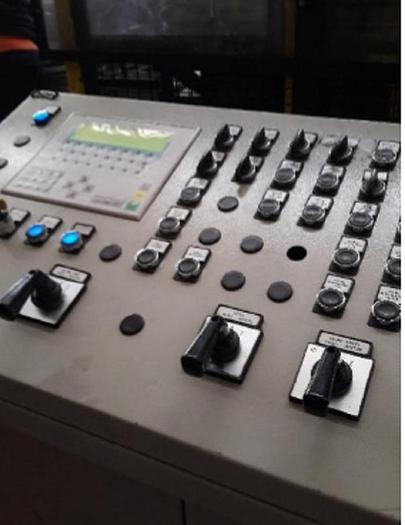

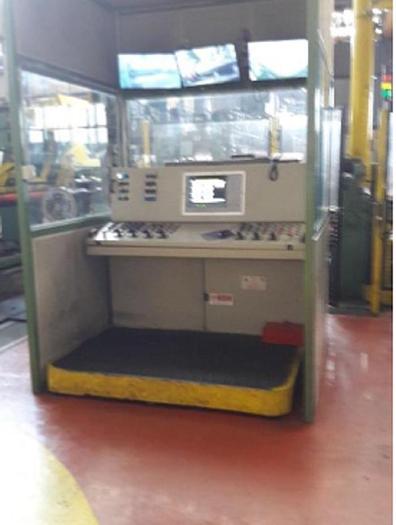

18. Control panels

19. Electrics electronics etc.

-
