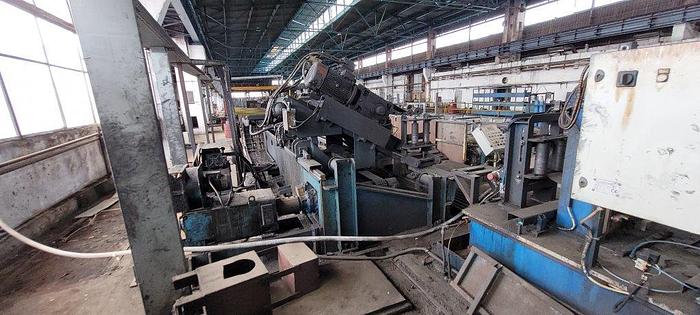

GUZZETTI+MAIR Ø200mm ERW Tube Mill #4927

Year 2008

Automatic product stacking system by MAIR

Tube wall thickness 2mm to 6mm with motorized roll tooling adjustment

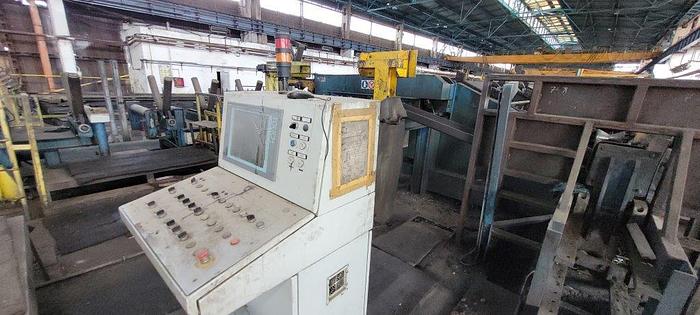

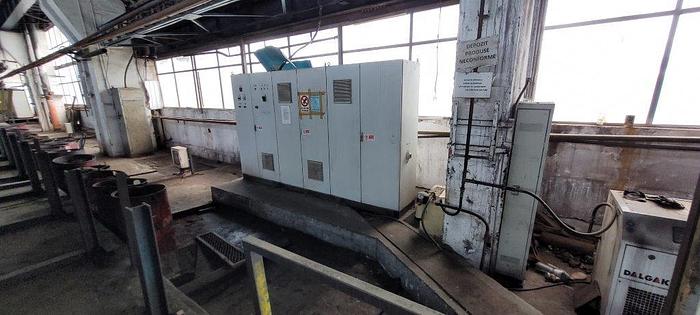

PLC – Siemens / and all inverters and servo drives

Double head decoiler

Manual shear-welder (coil end joiner)

Horizontal strip accumulator

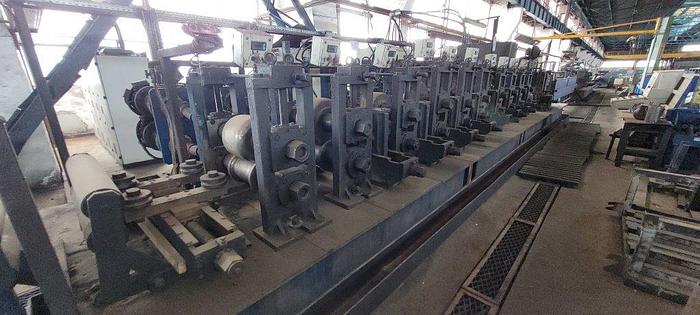

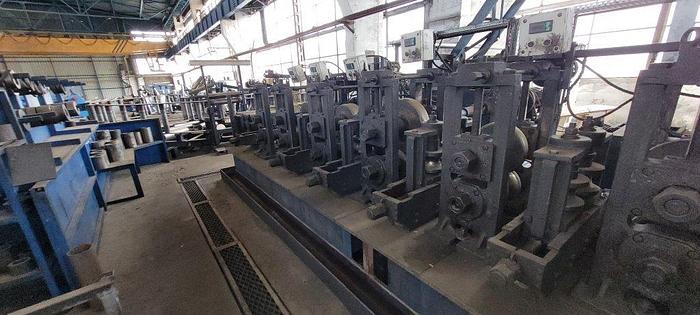

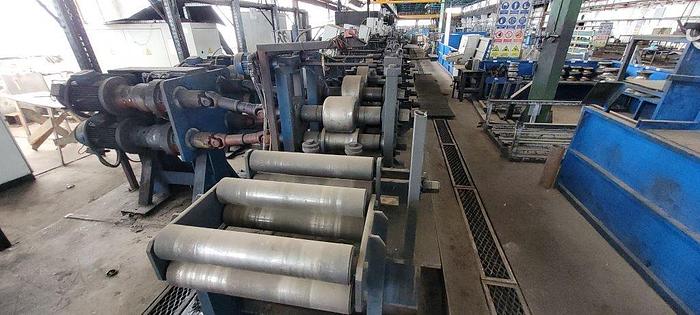

10 station forming machine

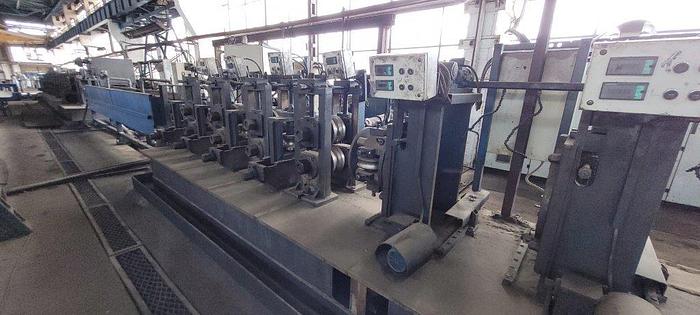

4 station calibration machine + TH with mechanical movements

TERMOMACCHINE welder

Cooling system

Flying cutoff with two gearmotors, one for hot- and one for cold- cut

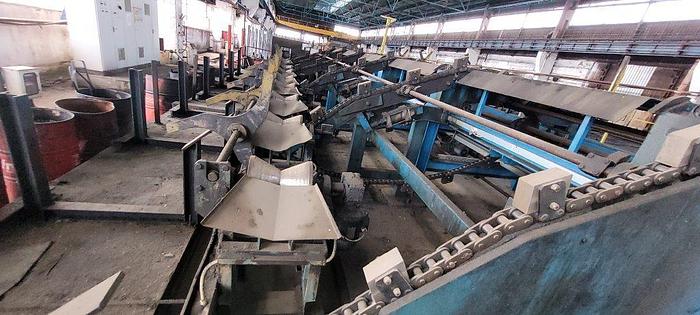

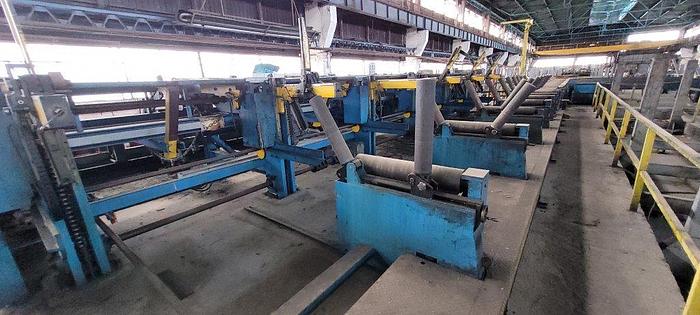

Tube stacking system - for max. product length 12m. The packs are with hexagonal or octagonal section for round tubes, and square or rectangular section (depending on product dimensions) for square/rectangular tubes

The mill is TOOLED as follows:



- for Round Tubes - for Square Tubes

Ø76,1mm 60x60mm

Ø88,9mm 70x70mm

Ø95mm

75x75

Ø101,6mm

80x80

Ø108-1set

85x85

Ø114,3-1set

90x90

Ø125 – 1 set

100x100

Ø133-1set

105x105

Ø150-1set

120x129

Ø159-1set

125x125

Ø188-1set

150x150
