Our Ref.: 23/22

Pre-owned 1300mm x .5-3.0mm (370 N/mm2) Coil To Coil Slitting Line [* 4 cuts possible at 4mm material ^ thickness] - for: hot rolled, cold rolled, galv. steel

Minimum strip width: 30mm

Dismantled, warehoused In operating condition; can be proposed either 'as is' or, completely revamped by us Line direction: left to right

Line footprint: 14m x 7m

Passline height: 1230mm

Speed: max. 100m / min

Total installed power: 110kW

Actual power consumption: 65kW

El. supply: 400(380)V / 50Hz

Air pressure: 6 bar

10ton Decoiler, Recoiler and Coil Loading Car Entry Col ID: 508mm Exit Col ID: 508mm


E q u i p m e n t L i s t :

Col Loading Car, "overfloor"

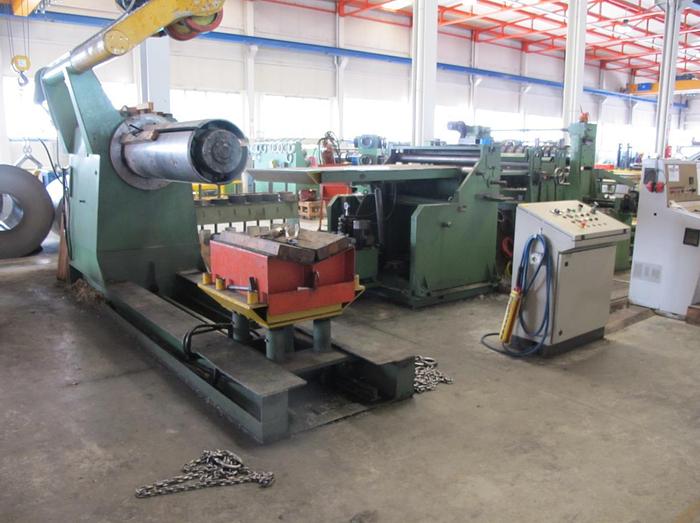

Hydraulic Motor Driven Decoiler with disk brake; hydraulic mandrel expansion: 480-530mm. Powered Snubber Roll

Coil Opener & Peeler Table

Coil Centering Unit and feed- Pinch Rolls

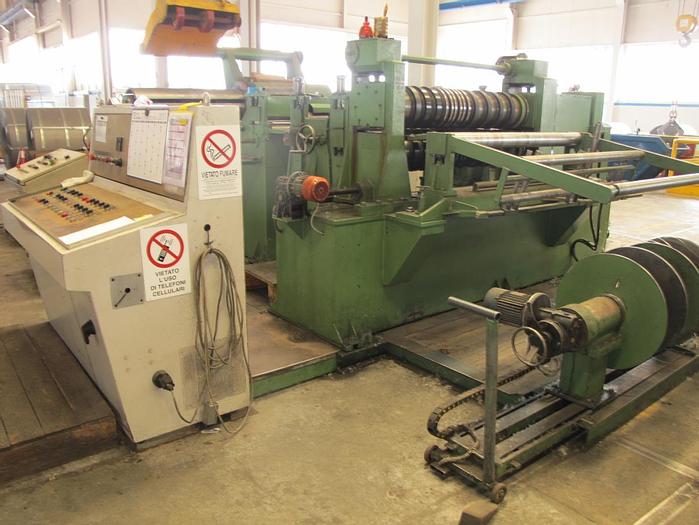

D.C. Motor Driven Slitter Head with arbor dia.: 160mm

Double Drum Coil Edge Trim Winder

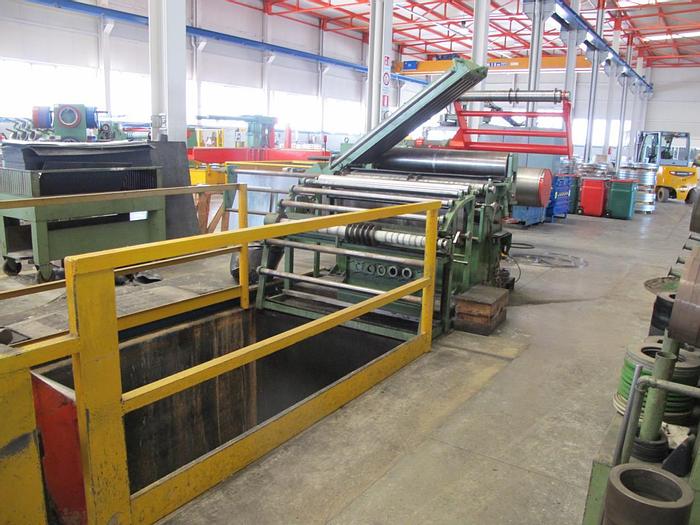

Loop Roll Tables with two spacers-rolls

Bypass Table

Air Strip Tension Pad with 'felt'

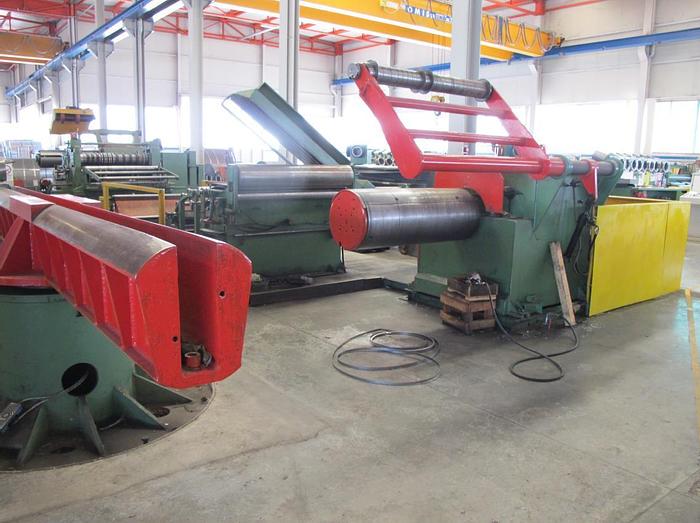

NEW Deflector roll D.C. Motor Driven Recoiler with hydraulic mandrel expansion, coil ejection plate; overarm & separators

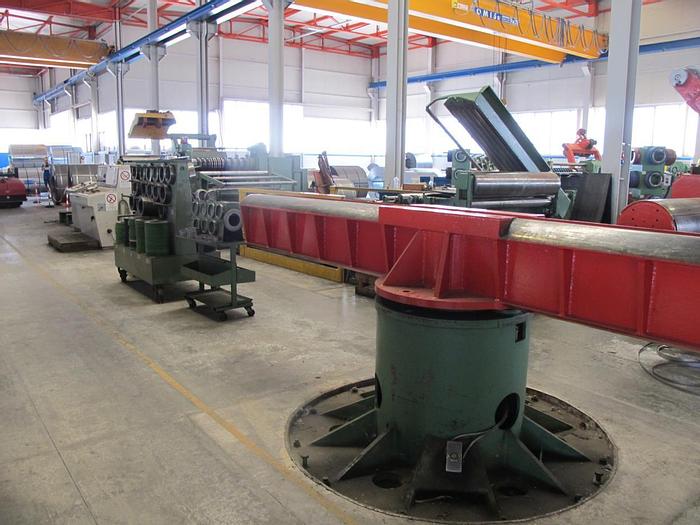

Two-Arm Powered Turnstile, with cap.: 12ton x 2

Hydraulic Power Pack

BRAND NEW Electrics :


- 1 Electric cabinet, dimensions: about mm 4.000x600x2.100mm; paint colours: RAL 7035; IP 54; standard accessories (fan, filter, lights, air conditioning etc.).

Inside cabinet, all required electric power and control devices, including PLC Siemens Simatic 1500-TIA portal for process control.

(Alternative Brands available upon demand).

Profinet connections.


- 1 Operator main switchboard, dimensions: about 800 x 600 mm; paint colours: RAL 7035; IP 54, including a very “user friendly” HMI on touch screen: SIEMENS touch 11” with a graphic representation of the line. 1 operator switchboard for the coil loading and feeding operations.


       The electric equipment designed for both modes of operation:


       1) strip tension

       2)  loop control (automatic).

Available technical literature :

  • foundation drawings
  • assembly drawing (for the line installation)
  • electrical diagram
  • hydraulic & pneumatic schemes
  • PLC software




Model1300x3mm Slitting Line #3611
