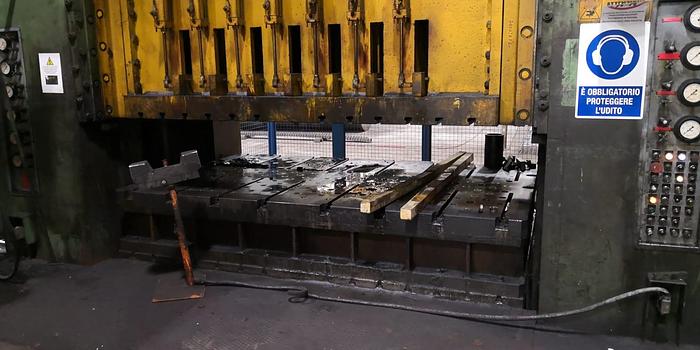

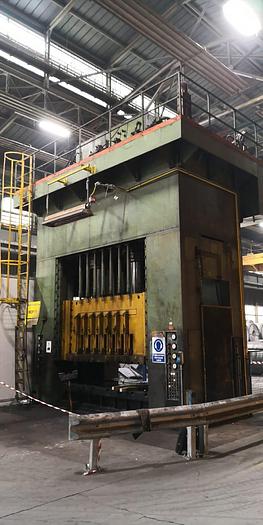

EMANUEL 2000ton Hydraulic Press #0159

• Model/type: Dea 2000/3200x2000-450
• Capacity/capacity: 2000 ton
• Double acting hydraulic press / double acting hydraulic press
• Maximum blankholder reaction / blankholder reaction capacity: 640 ton
• Useful thrust during slide opening / thrust during slide opening: 70 ton
• Installed power (3x150) / installed power: 330 kW
• Approach speed / approach speed: 450 mm/s
• Speed at full power / speed at full power: 13mm/s
• Speed at half-power: 23mm/s
• Return speed: 280mm/s
• Blankholder up-speed: 100mm/sec
• Max daylight between tables: 2200mm
• Table dims.: 3200mm x 2000mm
• Blankholder table: 2850mm x 1650mm
• Ram stroke: 1100mm
• Blankholder table stroke: 500mm
• Depth under floor level: 2500mm
• Height from floor to table height from floor: 300mm
• Height above floor: 7500mm
• Upper frontal width: 6000mm
• Upper lateral width: 3800mm
• Lateral opening: 800mm

-
