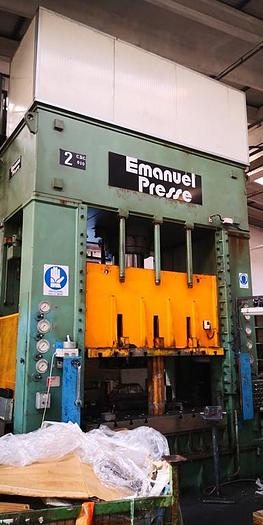

EMANUEL 400ton Hydraulic Press #0158

• Model: DEA 400/2
• Capacity: 400 ton
• Blankholder force: 160 ton
• Slide opening capacity: 40 ton - force during ram opening
• Slide approach speed: 500mm/s - ram approach speed
• Full power speed: 12mm/s - ram speed at full power
• Half power speed: 24mm/s - ram speed at half power
• Slide return speed: 250mm/s - ram return speed
• Clearance between plates: 1600 mm - max. daylight
• Table: 2000mm x 1600mm - table
• Blankholder table dimensions: 1850mm x 1250mm - blankolder table dims.
• Mobile slide stroke: 1100mm - ram stroke
• Blankholder stroke: 400mm - blankholder stroke
• Height from work height to floor: 600mm - distance from work height to floor
• Lateral clearance: 800 mm - opening in the sides
• Height above ground: 6000mm - height above floor
• Front width: 3400mm - frontal height
• Side width: 2500mm - side width
• Motor power: 55 kW - motor power
• Weight: 58,000 kg - machine weight

-
