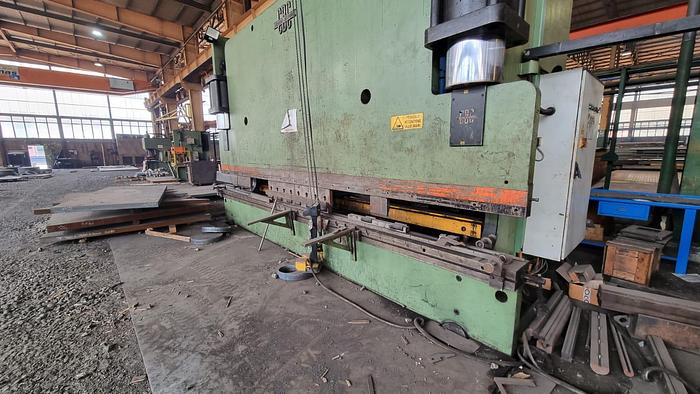

CBC 6050mm x 660ton Press Brake #0163

• Model 660/60-IS
• Capacity 6050 x 660 tons
• Return force 60 tons
• Space between uprights 5050 mm
• CNC Cybelec EVO 12 s and new electrical cabinet recent
• 6 controlled axes. ( X Y1 Y2 R Z1 Z2)
• Maximum clearance between the table and the upper blade holder 650 mm
• Recess depth 500 mm
• Pruning stroke 350 mm
• Table width 280 mm
• Working speed 0 – 7 mm/sec
• Return speed 70 mm/sec
• Downward approach speed 80 mm/sec
• Motor power 50 HP
• Weight 56000 kg
• RETROFITTED ^ WITH NEW CYBELEC EVO 12 S CNC AND ELECTRIC PANEL NEW

-

-
