FAGOR-PROIN 1550x4mm Slitting Line #0214

--- Line of 1987-9

100--200m / minute TOOL CHANGER

25t the max. coil weight

Coil OD max. 2000mm

max. number of cuts:

• 25 at .8mm material thickness
• 03 at 4mm material thickness

installed power approx. 200kW

^

Slitter in perfect working condition

Equipped with a quick-change system with 2nd axis in line

Working range

• Thickness: 0.6 - 4.0 mm
• Width: 600 - 1520 mm
• Inner diameter of coil: 508 - 610 mm
• Coil weight (max.): 25 tons
• Outer diameter of coil: 2000 mm
• Uncoiler capacity: 25 tons
• Side trimming: 3 - 9 mm
• Working speed: 100 - 200 m/min (standard 150 m/min)
• Knife shaft diameter: 180 mm

Number of cuts

• with thickness 0.9 mm: Max. 25 cuts
• with thickness 4,0 mm: max. 3 cuts



List of machines that compose it:

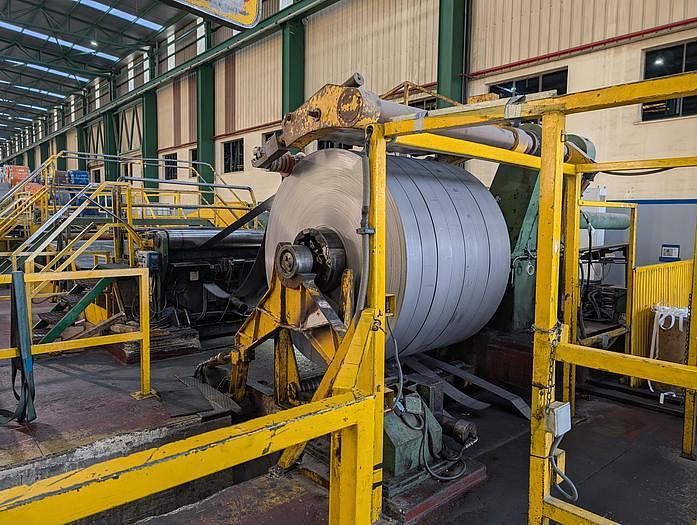

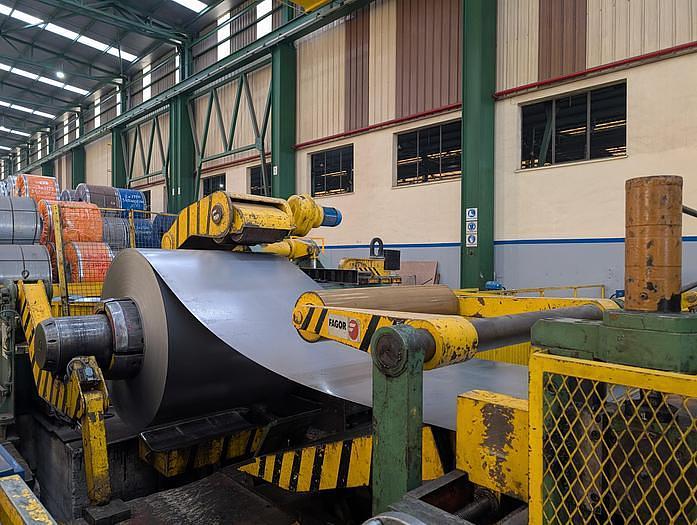

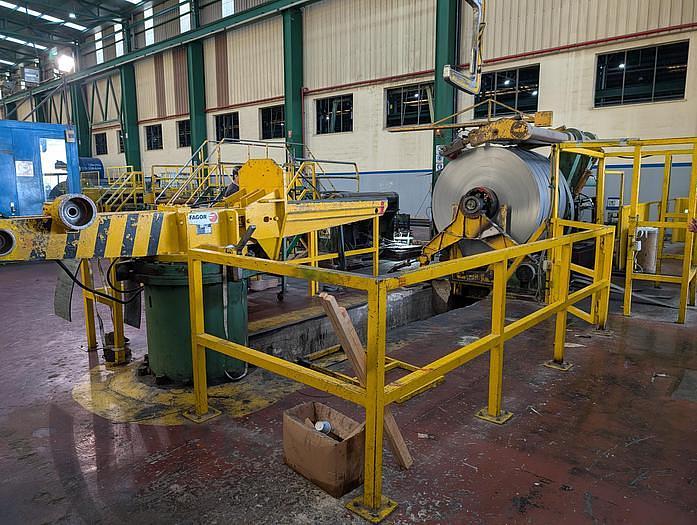

1. 25Tn loading carriage with 2 standby positions

2. 25Tn single mandrel decoiler with:

• Support arm unit
• Pressure roller
• Coil opener

3. Infeed leveler with hydraulic shear

4. Intermediate guiding table with vertical centering rollers

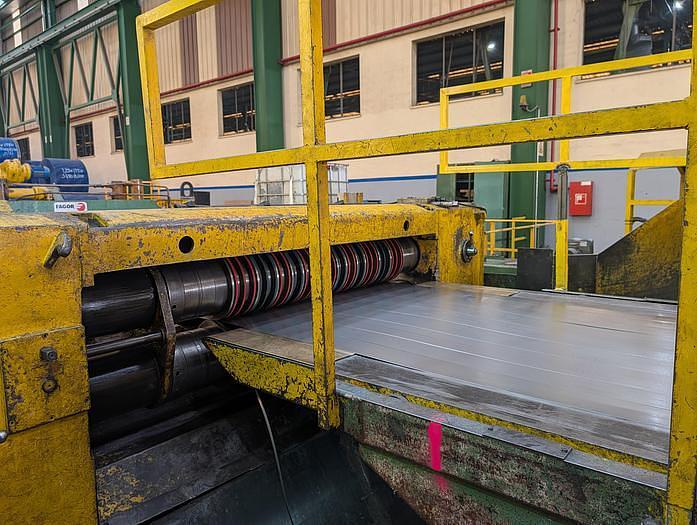

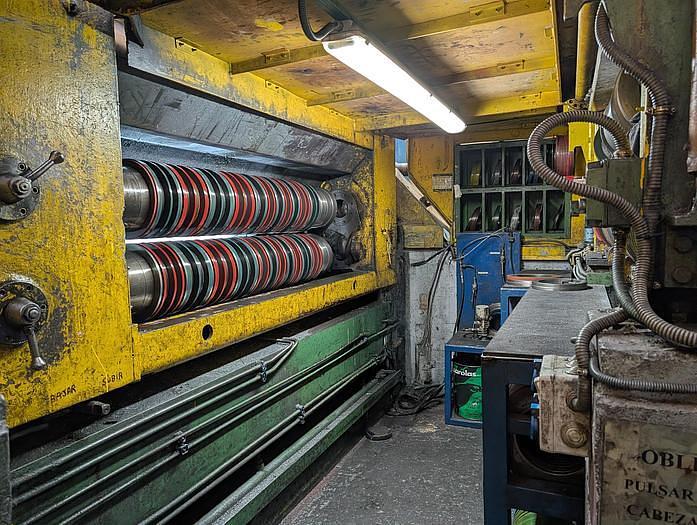

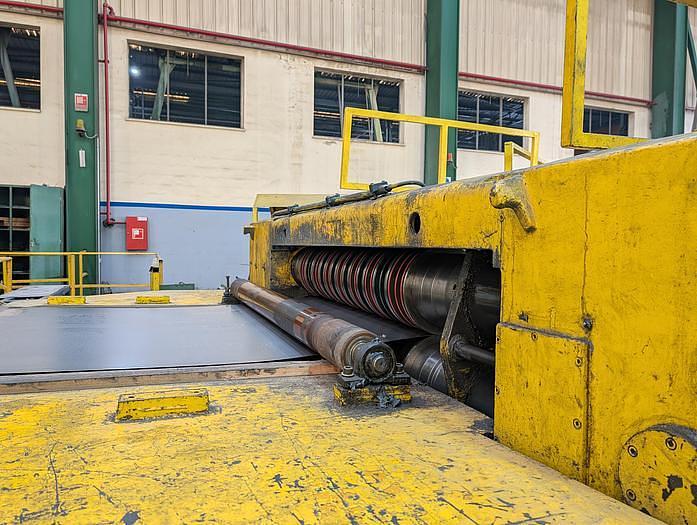

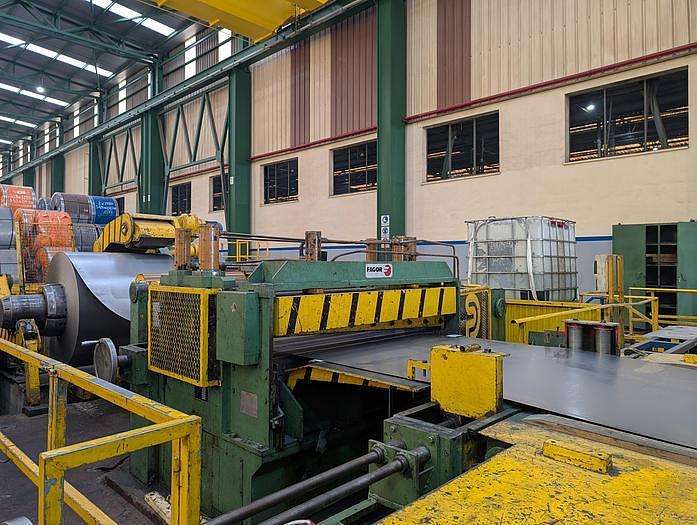

5. Circular shearer:

• With 180 mm shaft diameter
• Quick change system with 2nd shaft in line

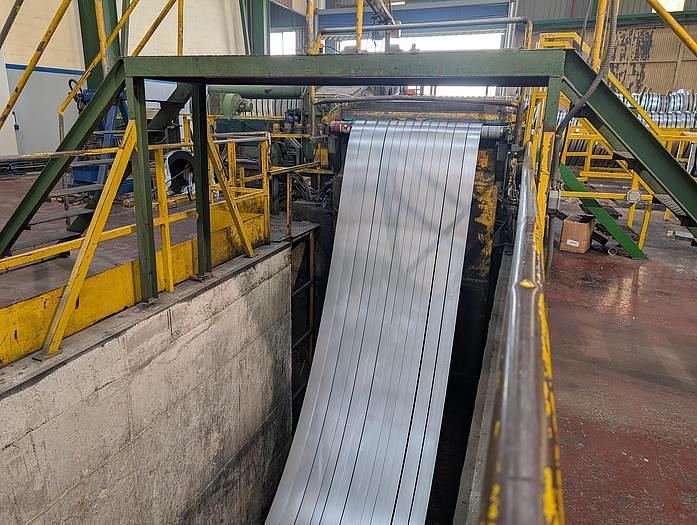

6. Loop table with hydraulic cover

7. Strip guide shaft with spacer

8. Pneumatic felt press

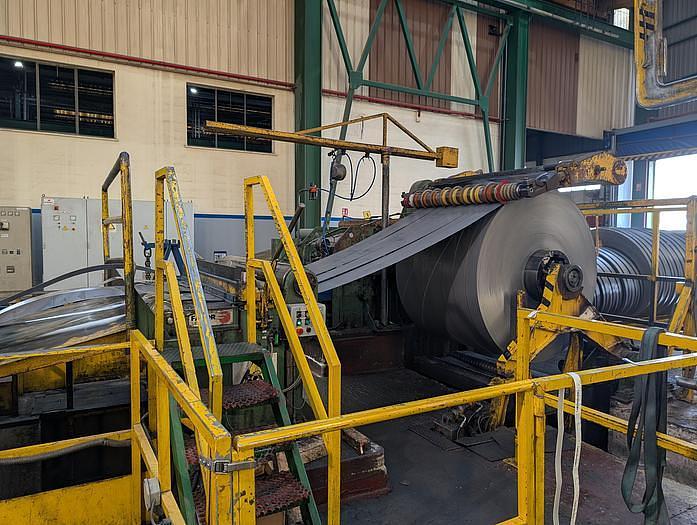

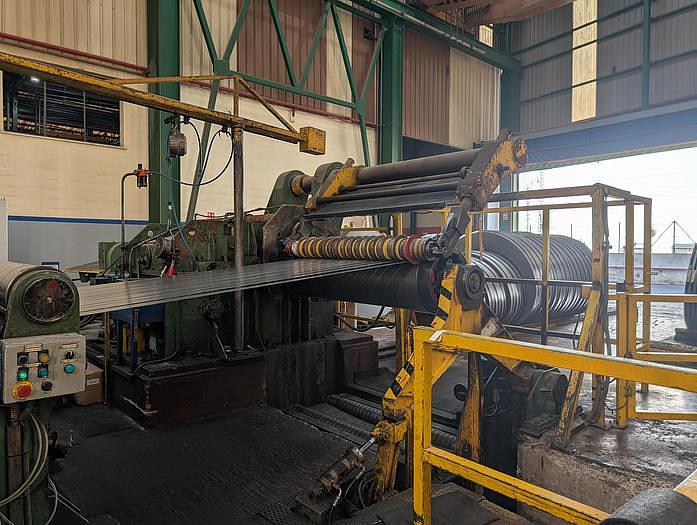

9. 25Tn single mandrel winder

10. 25Tn output unloading trolley

11. - 25Tn cut strip outfeed turret, 1 arm (not included)

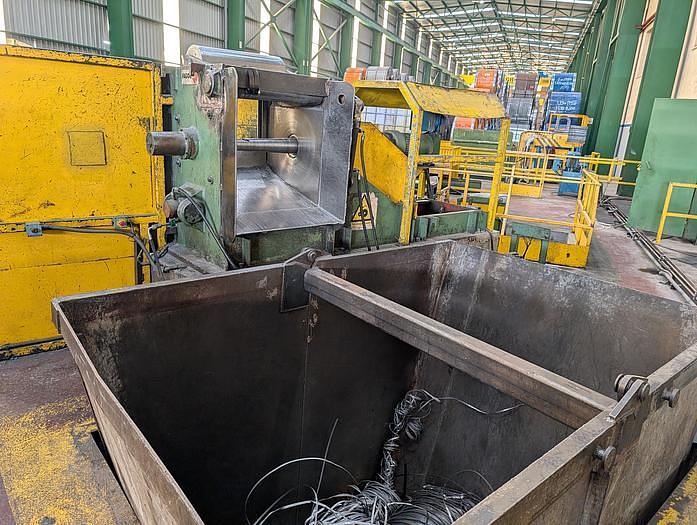

12. Scrap winder

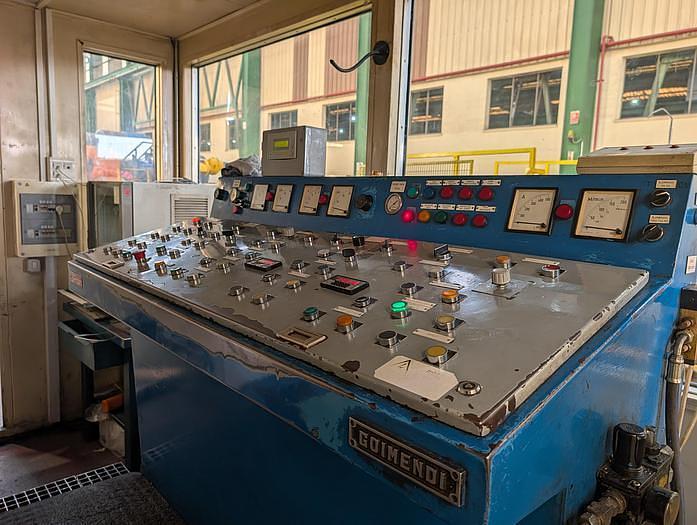

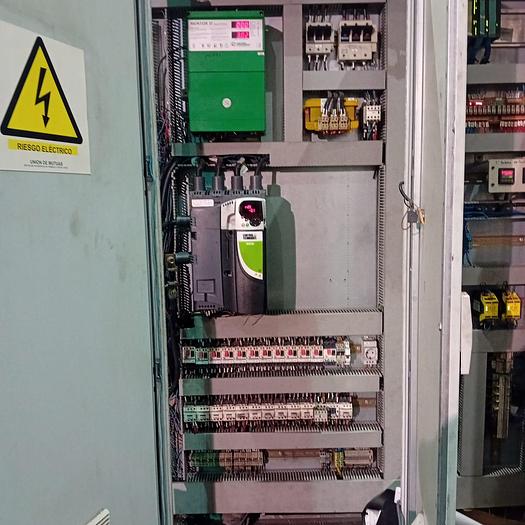

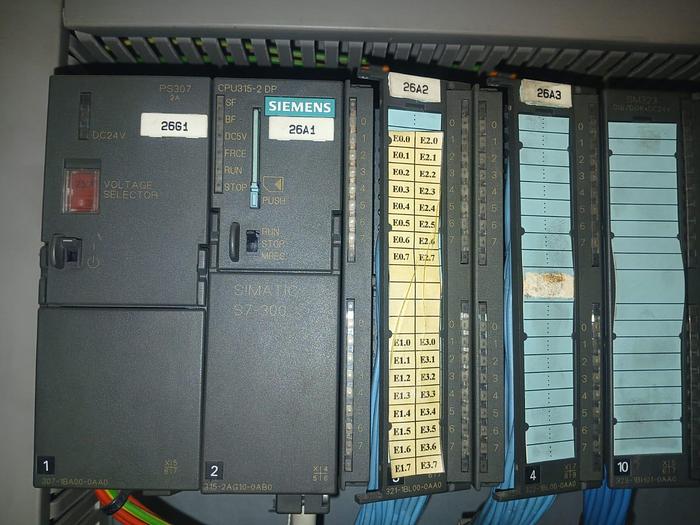

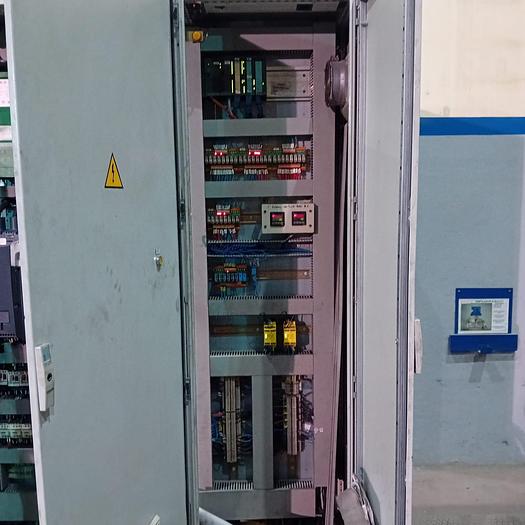

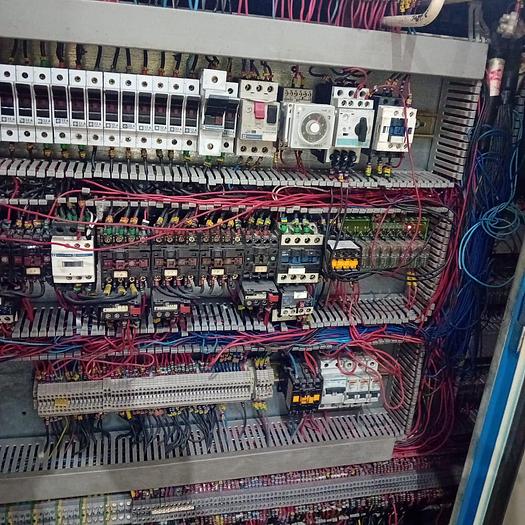

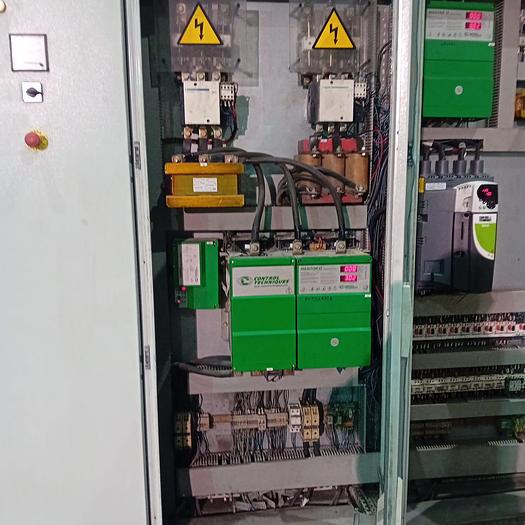

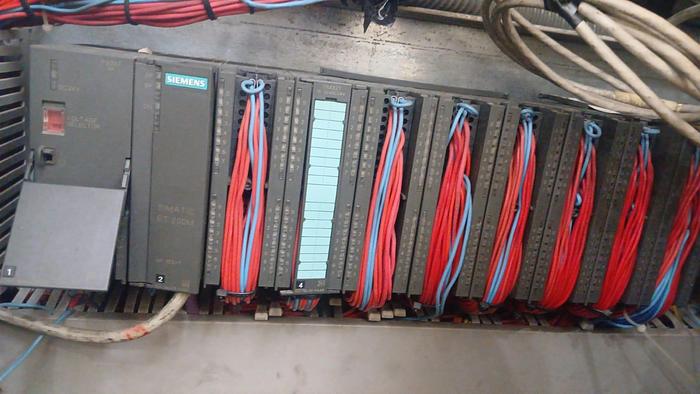

13. Electrical cabinets and desks

14. Hydraulic unit

15. Safety barriers and photoelectric barriers

16. Stairs and passageways

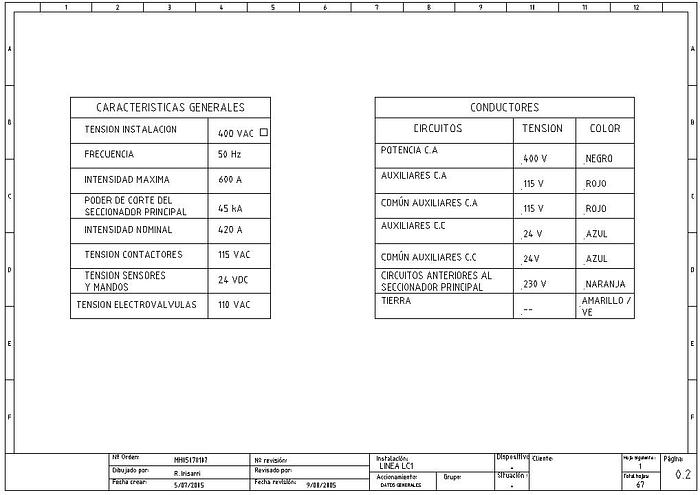

17. Documentation and manuals

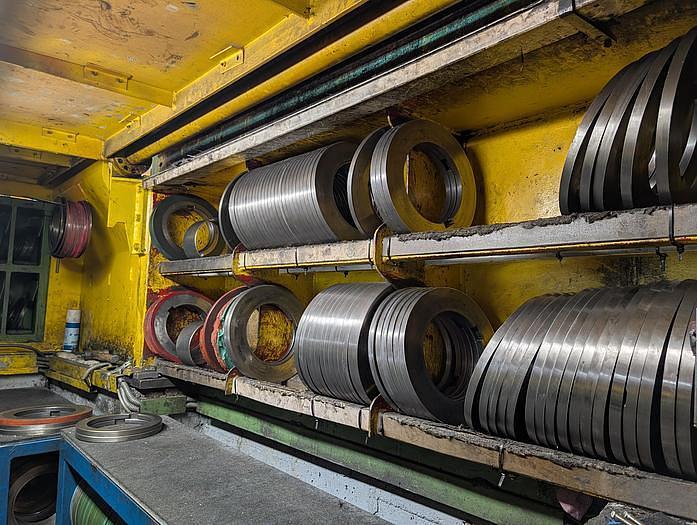

18. Complete set of circular shearing jigs and band guide arms




-











-










.
