FRIGERIO RT560.10 + new monoblock by us #0368

10 step drawing machine + NEW washing and drawing monoblock = in total 11 steps

-- suitable for the production of wire with a final diameter of 1.45/1.50mm. Entry wire dia. 5.50mm

^ The line in question consists of:

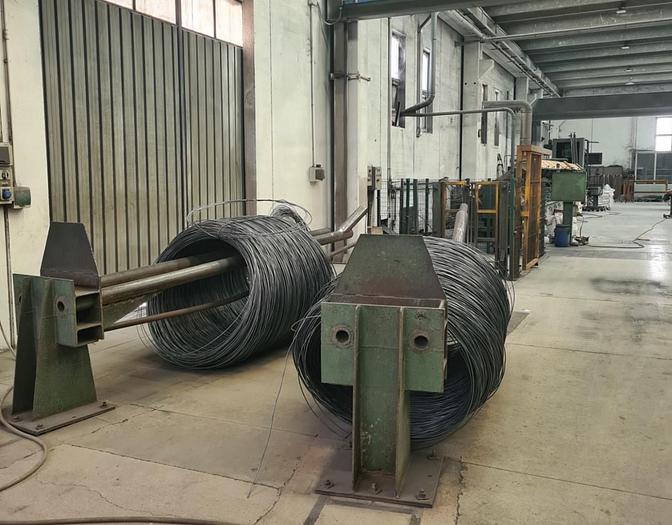

-         horizontal axis unwinder

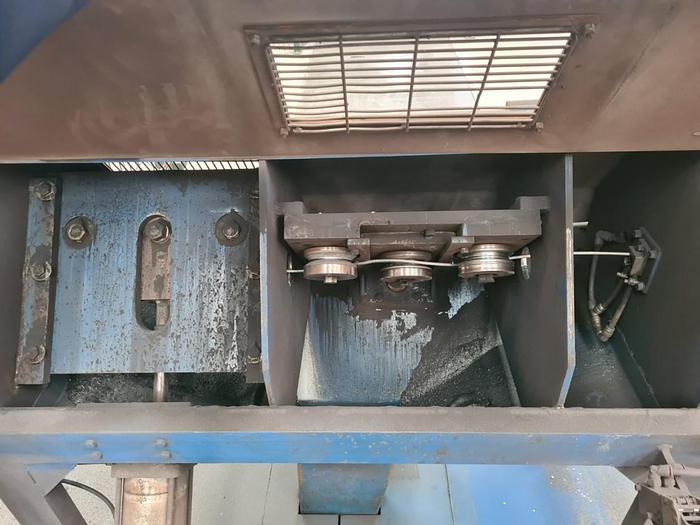

-        mechanical flaker, suitable for wire rod cleaning

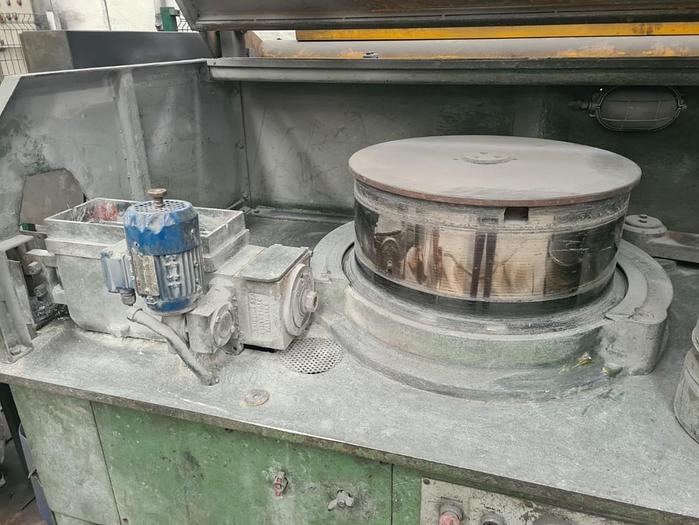

-&       Frigerio dry drawing machine, RT560.10

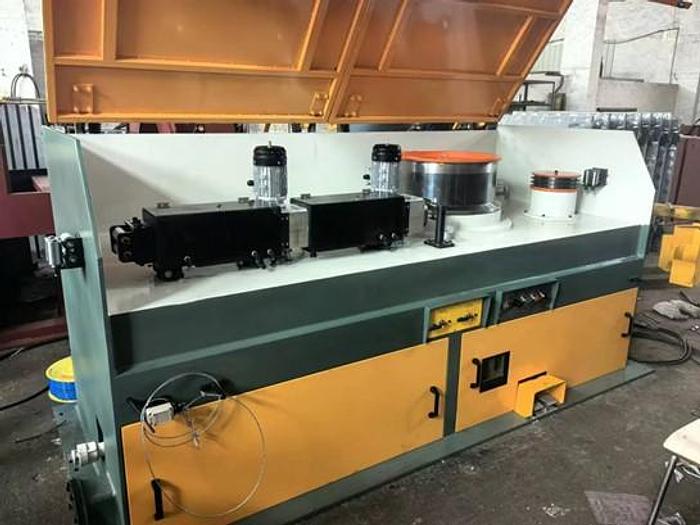

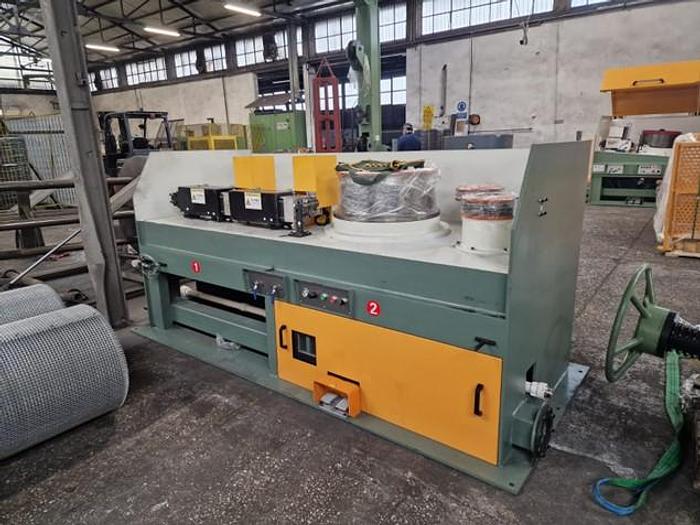

-        monoblock complete with double elongated cassette, suitable for wire washing

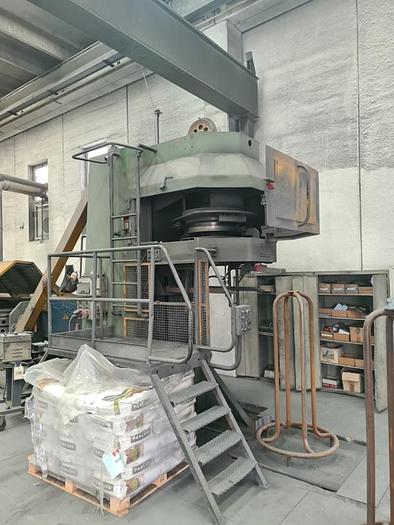

-        Static flattener suitable for wire winding on reels/coils

-&        electrical panel

It is suitable for drawing wire rod with low carbon content, inlet diameter 5.50 mm and outlet 1.80/1.60 mm

Max drawing speed: 15m/s

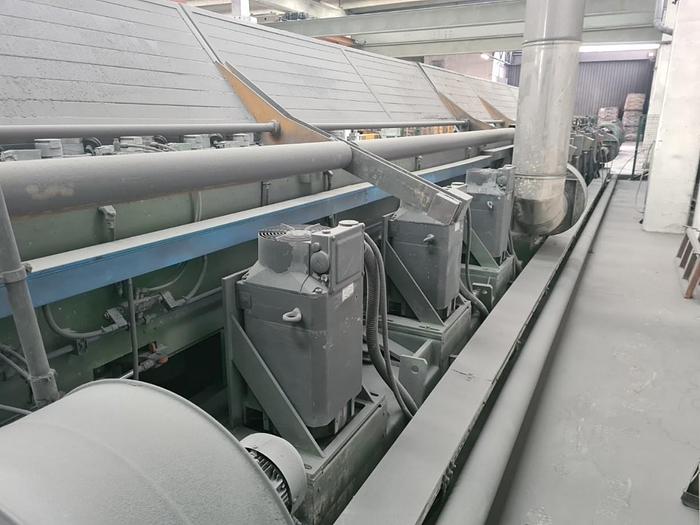

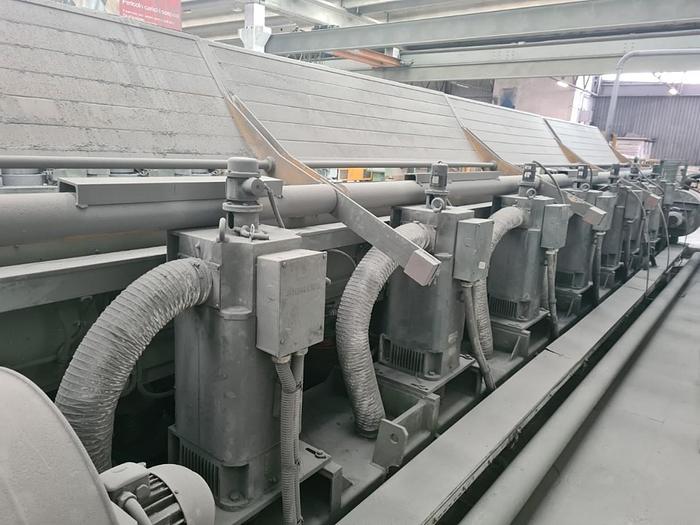

The Frigerio 560.10 wire drawing machine is divided into 7 + 3 steps: the first seven are complete with 46 kW DC motors, while from the eighth to the tenth are installed 37 kW AC motors

Our monoblock has a 37 kWk AC motor. The static winder has a 59 kW DC motor

During the disconnection phase, the respective electrical cables will be recovered and numbered

-
