F&P 2mm Slitting Line (New) with Auto. Heads #3449

F&P 2mm Slitting Line (New) with Auto. Heads #3449

orCall +39 393 577 2205

Description

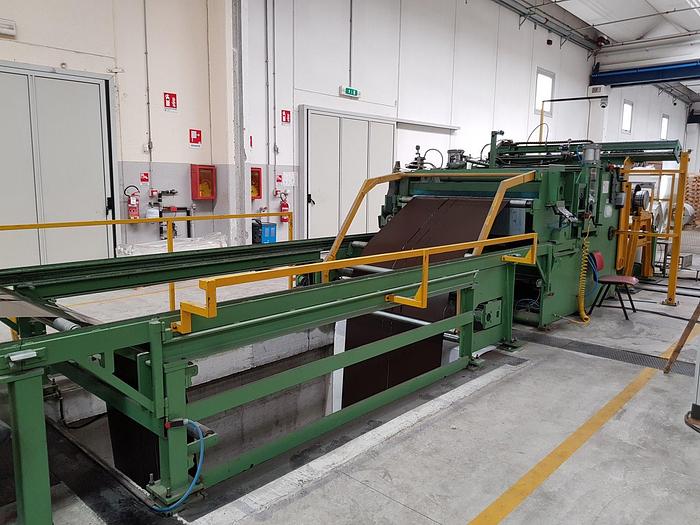

Example of a (Custom designed) 120m / minute slitting line with automated CNC-programmable heads and separators

[ installed & under power at a Client's near Bergamo, Italy ]



New Slitting Line 1550mm x 2mm | Alu. & Steel with 10 Auto. Heads & Auto. Separators -- AVERAGE CHANGEOVER TIME: 2 MINUTE Process material: Rmax 410N/mm2 Material thickness range: .4mm – 2.0mm Entry coil width max.: 1550mm Entry coil weight max.: 30 Ton Entry coil OD max.: 2200mm Entry coil ID: 508mm Exit coil OD max.: 1400mm Exit coil ID: 508mm Recoiler capacity max.: 12 Ton

Max. line speed: -120m / min at 1mm material thickness, with 10 cuts -100m / min at 1.5mm, with 10 cuts - 80m / min at 2.0mm, with 10 cuts.



-

Specifications

ManufacturerF&P
Model2mm Slitting Line (New) with Auto. Heads #3449
ConditionNew
Average changeover time2 MINUTES
Process materialRmax 410N/mm2
Material thickness range.4mm – 2.0mm
Entry coil width max.1550mm
Entry coil weight max.30 Ton
Recoiler capacity max.12 Ton
Max. line speed120m / min*
Minimum strip width100mm.
average changeover time2 MINUTES
process materialRmax 410N/mm2
material thickness range.4mm – 2.0mm
entry coil width max.1550mm
entry coil weight max.30 Ton
recoiler capacity max.12 Ton
Reference number3449
max. line speed120m / min*
minimum strip width100mm.
