Year: 2007

Very good condition

Installed & under power

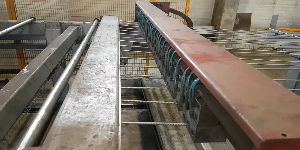

EVG GE 12/96-LTPV

Working range:

Reinforcement mesh width (stack): min. 1000mm - max. 2400mm

(stack / turned) min. 1200mm - max. 2400mm.

Mesh length min. 2000mm - max. 6000mm

Cross wire step min. 50mm - max. 400mm

Line wire step 100mm - 150mm

Cross wire diameter range: min. 4 mm - max. 12 mm

Line wire diameter range: min. 4 mm - max. 12 mm

Welding power:

D= 150 mm E+F<=24mm

Machine speed: max. 110 cross wires/min

Stack height: max: 700mm

Mesh weight: max: 150kg

Package weight: max: 3200kg

Electrical data:

Rated power of welding transformers, when 50% ED 850kVA

Drive power 70kVA

Main voltage welding 3 x 400 V

Frequency 50 Hz

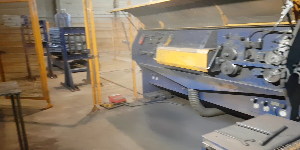

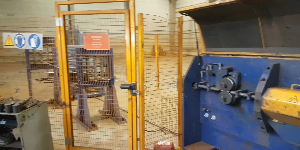

EVG straightening line, model DRE8

EVG straightening line, model DRE12
