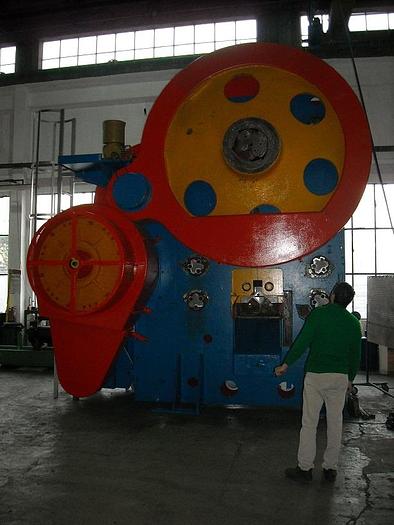

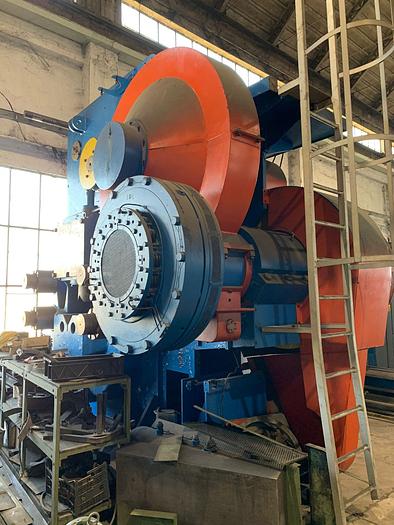

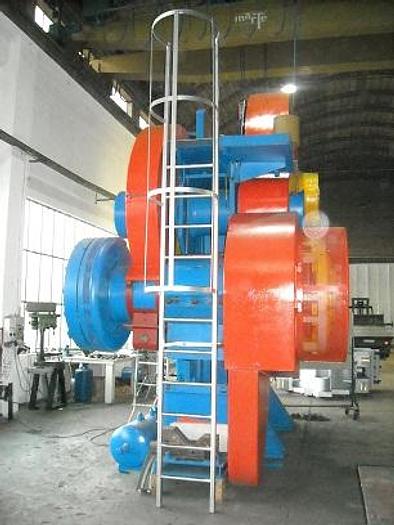

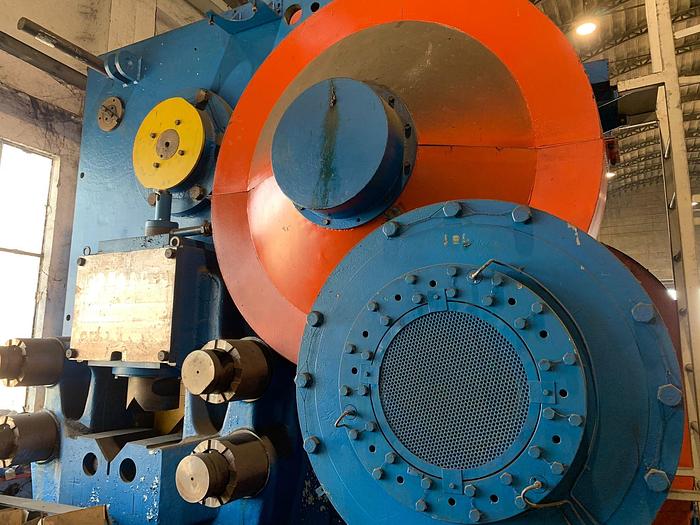

ERFURT 1600ton Billet Shear (Used) #3685

ERFURT 1600ton Billet Shear (Used) #3685

orCall +39 393 577 2205

Description




Machine completely revamped


Stock / Plant 31



Machine Weight ca. 75ton




TECHNICAL CHARACTERISTICS


·        SPM: 12

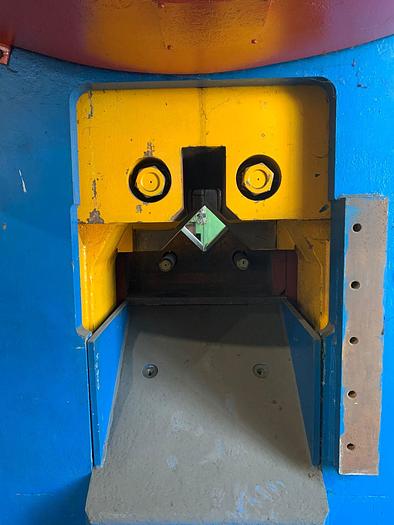

·        Knife Length: 560mm

·        Knife Stroke: 180mm

·        AC Motor Power: 110kW

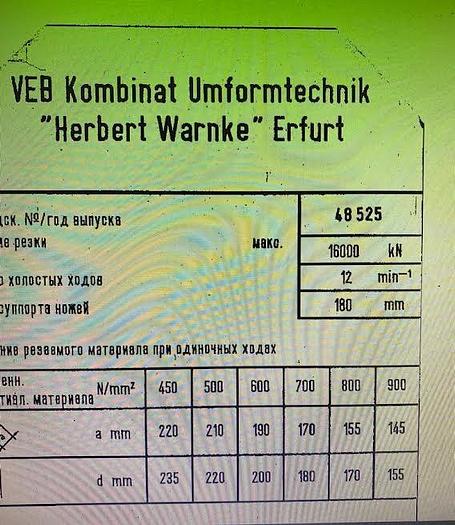

Cold cut capacity square section billets round section billets

with R - kg/mm2: side, in mm diameter, in mm

max. max.


45 220 235

50 210 220

60 190 200

70 170 180

80 155 170

90 145 155






Cold cutting with a billet shear, clean and precise, allows a considerable saving of material

compared to thermal cutting




::


Specifications

ManufacturerERFURT
Model1600ton Billet Shear (Used) #3685
ConditionUsed
