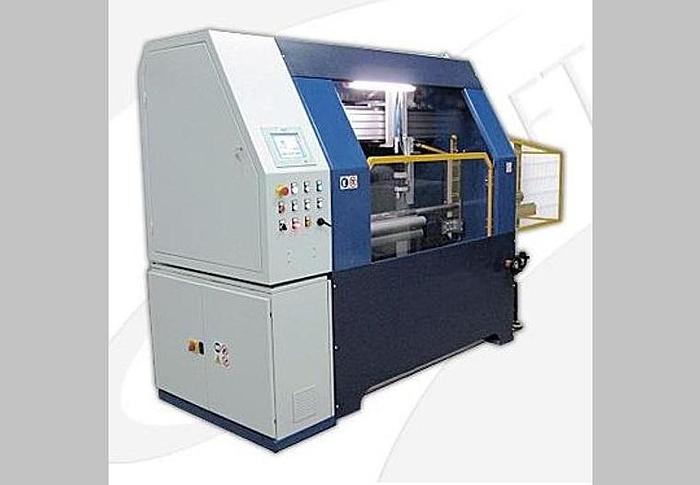

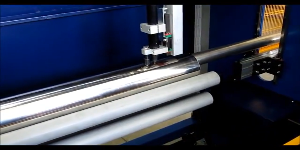

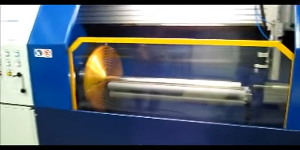

Allsteel mainframe

Roll table adjustable by handwheel

Irreversible reduction unit coupled with a gear set, to size various diameters


1000 with machine dims. 3500mm x 1000mm x 1970mm / machine weight 1400kg

1500 with machine dims. 4000mm x 1000mm x 1970mm / machine weight 1700kg

2000 with machine dims. 4500mm x 1000mm x 1970mm / machine weight 2000kg

• 3 Axis NC

• ABB Driver and Brushless Motors

• Plasma Unit / - normal choice:

- Hypertherm Powermax65 with “Fine Cut”

- Hypertherm Powermax45 with “Fine Cut”.

- Thermal Dynamics A40

- Cebora 60/60T

- Cebora 30/35

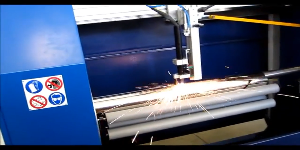

• Smoke Suction System, tracking the cutting head

• Automatic adjustment of Mandrel, as the part diameter varies

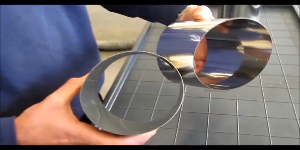

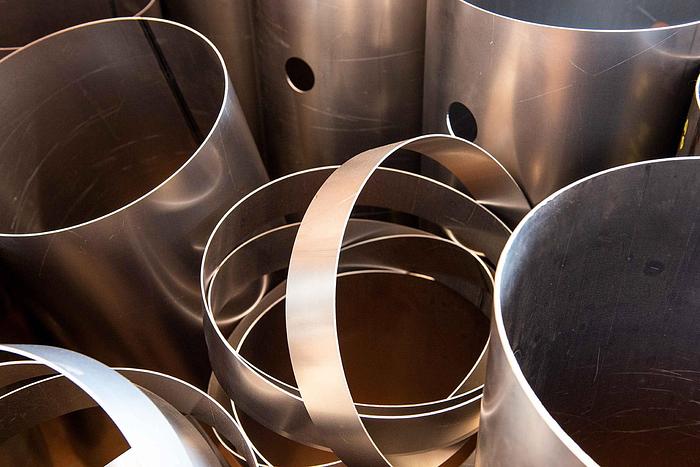

• Tube/Pipe diameters: 60mm to 600mm (up to 800mm optional)

• Materials: M.S., Galv., Stainless, Copper, Alu.

• Thicknesses: .4mm to 2mm (more on demand)

• PC with s.o. Win7 embedded; USB connector for data transmission and input

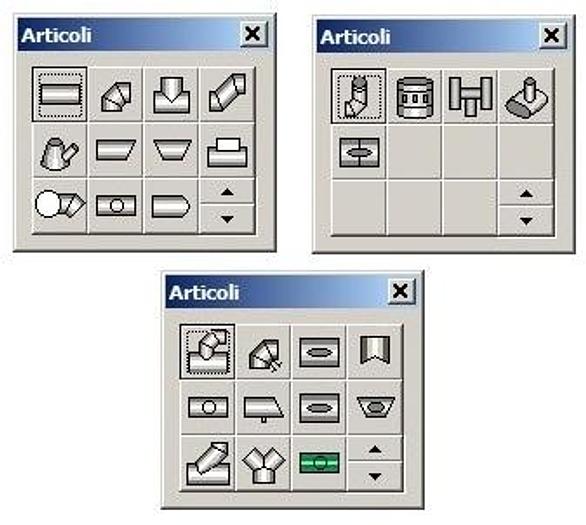

• “Bravo3d” Software with a library of 27 parameterizable items:

HVAC, chimney flue and insulation cladding components

(the software can be used both at office and on-machine)


Pneumatics: 6-8 Bar compressed air / 8mm pipe

Electrics: 380V - 50/60Hz 10A for the el. cabinet, 25A for the Plasma Unit

A 1200 m3/hour Smoke Suction System is required
