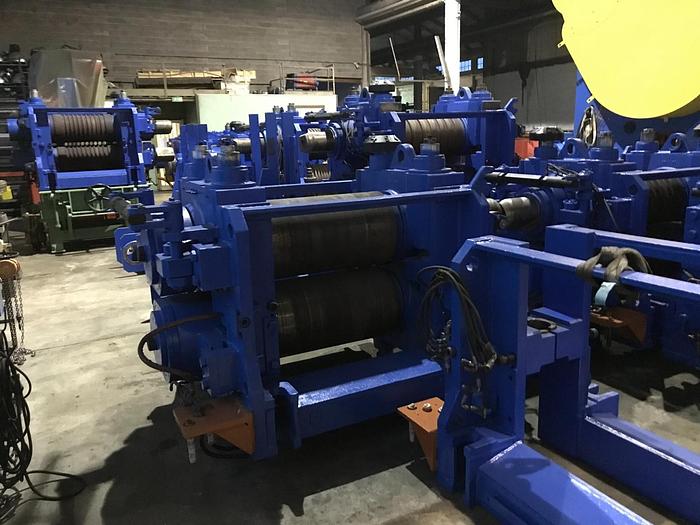

DANIELI Roughing Mill Stands (Used) #3695

for a mill roughing section that can use billets up to 160mm x 160mm size

Brand: DANIELI - "Red Ring"

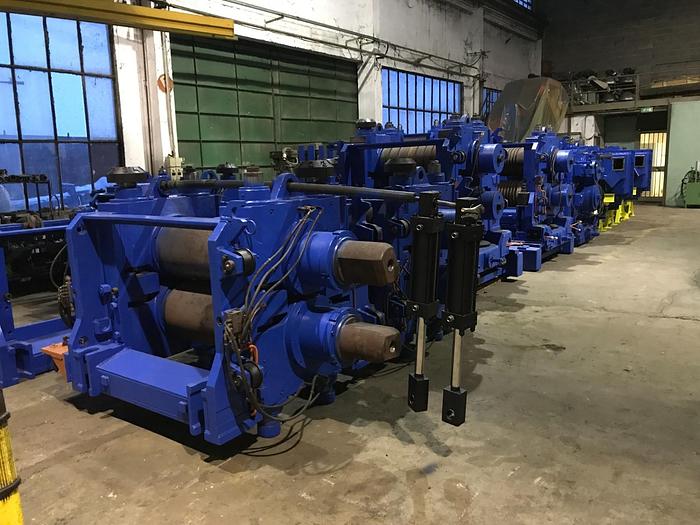

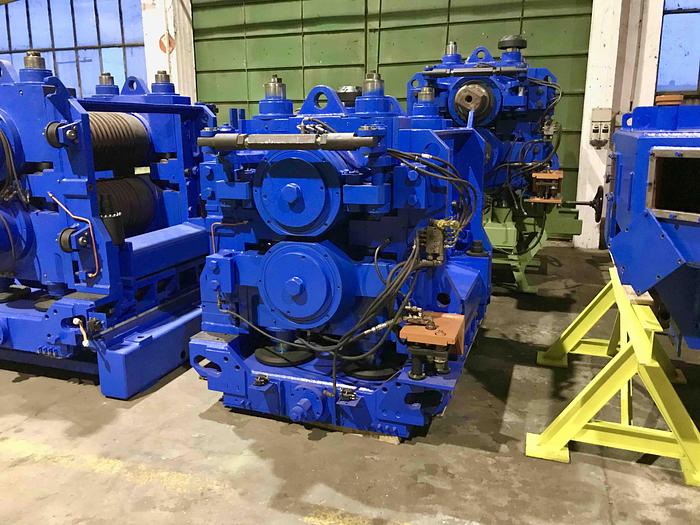

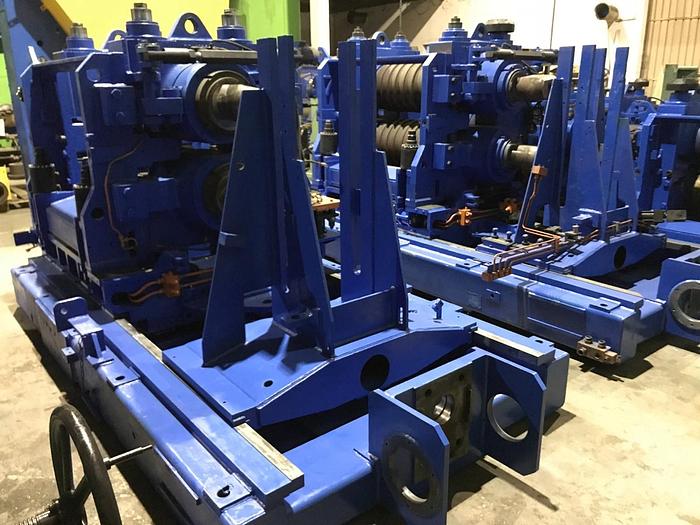

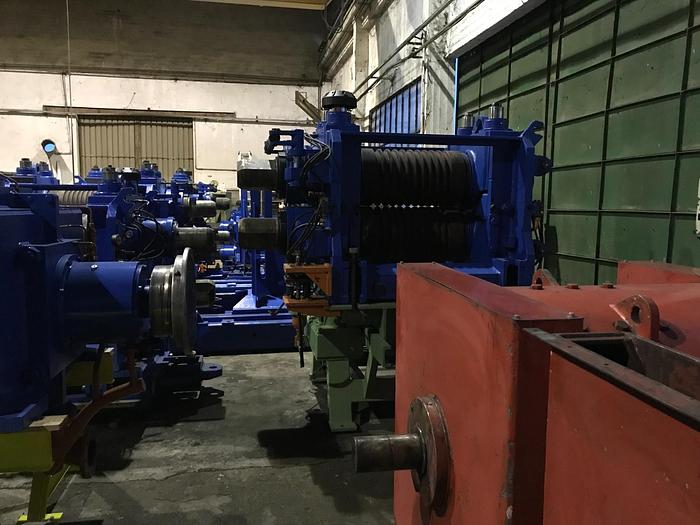

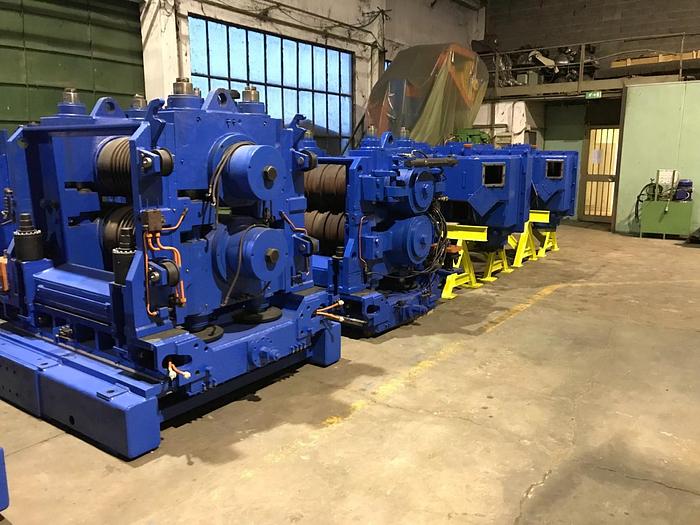

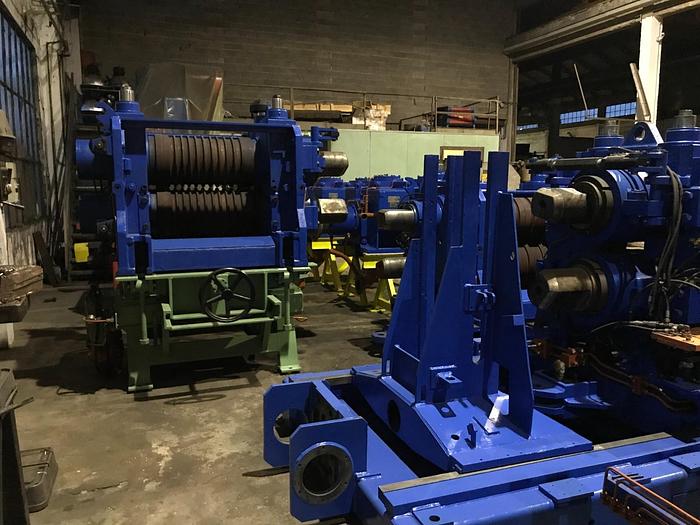

3 Horizontal + 3 Vertical Cylinder Stands for first-phase continuous rolling of billets from oven, with:

• cylinder cartridge

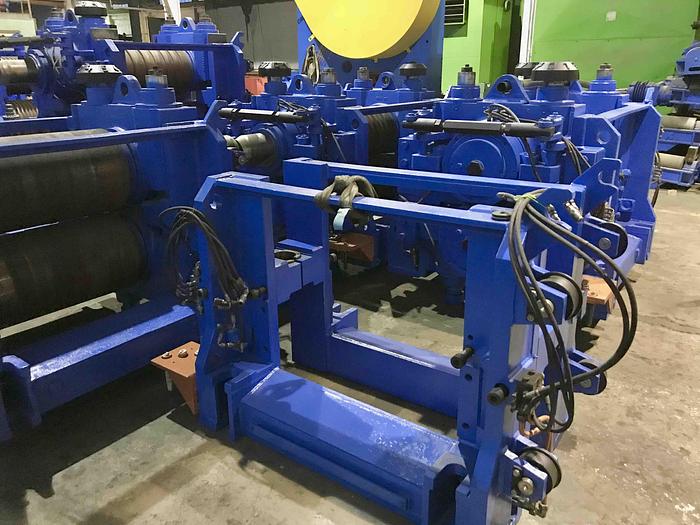

• cartridge holder, which allows to move the cylinders closer or further away
• stand basement, which allows the stand to move horizontally or vertically
• gearbox
• stand turner
• universal joints
• motors

+ 2 Cartridges

completely re-manufactured

- Cylinder dia. 550-510mm, barrel 800mm neck dia.280mm

- Cast Steel Housing, complete with hydraulic fixing bracket

- Lubrication system for Bearings

- Cylinder cooled water pipe system

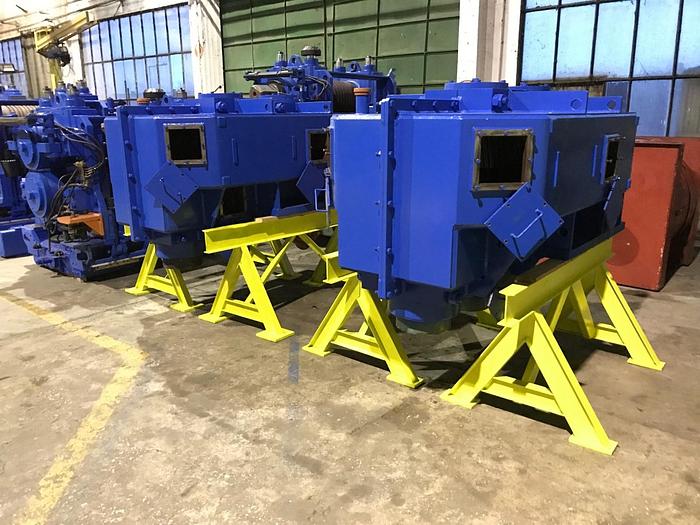

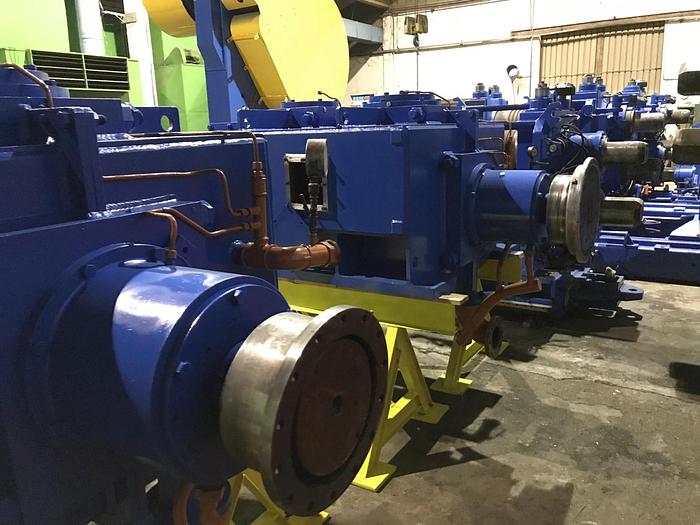

Gearbox Pinion Stand Units

• Axis to axis distance 480mm
• Allstel frame, high resistance hardened and cemented gear teeth

complete with entry gear couplings and exit coupling box

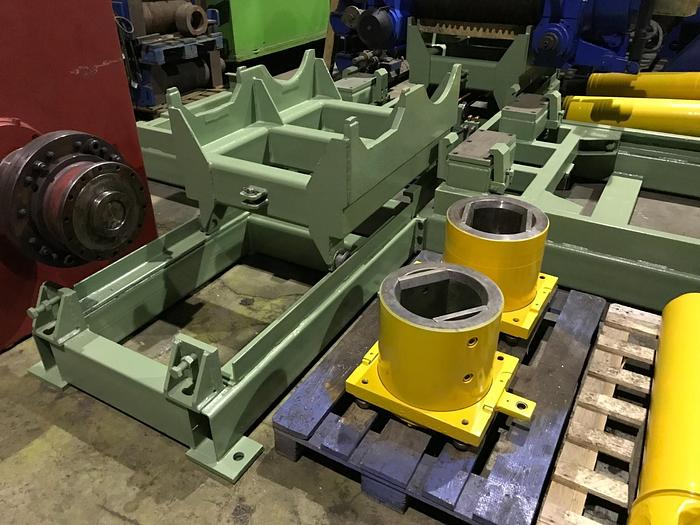

Bases for Vertical Cylinder Stands

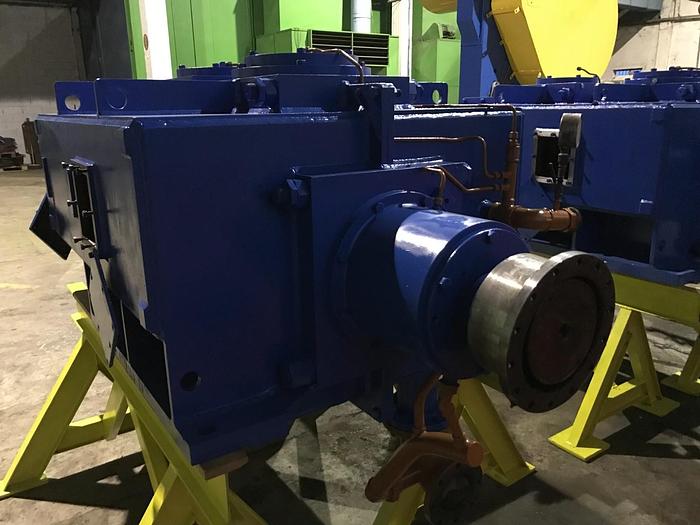

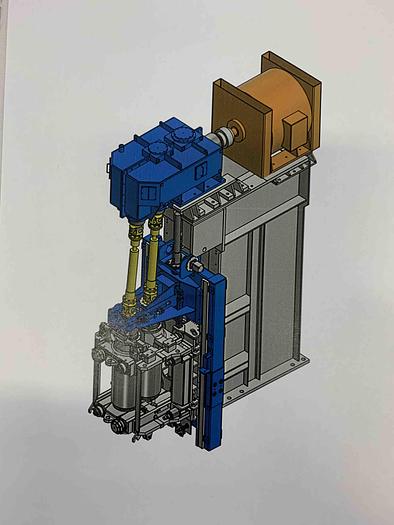

GPR reducers for Vertical Stands

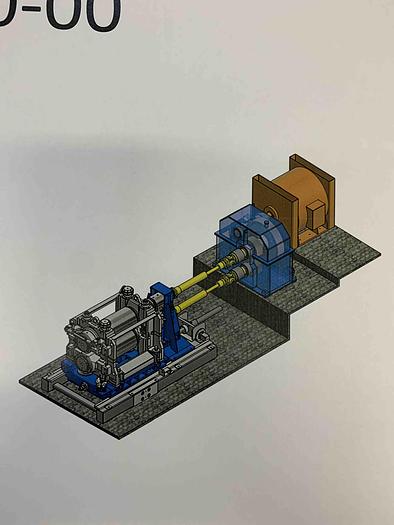

GPR reducers for Horizontal Stands

Disassembly System, complete with control unit

Adjustment System, complete with control unit

Tipper for Cylinder Cage, complete with control unit

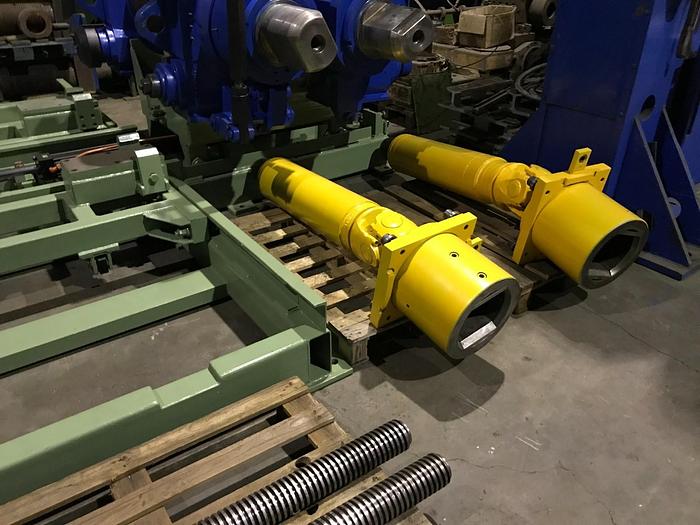

4 Extensions, telescopic cardans

Lamination boxes with:

- electro-welded and cast steel body

- transversal regulation

- support base

- right front arm rollers

- left front arm rollers

- guide in cast iron

- cooling tubes

- roller support

BROWN BOVERI & ELECTROMECANIQUE

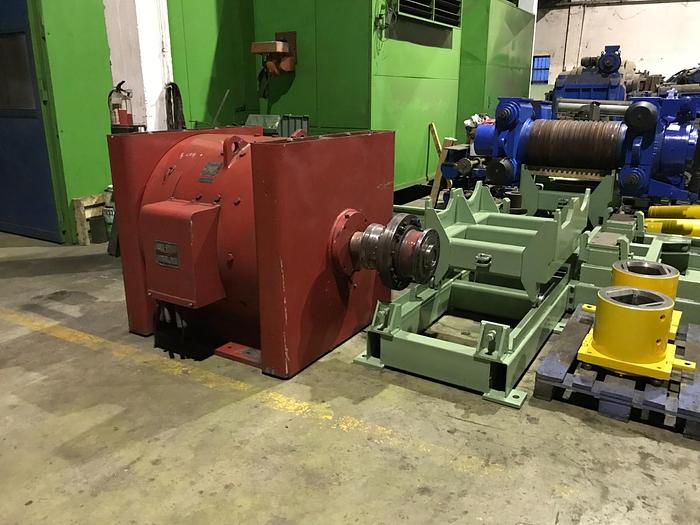

Motors and their el. panels

4 ^ Power 445 kW 750 V  complete with electrical panel and accessories

2 ^ Power 736 kW 640 V  complete with electrical panel and accessories

(6 electrical panels in all)

NB - Missing Parts ^ -- built by us :

1 Base for Cylinder Vertical Stands

3 Bases for Cylinder Horizontal Stands

1 GPR reducers for Vertical Stands

2 GPR reducers for Horizontal Stands

8 Extensions telescopic cardan.
