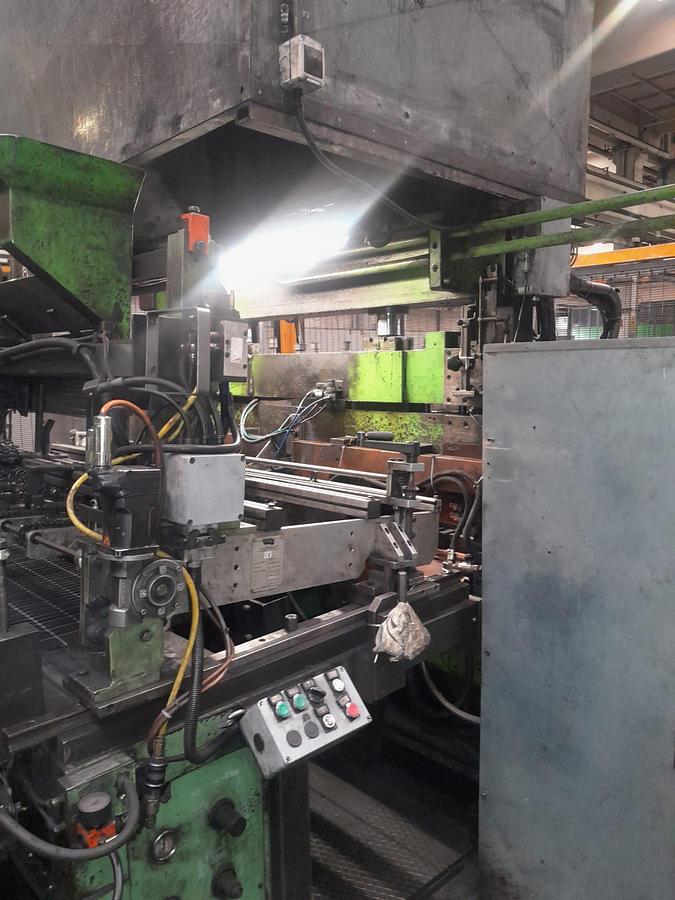

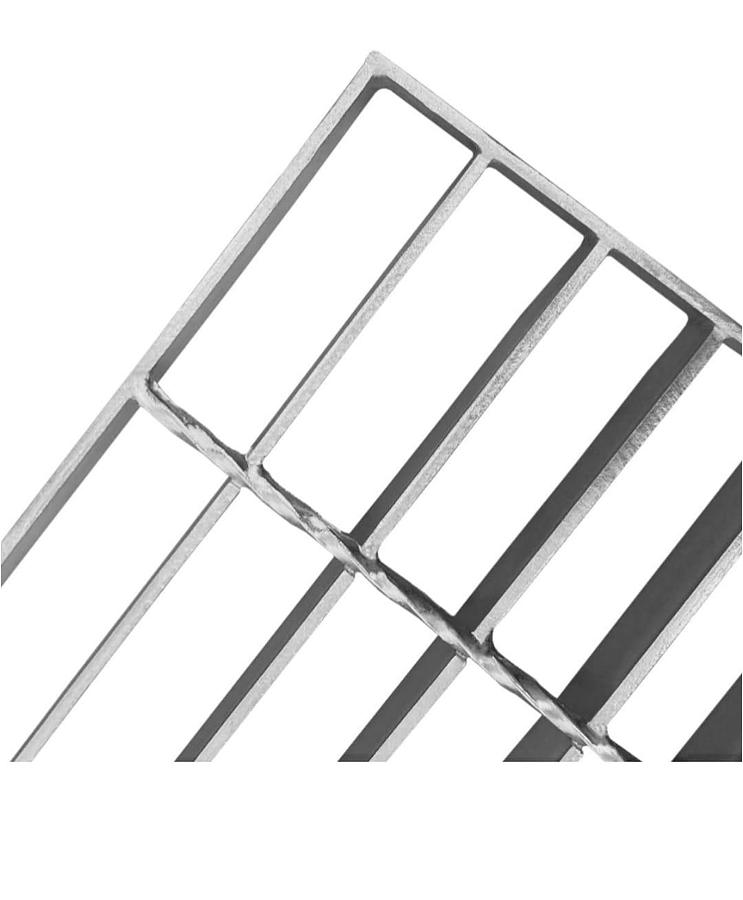

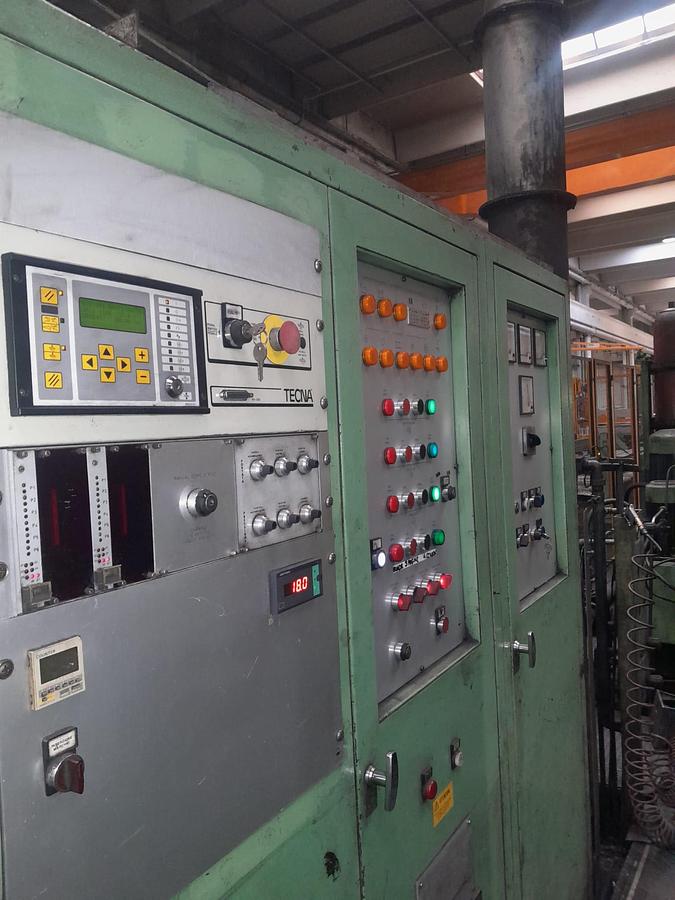

JÄGER Walkable Grating Production Line

Year: 1992

Continuously updated and periodically maintained to perfection

Installed and running

Technical data

Panel: max width 1200mm / min length 500mm, max 6248mm

Reel plates: max 41 - max 60x4mm, min 20x2mm

Pre-cut: max 80x4mm

Transverse wire diameter: 3.6-7mm

Twisted wire diameter: 4.3-7mm

Power supply: 380V 3-Phase + Earth

1400KVA for welding + 120KW the various motors

Max welding section:

plate thickness x number of plates x wire diameter: max 1200

-
