Description

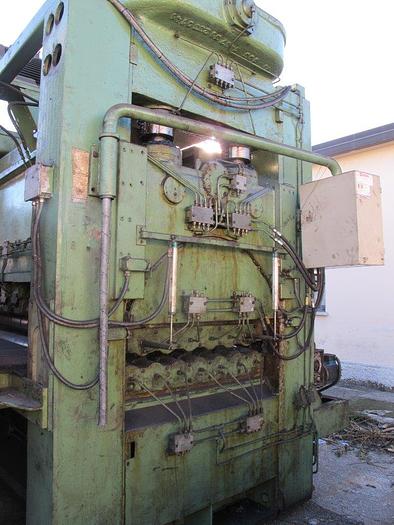

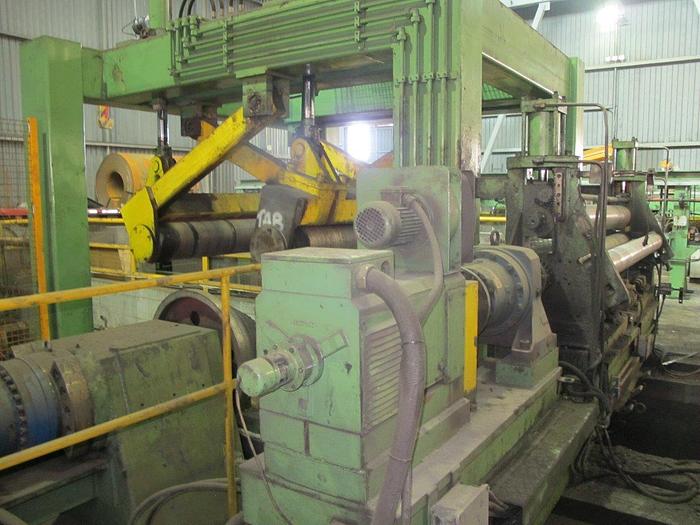

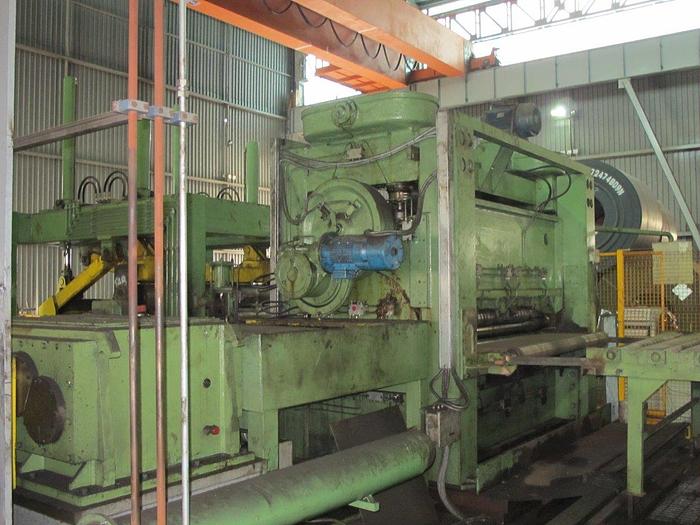

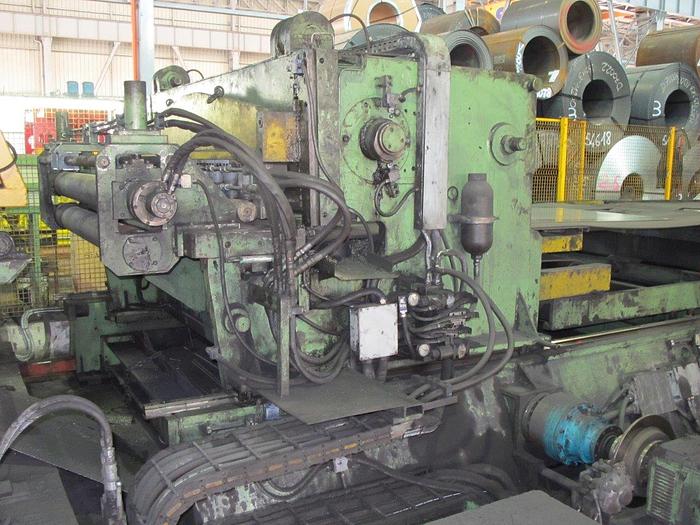

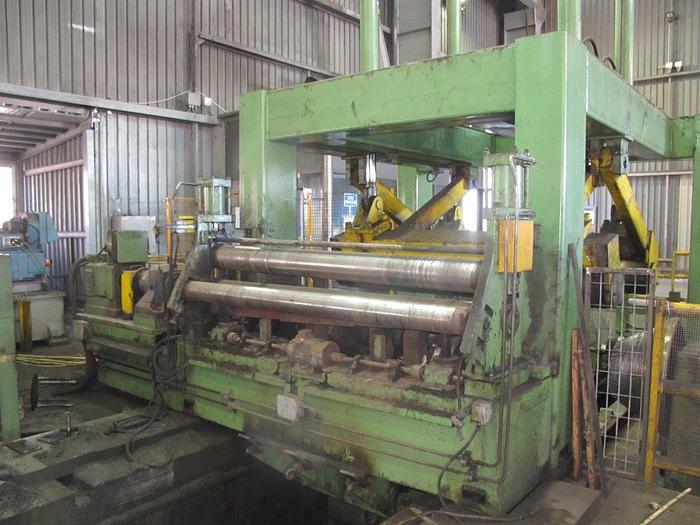

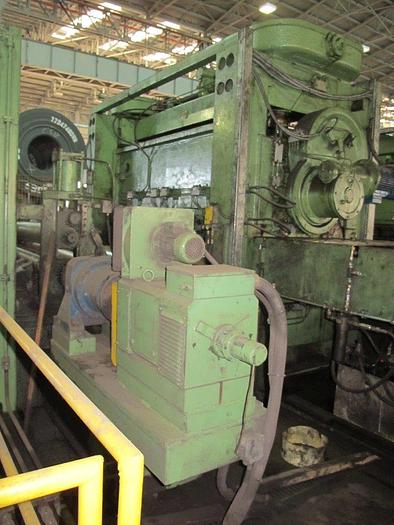

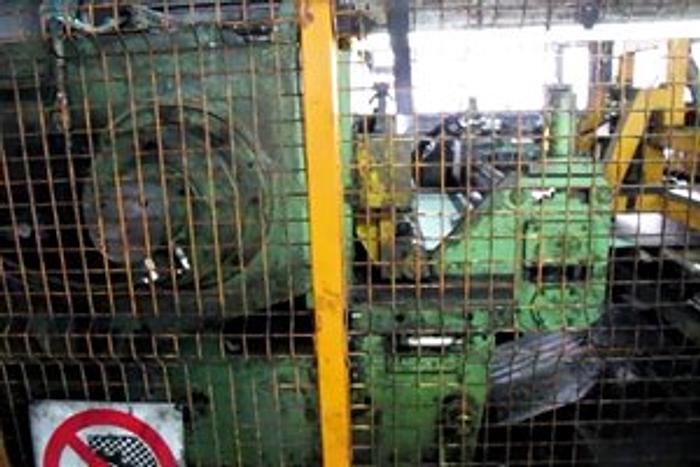

Used Flying Shear Cut To Length Line 2050mm x 12mm HYBRID -- 35 Ton decoiler Materials: hot rolled and cold rolled steel Line speed max. 22m / minute Some new parts built by us Min/max coil width: 500mm/2050mm Material thickness (Rm= 370 N/mm2): 1.5mm to 12mm (with 2 levellers) Coil ID: 508mm to 840mm Coil OD max: 1800mm Sheet length: 400mm to 6000mm Bundle weight max: 5 Ton Line direction: right to left Total installed power: 280 kW Yearly production with 1 shift/day: 40.000 Ton -- LINE DESCRIPTION : Decoiler Building type: two opposite expanding mandrels, on separate frames. Coil weight max.: 35 Ton Coil width: 600mm-2200mm Coil ID: 508mm to 840mm Stroke (each side): 800mm DC motor + stationary brake Coil car (NEW) *** Under-floor type Coil weight max.: 35 Ton (at 80 bar) Lift: Hydraulic jack -- stroke: 800mm Motion by hydraulic motor Coil holder with 2 rolls, idle Entry equipment (NEW) *** Gantry type with 2 snubber rolls, powered Anti- coilbreak roll Coil opener Pinch rolls DC motor driven Passline roll / straightening bar 4-HI precision leveller for the thickness range: 4.0mm to 12.0mm Manufacturer: WMW-UBR 13 work rolls with diameter: 140mm; 3 + 3 sets of back-ups Entry/exit adjustment of upper bridge by electric motor Dc motor drive Measuring wheel with encoder (NEW) *** Flying shear Manufacturer: FIMI Electric motion, with servo motor (year: 1990) Length tolerance: +-1mm at 2m cut length Pinch rolls for evacuating last sheet Exit belt conveyor 2nd conveyor with movable section for scrap evacuation Trolley to the side Exit pinch-rolls DC motor drive Stacker with tilting guides (“no-scratch” type) Side and front kickers Automatic descent Chain conveyor Length: 6m Packaging-area conveyor Length: 10m Electrics 10 door electric cabinet 1 entry-switchboard 1 main-switchboard with Siemens touchscreen Hydraulics with 2 power packs + 4-HI precision leveller for the thickness range: 1.5mm to 5.0mm Manufacturer: MARIANI 15 work rolls with diameter: 68mm; 9 + 9 sets of back-ups, moved by hydraulic jacks Entry/exit adjustment of upper bridge by electric motor Connection roller table from 1st leveller DC motor drive



--


Video: https://youtu.be/6inpFTcIR1A ( << click )


Line layout dwg.: in the Attach. (at the bottom)




-

Specifications

ManufacturerHYBRID
Model2050mm x 12mm CTL Line (Used) #3423
ConditionUsed
