F&P Roll Forming Equipment, Pre-Owned

Warehoused

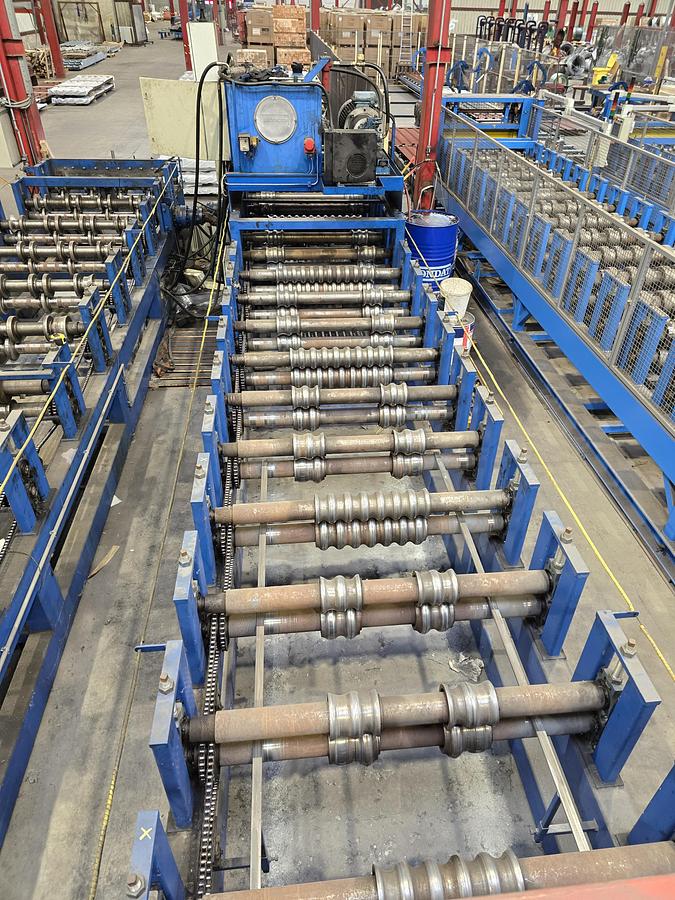

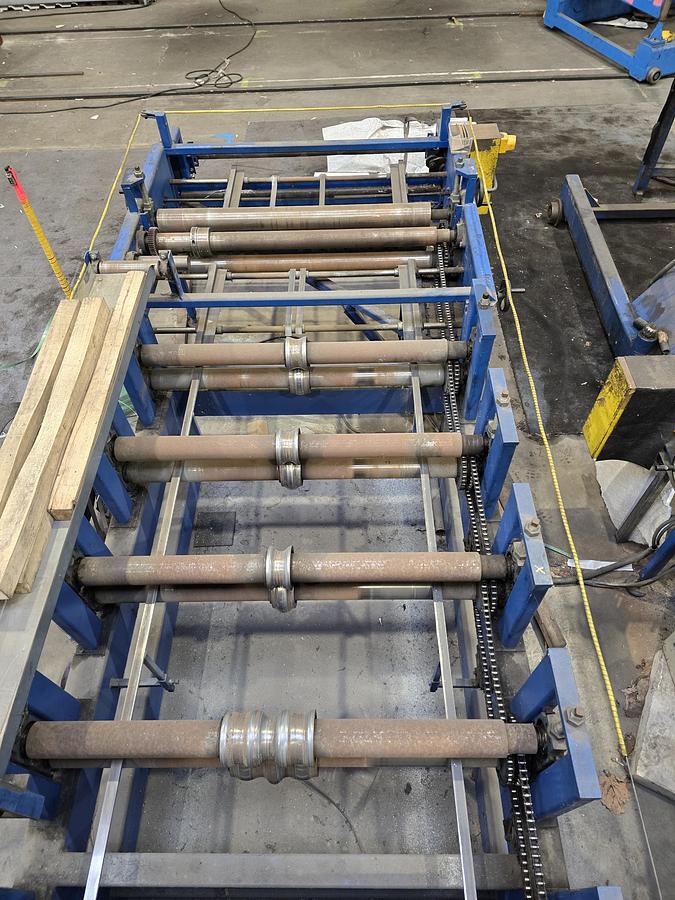

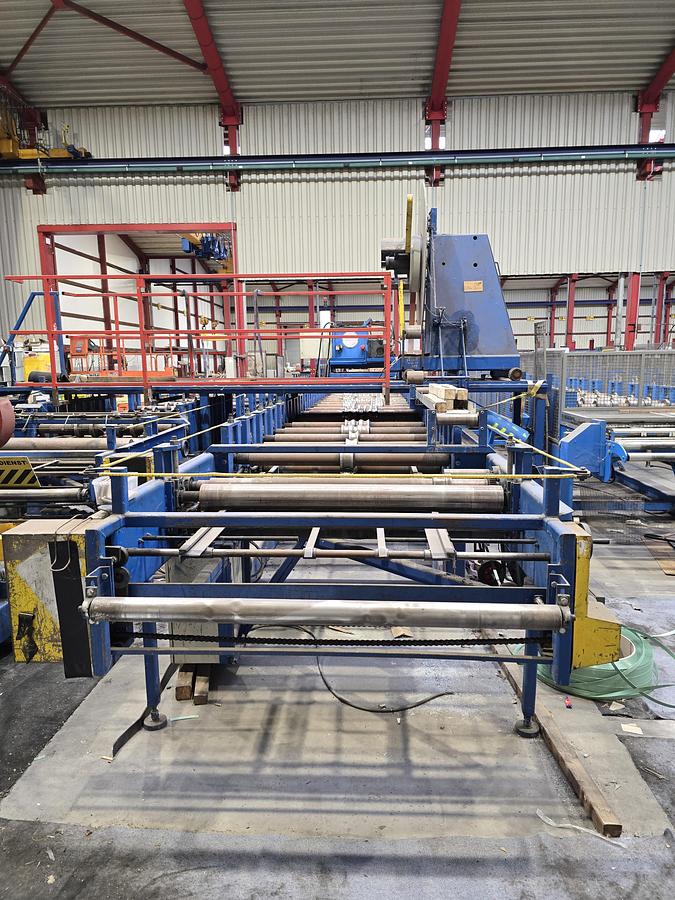

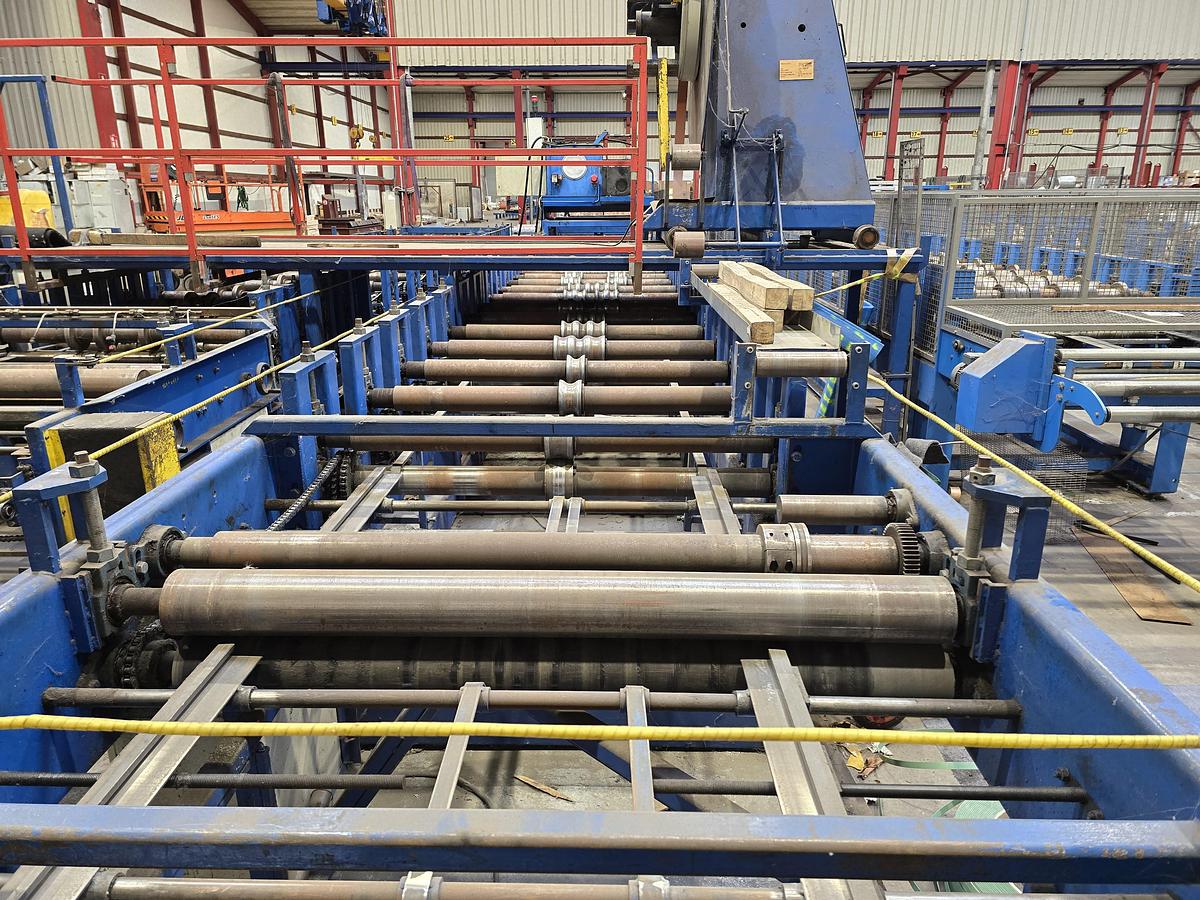

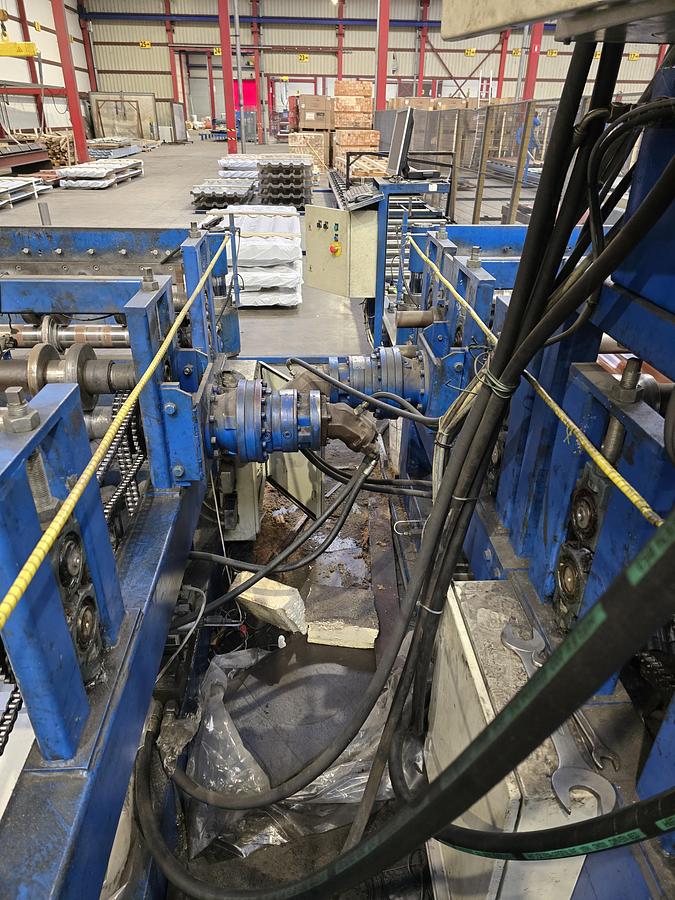

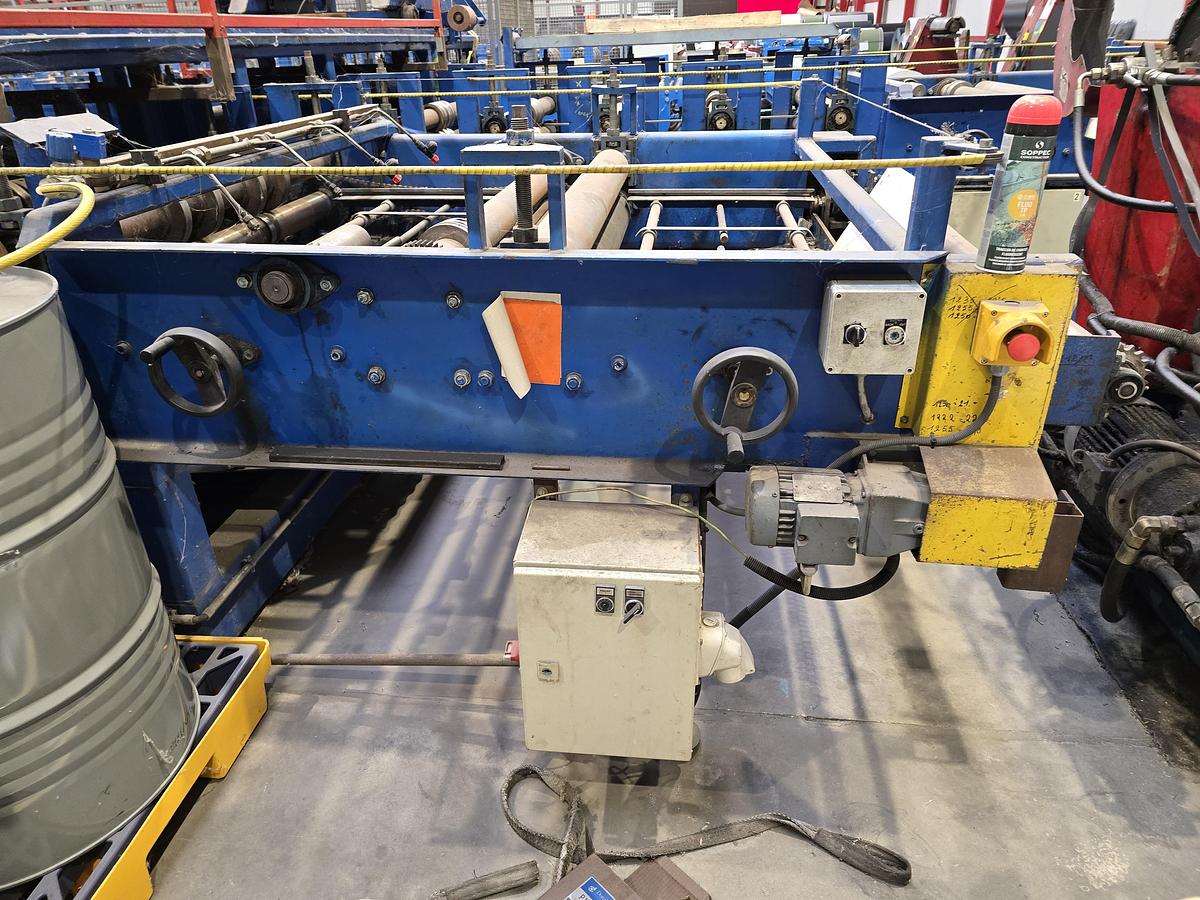

Roll forming line, composed of two main roll formers referenced as being A and B:

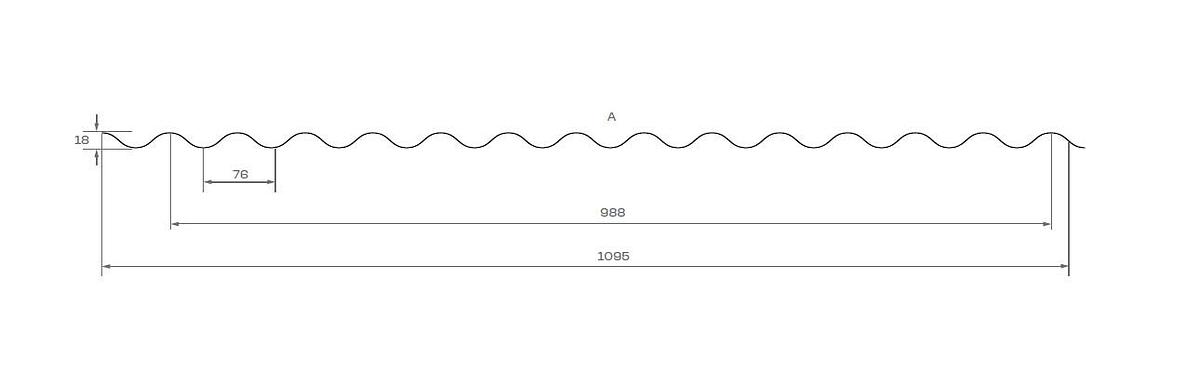

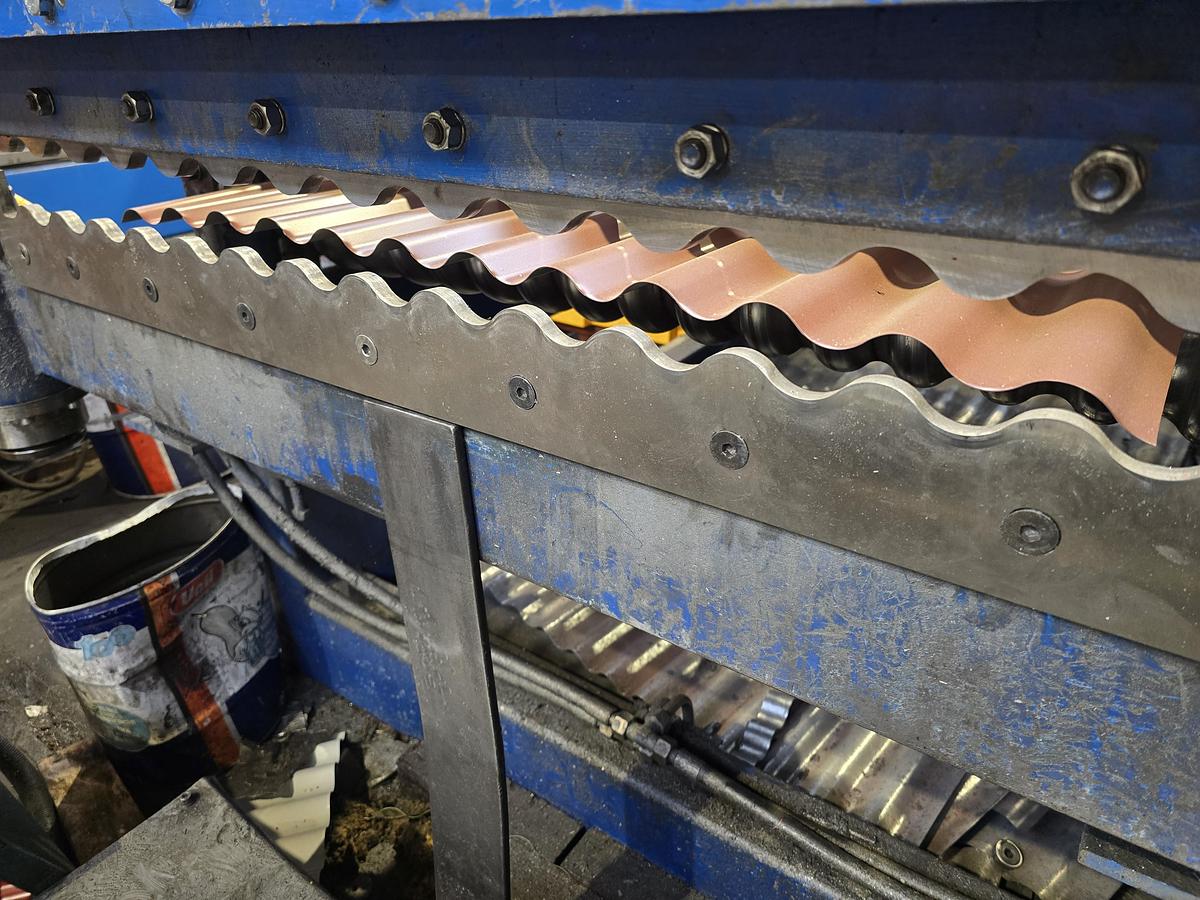

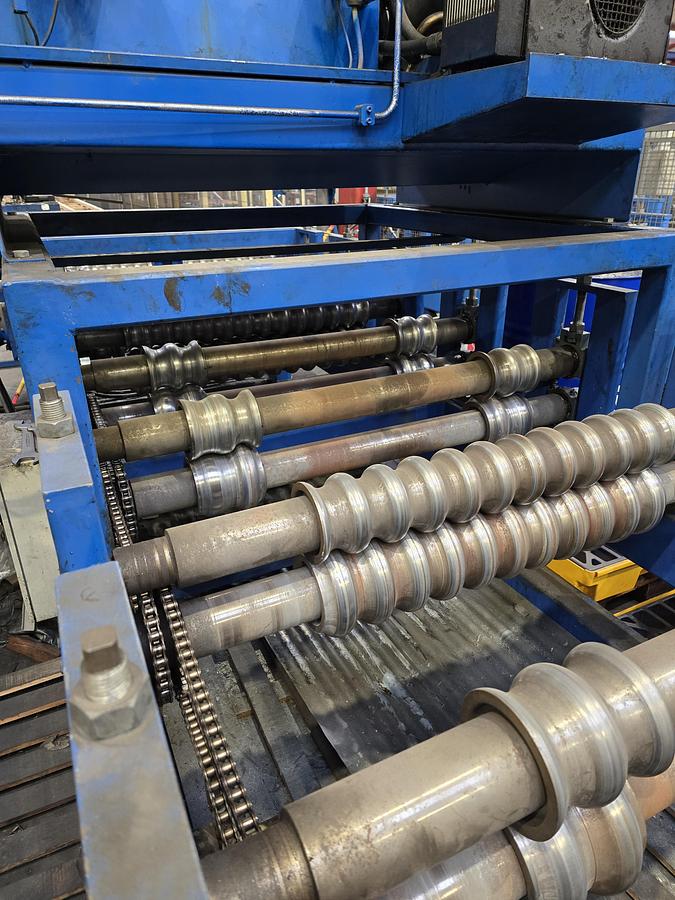

• Machine A for making "Sinus" profile type 18.76.988 (= height 18 mm, center distance between two waves: 76 mm, material thickness: 0.4 to 0.8 mm) -- see section drawing / with coil width of 1250 mm, finished product 1064 mm; with coil width of 1000 mm, finished product of 836 mm

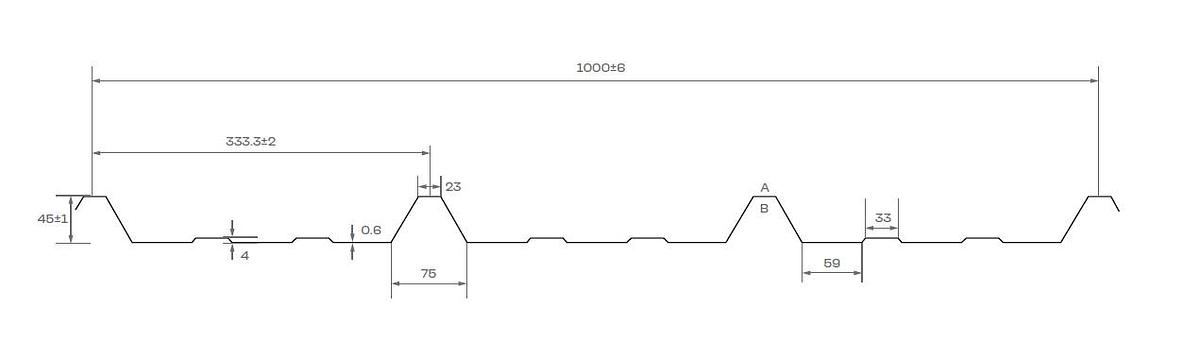

• Machine B for making a profile type 45.333.1000 (=height 45 mm, center distance between two trapeze: 333 mm,  material thickness 0.4 to 0.8 mm)  -- see section drawing / with coil width of 1250 mm or 1220 mm, finished product 1000 mm

Yom: 2001 for the machines and 2008 for the strip recoiler

Equipment status: machines have been operating until 2024, not anymore operational and requiring general maintenance

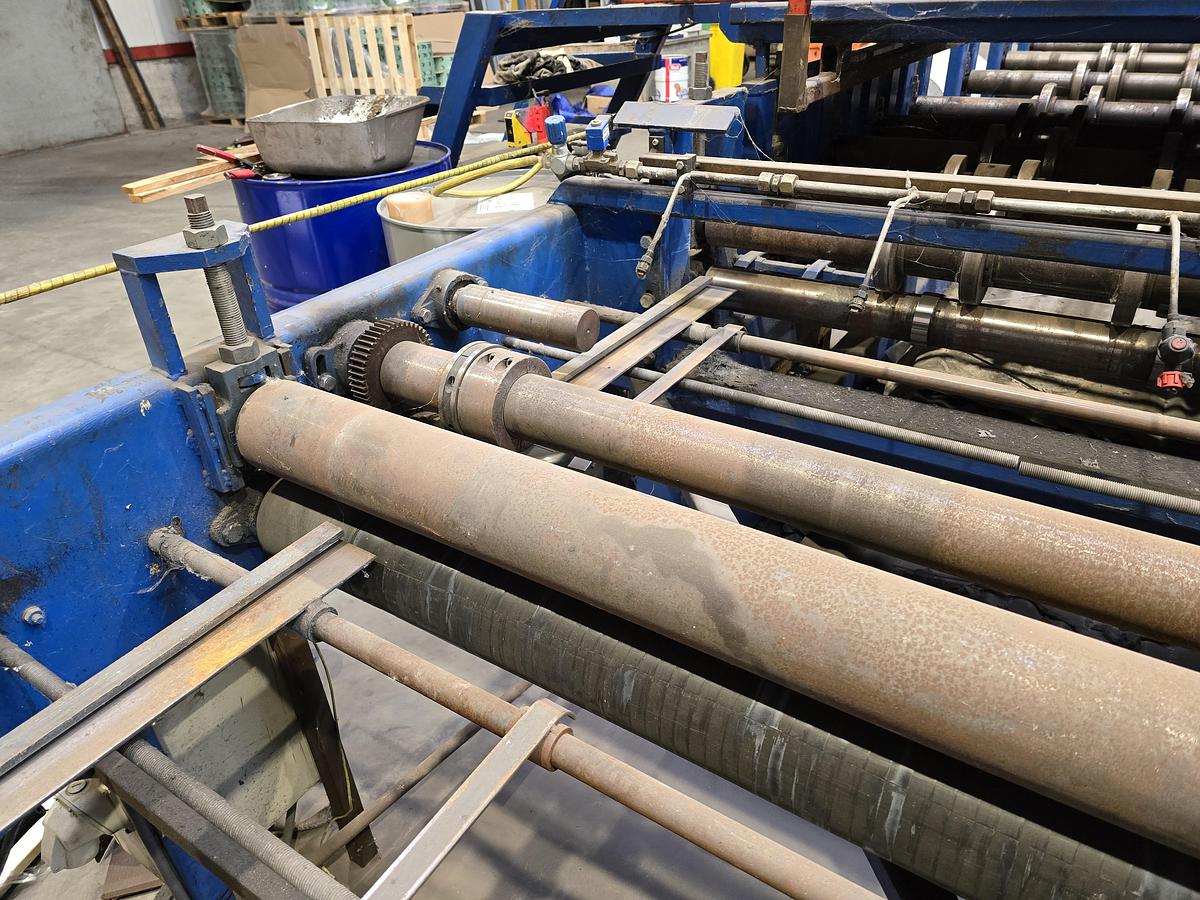

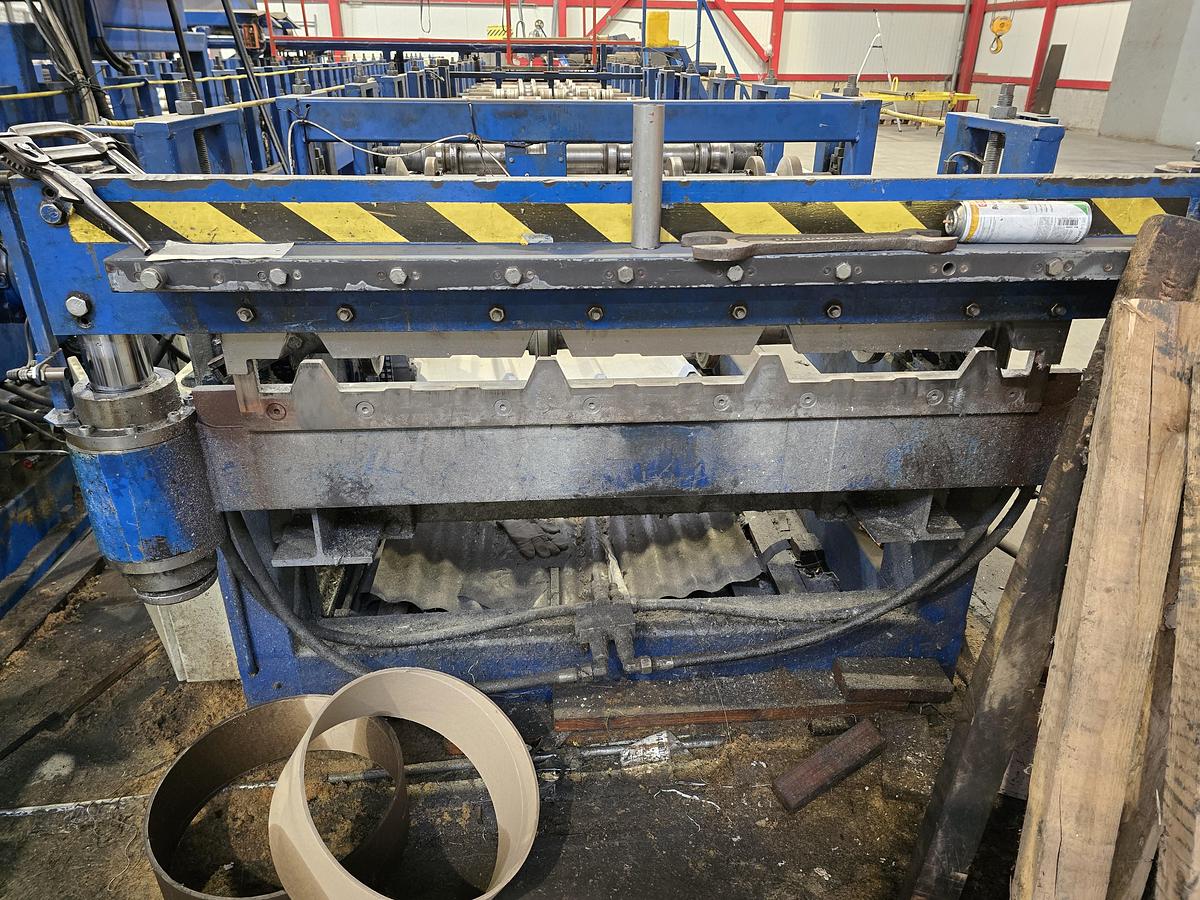

Both roll formers A and B are equipped with a slitting head and, one recoiler can be displaced whether above A rollformer or B Rollformer (this is a definitive advantage as it makes possible to process non standard  sheet material width)

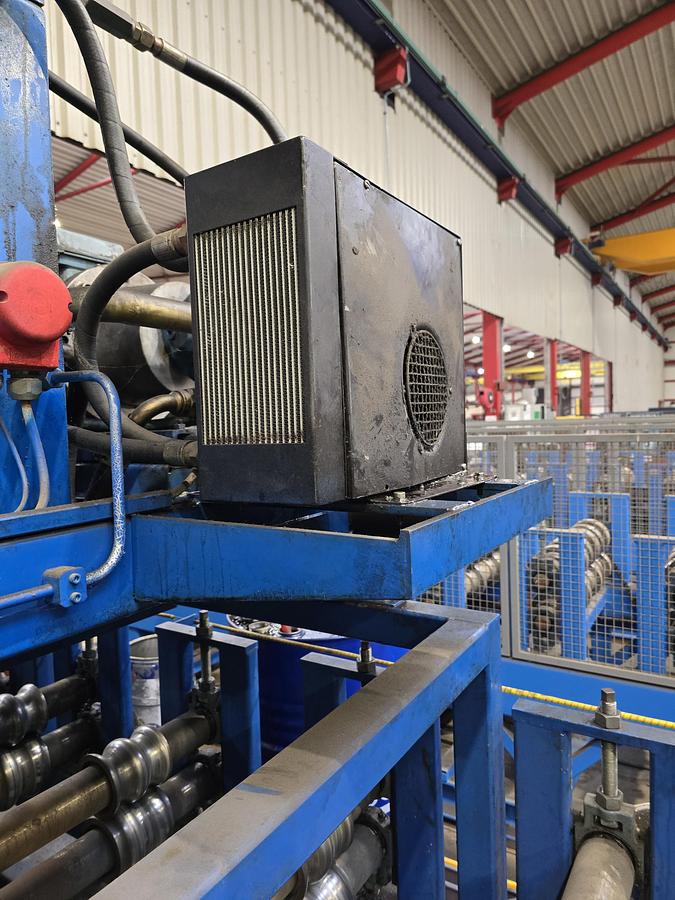

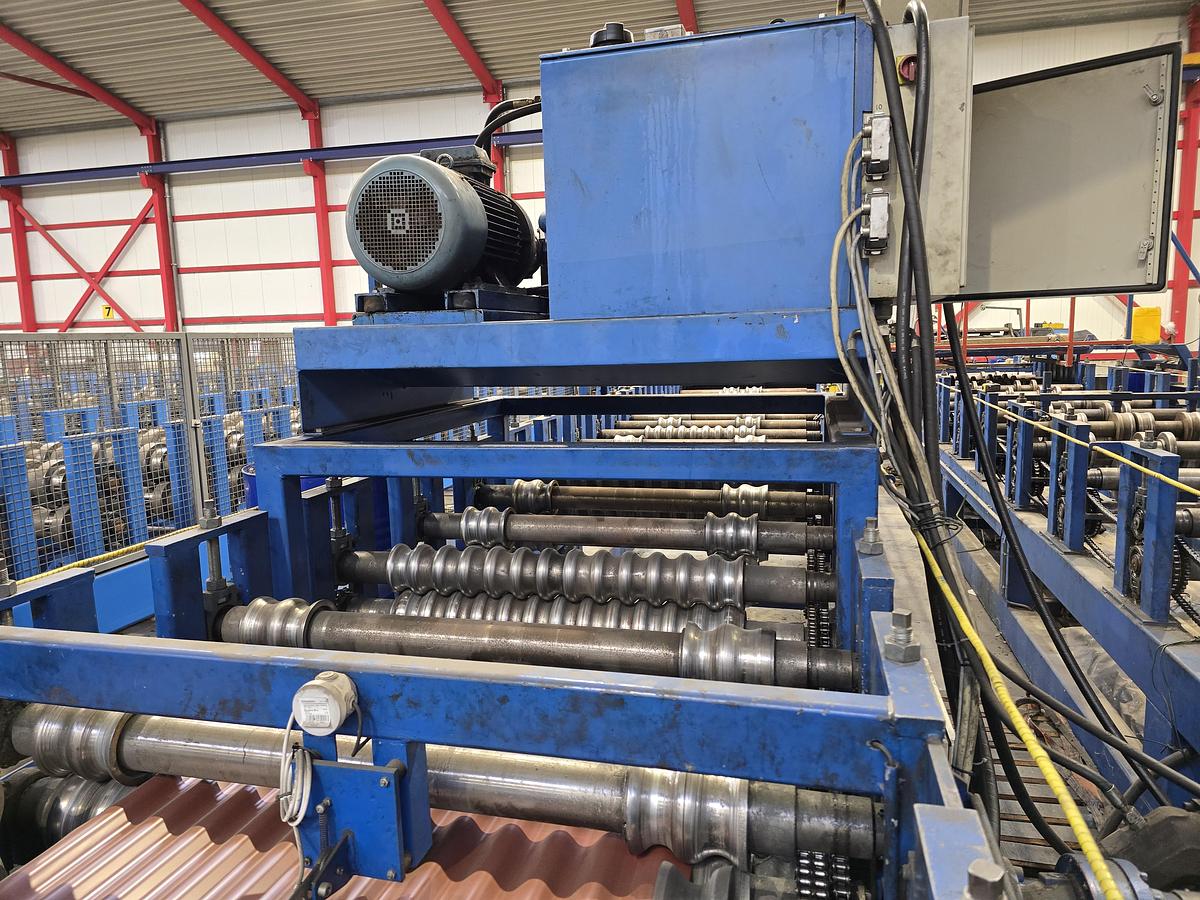

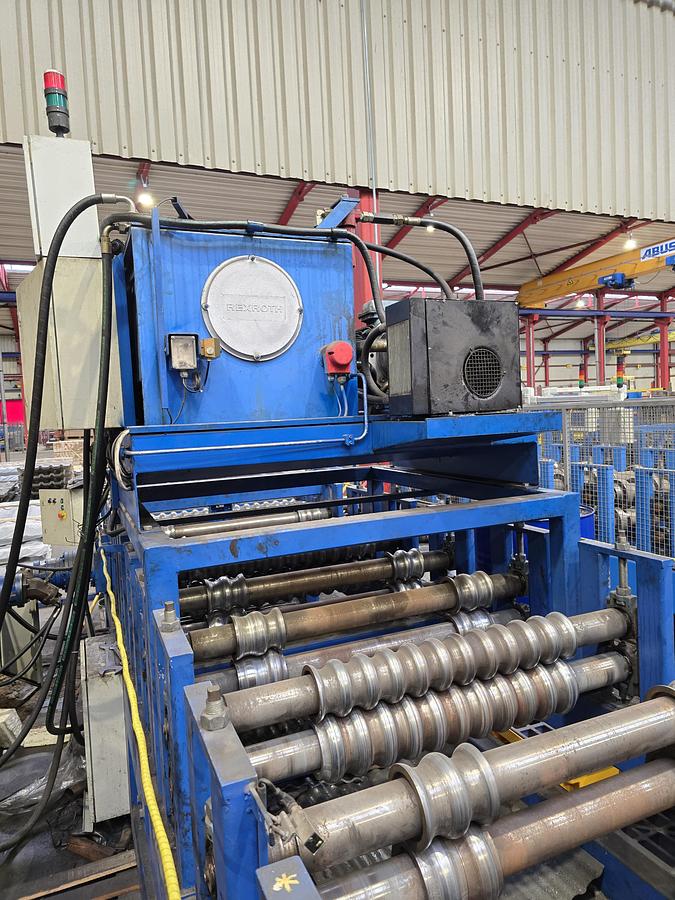

Motors: rollformers and decoilers are operated with hydraulic motors, one central hydraulic unit feeds both

Scope of supply:

Rollformer A ^

Rollformer B ^

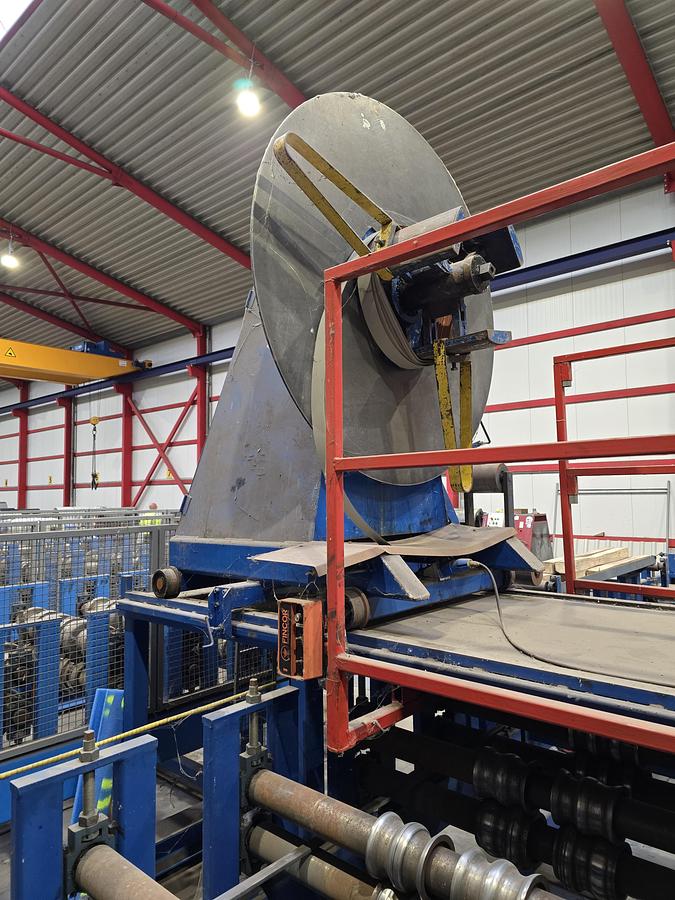

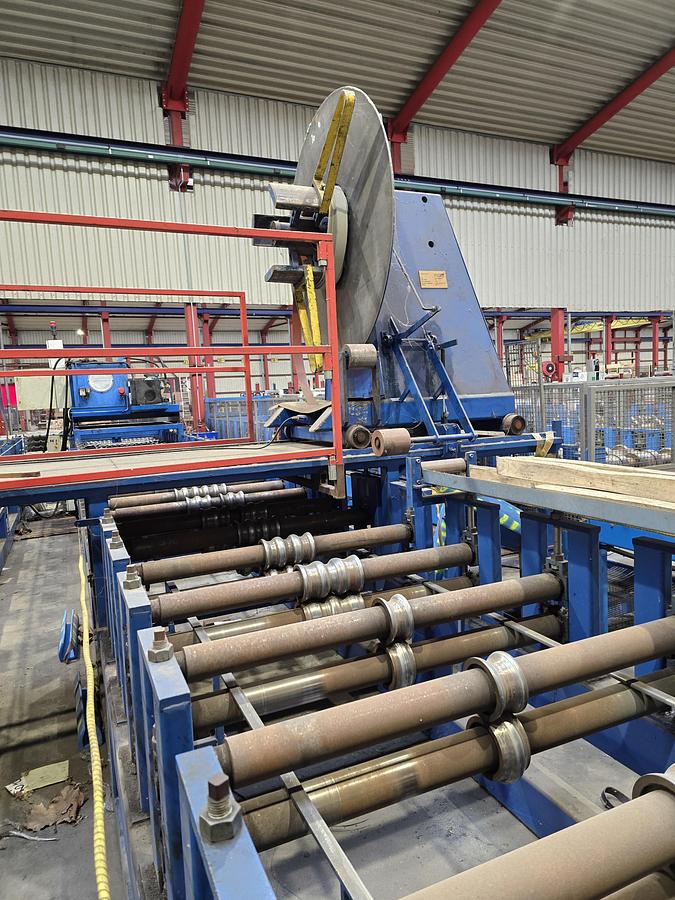

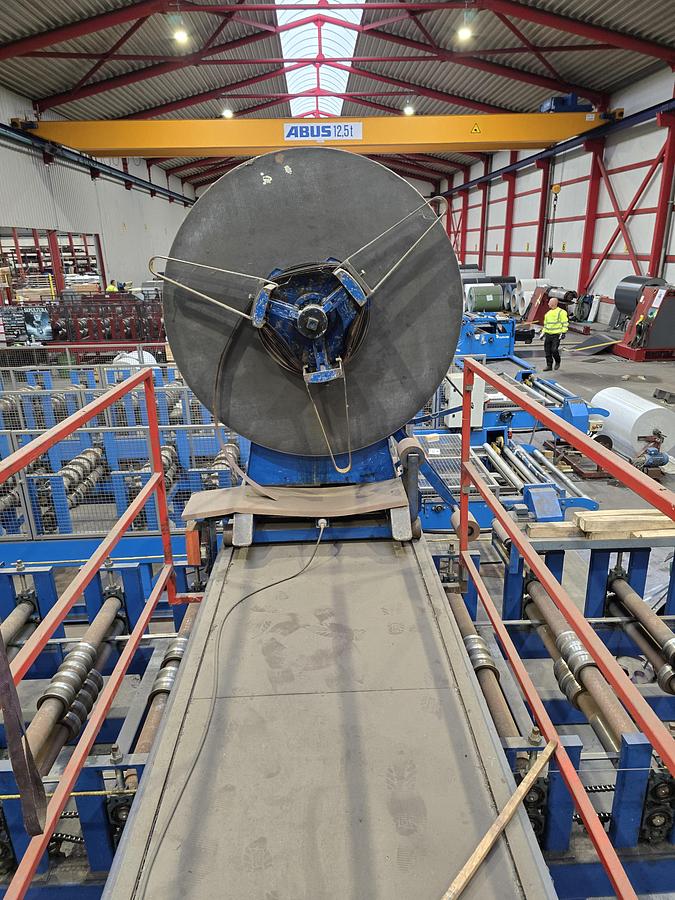

Recoiler for the slit scrap-material

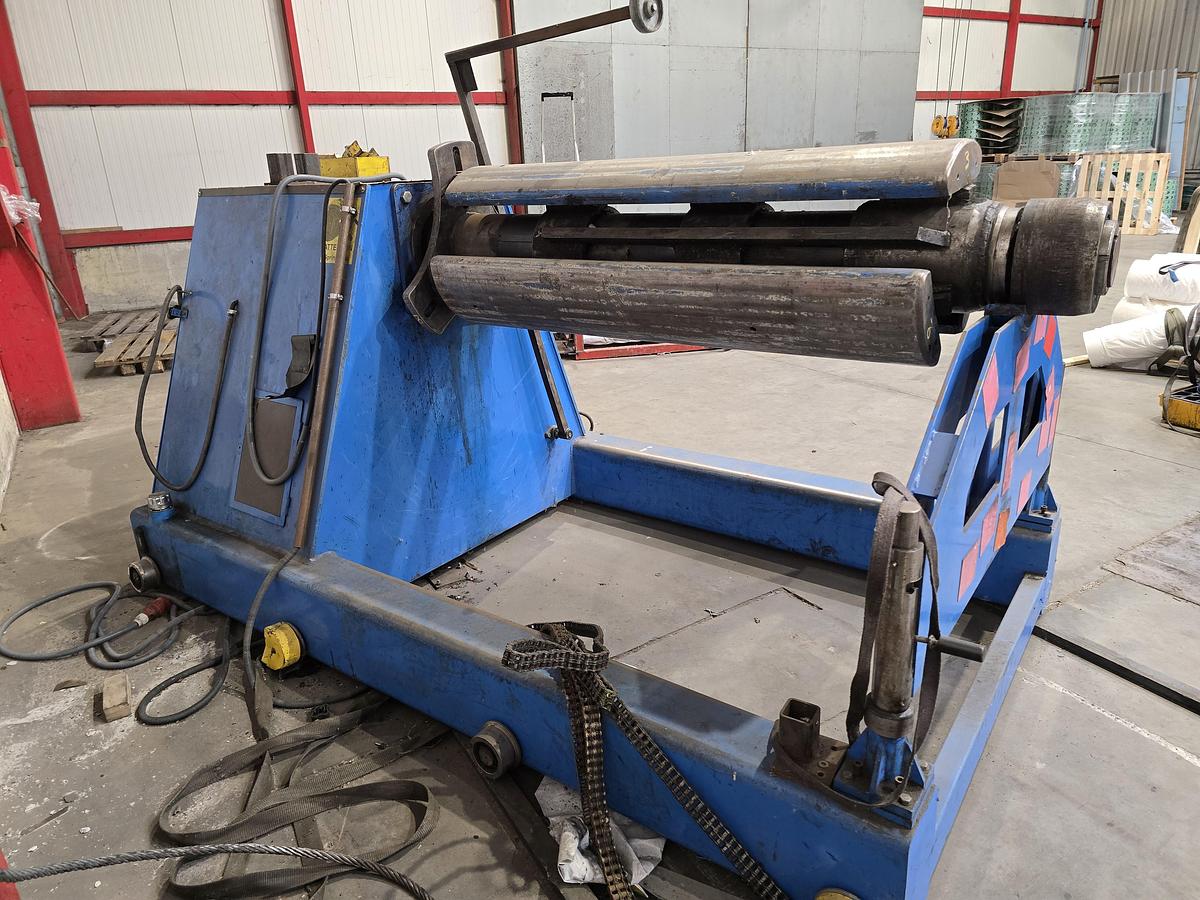

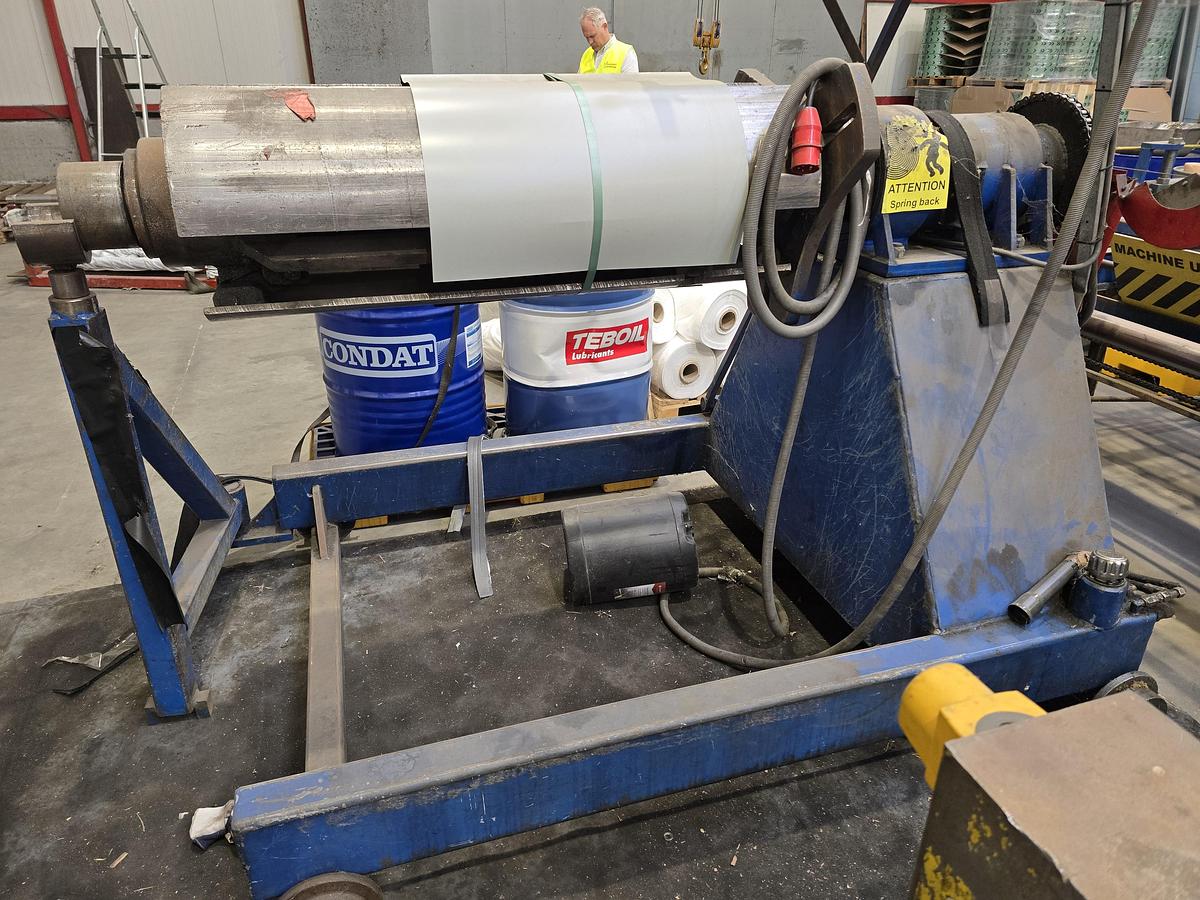

Decoiler 15 tons

Decoiler 7 tons

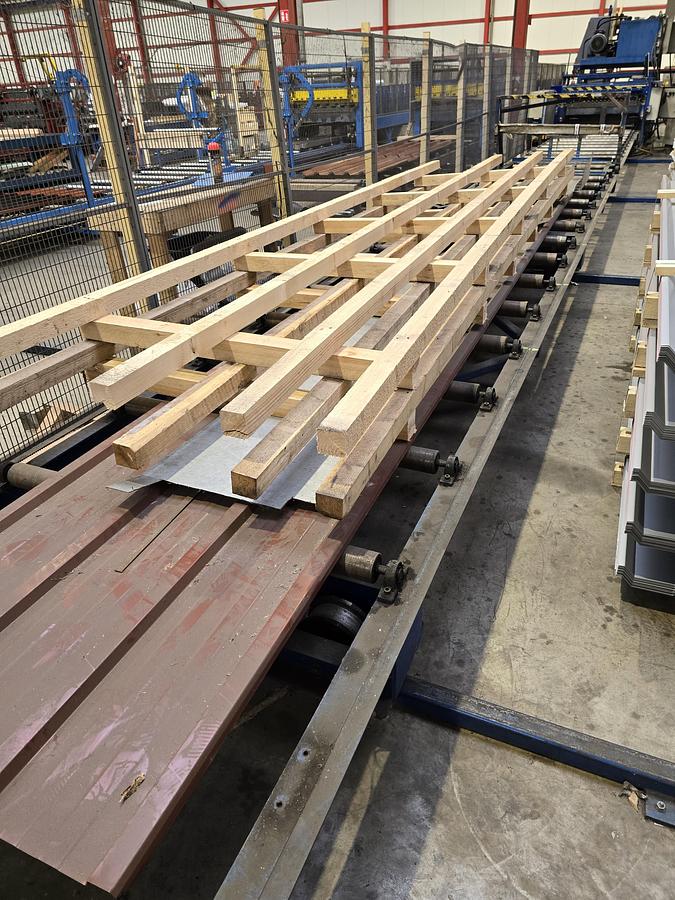

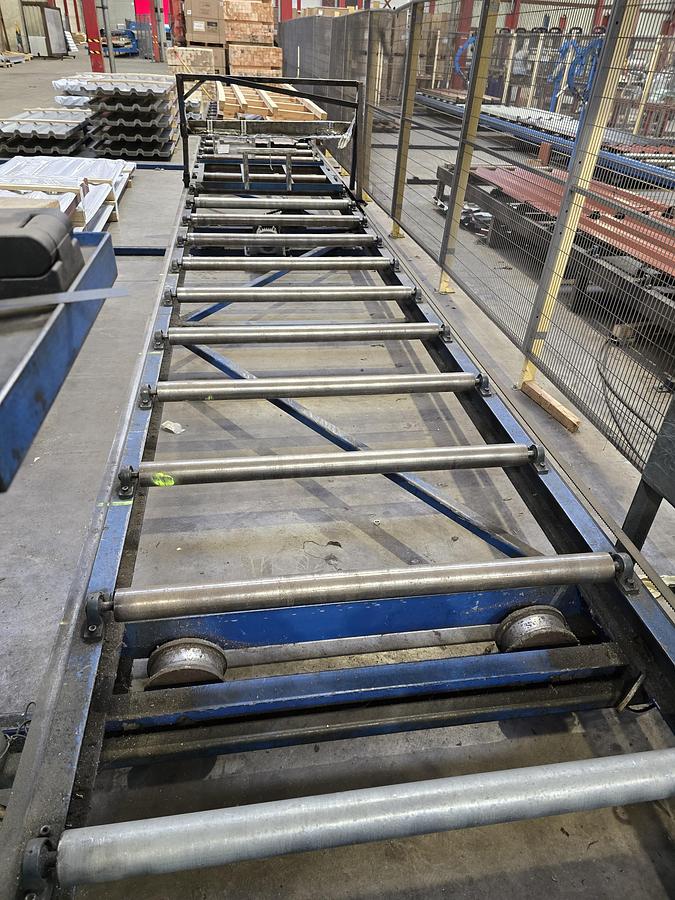

One stacking table (max length of profile is 14 meters), the table can be used for both rollformers

Ground floor space required for the whole installation: approx 30-35 meters length  x 5- 6 meters width

- Shipping : 3 complete trucks are required

-
