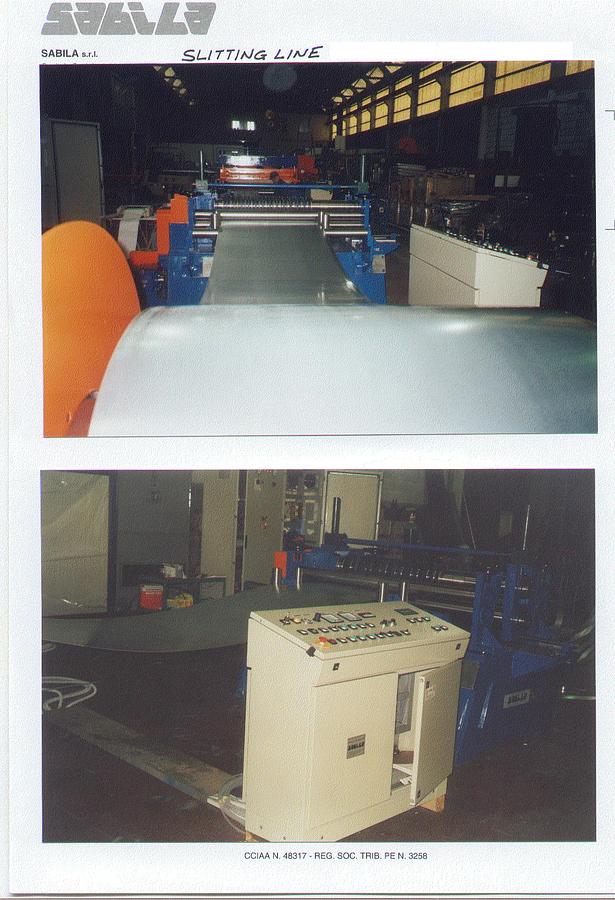

SABILA 1500x2.5mm Slitting Line

SABILA 1500x2.5mm Slitting Line

Description




VERY GOOD CONDITION

DELIVERY ABOUT 2 MONTHS


€ 170.000 EXW



50m / minute



Coil weight max 8 Ton


 Material thickness min/max .5 ÷ 2.5 mm

 Material: UTS (galvanized steel material) 420 N/mm2

 Coil width (max) 1.500 mm

 Line Speed 0÷50 m/1'

 Electric supply: a.c. 3 x 400 Volt, 50 Hz + ground


8 cuts at speed: 40 m/1' – thickness 1 mm

4 cuts at speed: 20 m/1' – thickness 2 mm


Installed d.c. electric motors' power with electric converters a.c./d.c.:

- Slitter 20 kW

- Recoiler 23 kW




 1 Loading coil-car 8 ton

 1 Decoiler 1500 mm x 8 ton

 1 Hydraulic oil unit – a.c. electric motor 4 kW

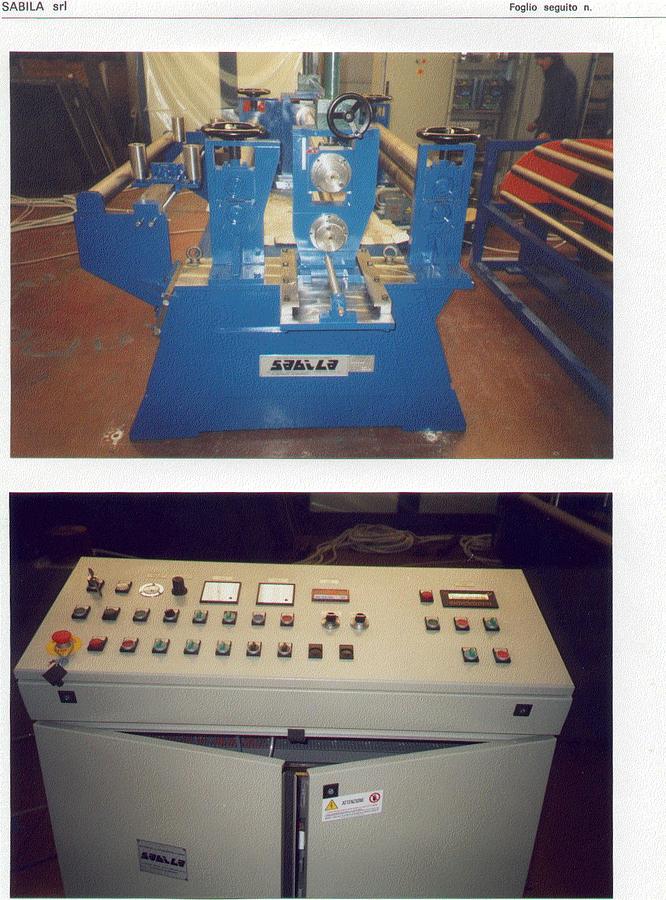

 1 Introduction group (snubber – peeler, small straightener)

 1 Heading guillottine shear (excluded, optional)

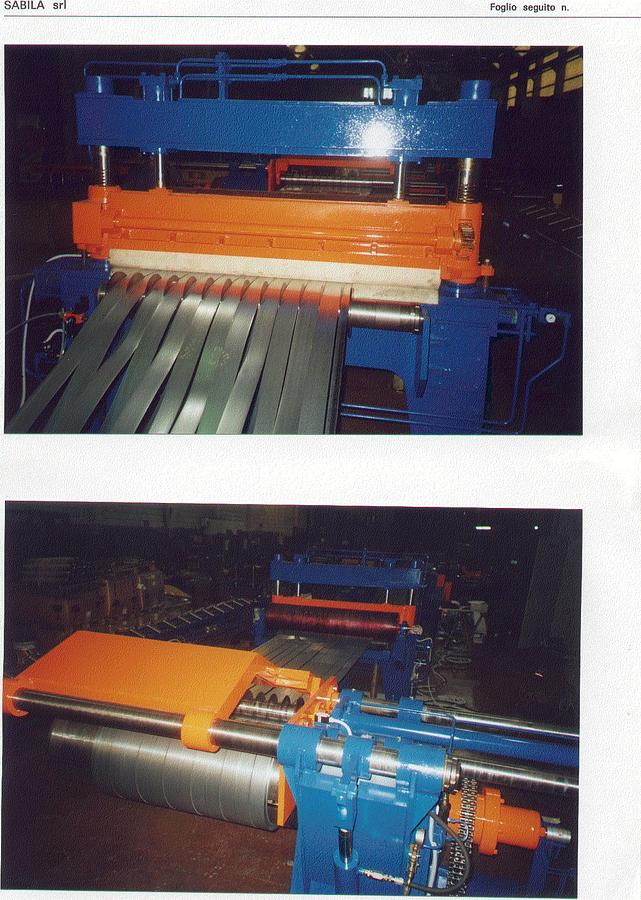

 1 Coils slitting machine – shaft diam. 120 mm, d.c. electric motor 20 kW, circular blades diameter 220 mm

 1 Set of tempered steel circular blades and steel + rubber spacers for n. 10 cuts

 1 Synchronization hydraulic pit with surpass table (NEW)

 1 Hydraulically operated Scrap-baller - a.c. electric motor 5,5 kW

 1 Tensioning pneumatic press felt

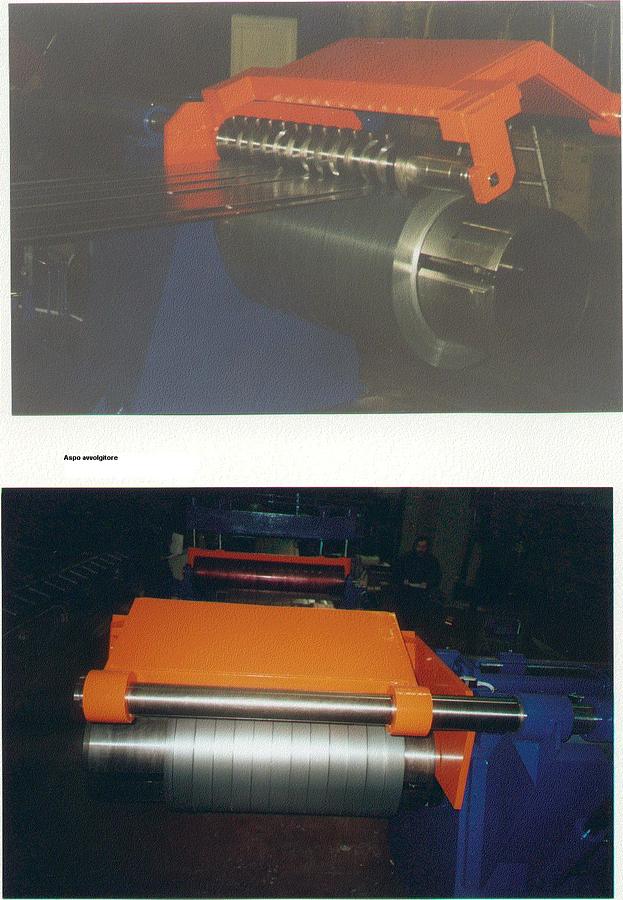

 1 Recoiler 1500 mm x 8 ton with d.c. electric motor 23 kW

 1 Unloading coil-car 8 ton

 1 Hydraulical oil unit – a.c. electric motor 7,5 kW

 1 Complete electrical system with connection cables

 1 Complete hydraulical system (without oil)


 1 Set of Instruction manual and electrical diagrams in English




-



-

Specifications

ManufacturerSABILA
Model1500x2.5mm Slitting Line
ConditionUsed
Stock Number0525
