SCHLATTER MG 900 Mesh Welder (Used) #3703

Years: 1999/2000

Equipment List:

Line wire feeder LV2 Schlatter

5 x Transformers

9 x line wire, Magazine U-Profile – new

9 x Electrodes 40 mm – new

9 x Presses – refurbished

Diameter: 3-8 mm

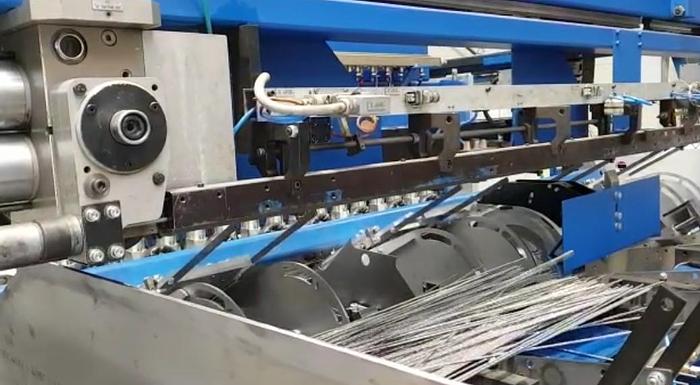

Cross wire feeder QFE 3-8 mm

Linear pulling unit MVL5

Width of the machine is 1250 mm / Distance LD 1200 mm

Length 500-3000 mm

Control board Siemens S5

Electrical power

Three-phase

3 phase connection voltage 400 V, 50 Hz

1 phase connection voltage 230 V, 50 Hz

Control voltage 24 V

Permissible mains- voltage fluctuations + - 10%

+

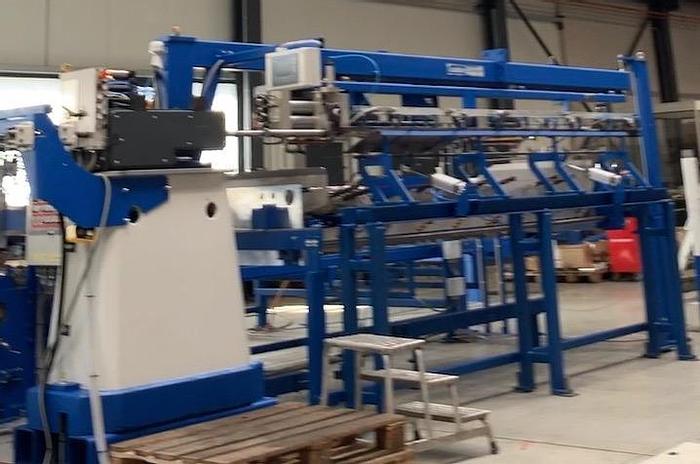

SYROCUT straightener

with:

Powered payoff

Machine support

Rotative straightening and cutting unit w. displaceable pneumatical shear

Precision measuring unit

Programmable control w. cables cable-channels, wire guiding

Wire diameter: 2-8mm

-

Machine adjusted for: 3-6mm (straightening rotor & tools) new

Wire length: 100-3500mm

Loading capacity per-coil: max. 2000 kg/ each

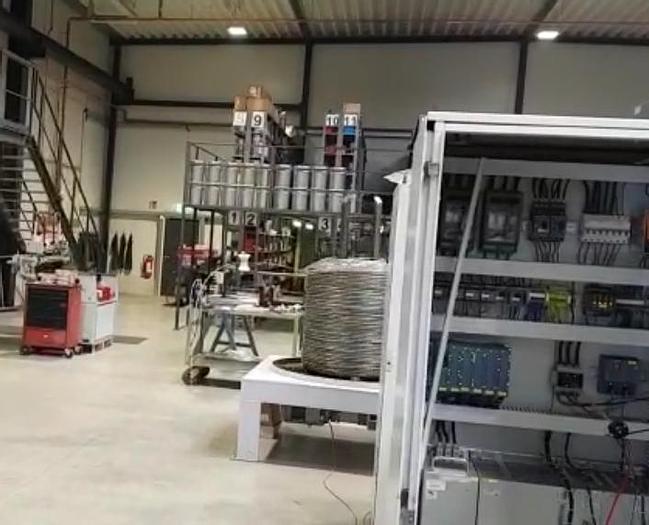

Switchboard: good condition, 400V, 50Hz

PLC: Siemens S7-1500, new

Motors: Rexroth, new

Air supply: 6 bar (Dirt and water free, but lightly oiled)

Cooling water: needed

Cutting tolerance max: 1mm

--
