FICEP 363 DB

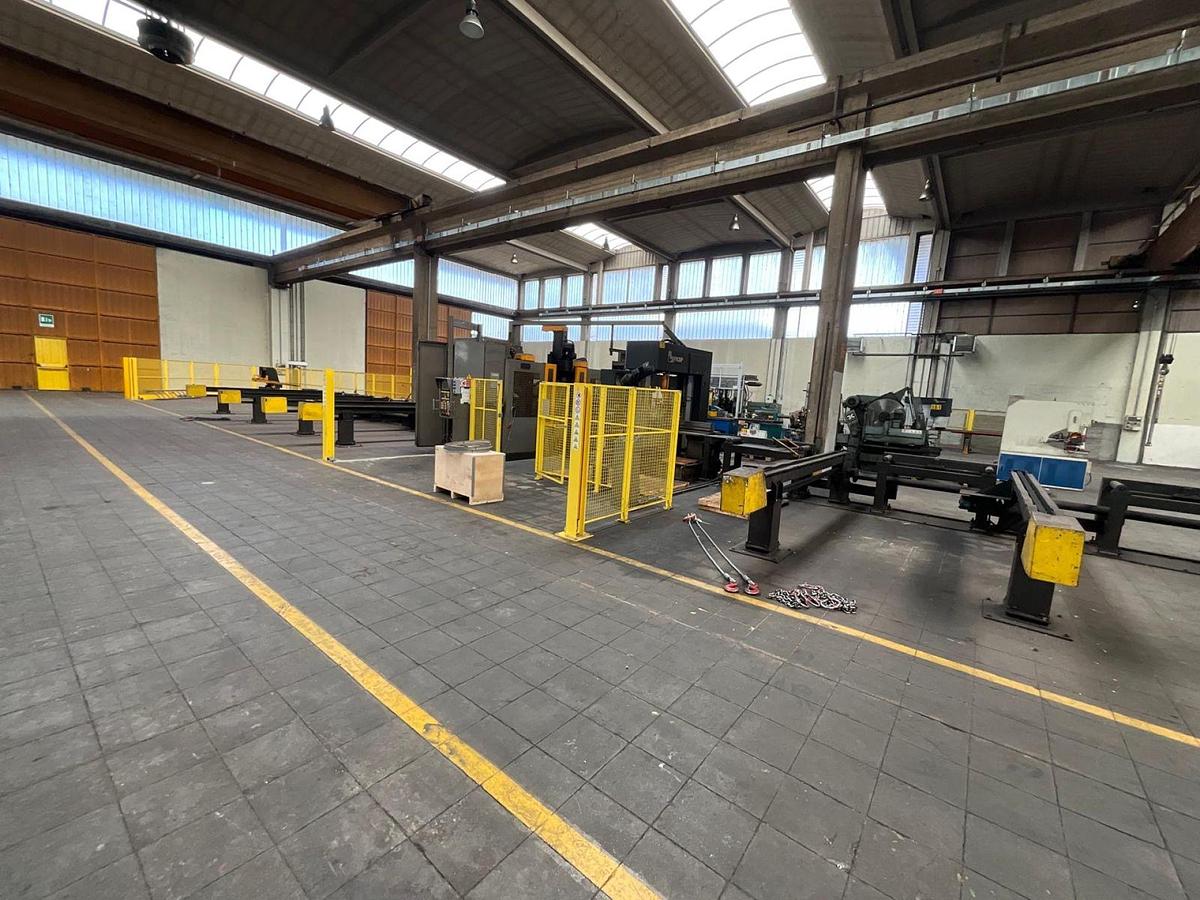

FICEP 363 DB beam punching and cutting line, year: 1993; equipped with CEPTROL CNC and SGB 40/36 bandsaw. A robust and efficient system for processing steel beams, angles, and plates in heavy metal fabrication

In excellent working condition, ready for inspection and testing

CE

Workable profiles:

• Double-T beams: from 80 to 360 mm
• U-beams: from 80 to 360 mm
• Angles: from 80×80×8 mm up to 250×250×40 mm
• Flat bars: from 100 to 360 mm
• Workable length: from 2,500 to 12,500 mm
• Max workpiece weight: 2,500 kg

Operating units:

• 3 drilling heads (2 horizontal single-spindle + 1 vertical single-spindle)
• Max drilling diameter (C.M.4): 31.75 mm
• Max thickness: 40 mm
• 1 hydraulic punching unit – 60 ton
• Vertical position for flat bars
• Horizontal position for beam flanges, U-profiles, and angles
