ORMIS Continuous Casting Equipment (Used) #3728

EXAMPLE

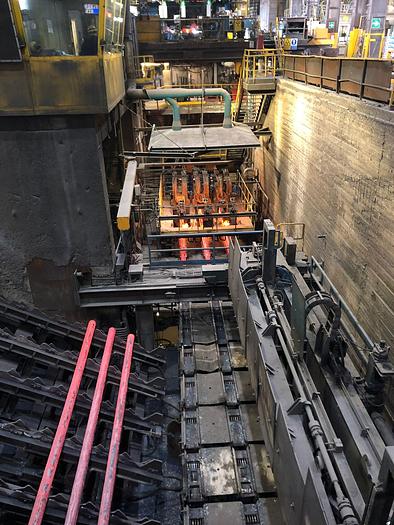

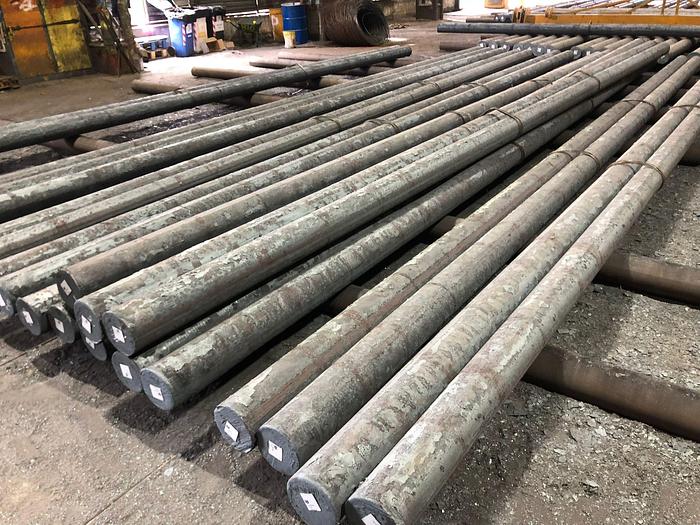

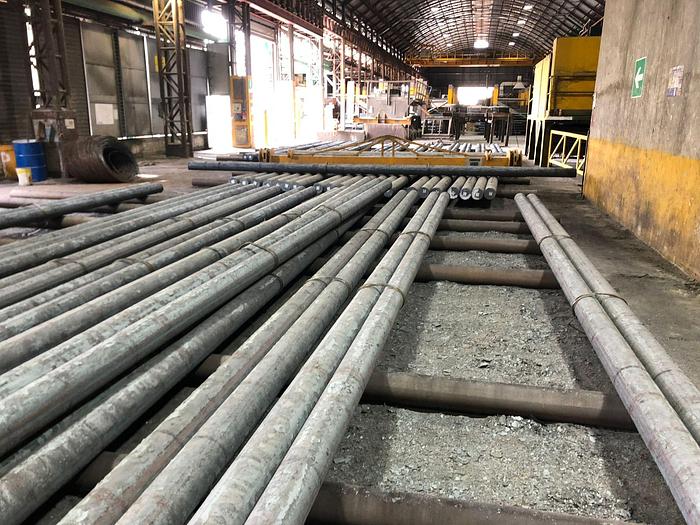

This used continuos caster that we have supplied is composed by 3 lines that can produce round billets up to dia. 200mm of diameter x 12m in lenght. Its maximum production capacity per-year is about 450.000ton.

The casting radius is 7m.

Manufacturer: ORMIS

Installed power: 2MW

Footprint x/y/z: 40m x 15m x 9m

Equiment list

-         Tundish, 14

-         Tundish drier, 1 set

-         Tundish heater, 2 set

-         Tundish drawers, 24

-         Tundish tipper, 1 set

-         Tundish cover, 6

-         Ladle car, 1 set

-         Hydraulic system for tundish drawers, 4 set

-         Vesuvius complete control unit, 1 set

-         Berthold level control unit with scintillator, 1 set

-         Ingot mold Injection powder machine, 3 set

-         Tundish car, 1 set

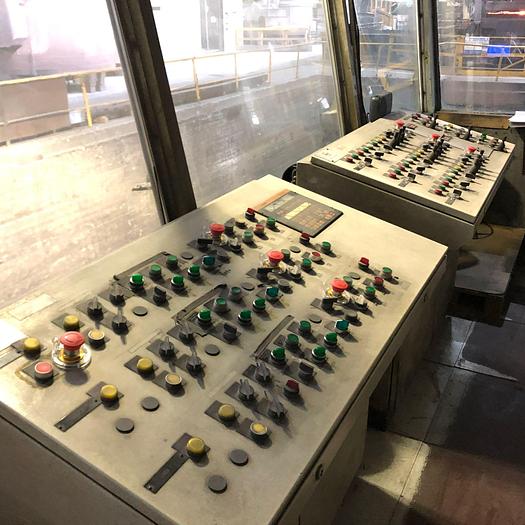

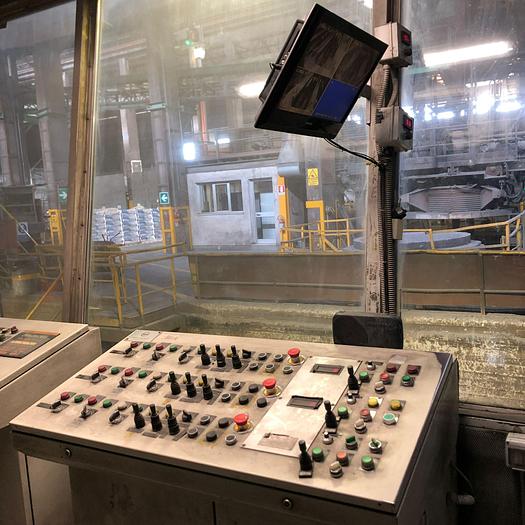

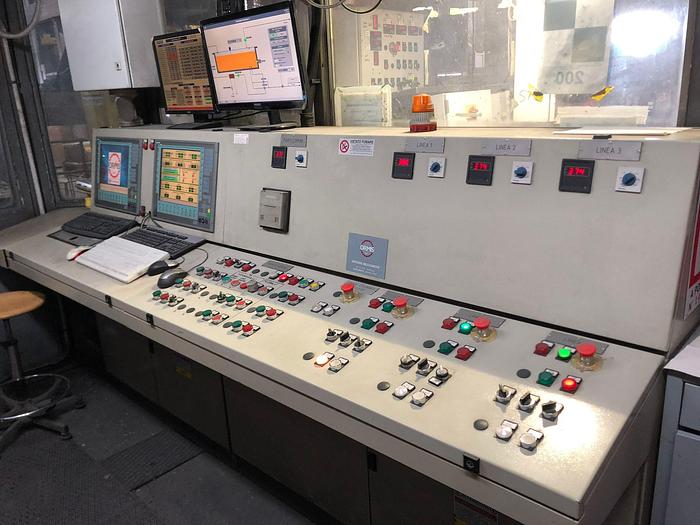

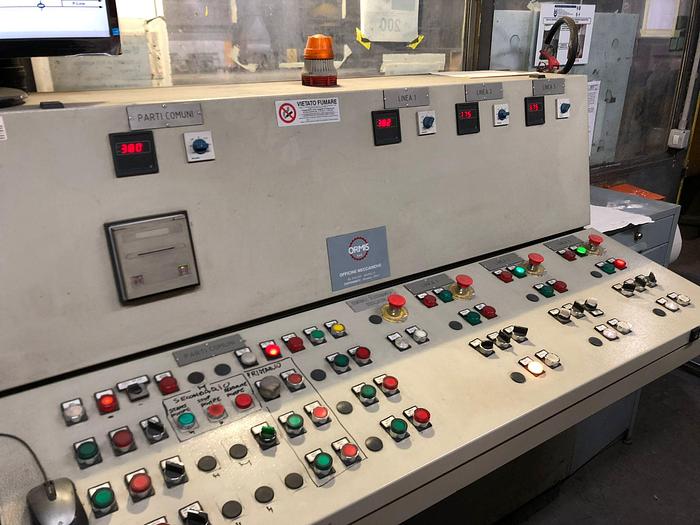

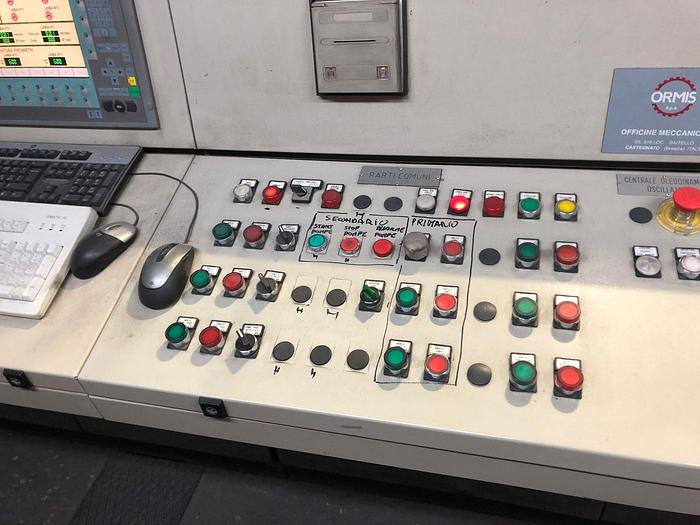

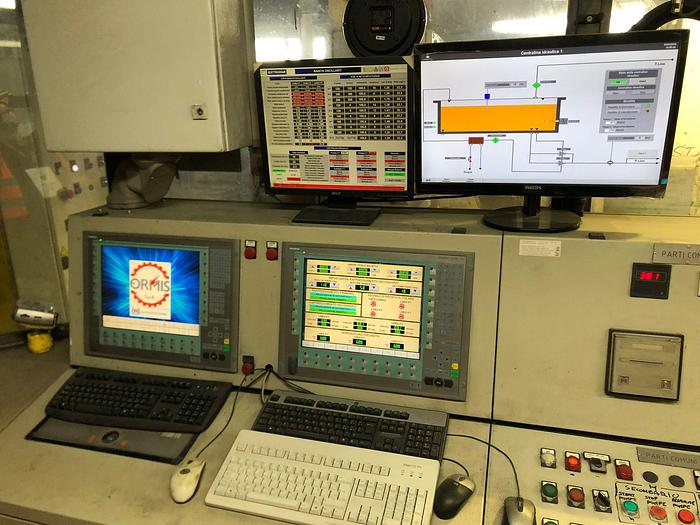

-         Control panel for lines and cars, 1 set

-         Control panel for extractor and torches, 1 set

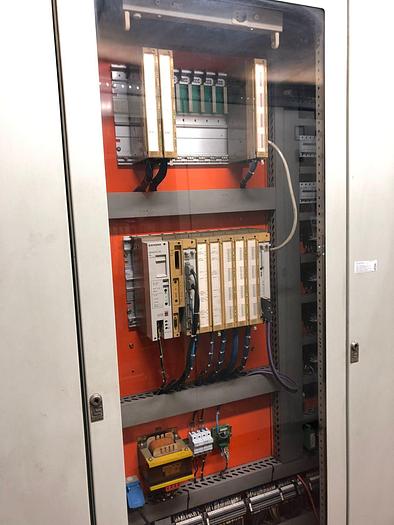

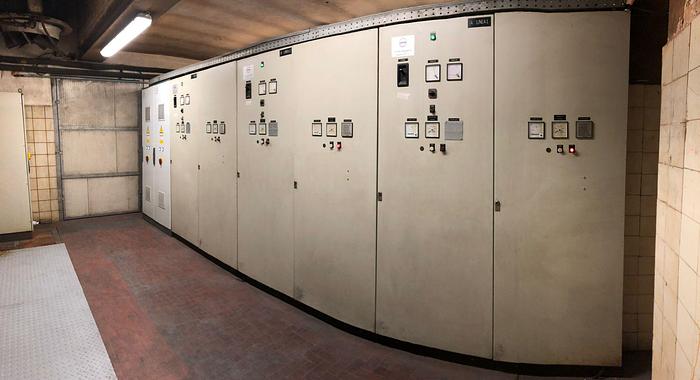

-         Electrical panels for automation and service, 1 set

-         Electrical panels for line automation, 1 set

-         Electrical panels for evacuation, 1 set

-         Electrical panels for lines, 1 set

-         Electrical transformer, 1

-         Ingot mold holder with crystallizers, 37

-         Ingot mold holder tipper, 1

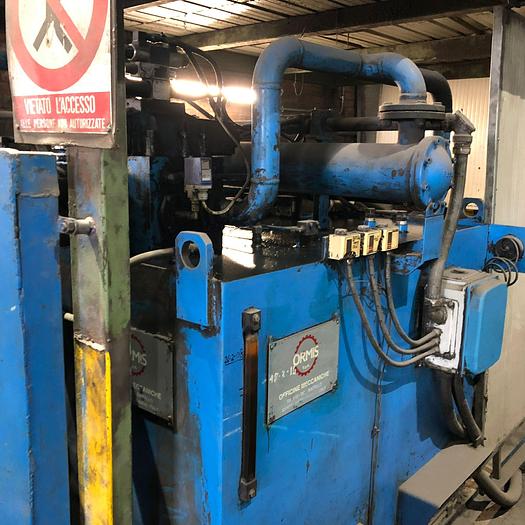

-         Hydraulic system for oscillating bench, 1 set

-         Oscillating bench, 4 set

-         Scale water pumps, 2

-         Water pumps for cooling ingot mold, 3

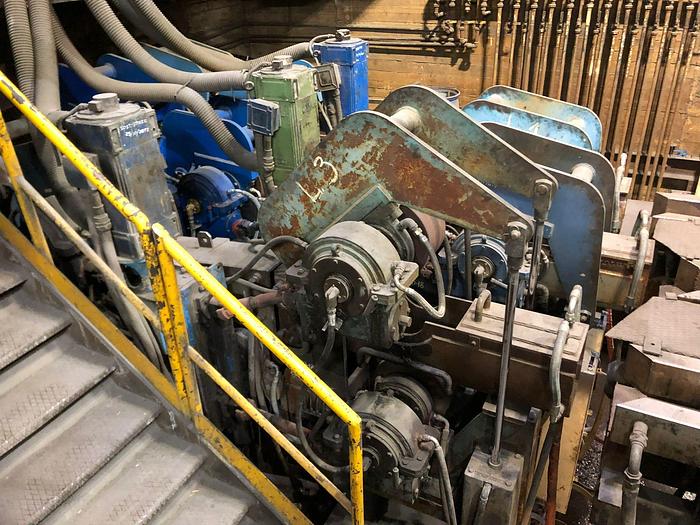

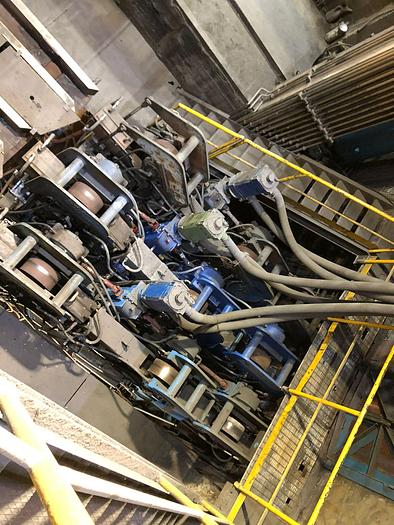

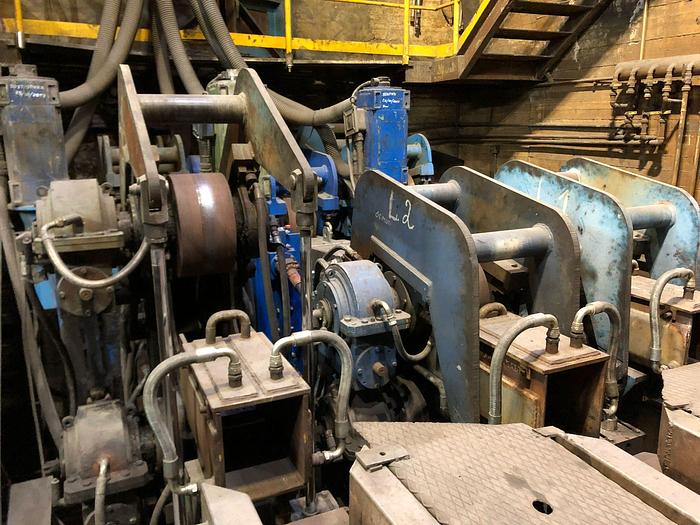

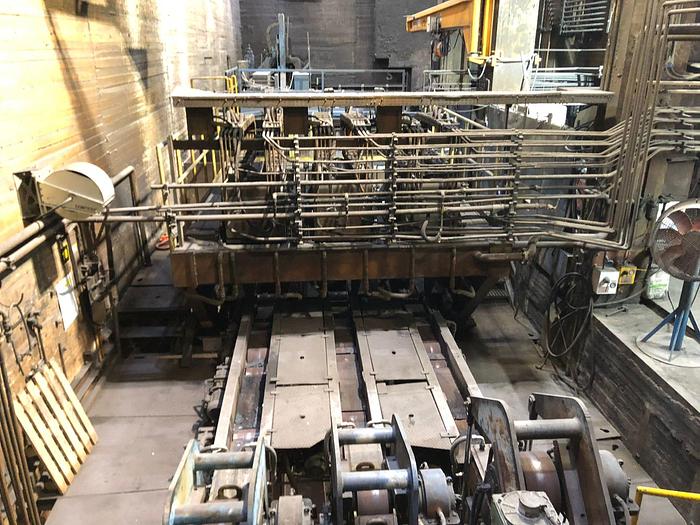

-         Extractor, 4 set

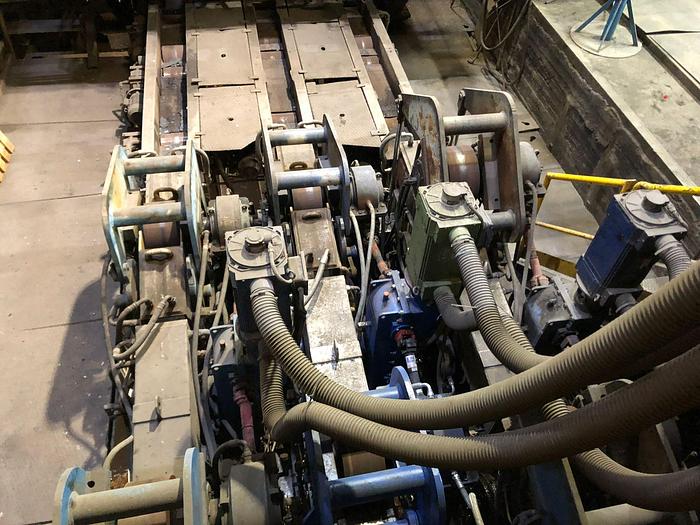

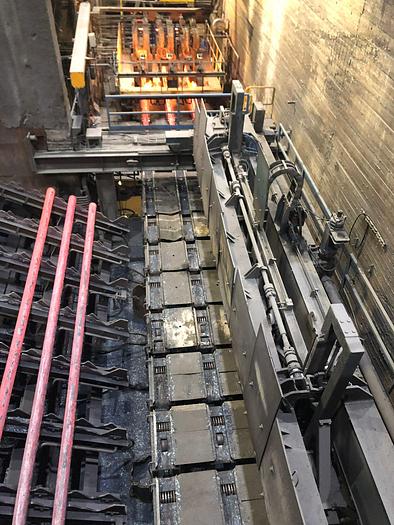

-         Motorized roll table, 1 set for all three lines

-         2 ton jib crane, 1 set

-         Cutting torch car, 1 set

-         Hydraulic system for torch, 1 set

-         Roll table for evacuation, 1 set

-         Roll table for false bar, 1 set

-         False bar, 36

-         Transfer car, 1 set

-         Hydraulic unit fot transfer car, 1 set

-         Carrier structure, 1 set

-         Torch fume hood, 1 set

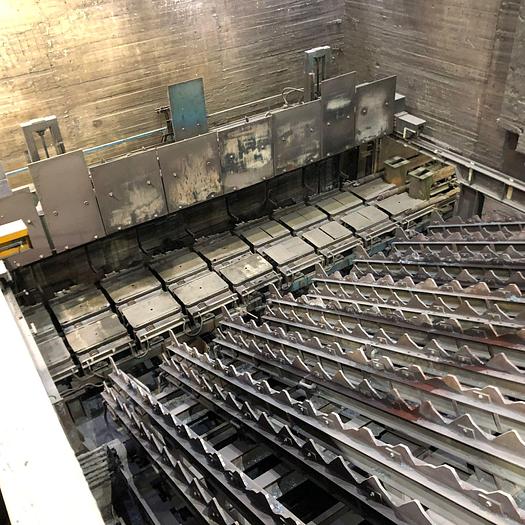

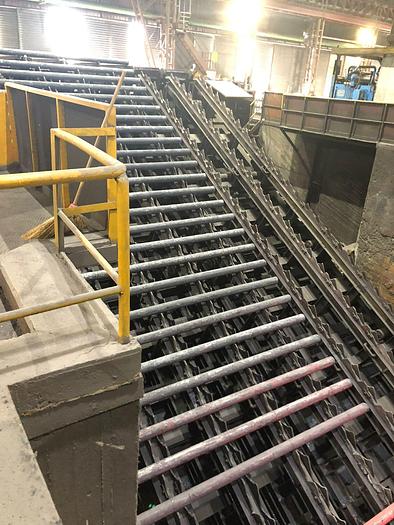

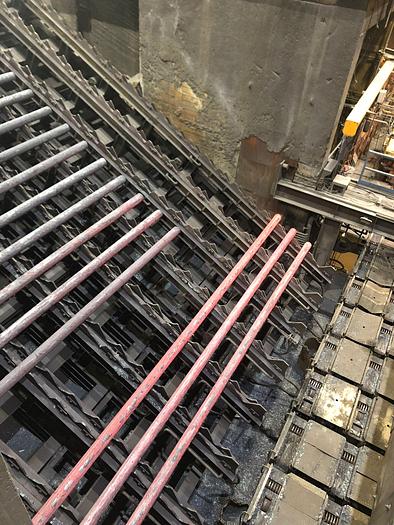

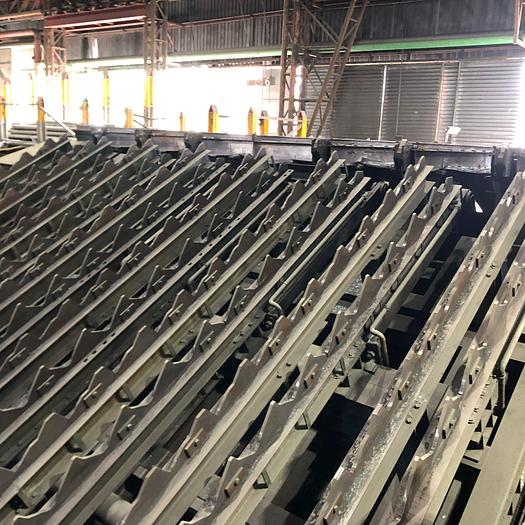

-         Movable cooling bed, 1 set

Fume fans, 2 set

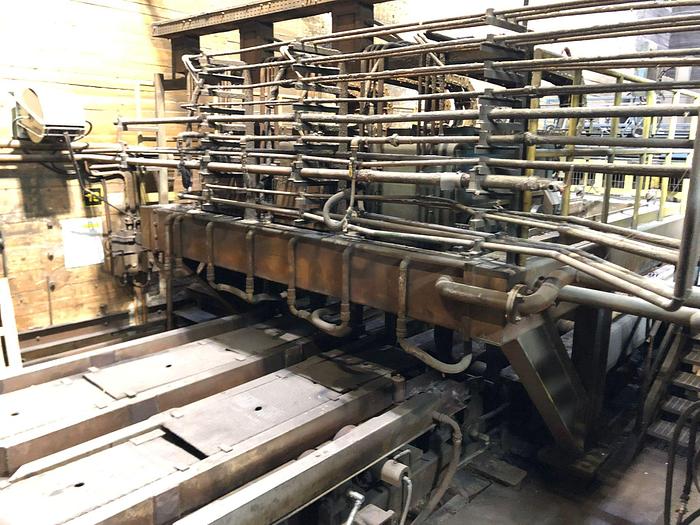

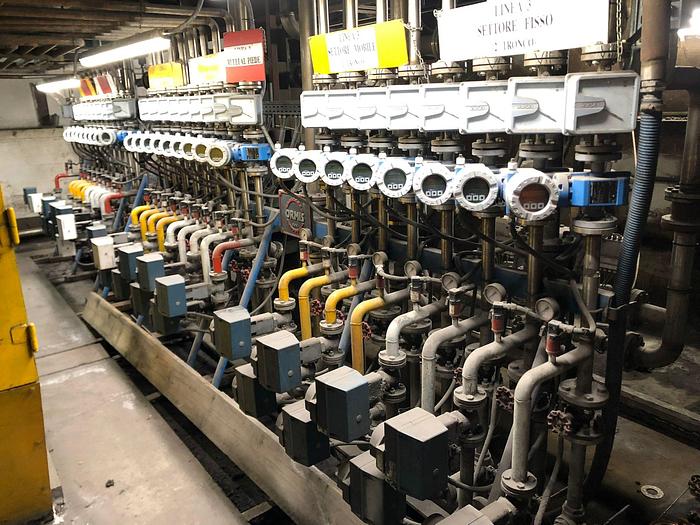

-         Water regulation system, 3 set

-         Hydraulic unit for cooling bed, 1 set

-         Spreader beams 17 - 8 ton, 1

-         Spreader beams 16 - 10 ton, 1

-         Spreader beams 6 - 1.2 ton, 1

-         Spreader beams 3 ton, 1

-         Spreader beams 4 - 3.6 ton, 1

-         Spreader beams 7 - 3.6 ton, 1

-         Gripper 11 - 6 ton, 1

-         Gripper 10 - 7 ton, 1

--

-
