Material:

Mild Steel and Galvanized

Thickness (min-max) – CRC, HRC, SS: .4–3.5mm

400<>1550mm

100m / min' at .4-1.5mm

70m / min' at 2-3.5mm

Max number of slits: 17

Slit coil – ID: 508mm OD: 1600mm

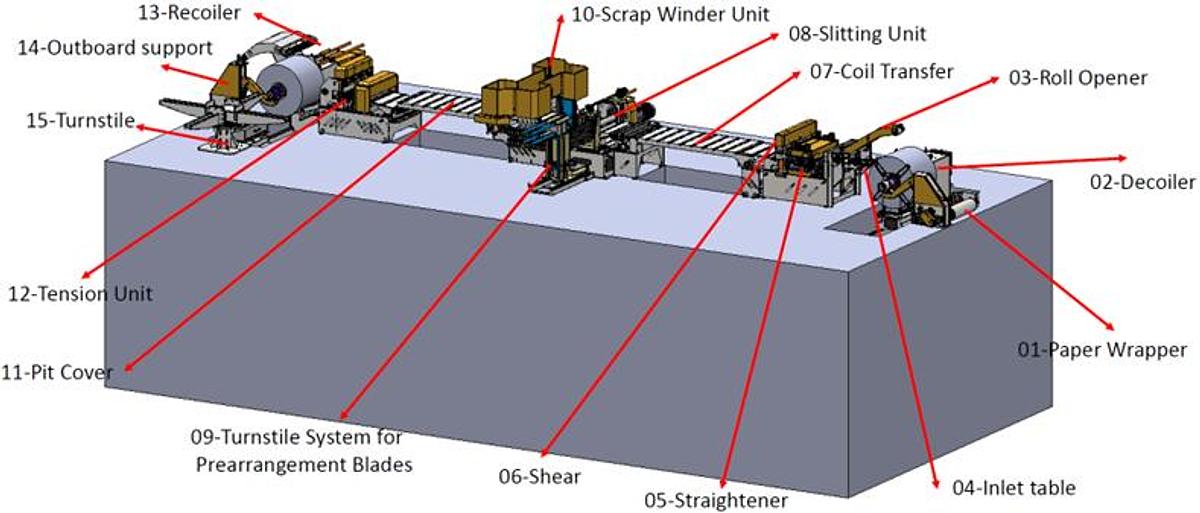

v DECOILER & COIL LOADING CAR -Single Mandrel-

15 Ton Hydraulic Coil Car

15 Tons Hydraulic Decoiler

Outboard Support

v HYDRAULIC ROUTING PLATFORM

Automatic Coil Transfer System

v STRAIGHTENER

Speed Controlled

With Thickness Adjustment

v GUILLOTINE SHEAR

Thickness Adjustment

v PIT TABLE

Hydraulic

v TRANSFER UNIT FOR SLITTER HEAD

Slitting Head Guiding System

v SLITTER HEAD

With Thickness Adjustment (Motorized)

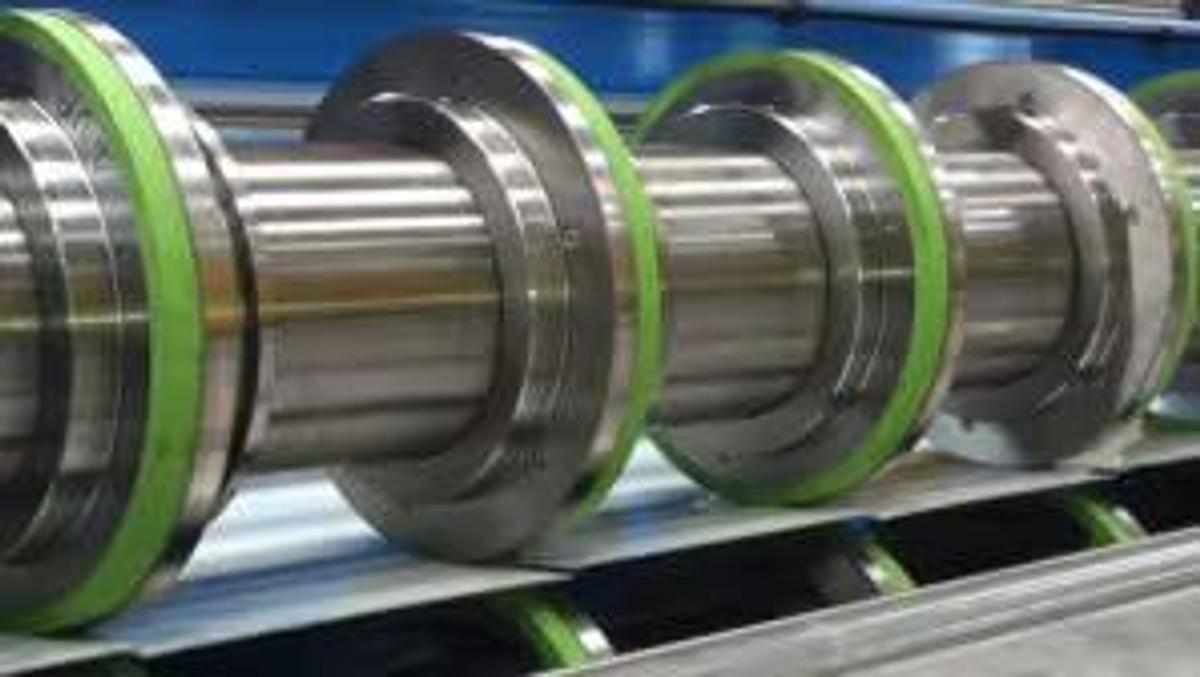

Circular Blades (1 Set)

Turnstile Type System for Prearrangement Blades - ops

v SCRAP WINDERS

Conical System- 2 Heads

v SEPARATORS and STRIP TENSIONING UNIT

Separator System, Transfer to Tensioning Unit

v GUILLOTINE SHEAR

With Thickness Adjustment

v HYDRAULIC RECOILER & COIL OFF-LOADING CAR

With Overarm

Outboard Support

Exit Coil Car

v 2-ARM TURNSTILE
