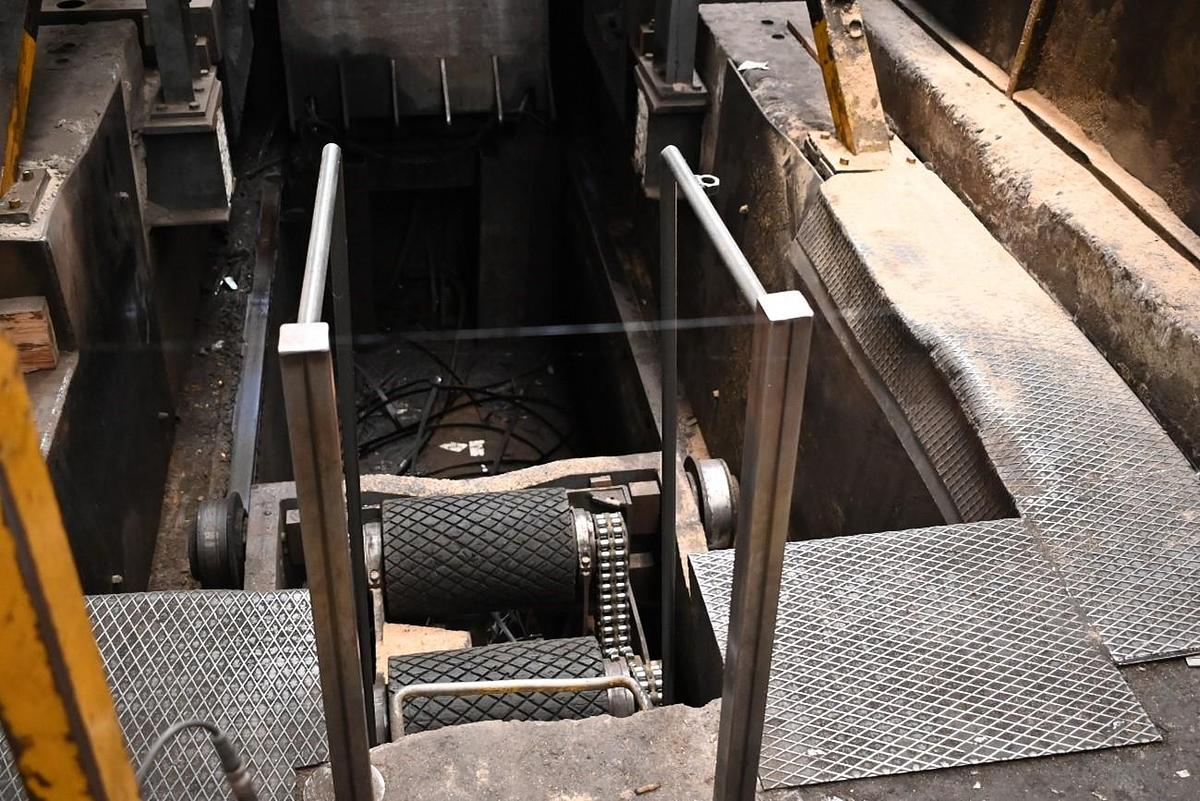

FAGOR ARRASATE 1550x10mm CTLL

1.50–10.00mm x 1550mm CUT TO LENGTH LINE

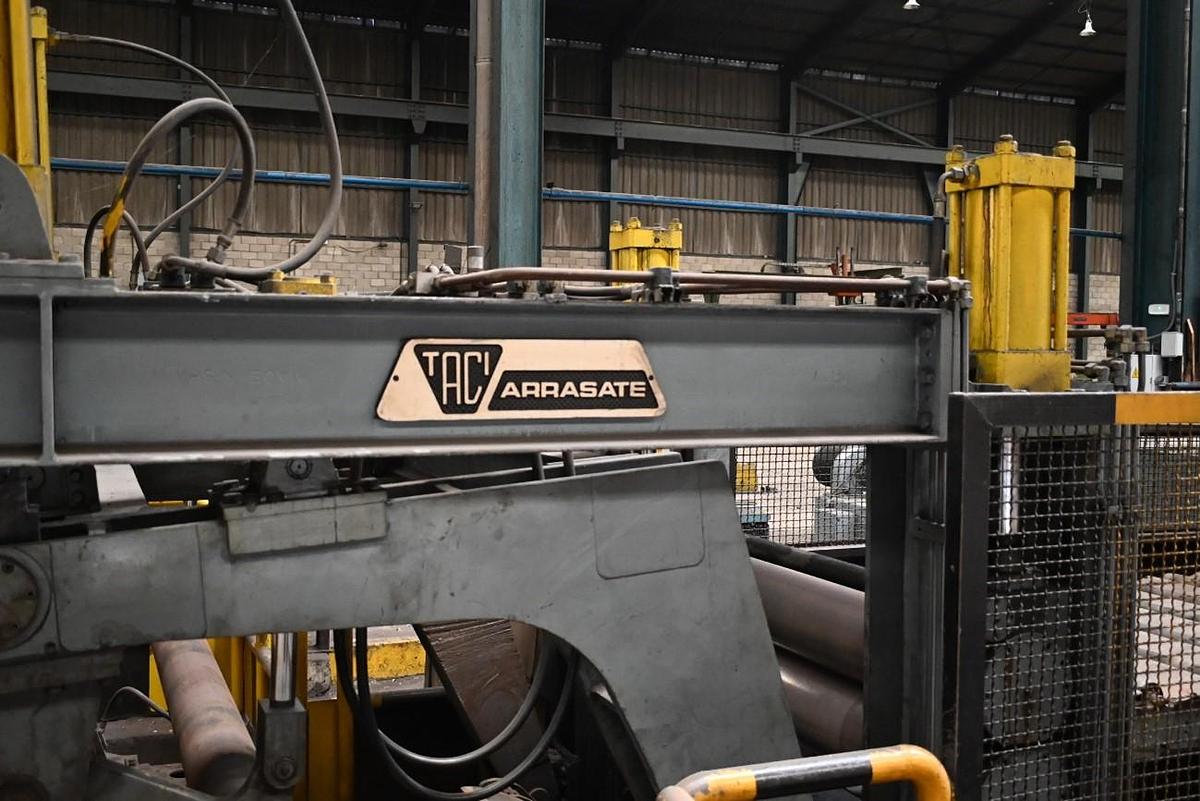

Brand: Fagor Arrasate – Spain

Year: 1975

All maintenance completed

In service

Material Specifications:

Maximum coil width: 1500 mm

Minimum coil width: 300 mm

Maximum coil weight: 25 metric tons

Finished Product:

Maximum length: 12000 mm

Minimum length: 500 mm

Maximum speed: 25 meters/minute

Line direction: Left to right

Maximum coil weight: 25 metric tons

Expanding double mandrel uncoiler.

Outer coil diameter: max. 2000 mm min. 600 mm

Inner coil diameter: max. 760 mm min. 508 mm

Motorized clamping roll

Hydraulic expansion

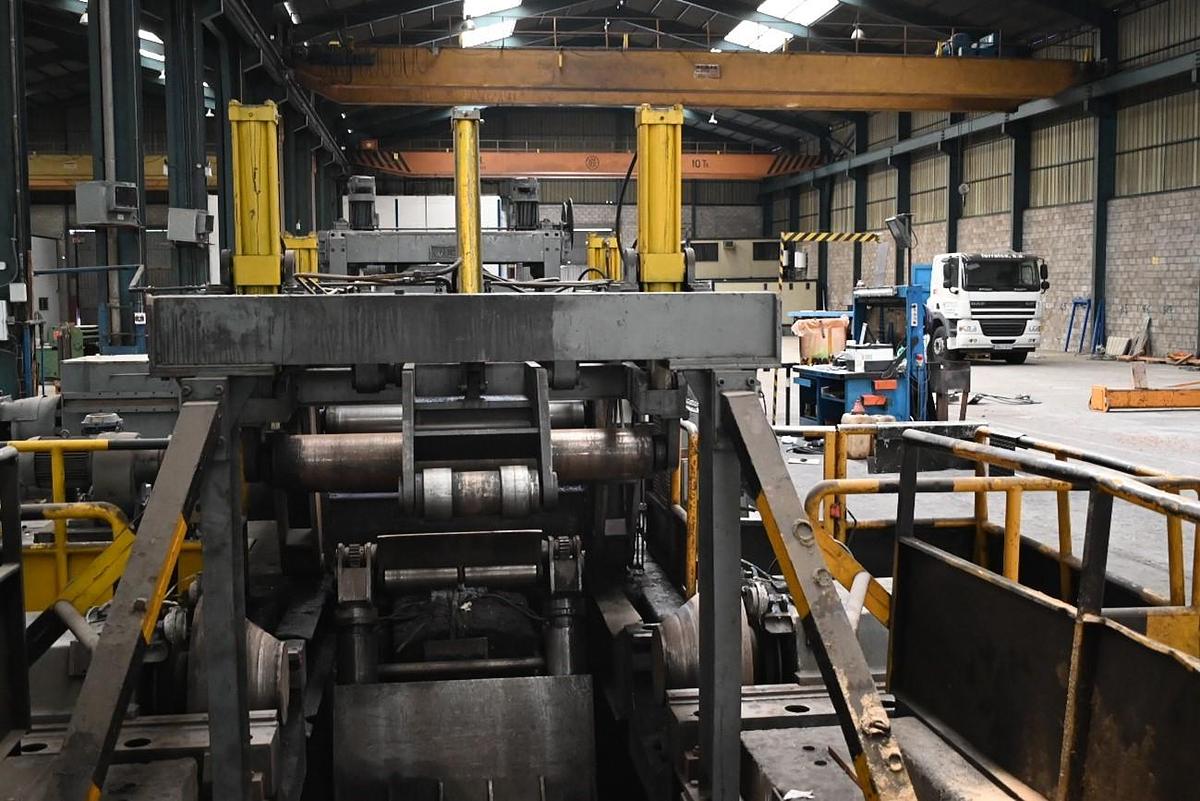

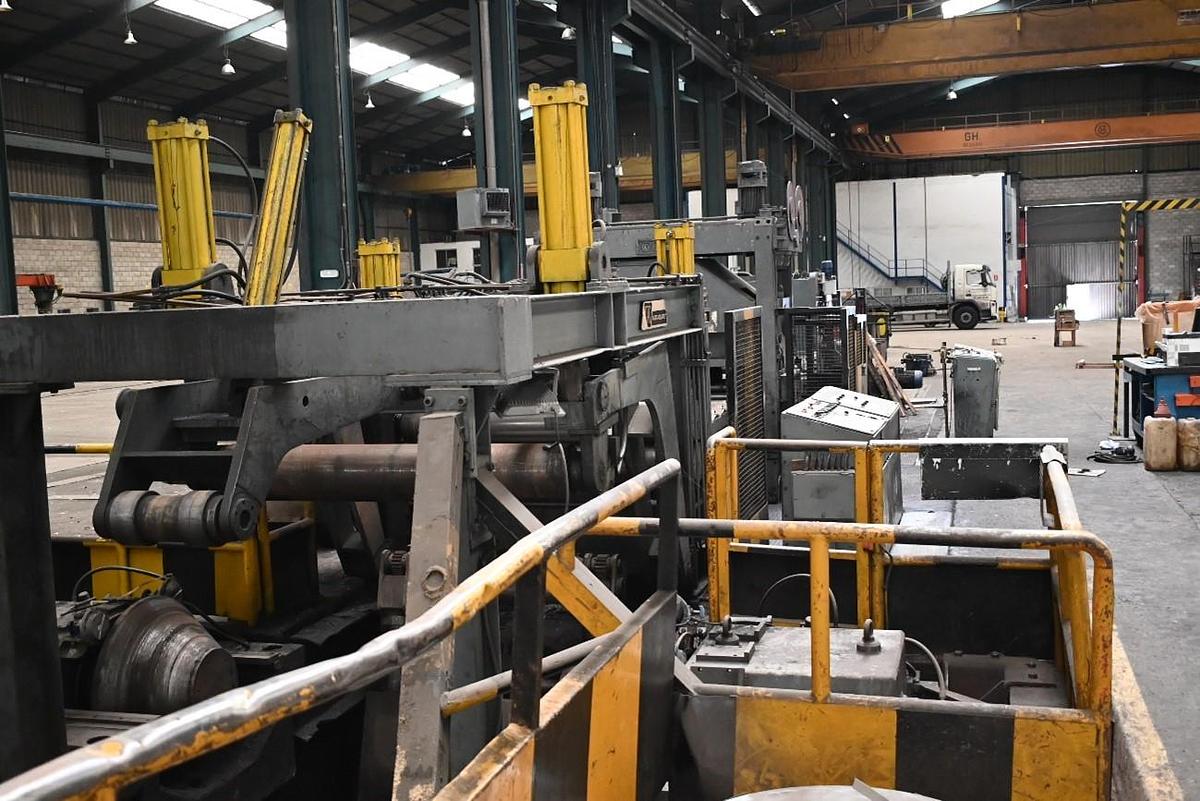

Leveller

Leveller roll diamater 75 mm

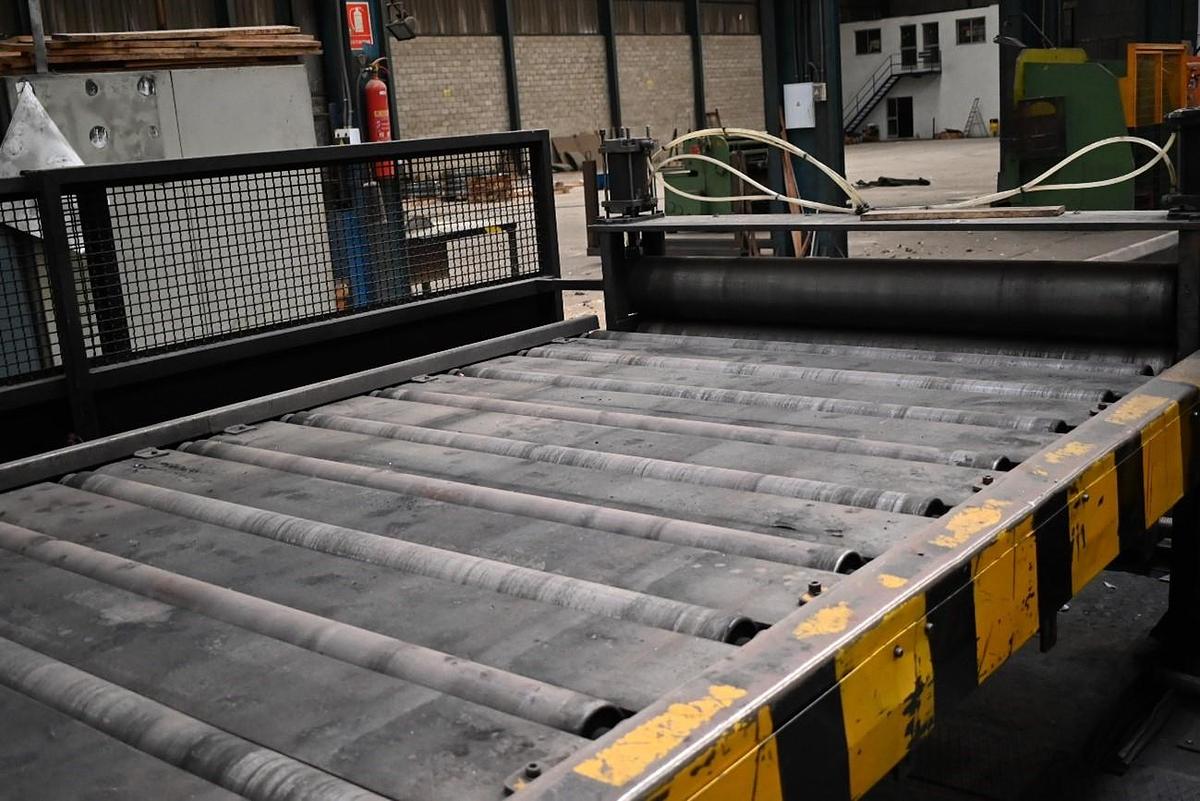

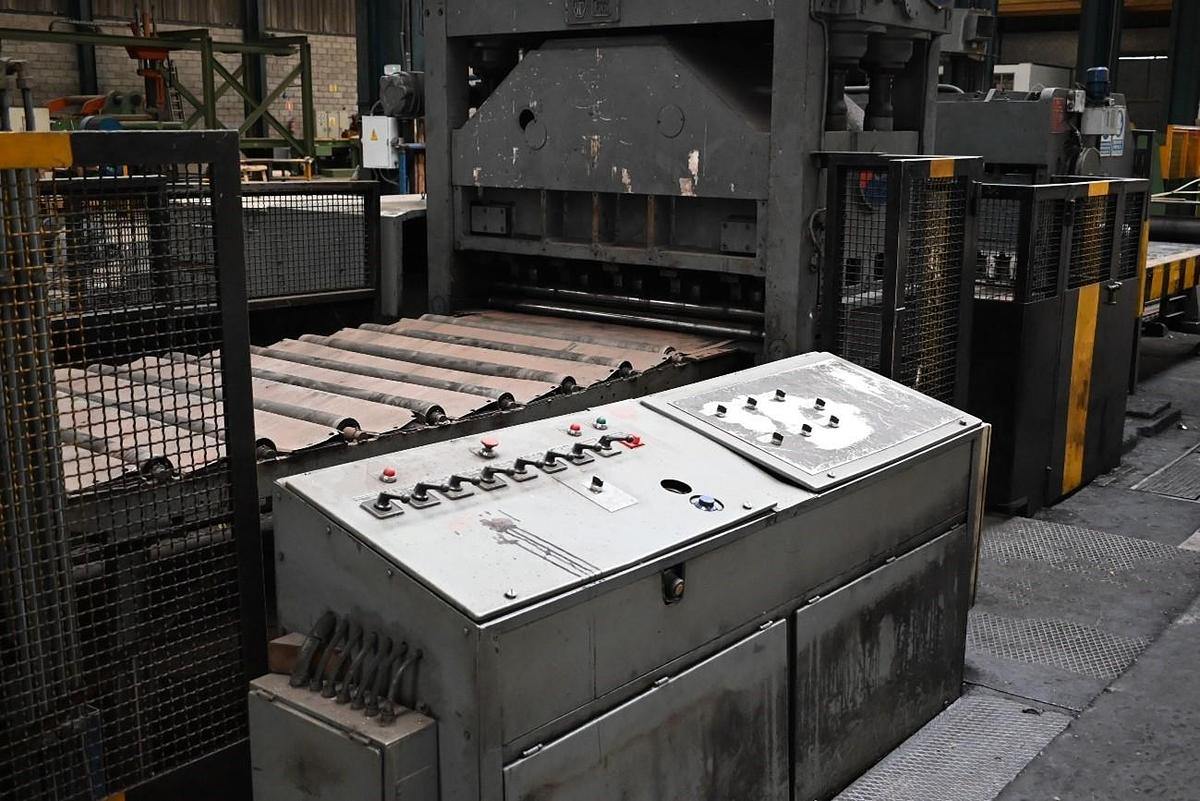

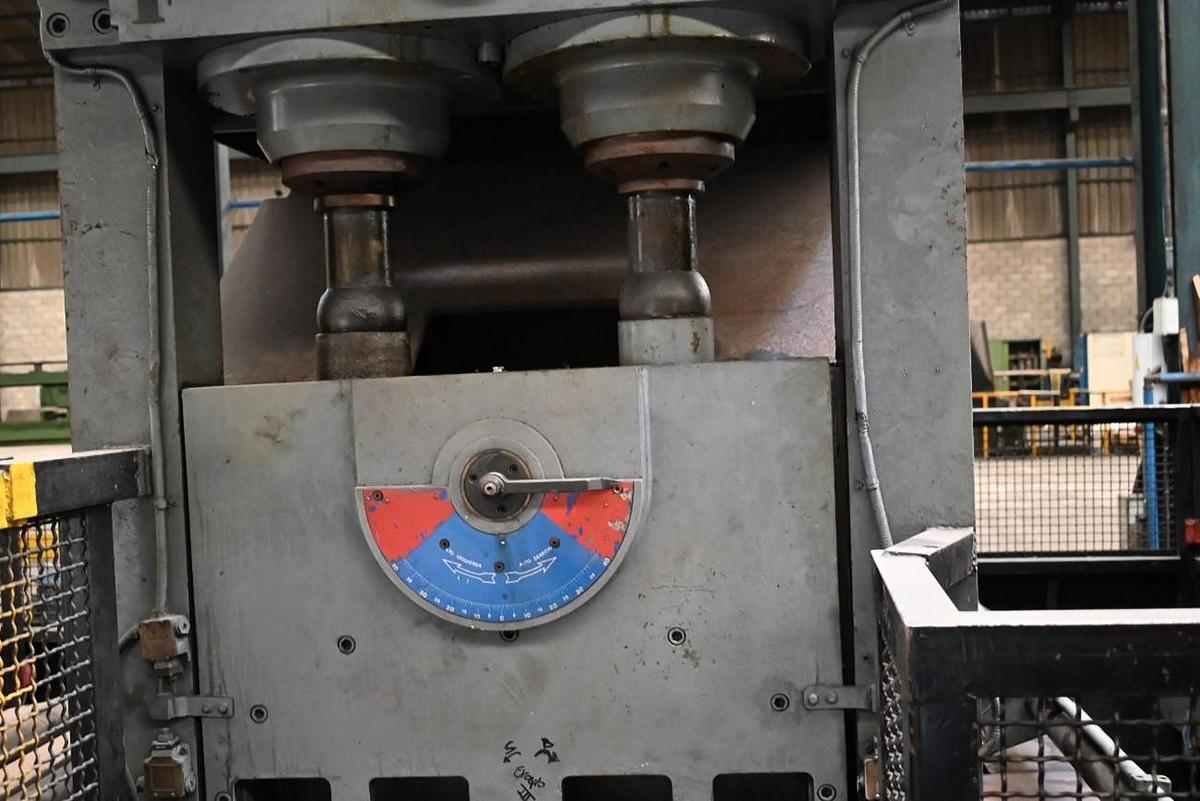

Draw roller consisting of a flattening unit, pneumatic cutting shear, and measuring table with motorized roller

Packaging crates

Accessories with hydraulic and electrical controls

The line includes civil, mechanical, and electrical engineering plans

Spare parts

-
