BONAK 1550x3mm CTLL

€ 160.000

Year: 1982

Roll Feeder Type

80m / minute

In service

Material Specifications:

Maximum coil width: 1550 mm

Minimum coil width: 300 mm

Maximum coil weight: 25 metric tons

Thickness range: .4/3.0 mm

Finished product specifications:

Maximum length: 12000 mm

Minimum length: 500 mm

Line direction: Right/Left

Maximum coil weight: 25 metric tons

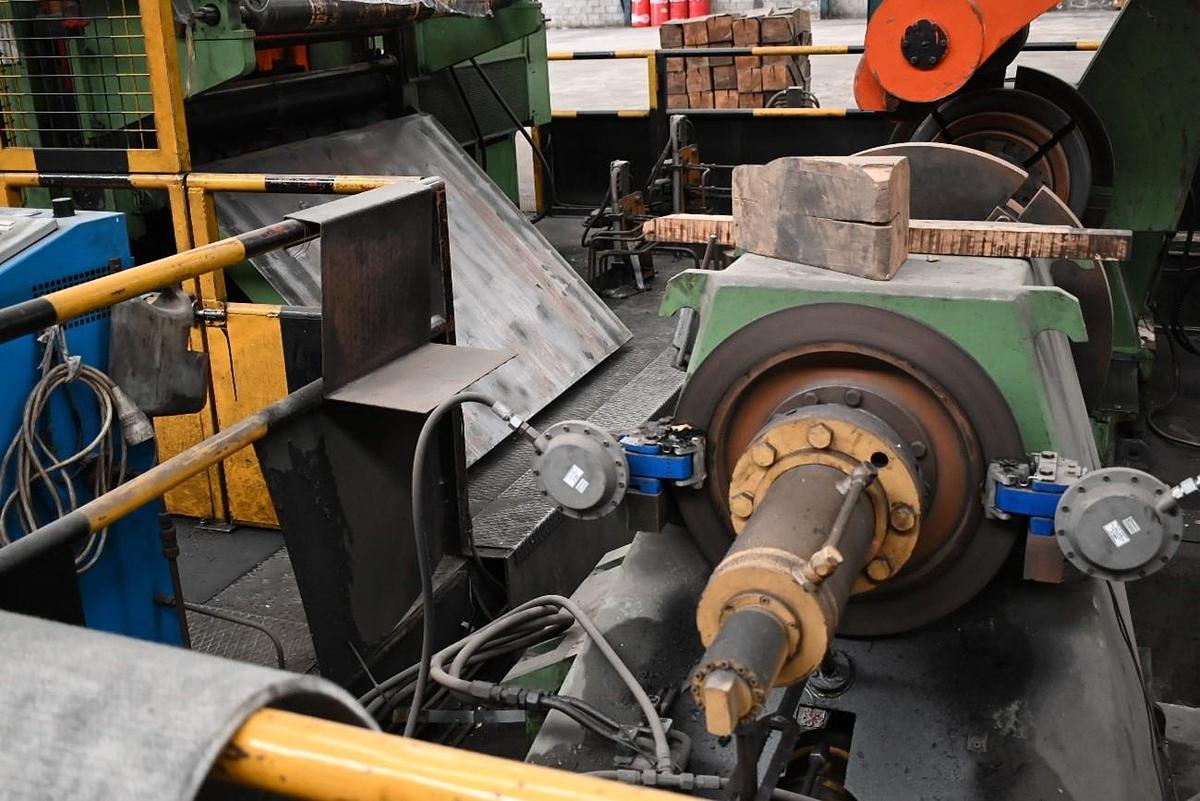

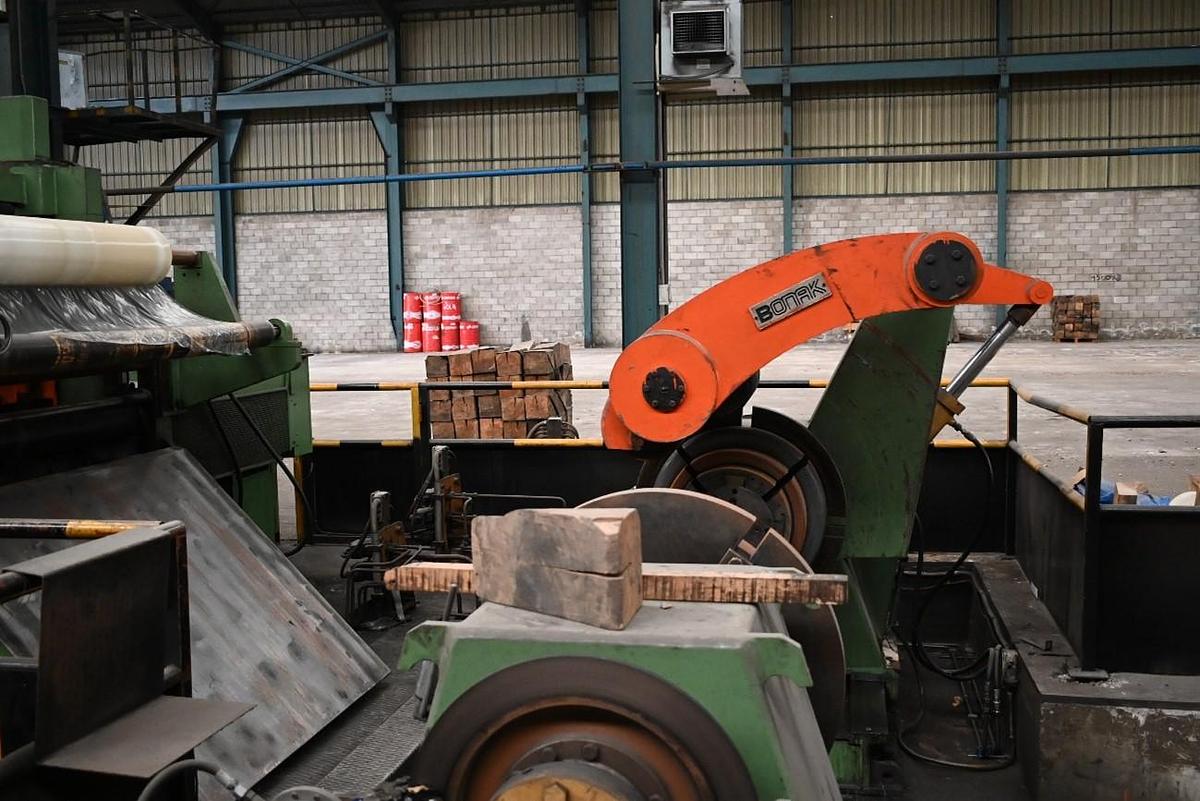

Expanding double mandrel uncoiler.

Outer coil diameter: max. 2000 mm min. 600 mm

Inner coil diameter: max. 760 mm min. 508 mm

Motorized clamping roll

Guide table

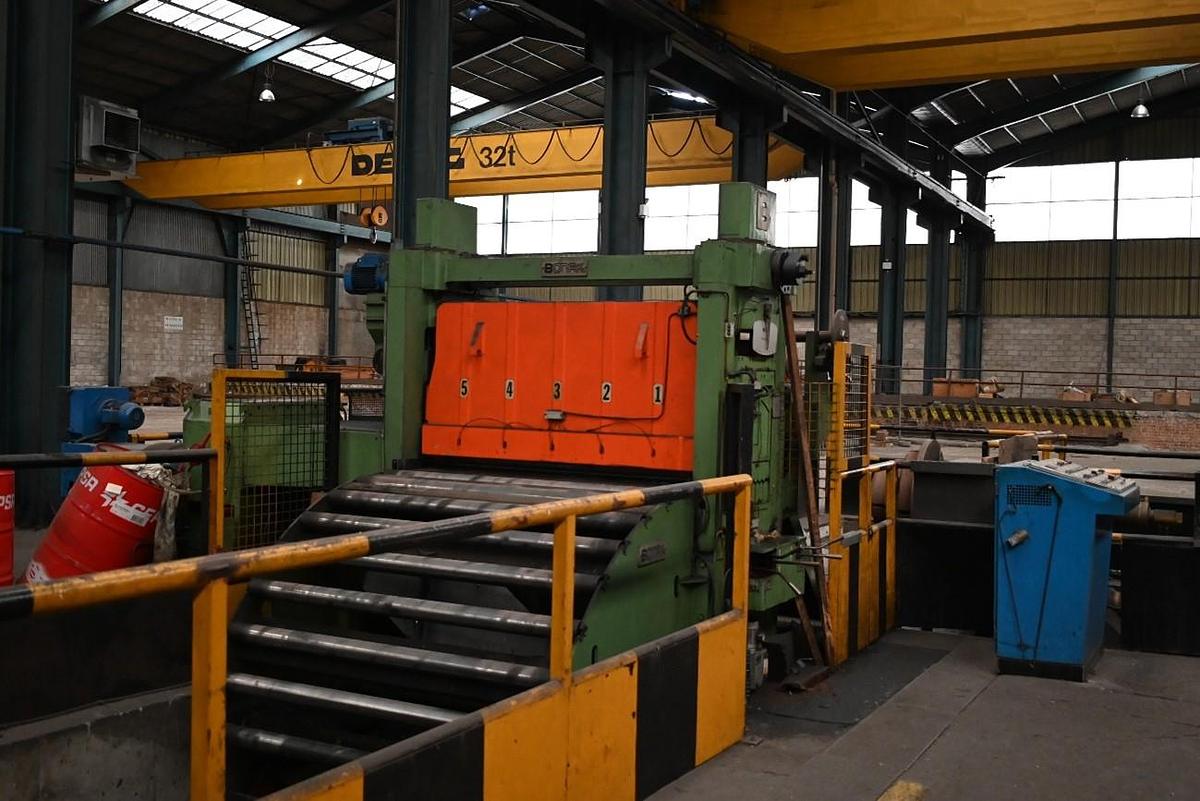

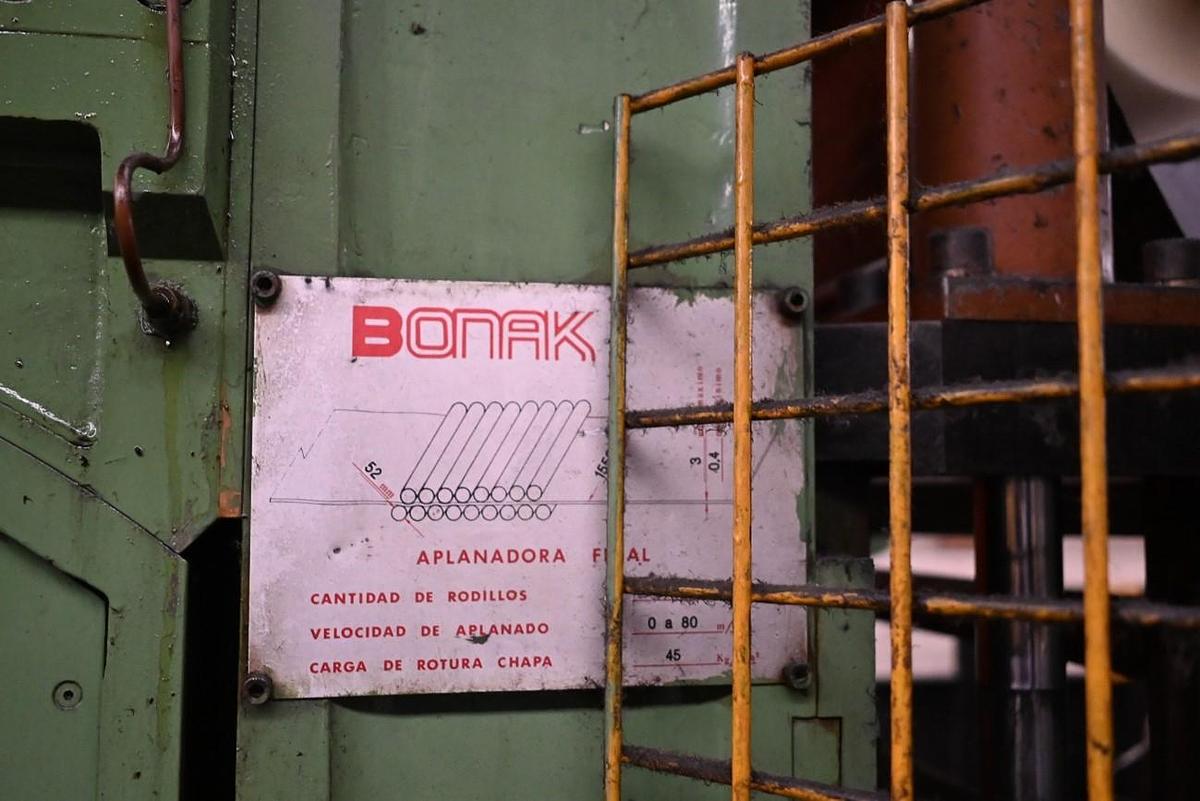

17-roll flattener

Hydraulic adjustment

Folding tables for pit access

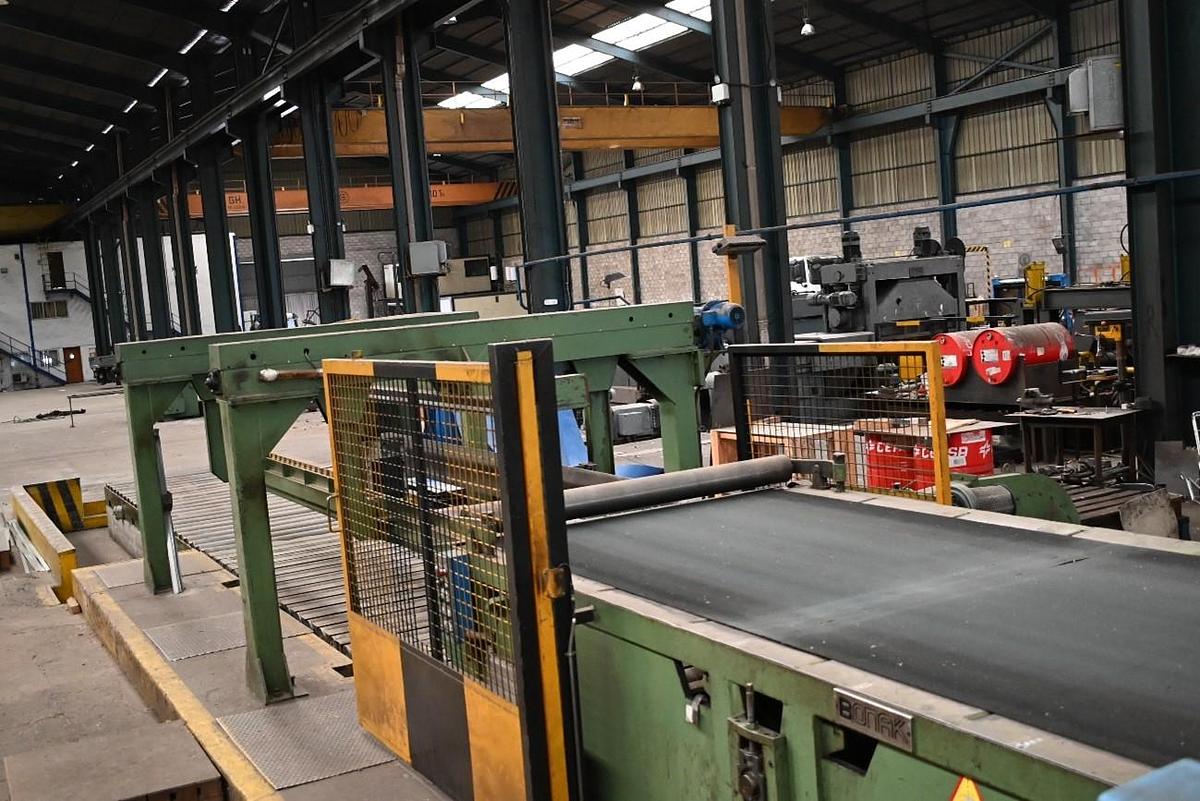

Belt conveyor table

Packaging hoppers

Accessories with hydraulic and electrical controls

The line includes civil, mechanical, and electrical engineering plans

Line footprint approx. 4m x 40m

Loop pit approx. 4m deep

-

-
