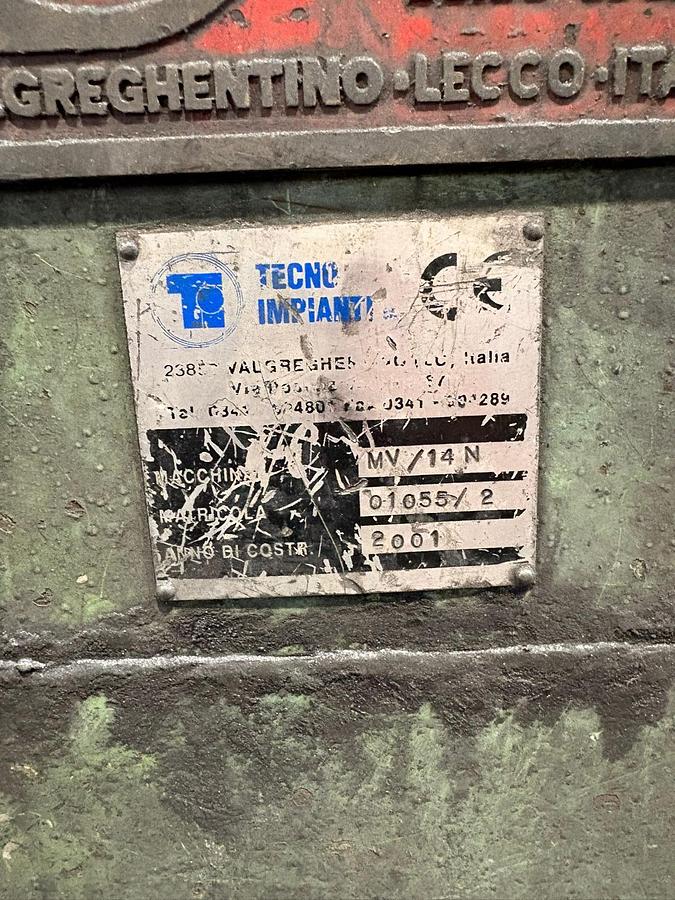

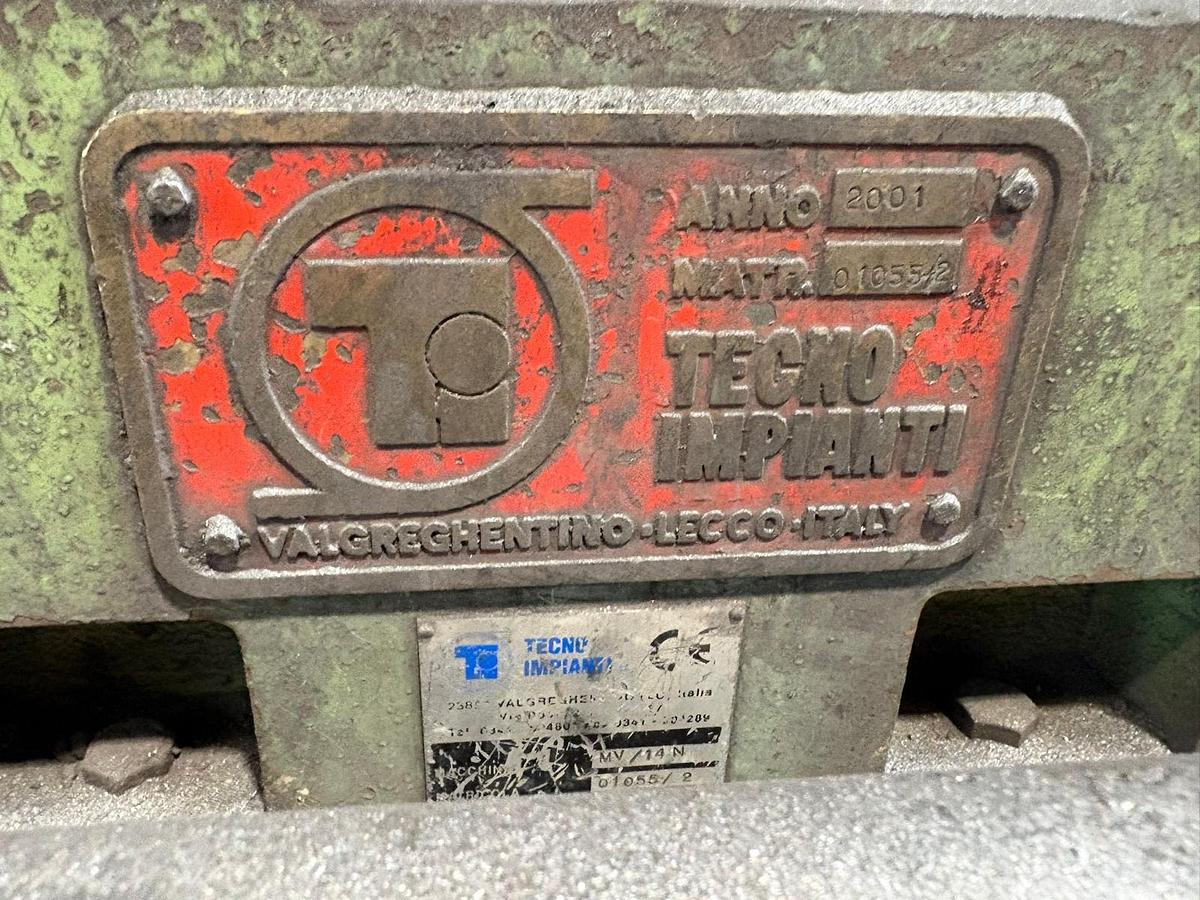

Year: 2001

         Input wire rod (maximum diameter): 12

       Production: The machine is equipped to produce smooth wire.

If the customer provides cassettes with rollers for ribbing (not

included), the machine can also produce ribbed wire

        Power data:

Ø  11 kW AC winding motor

Ø  110 kW AC monoblock motor

         Spooler: Mechanical reel clamping. 1 reel (500 mm internal

diameter with flanges for 600 mm diameter)

        3 speeds:

Ø  1st speed 1.65 m/s

Ø  2nd speed 2.65 m/s

Ø  3rd speed 4.5 m/s

Ø  Maximum speed 4.5 m/s

The line includes:

• Wire rod unwinding bell (non-original);

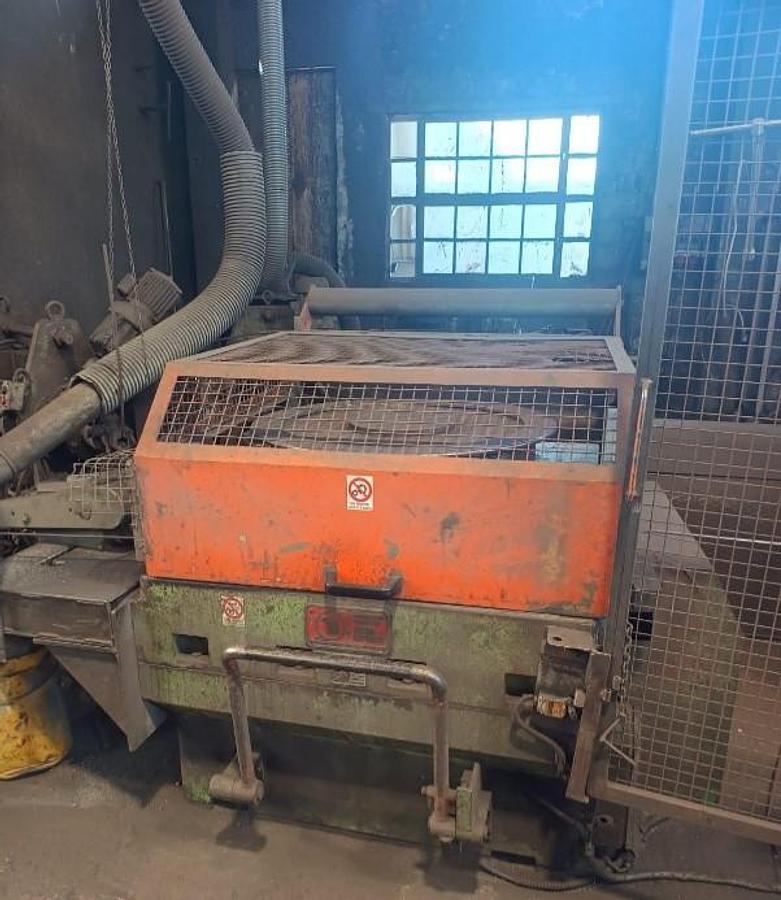

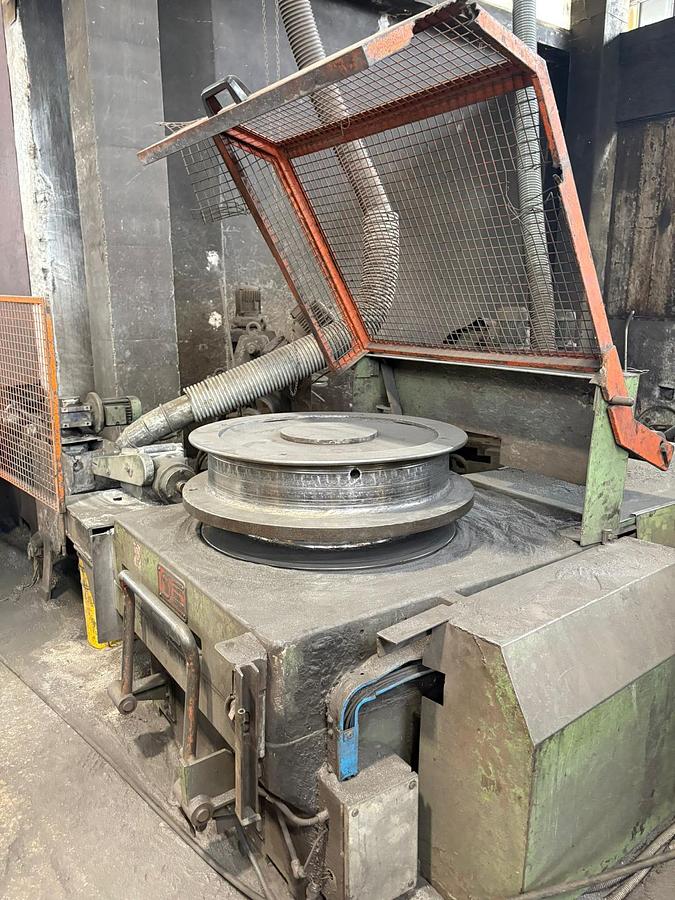

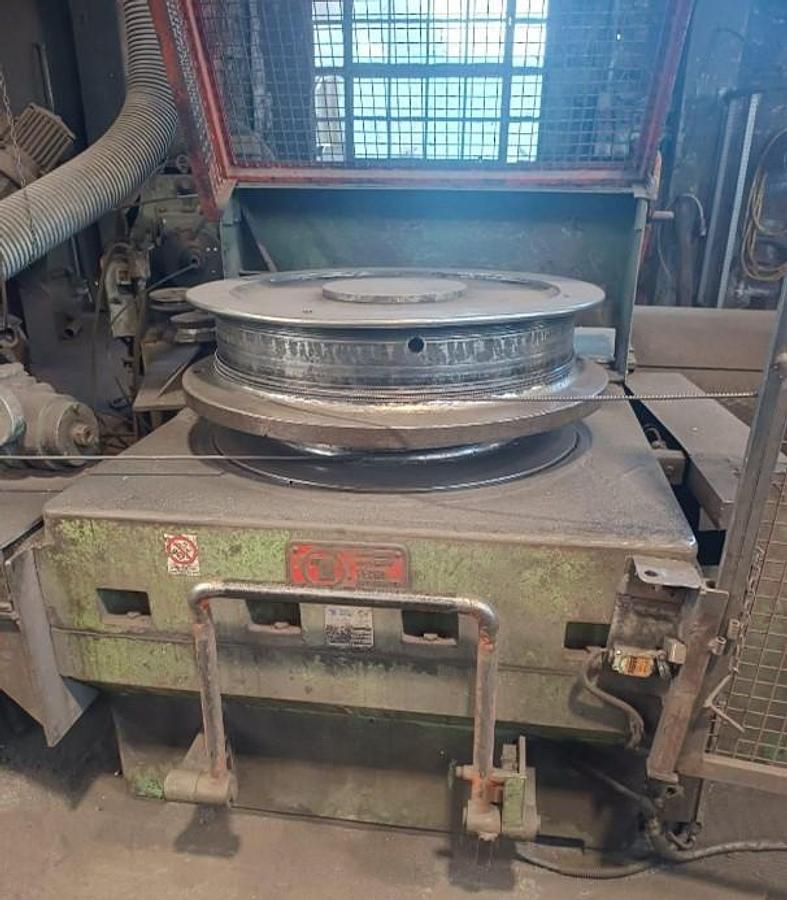

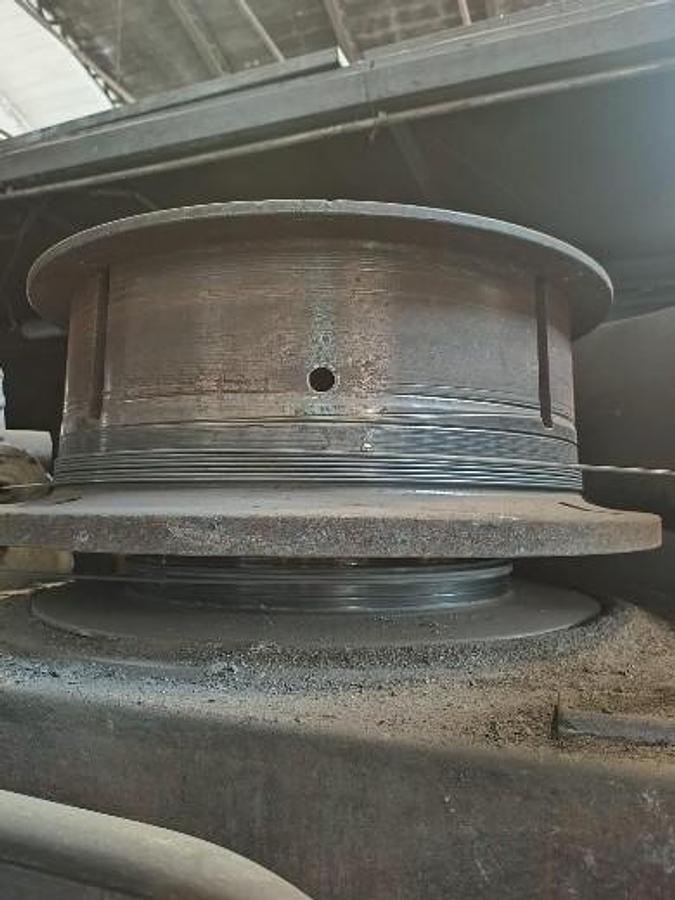

• Drawing block (original);

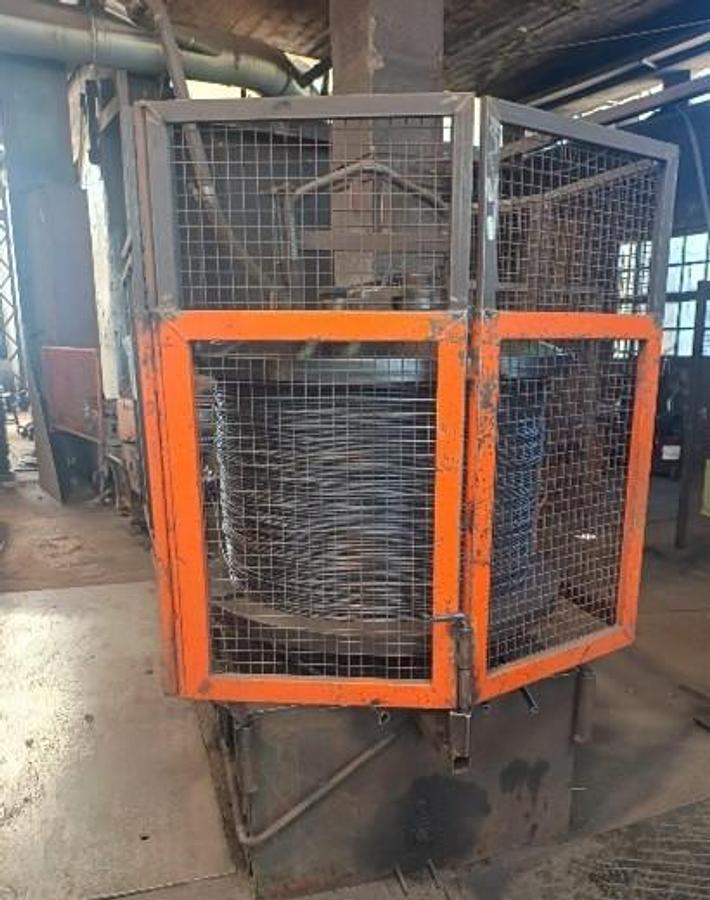

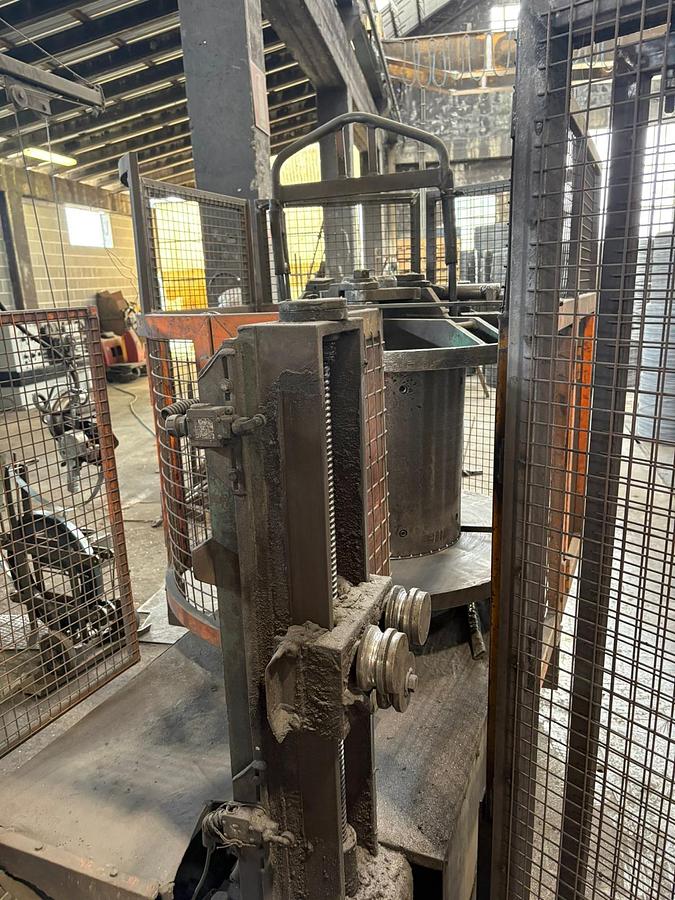

• Vertical winding machine (original);
• 1 wire drawing cassette for producing smooth wire, which can accommodate 43 mm diameter dies.
• 2 wire rod unwinding reels (self-built).

---------------------------------------------------------------------------------------------------------------------------------------

EXCLUSIONS:

•       Transport

•       Unloading the equipment from the trucks/containers at your site

•       All lifting equipment for unloading machines from trucks and suitable for positioning and installation

•       Installation and connections at your premises

•       Lubricating oils, grease, dies, rollers, spools

•       Line protection safety shelters/mesh

•       All civil works, foundation work and foundation bolts

•       All ducts, underground or overhead or fixed to the walls for cables or air

•       Connections (electrical cables) between main system to the electrical cabinet and from the cabinet to machine and control desk

(only cables inter connecting the various parts of the same machine on board of the machine will be supplied)

•       Fume/gas dissipator (where required)

•       All lighting, heating, conditioning systems, warehouse equipment, and general service of the factory

•       All tools (pliers, cutting, nippers, files etc.)

•       All technical laboratory checks if required

•       Services and materials not mentioned

•       Bank fees and transaction fees

•       Cost of technicians for positioning, installation and start-up

(€650 euros per day for a mechanical and electrician technician; €800 per day for an electronic technician)

•       Staff training

Travel, food and accommodation: on your charge as well

-
