F&P Auto.Tube/Profile Bundling Systems (New) #3478

F&P Auto.Tube/Profile Bundling Systems (New) #3478

orCall +39 393 577 2205

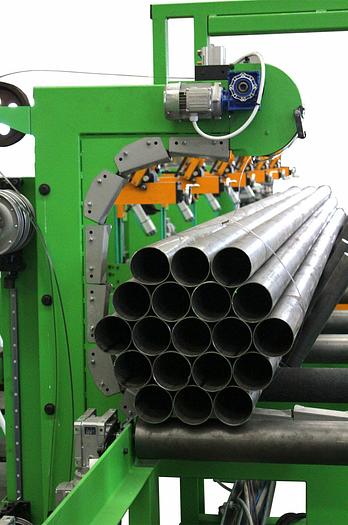

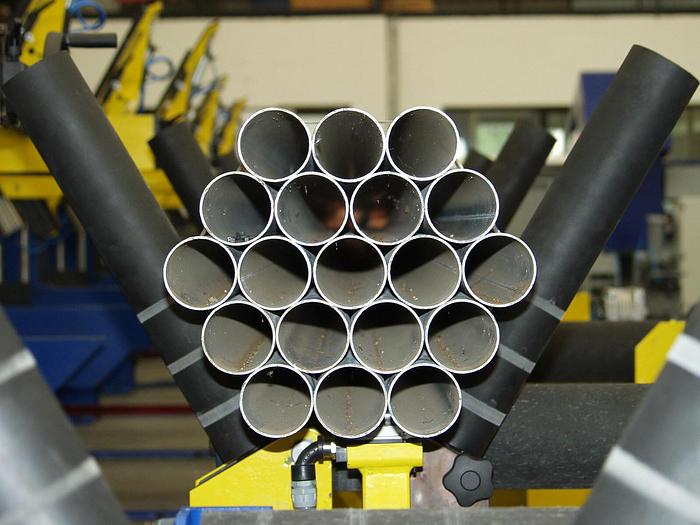

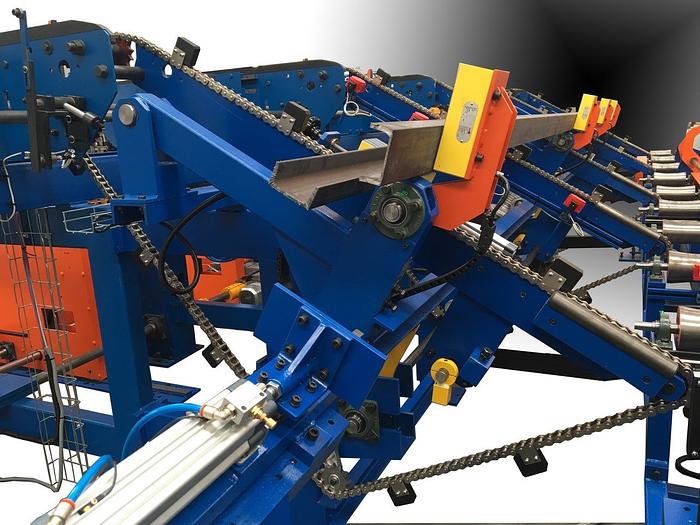

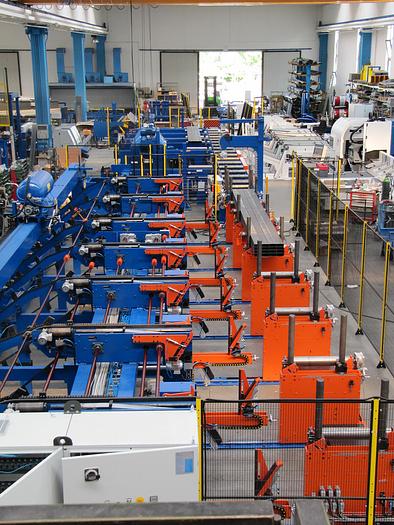

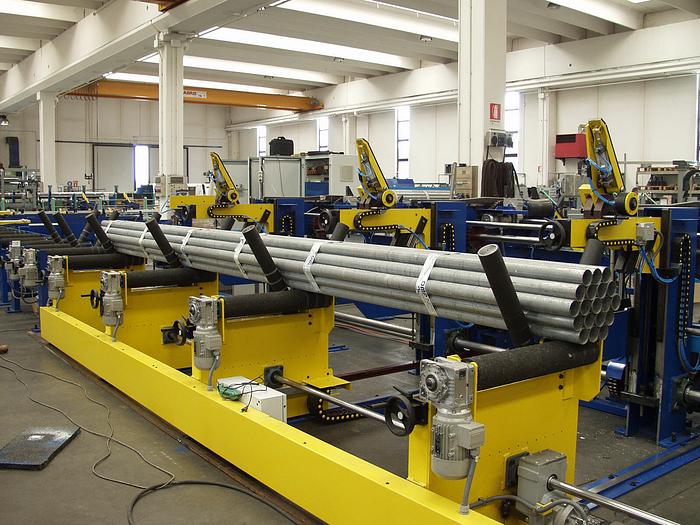

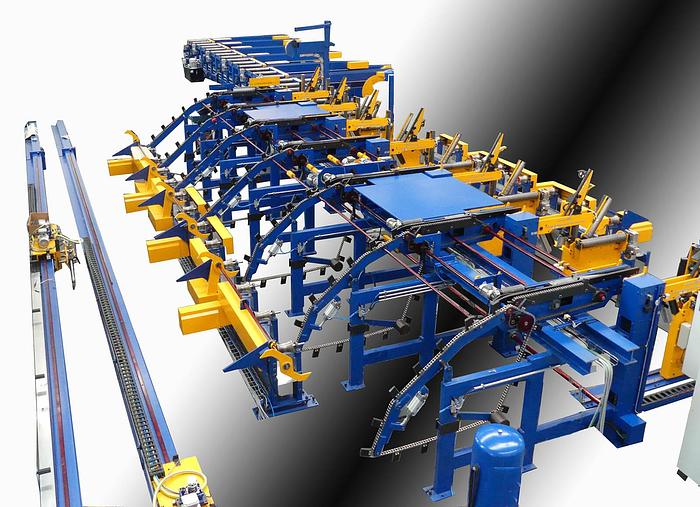

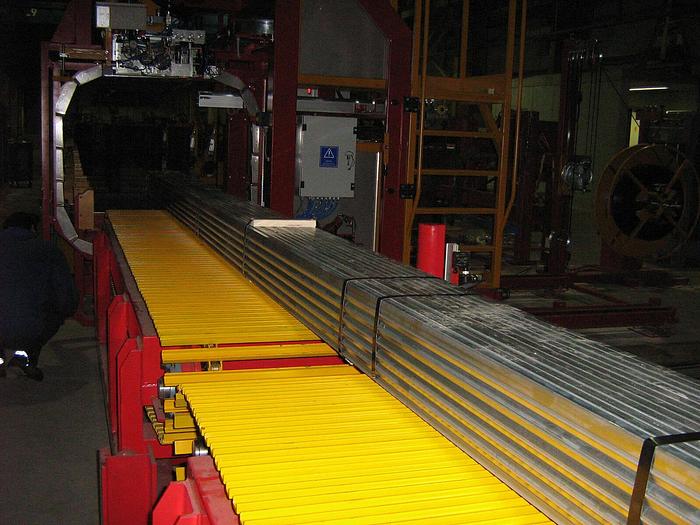

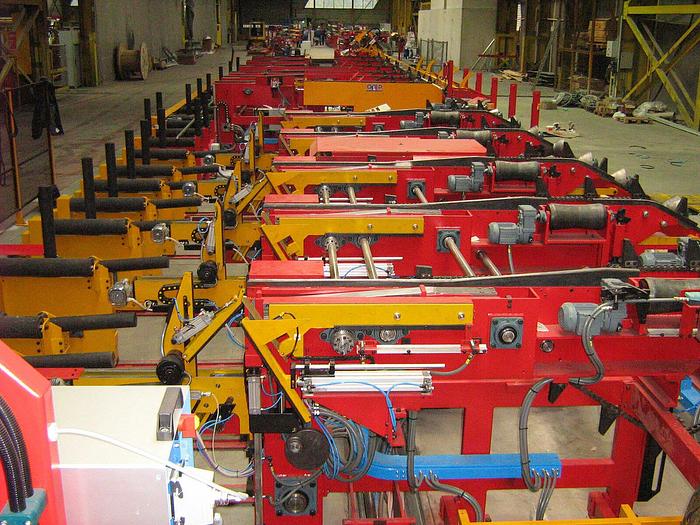

Custom Designed Tube & Profile Bundling Systems Max. Ø: 219.1mm / Square: 175mm / Rectangular: 250x100mm Max. Wall Thickness: 8mm -- VERY EFFICIENT TUBE & SECTION BUNDLING SYSTEMS BY US THEY MAY INCLUDE: TUBE SCARFING UNITS, BUNDLE STRAPPING EQUIPMENT, A WATER DRAINAGE SYSTEM, WEIGHING CELLS, A SCRAP BLOW-AWAY & CHOP SYSTEM… AND OTHER OPTIONAL EQUIPMENT HEXAGONAL, SQUARE AND RECTANGULAR BUNDLES CAN BE FORMED. -- Typically a System can handle tubes as follows, with wall thicknesses from 2mm to 8mm: round section tubes ø 76,2 → ø 219,1mm square section tubes 60 → 175mm rectangular section tubes 80 x 40 → 250 x 100mm … the max. bundle weight being 3500 kg, with these dimensions: -for round section tubes min 250 x 250mm / max 700 x 600mm (hex min 175mm / hex max 350mm) -for square section tubes min 250 x 250mm max 700 x 600mm -for rectangular section tubes min 250 x 250mm max 700 x 600mm -- The System often includes: - fixed or variable geometry entry roll tables - tube scarfing units - manual or automatic strapping equipment - post-strapping bundle handling chain-conveyors, frontal and lateral off-loaders - a water drainage system - a bundle weighing cell with data printer - touch screen type programming station - a wooden spacer dispenser (for square bundles of round section tubes) - a scrap blow-away & chop system ..…


ModelAuto.Tube/Profile Bundling Systems (New) #3478
