FIMI Rotary Shear CTL Line (Used) #3484

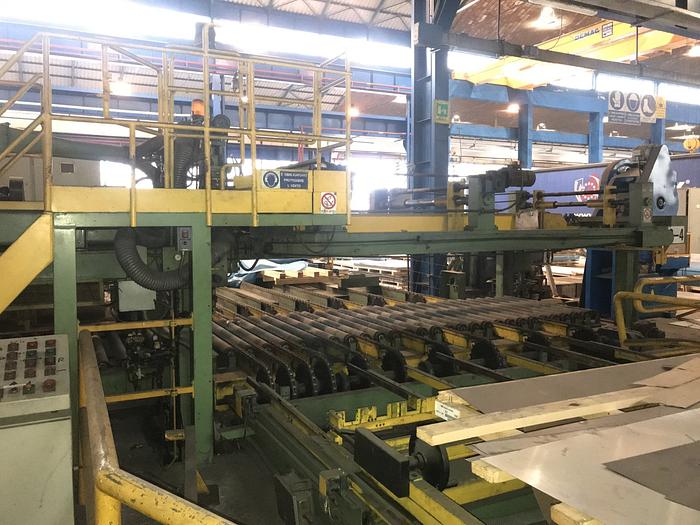

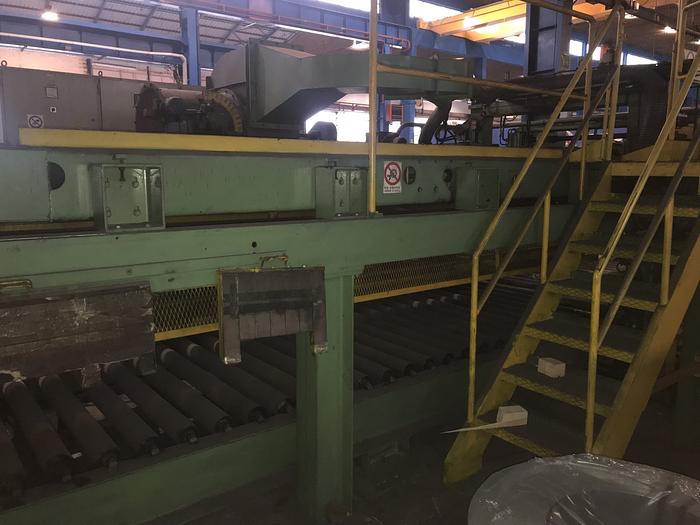

A 130m / min Rotary Shear Cut To Length Line by FIMI, Italy 1100mm x .4-3.0mm (Cold Rolled, Pickled, Aluminized, Electrogalvanized Steel) -- Line installed, out of service -- Process Material: R (N/mm2) 500 max. Yield (N/mm2) 170-370 Coil width 300-1100mm Thickness .4 to 3.0mm Coil weight 15 Tonne max. Coi ID 508mm (610mm with pads) Coil OD 1800mm max. -- Line Products: Sheet length 300-4000mm (4000mm stacker) Stack weight 4 Tonne max. Stack height 500mm max., including pallet Length accuracy +/- .25mm Blanks per-minute 230 max. -- Equipment description: 2-coil storage ramp & feeding-car Mobile decoiler with nylon pads for Coil ID 610mm hold-down roll D.C. motor braking Coil threading station with telescopic table 6-HI leveler 23 roll work roll dia. 36mm Rotary shear with blade adjustment Sheet inspection transfer belt Scrap & 2nd-rate sheet deflector Scrap & 2-nd-rate sheet stacker, 4m Sheet transfer table to stacking box #1 - the box: air flotation type with magnetic slow-down belts, side-equalizer Magnetic belt and transfer table to stacking box #2 Stacking box #2 - with same features as #1^ Roll table to collect the scrap & 2nd-rate sheet, box #1 & box #2 stacks 4m long stack ‘stand-by’ roll table Chain transfer system to move stacks to the packaging line nearby - Electrics & electronics Hydraulics Pneumatics
