*** Ca. 100.000ton / year Rolling Mill (Used) #3957

Description




Hot Rolling Mill

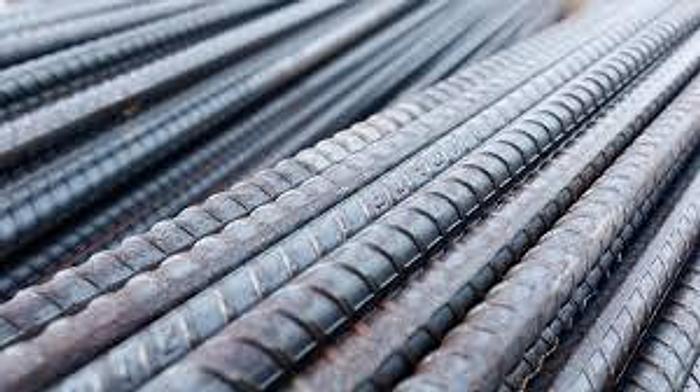

for round, flat and square section products in bars and small skeins





-- billets: 120mm x 3m



for:

  • 10mm x 3mm to 50mm x 10mm flats
  • 6mm to 50mm squares

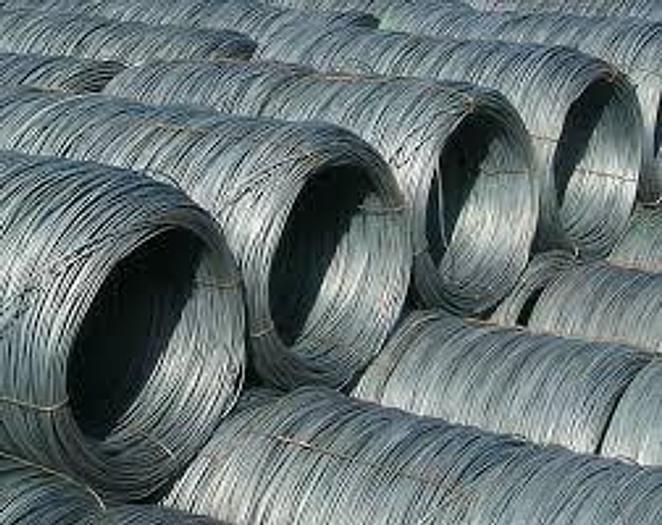

  • dia. 6mm to 10mm rods
  • special profiles

in 6/12m bars and in skeins (Garrett system)






Equipment List




First roughing train, with 3 horizontal rolling stands

Connection roll table

Second roughing train consisting of a trio stand

First pinch rolls

Intermediate stands

Second pinch rolls

First flying shear, scrapping machine

Intermediate train, 2 rolling stands

Second flying shear, trimming/scrapping

Second intermediate train, 4 rolling stands

Third pinch rolls, with conveyor-channels

Third flying shear, trimming/scrapping

Finishing train, 6 horizontal rolling stands

Spare-stands

Loop formers

Lamination guides

Stand-jump conveyors



Bar evacuation line



Plate entry roll table cursors


Toothed plate - length: 42m, pitch: 50mm

Plate exit roll table, 400mm wide

3 FICEP scissor type cold shears, cutting to length

4 bags for pack formation - 2 stations, active at same time during operation

4 hydraulic screwdrivers, for manual bundle-binding



Skein evacuation line


Product-conveying line at finishing train exit

Horizontal pinch rolls

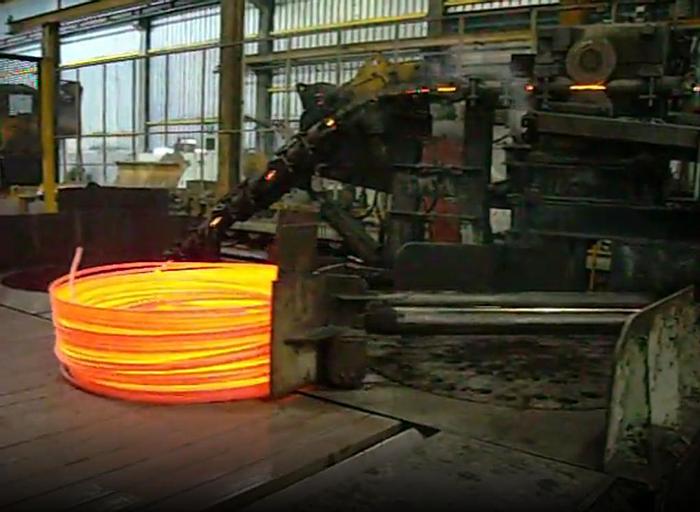

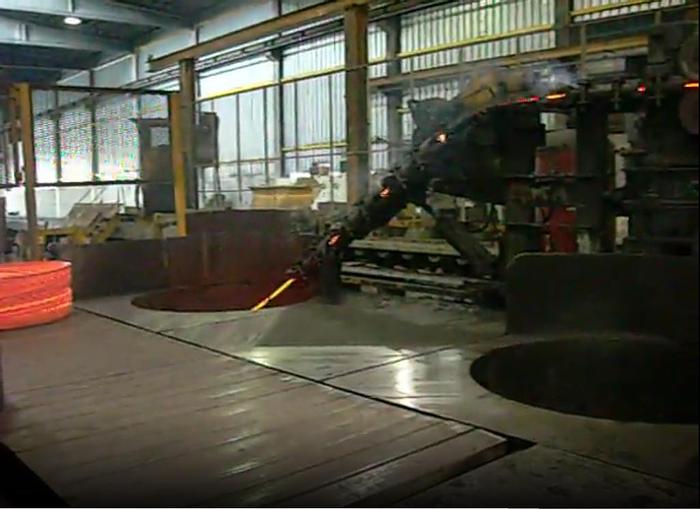

2 GARRET reels - winding diameter:1250mm; skein weight: 350kg. Air operated ejection system

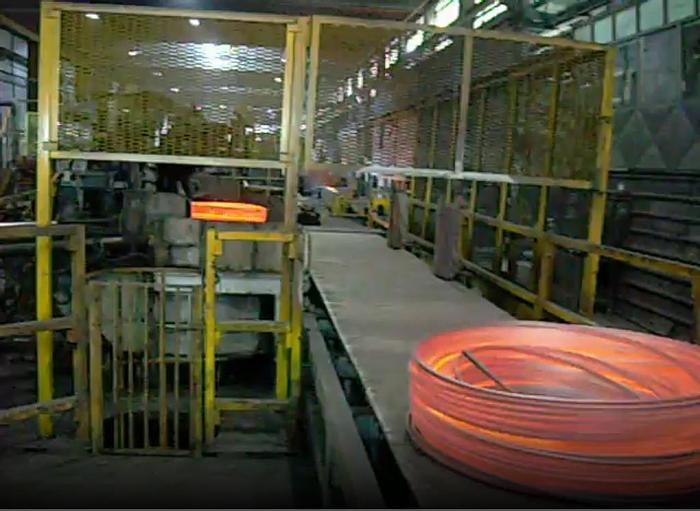

Skein cool-down conveyor

2 OMV tying machines

Semi-automatic, compact skein press-binder

Tied skein collection station, tipping mechanism and 4-arm cruise




-



Specifications

Manufacturer***
ModelCa. 100.000ton / year Rolling Mill (Used) #3957
ConditionUsed
