FIMI 2040x6mm CTL Line (Used) #3973

FIMI 2040x6mm CTL Line (Used) #3973

orCall +39 393 577 2205

Description

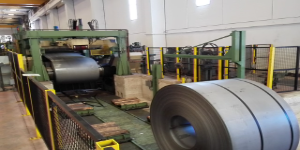

FIMI 2000mm x .8mm to 6.0mm Cut To Length Line

50m / minute

Flying Shear Type (shear by CBC)

built: 1991


Siemens S5


Direction: Right to Left


SEE ATTACH., AT THE BOTTOM OF THE PAGE




TYPES OF MATERIAL THE LINE CAN PROCESS:


“MA” APPEARANCE COLD ROLLED STEEL

COATED COLD ROLLED STEEL

PICKLED STEEL

COATED HOT ROLLED STEEL

HOT ROLLED STEEL

STEEL WITH REFIEFS ABOVE


Rm MAX COILS ( MPa ) 600                                                                     <

Re MAX COILS ( MPa ) 400                                                                       <



Product length: 520mm to 6000mm

Max. sheet stack weight: 5ton

Max. sheet stack height: 400mm (incl. package)





30ton Decoiler & Coil Car


Coil ID: 610mm to 850mm

Min. Coil Width: 500mm

Max. Coil Width: 2040mm

Max. Coil OD: 2000mm

Min. Coil OD: 900mm



Straightener with 3 dia. 220mm work rolls + 1 corrector roll



15 Roll Leveler, 4-Hi Type

Work roll dia.: 75mm



Flying Shear



Sheet Stacker -- type: "by fall"


Product length: 520mm to 6000mm

Max. sheet stack weight: 5ton

Max. sheet stack height: 400mm (incl. package)





Line footprint: 55m x 11.5m




-

-

Specifications

ManufacturerFIMI
Model2040x6mm CTL Line (Used) #3973
ConditionUsed

Documents
