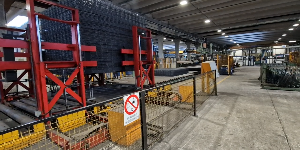

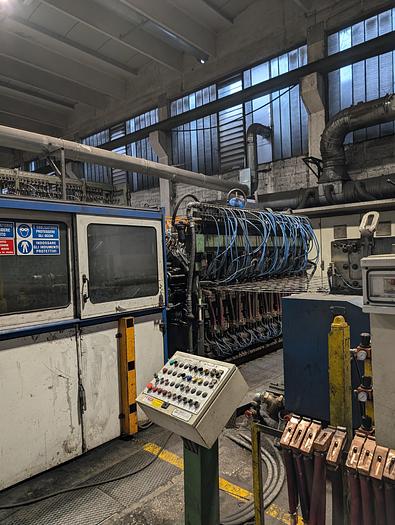

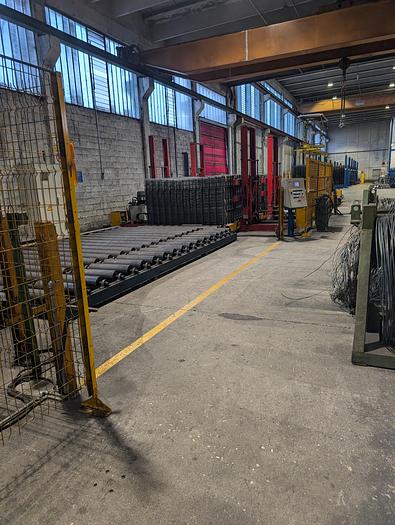

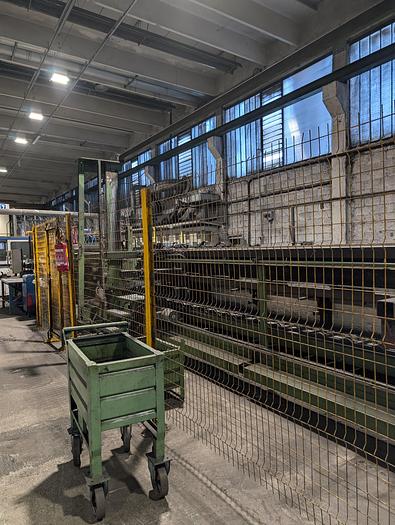

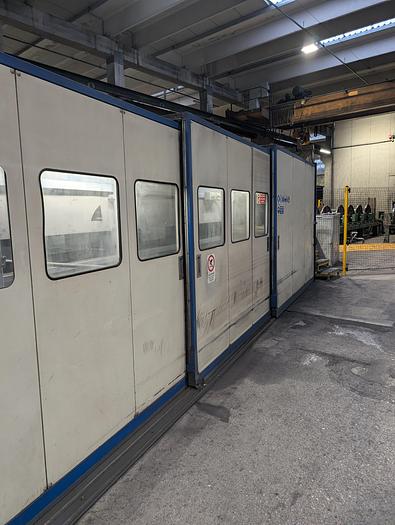

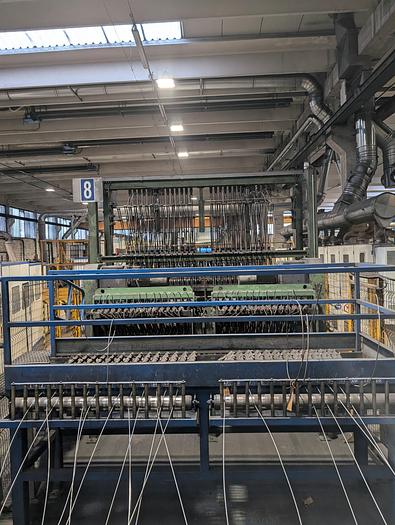

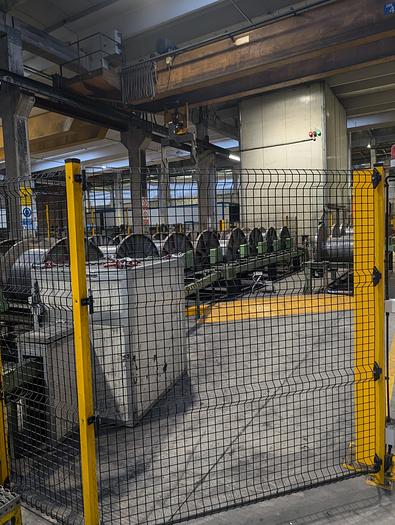

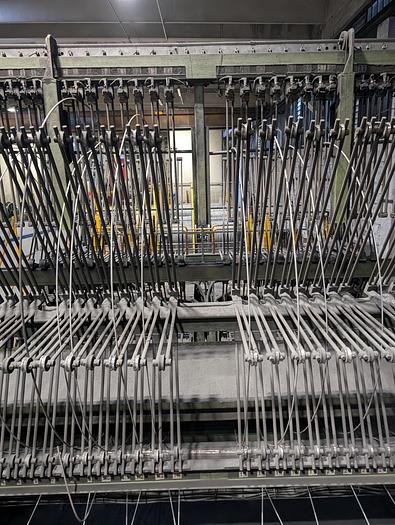

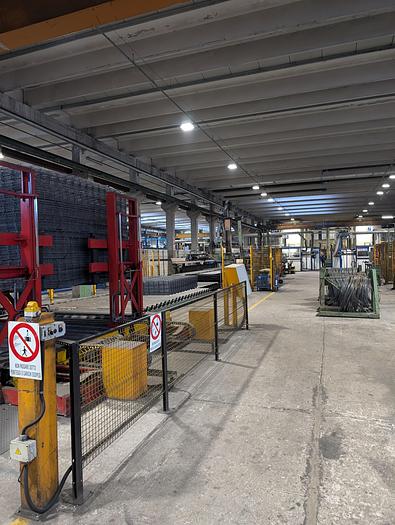

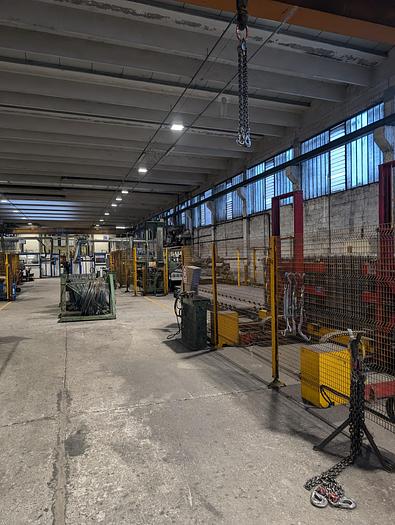

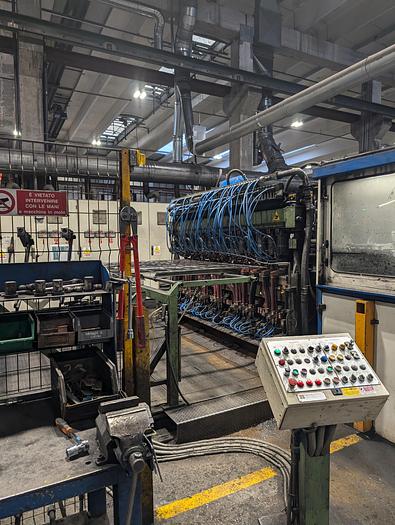

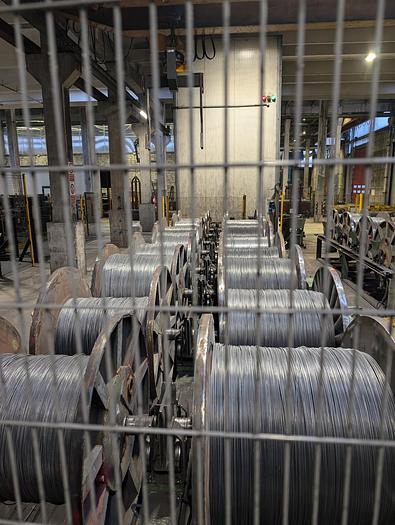

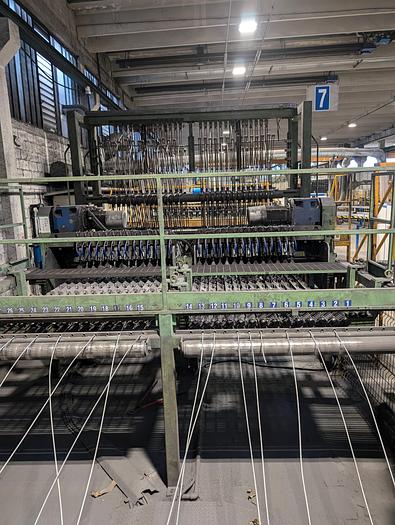

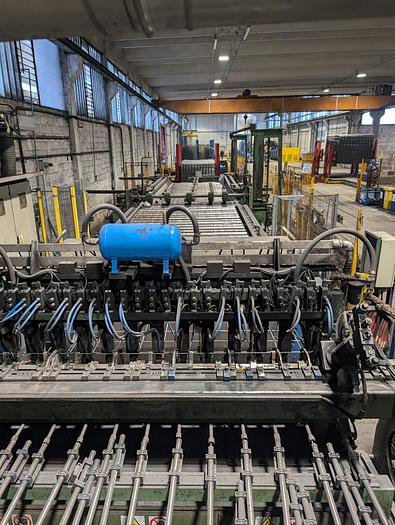

SCHLATTER PG -- Two Lines for sale

FIRST

SCHLATTER PG

1980

• 85 cycles per min
• power automation: Indramat Bosch Rexroth
• management of the General Logics of the machine: Siemens S7-300 (CPU314C-2DP)
• welding transformer power: 12 x 140 KVA
• welding ability: 8 mm + 8 mm every 100 mm
• max number of wires long. - max diam.: 25 wires - diameter 8 mm
• number of welding pistons supplied: 20
• dist. - Long wires: min. 100 mm
• dist. - Cross wires: min. 50 mm
• longitudinal wire diameter: 5 mm - 8 mm
• cross wires diameter: 5 mm - 8 mm
• mesh panel width: min 600 mm not overturned - min 950 mm overturned - "max 2450 + 35x2 overhang (2520 mm)"
• mesh panel length: min 1500 mm - max 8000 mm
• package height: max 600 mm

SECOND

SCHLATTER PG

1980

• 85 cycles per min
• power automation: Baumuller (CMZ for longitudinal wires) - Indramat Bosch Rexroth (CLM for cross wire insertion and crossbar loader / positioner)
• management of the General Logics of the machine: Siemens S7-300 (CPU313C-2DP)
• welding transformer power: 12 x 140 KVA
• welding ability: 8 mm + 8 mm every 100 mm
• max number of wires long. - max diam.: 28 wires - diameter 8 mm
• number of welding pistons supplied: 20
• dist. - Long wires.: min. 100 mm
• dist. - Cross wires: min. 50 mm
• longitudinal wire diameter: 5 mm - 8 mm *only in the case of Ø 8 mm, shear cutting limit n°8 wires max
• cross wires diameter: 5 mm - 8 mm
• mesh panel width: min 600 mm not overturned - min 950 mm overturned - "max 2790 + 20x2 overhang (2830 mm)"
• mesh panel length: min 1500 mm - max 8000 mm
• package height: max 600 mm

-
