F&P Slitter Tooling Storage System #3548

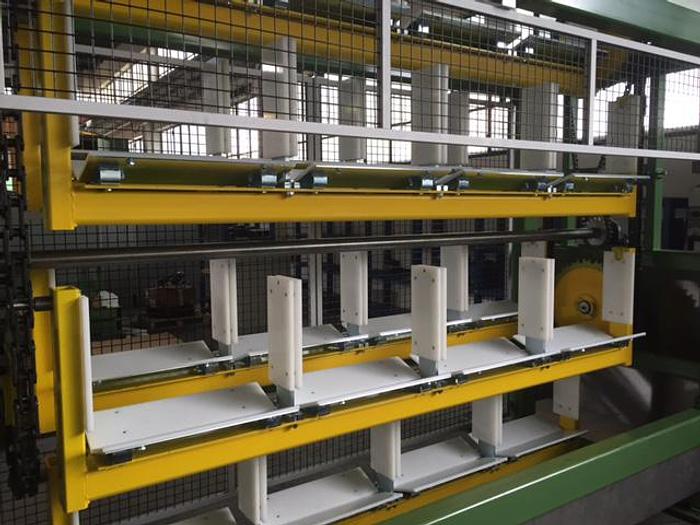

- Each tray 2600mm long, with a 1200 kg capacity - All faces and partitions on trays are antiskid material coated - System rotation speed 3m / minute (rotation by geared motor & chain drive) - Slitter knives can be stored with a 400mm max. diameter

In Attach. #1 at the bottom, the overal dimensions of the System

Options:

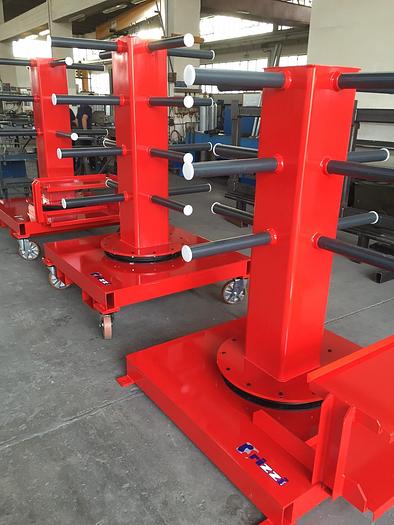

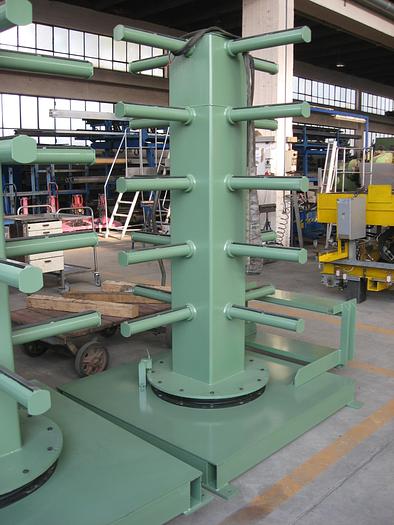

- 2 Storage Carrousels for steel spacers, rotating on a ball-bearing fifth wheel / The carrousels are either movable on wheels (> last photo, painted red; dimensions in Attach. #3 at the bottom) or stationary (Attach. #2). Each carrousel normally comes with 16 stakes (450mm long) and has a 120 kg max. load capacity per-stake

- Photoelectric Barrier on front side

-
