Description



€ 290.000



AVAILABLE EX-STOCK



120m / minute Stainless Steel Slitting Line - built: 1985

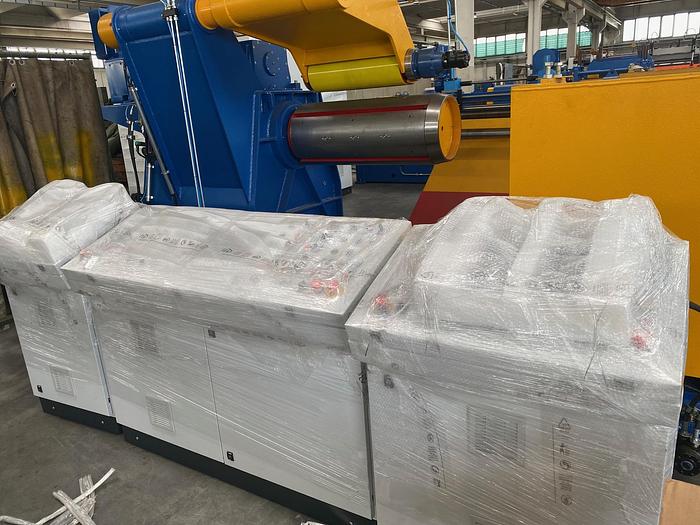

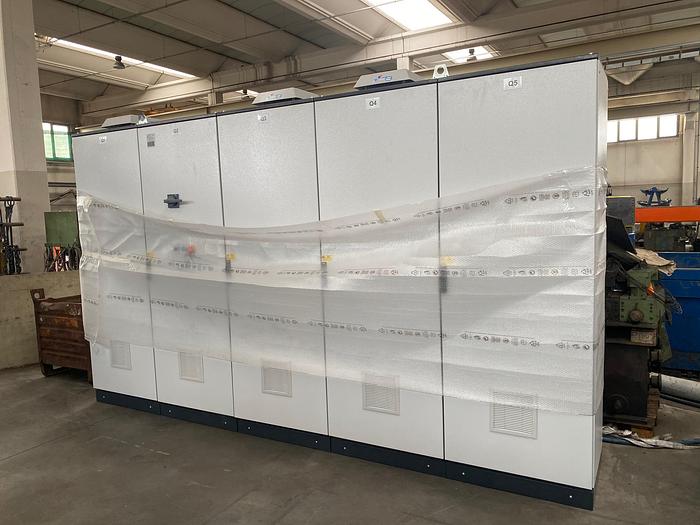

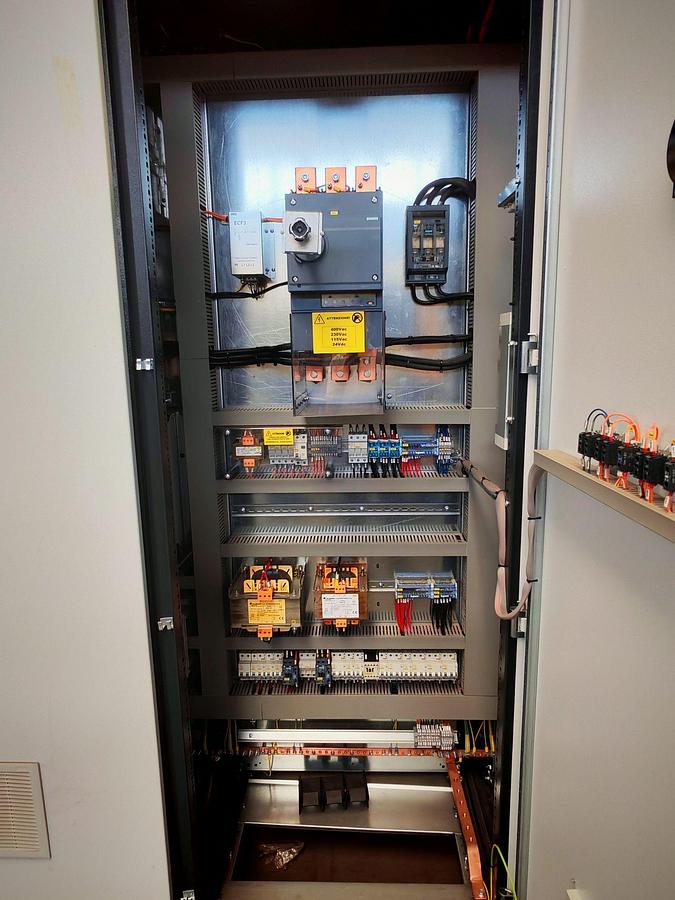

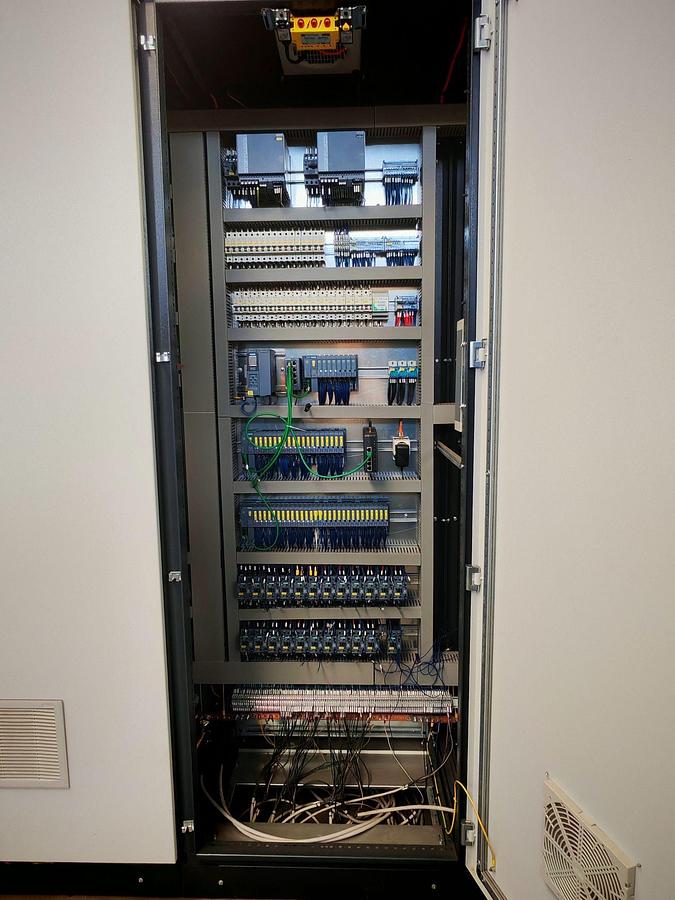

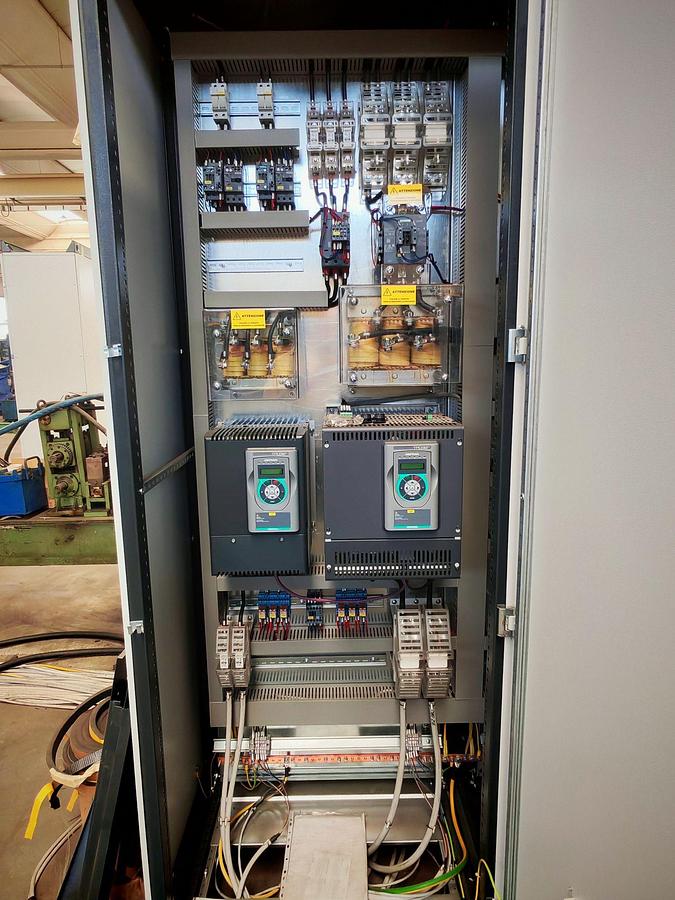

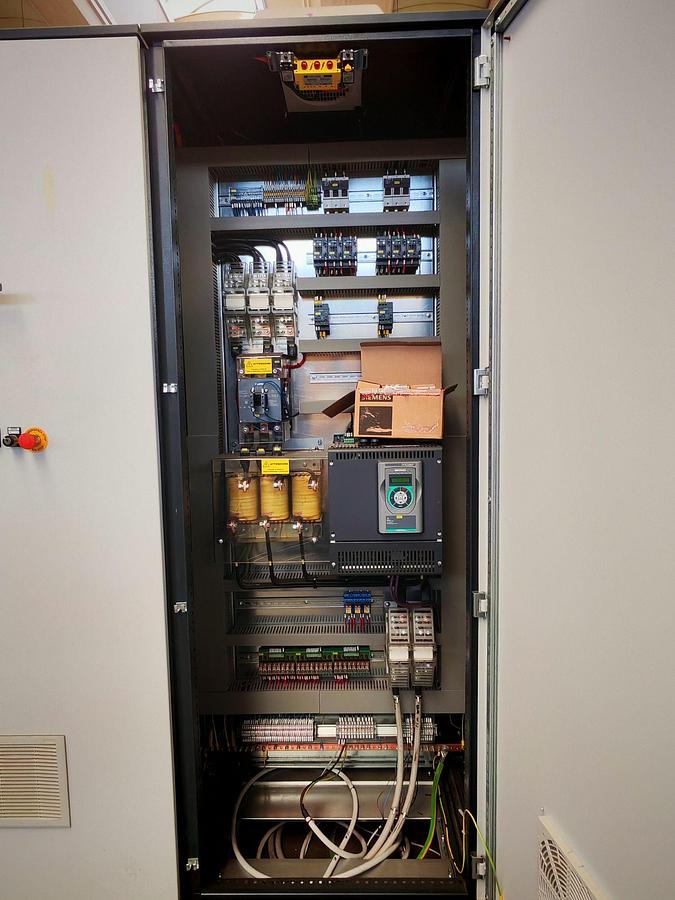

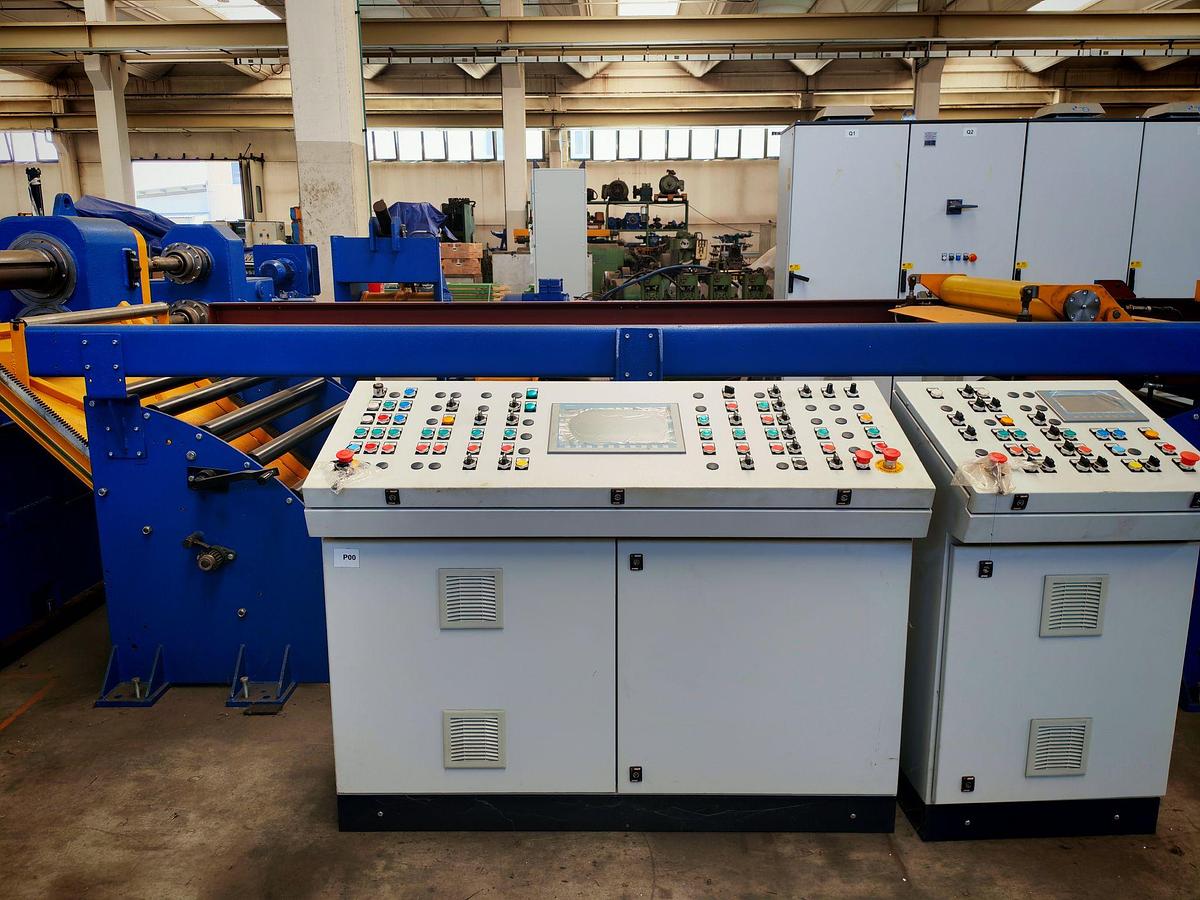

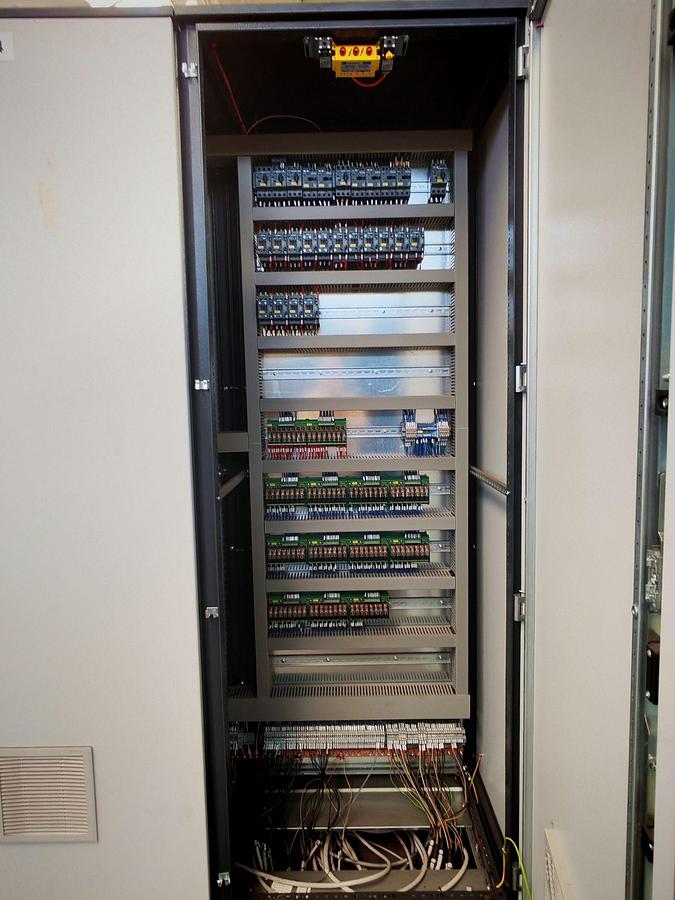

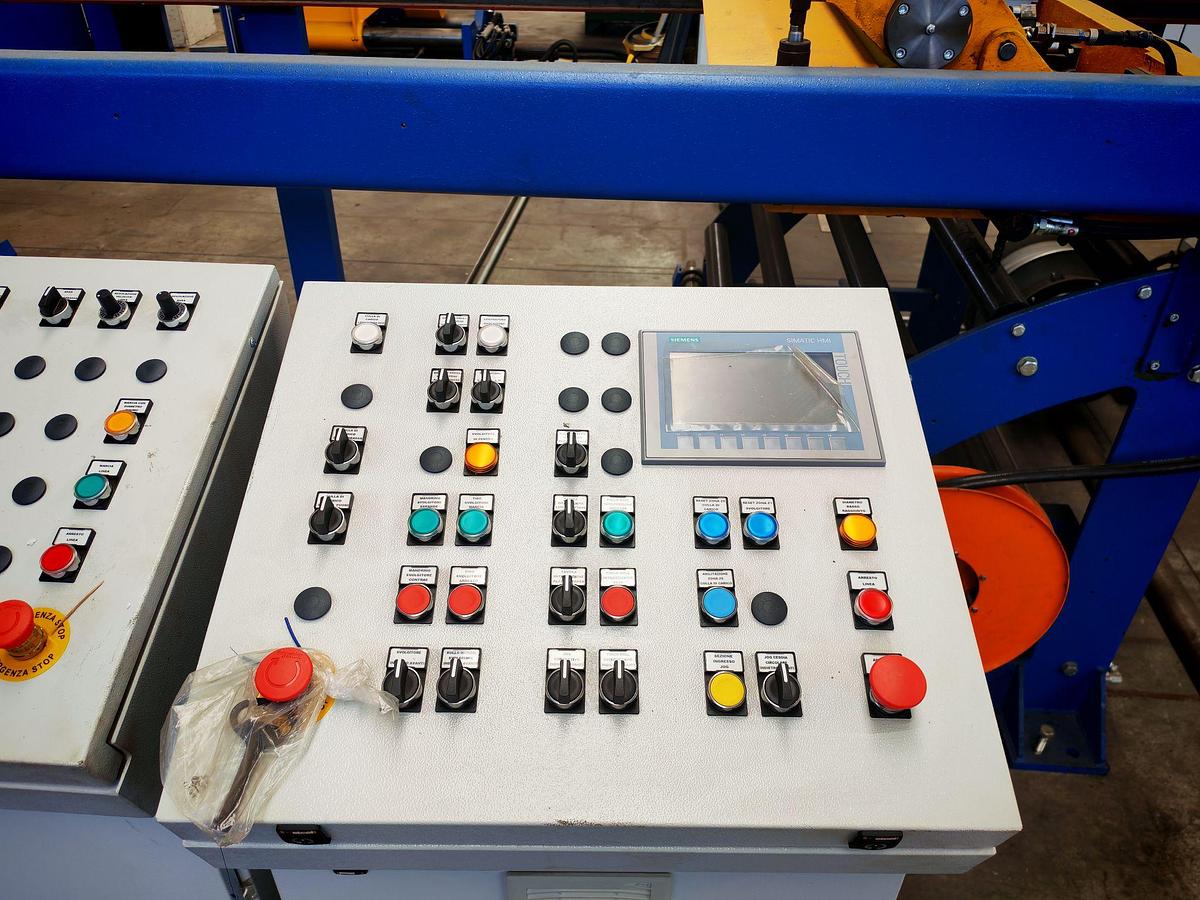

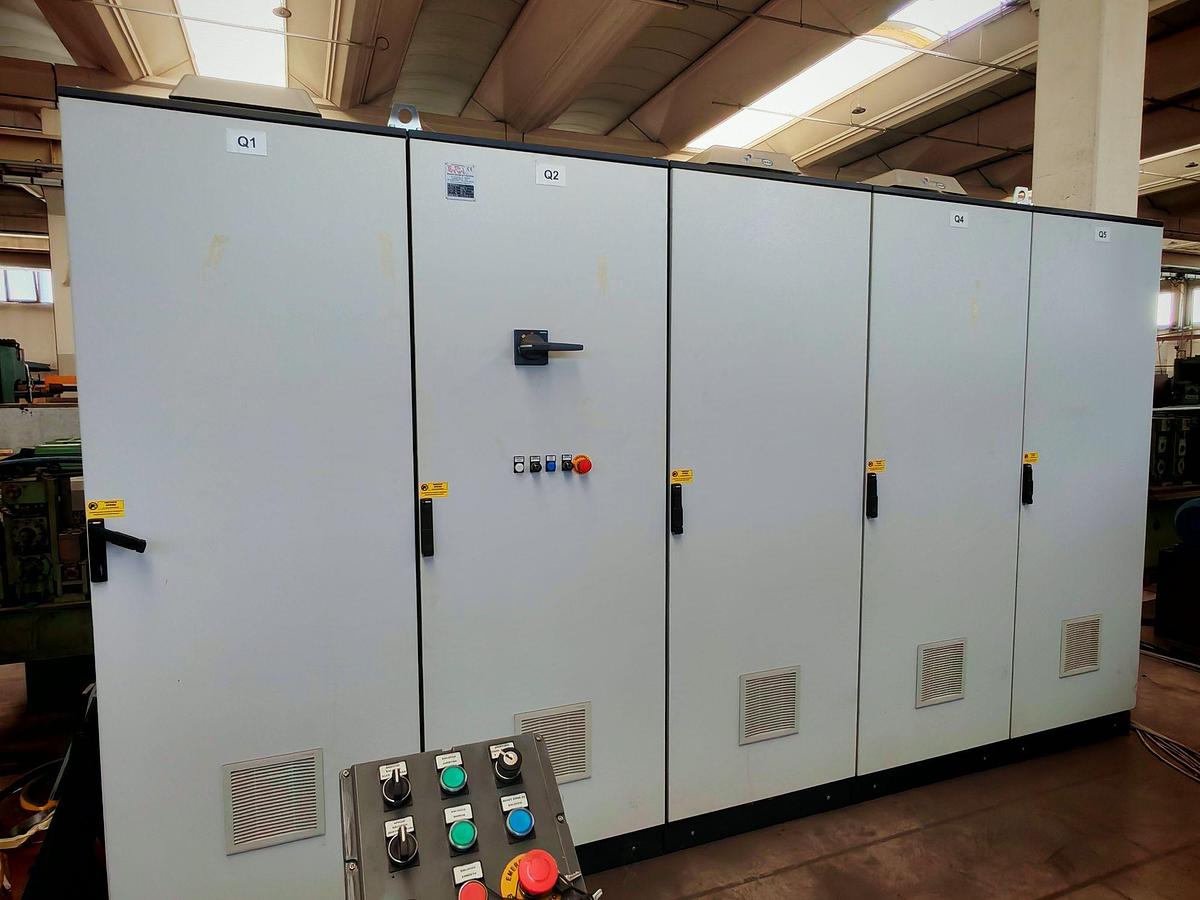

Completely re-manufactured with brand new power cabinets, control panels, PLC, HMI; 1-year guarantee for these <


  • Brand new safety fencing
  • New edge guide

Line direction: Left to Right


Line layout dwg. in the Attach., at the bottom of the page




  • min. coil width: 160mm
  • material thickness: .2mm to 3mm
  • max. 7 cuts at 3.0mm carbon steel (R=450); max. 2 cuts at 3.0mm stainless steel <
  • max. cutting section: 110kg/mm2


Slitter shaft dia.: 160mm

Slitter knife dia.: 300mm

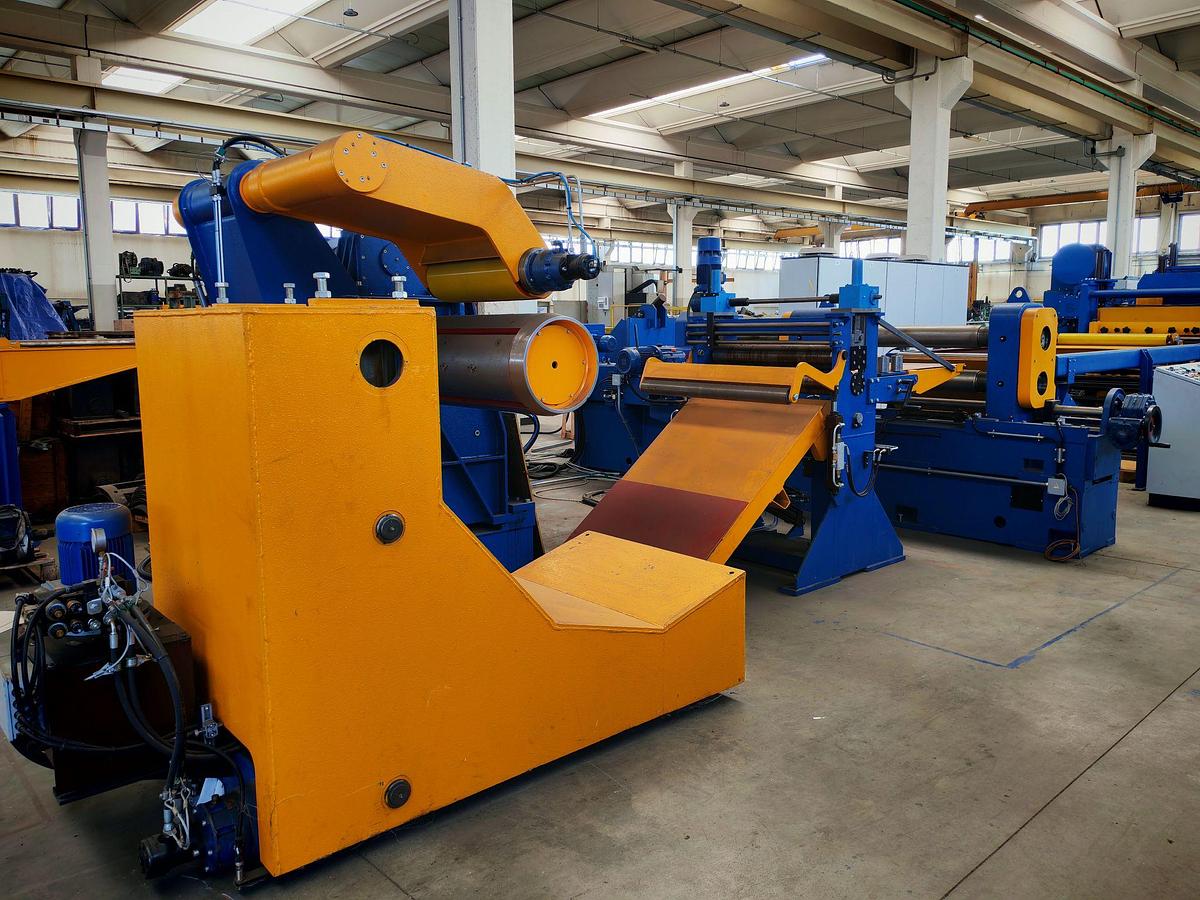

10ton Decoiler & Car

8ton Recoiler & Car


6m loop pit


entry Coil ID: 508mm; 610mm using spacers

exit Coil ID: 508mm

entry max. Coil OD: 1750mm

exit max. Coil OD: 1600mm

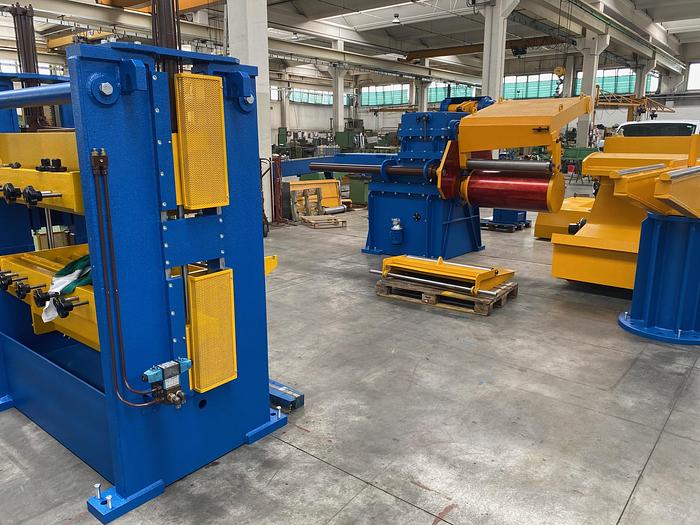

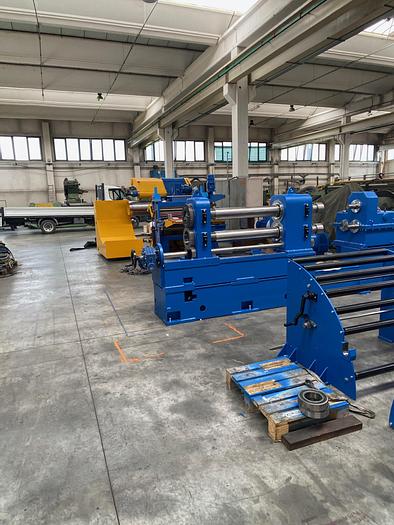

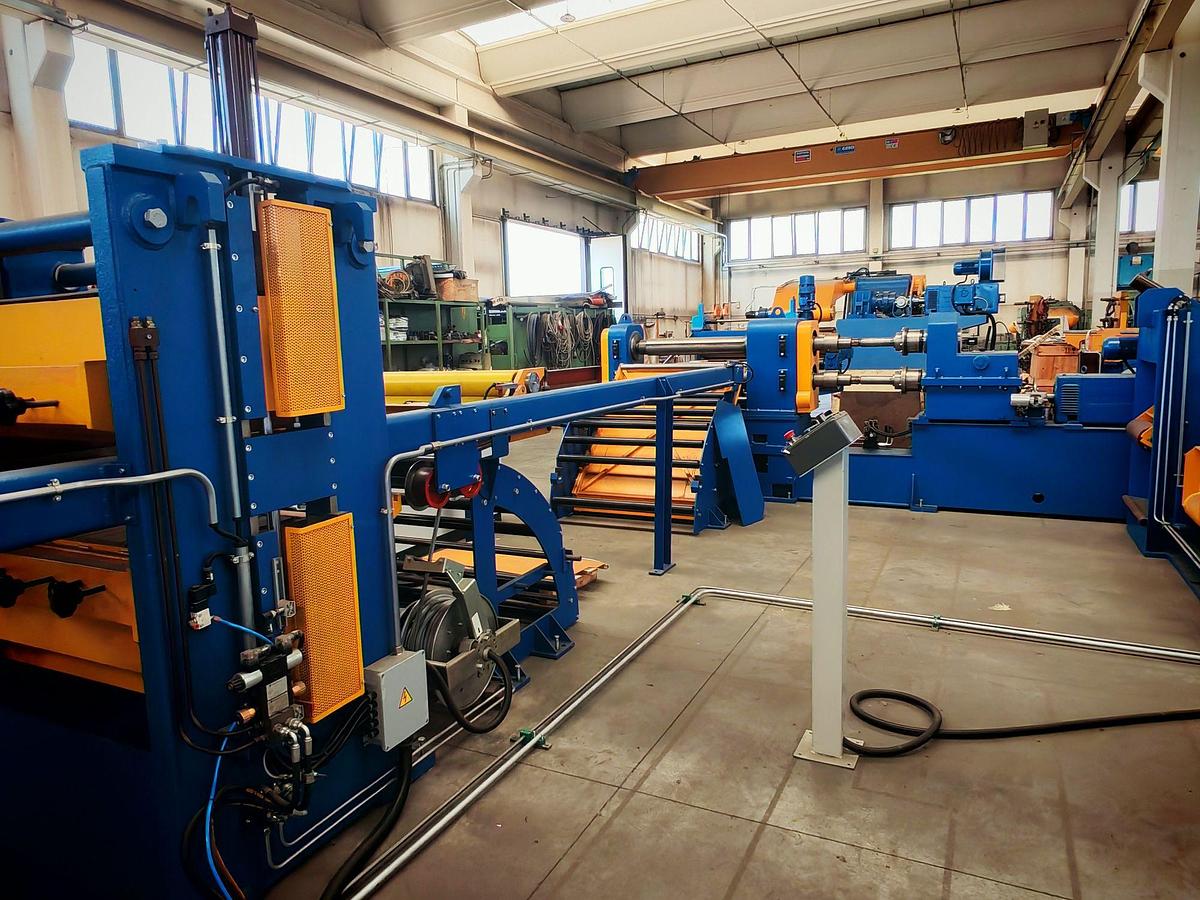

Main Line Parts :

( now repainted in blue and yellow )

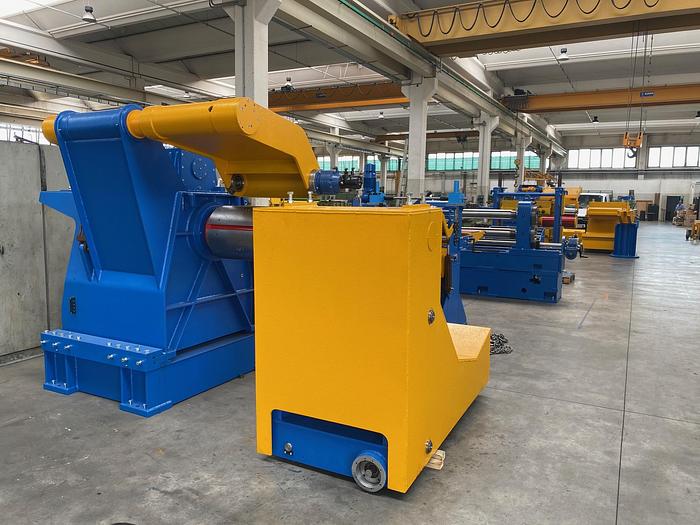

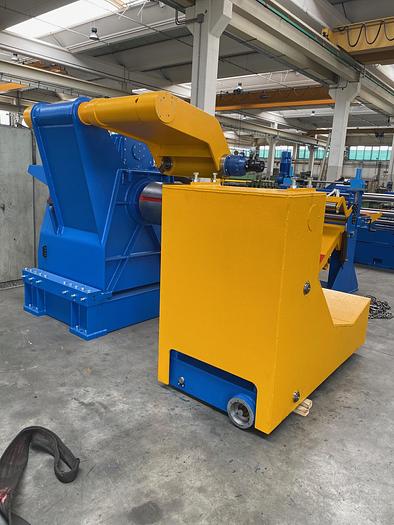

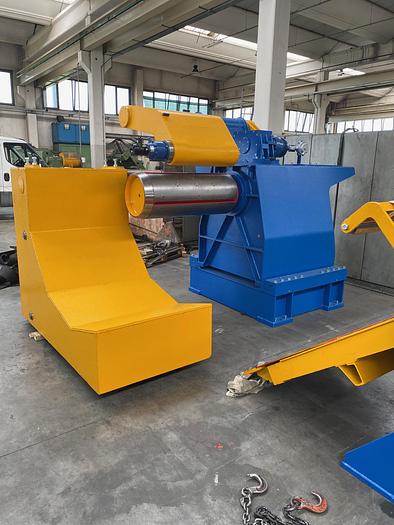

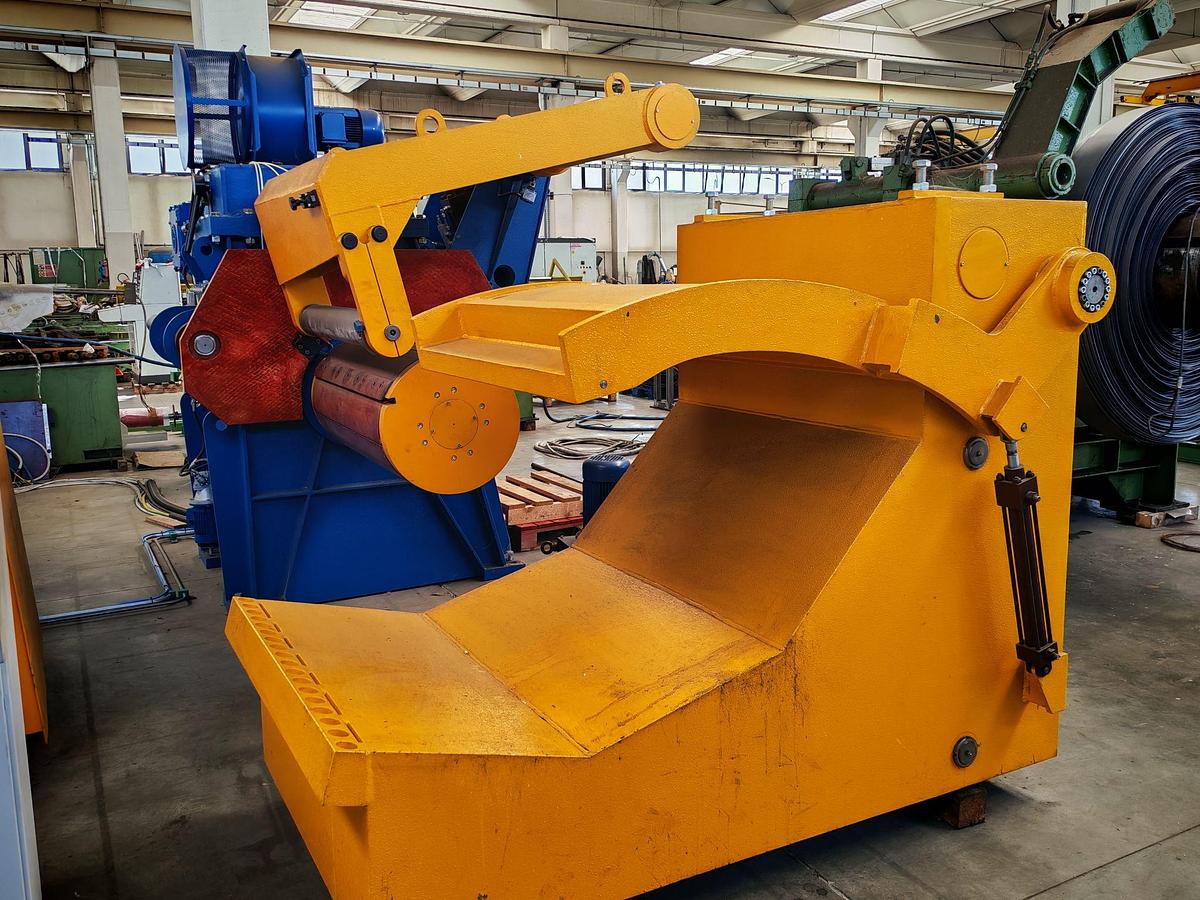

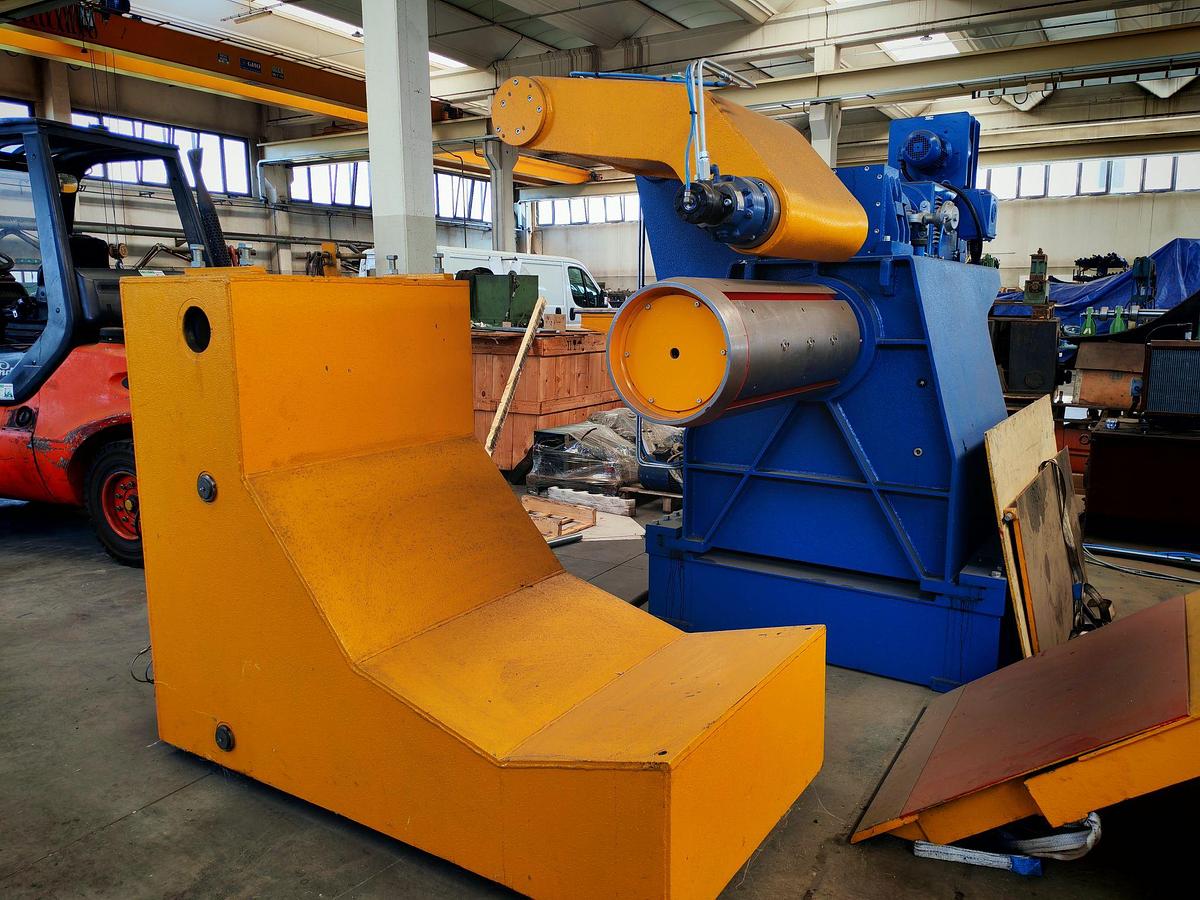

  • L-shaped Coil Loading Car

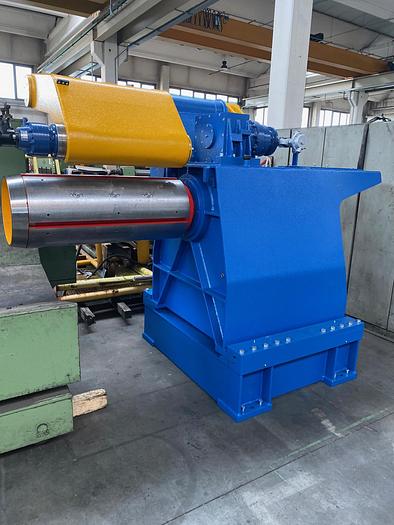

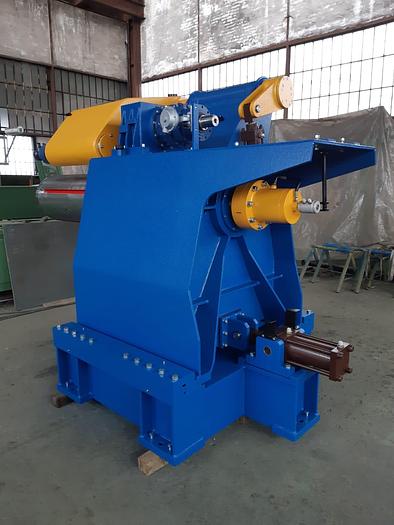

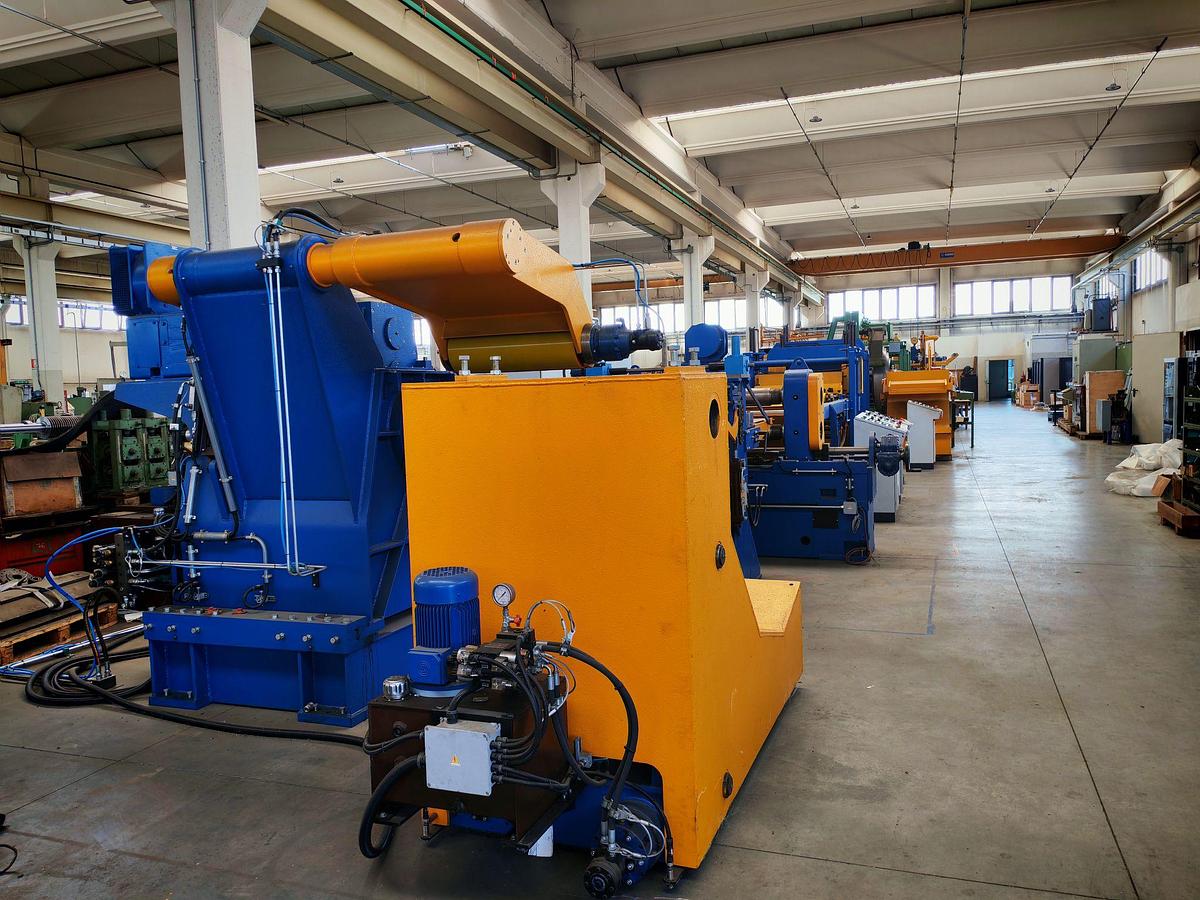

  • Mobile Base Decoiler

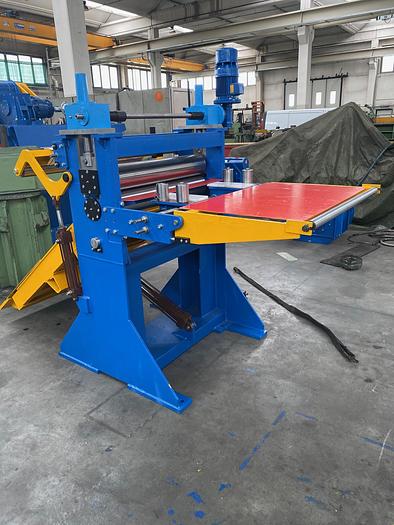

  • Coil Threading Table

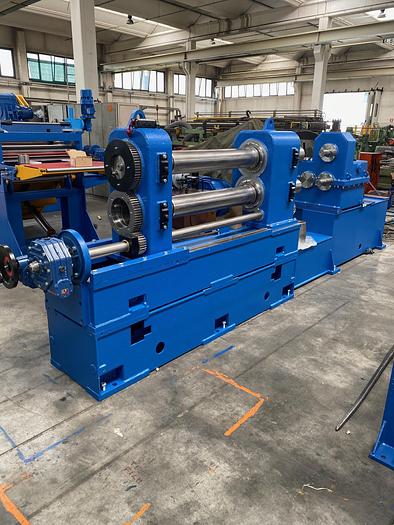

  • Pinch Rolls
  • Centering/Entry-Unit to Slitter

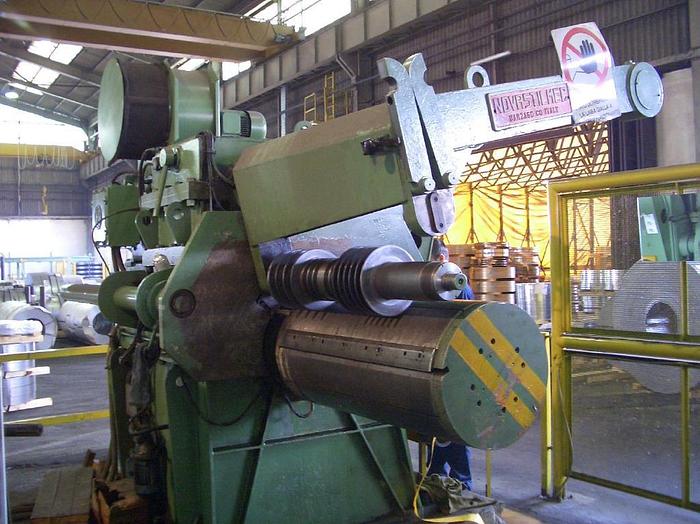

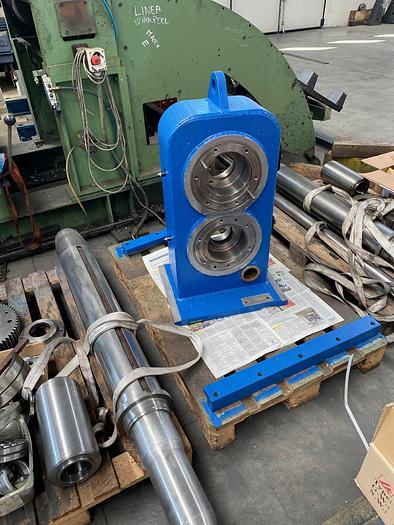

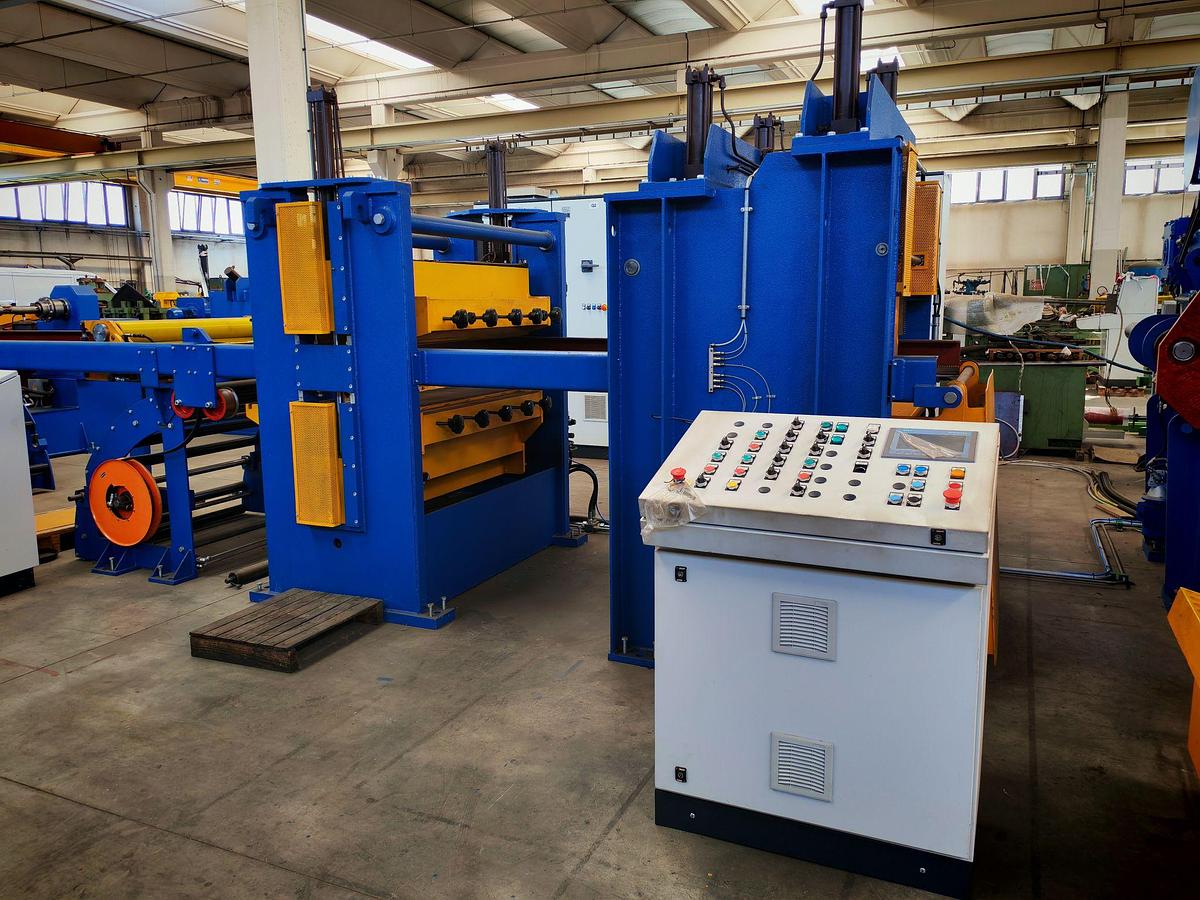

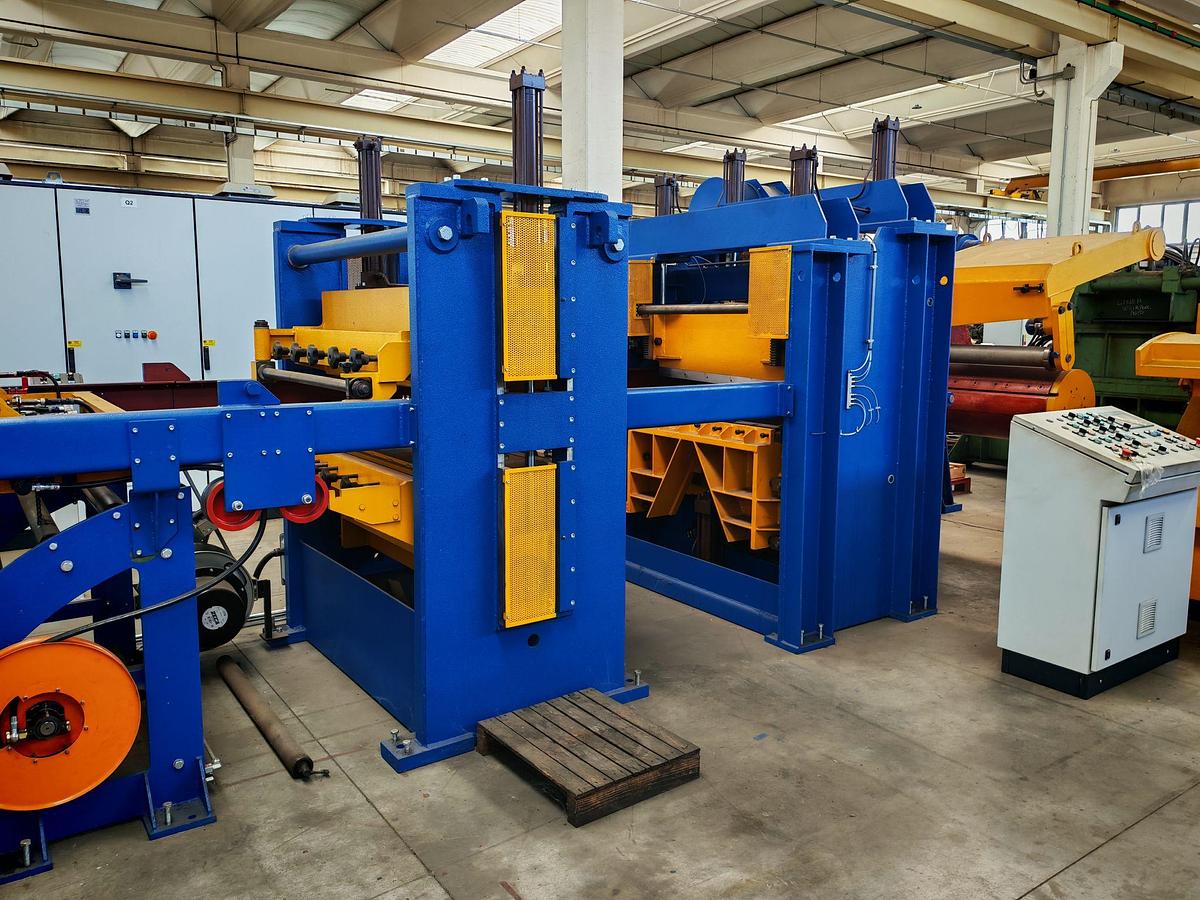

  • Slitter with hydraulically-opening stand

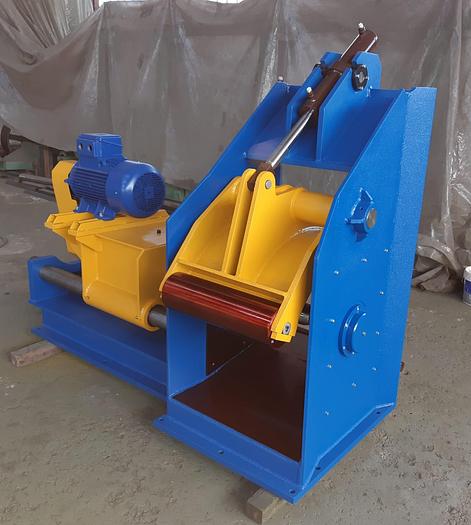

  • Scrap Baller
  • Loop Pit Go-Beyond Gripper

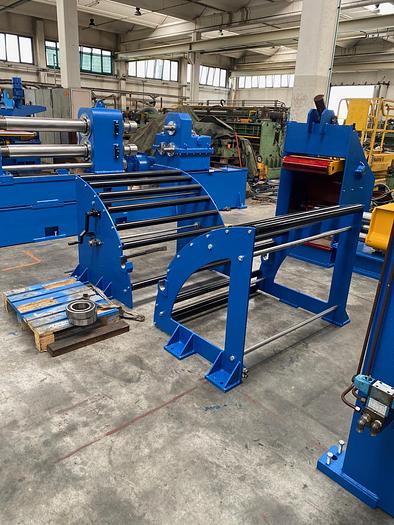

  • Roll Cradle with Separator Holders
  • Felt Tension Pad
  • Crop Shear
  • Fixed Deflector Roll & Recoiler Entry Table

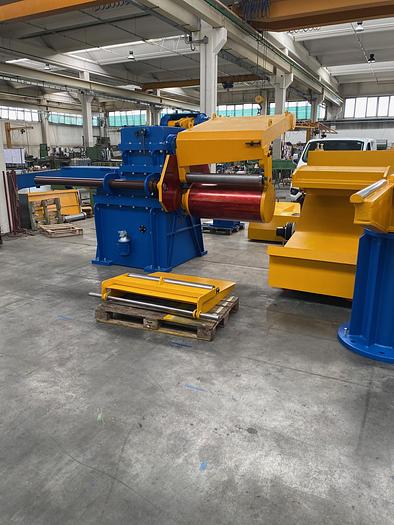

  • Fixed Base Recoiler with coil ejection plate

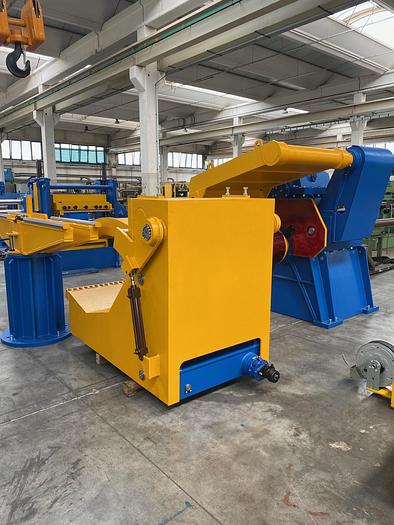

  • Coil Off-Loading Car with sectional strip hold-down
  • 2-Arm Turnstile

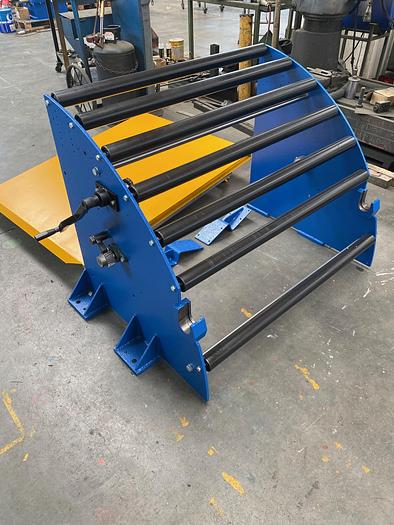

  • Entry Quadrant Rolls to loop pit
  • Exit Quadrant Rolls from loop pit

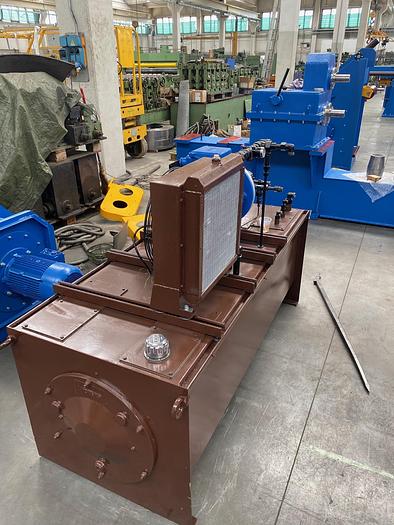

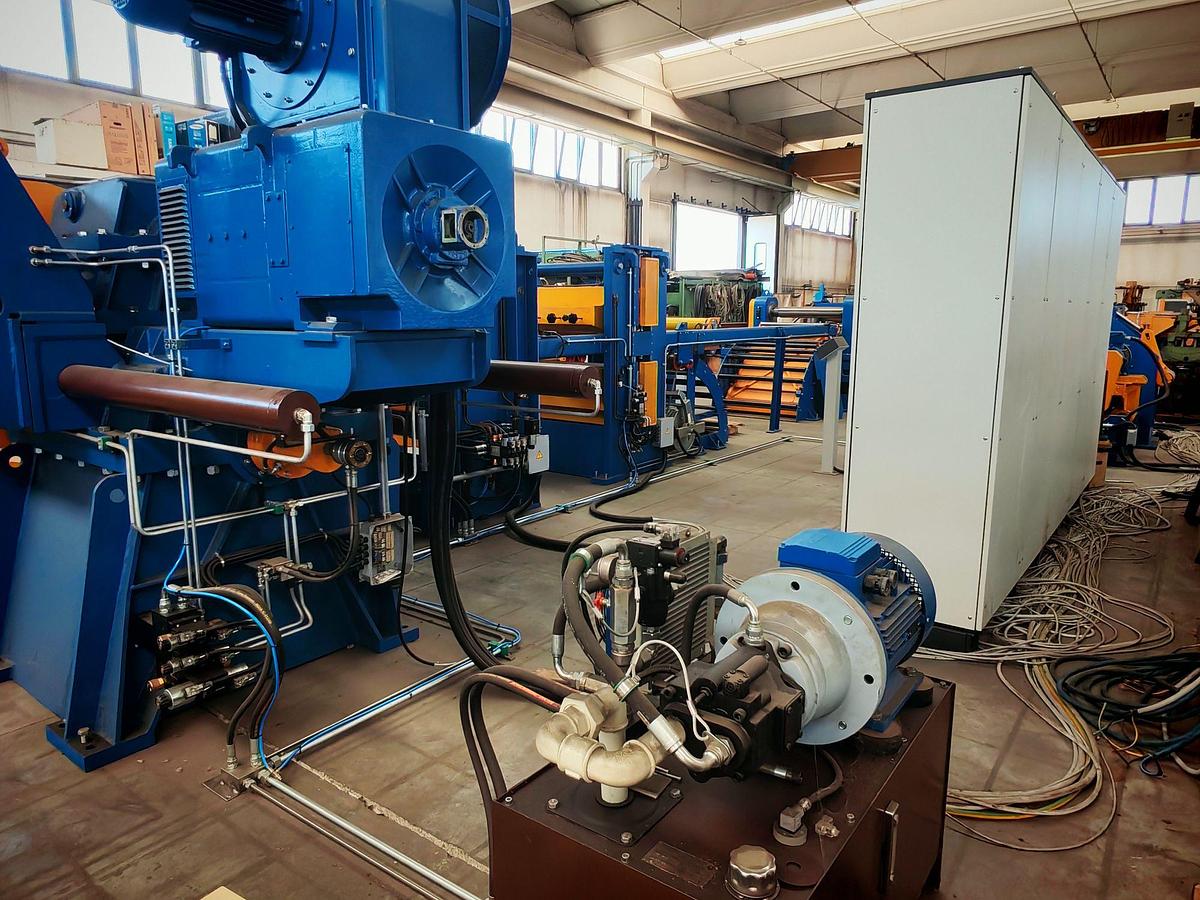

  • Hydraulic Power Pack




For the equipment that we overhauled :

6 month warranty ^



Brand new electrics, electronics, hydraulics, pneumatics :

12 month warranty ^




Installed Power


Decoiler 21 kW DC 460-1600rpm

Slitter 71 kW DC 1700rpm

Recoiler 100kW DC 529-1600rpm

Scrap Baller 11kW AC 1450rpm

Hydr. Power Pack 11kW AC 1450rpm




-

-



Specifications

ManufacturerNOVASTILMEC
Model870x3mm S.S. Slitting Line (Used) #3631
ConditionUsed
