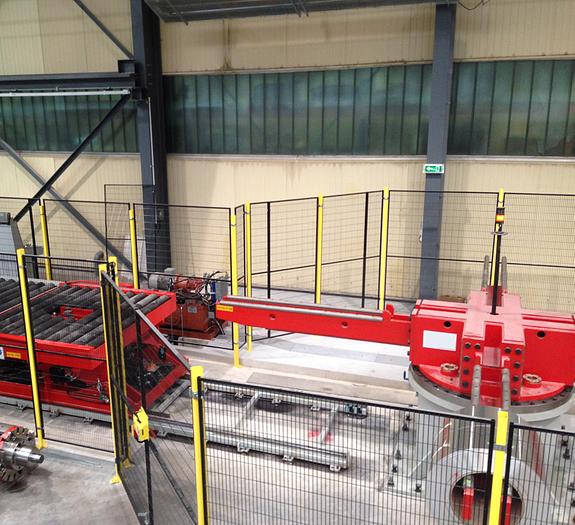

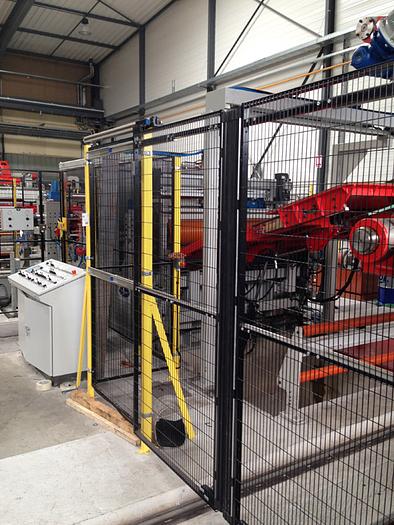

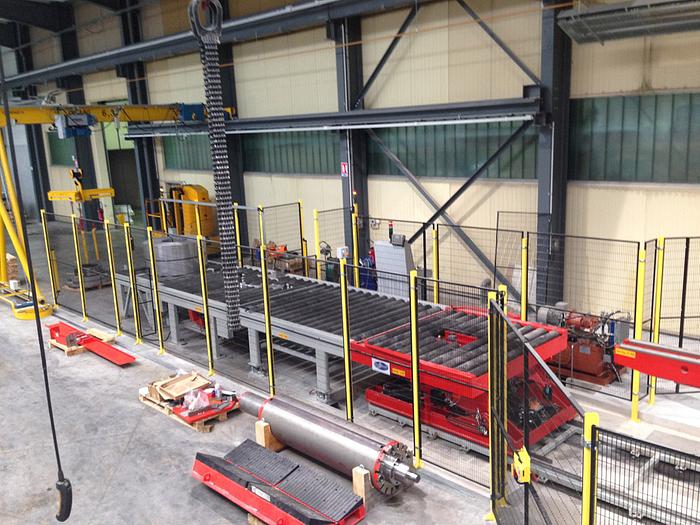

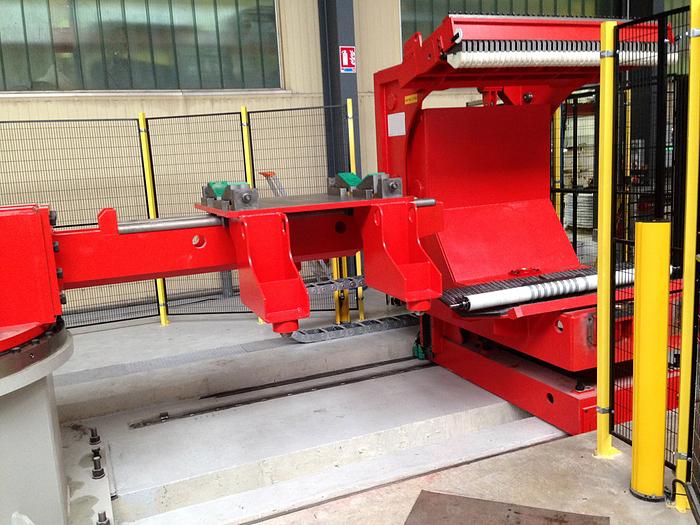

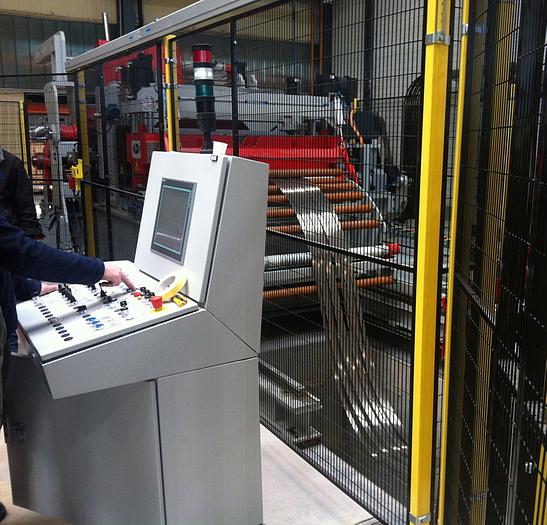

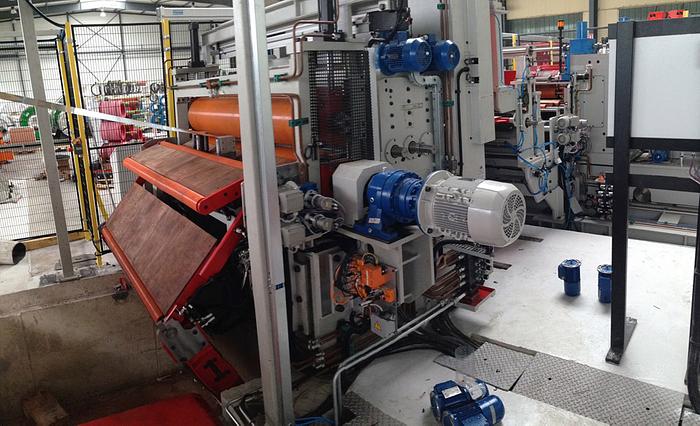

F&P Stainless Steel Slitting Line (New) #3203

New Stainless Steel Slitting Line 1550mm x 4mm S.S. | F-Class CUSTOM DESIGNED -- * Injection Slitter Heads * A 200m / min Dual Head High-Precision Slitting Line for processing aluminium, copper and stainless steel. The line has automatic edge guide, dual head slitter, interchangeable-mandrel recoiler, paper and protection film handling systems etc.; suits for coils up to 15 t, with 1850mm max. OD Minimum material thickness: .3mm 15 t decoiler, recoiler and coil cars exit coil tilter -- Line General Information Process materials: Stainless steel, Rm 650 – Rp 300 N/mm² Copper, Rm 240 – Rp 120 N/mm² Aluminium, Rm 100 - Rp 60 N/mm² Surface finish: Bright or matt Minimum material thickness: .3mm Maximum material thickness: 4.0mm Minimum coil width: 100mm Material maximum section: 4650mm² (mm.1550mm x 3mm – 1150mm x 4mm) Material minimum section: 160mm² (400mm x .4mm) Material minimum section in 'loop' mode: 60mm² (200mm x .3mm) Line useful width: 1650mm Maximum decoiler capacity: 15 t Maximum recoiler capacity: 15 t Minimum Coil OD: 600mm Maximum Coil OD: 1850mm Entry Coil ID: 400m and 508mm (spacers) Exit Coil ID: 400mm and 508mm (INTER-CHANGEABLE MANDREL DRUMS) Line speed max.: 200m / min Coil threading speed: 15m / min Line direction: Right to left Minimum strip width: 20mm Coil side-trims: 1-40mm
