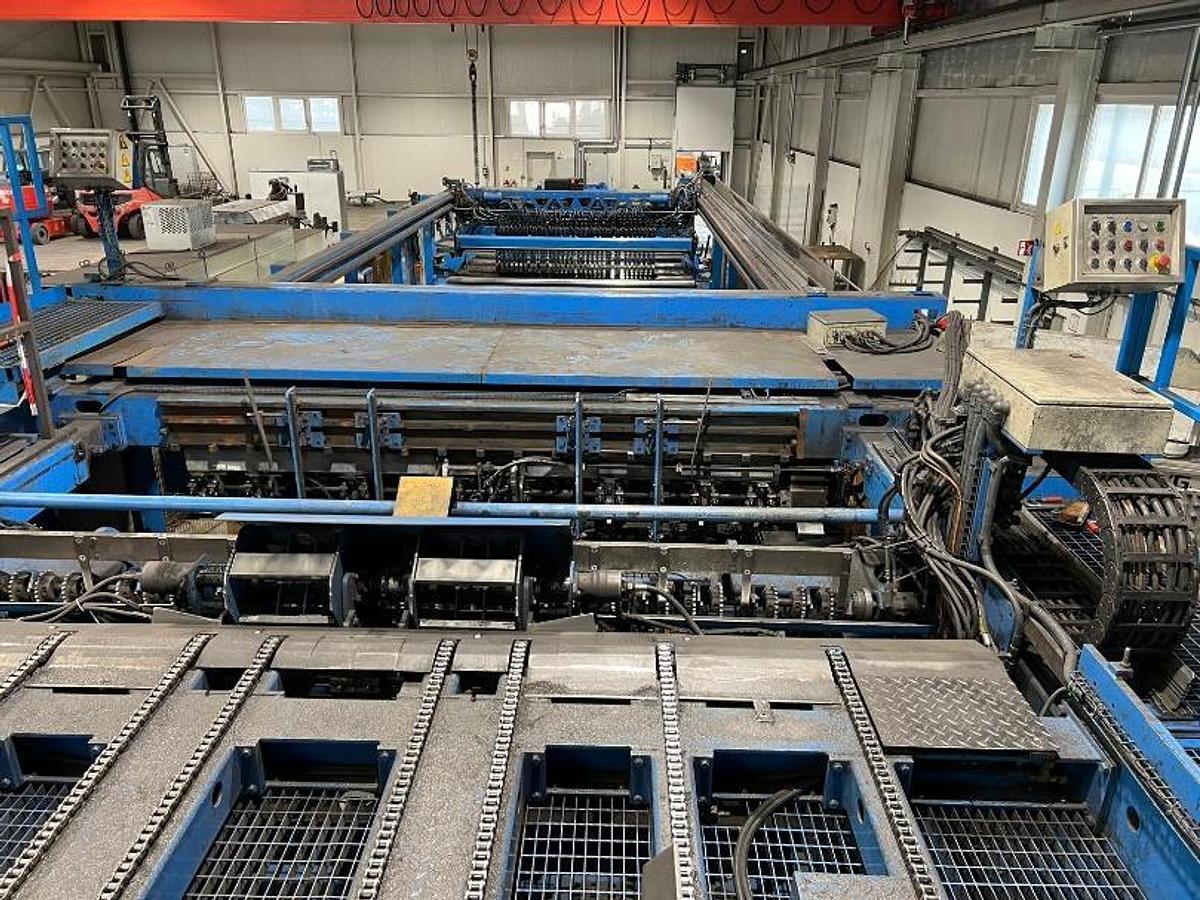

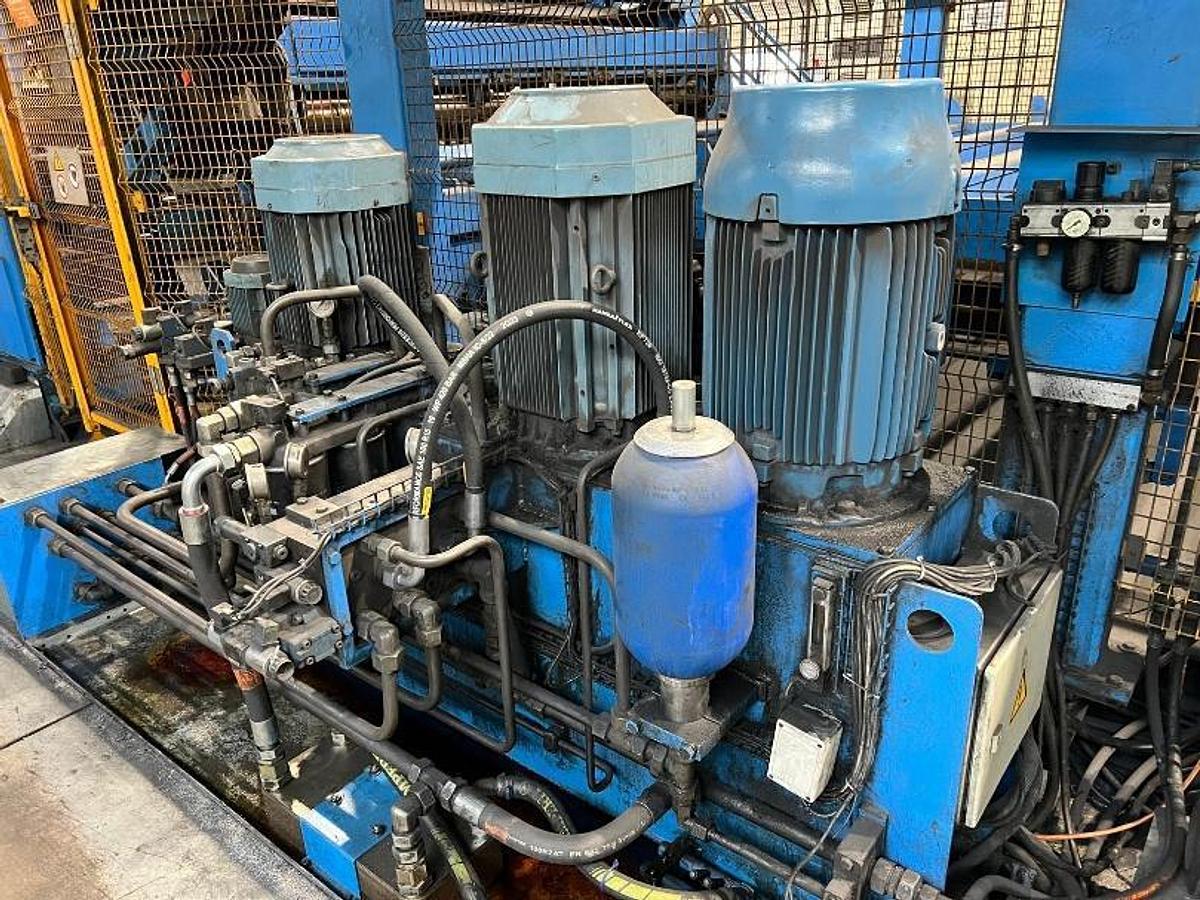

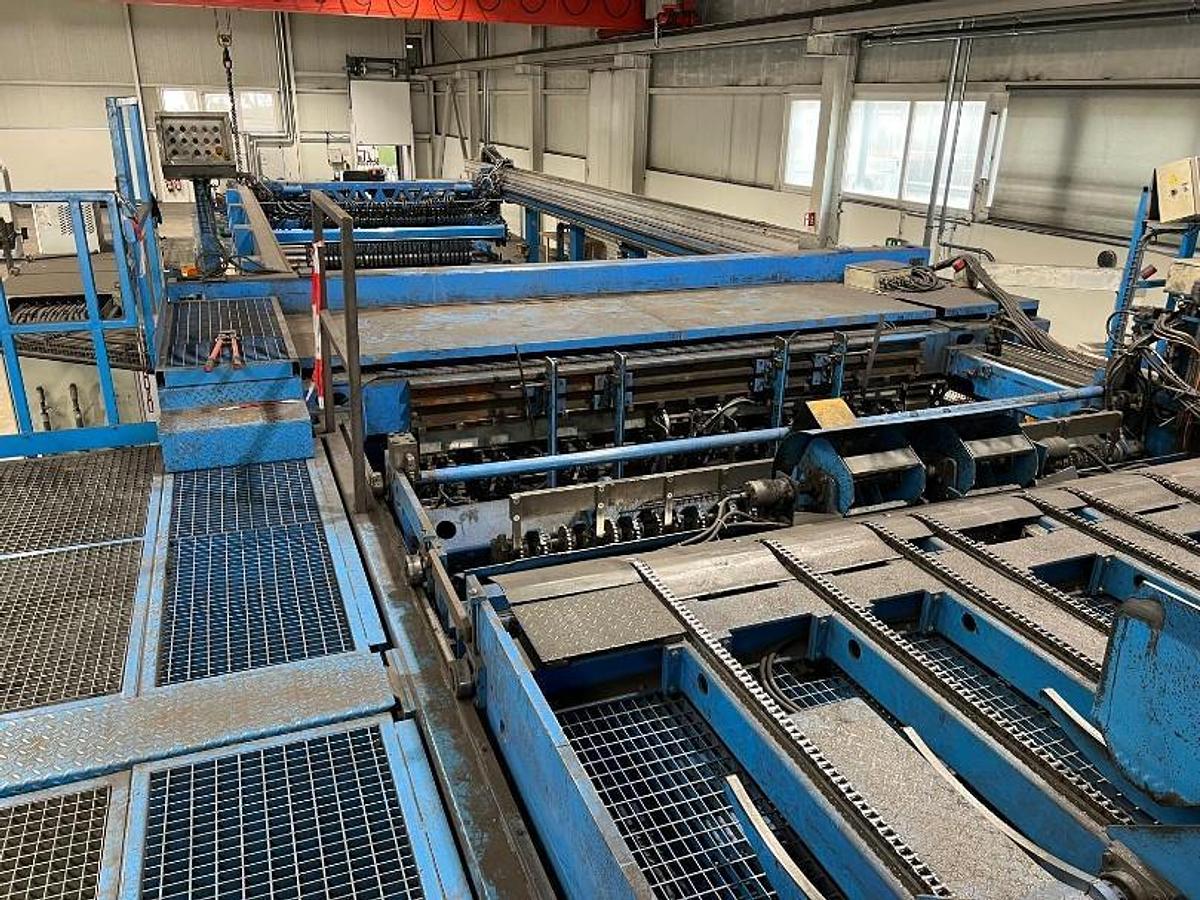

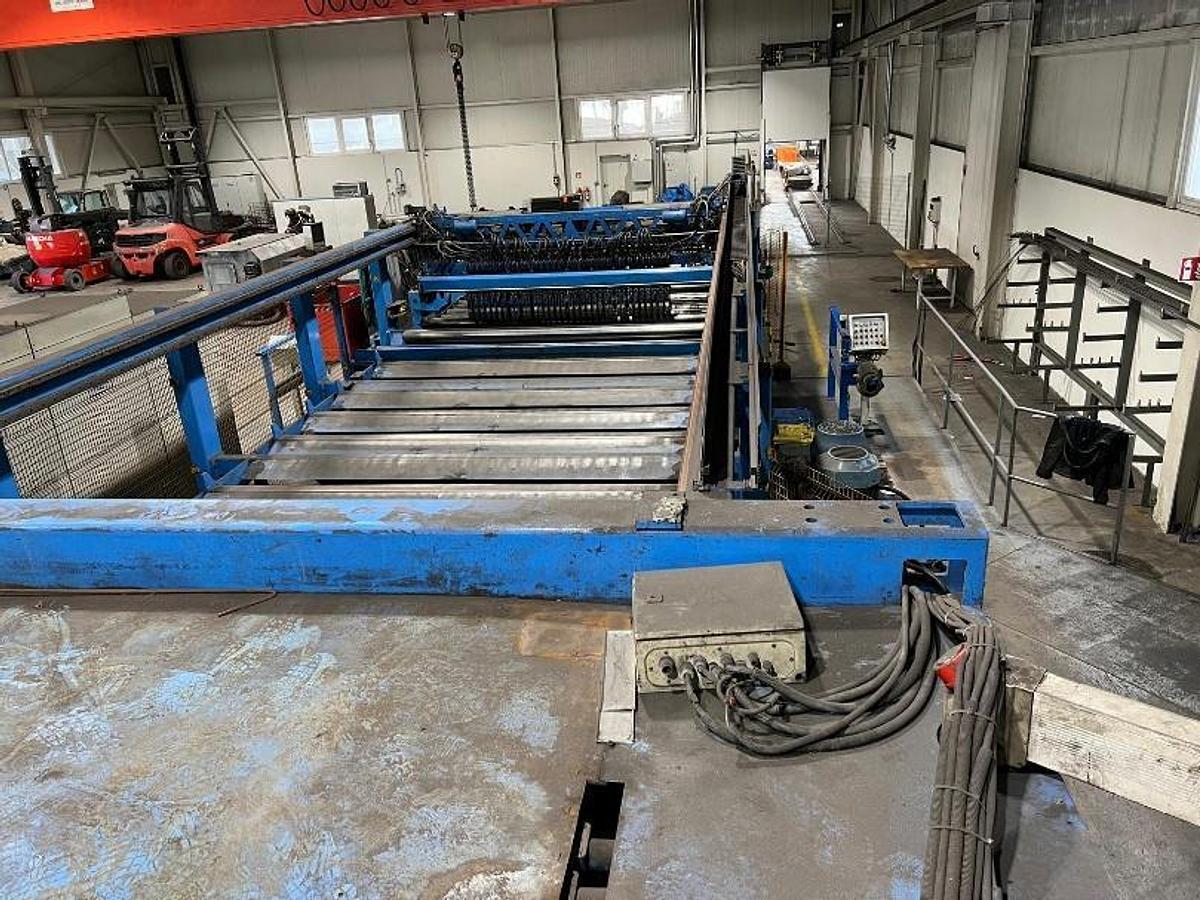

EVG QC 7/126 - RV/PV Mesh Welder For Sale

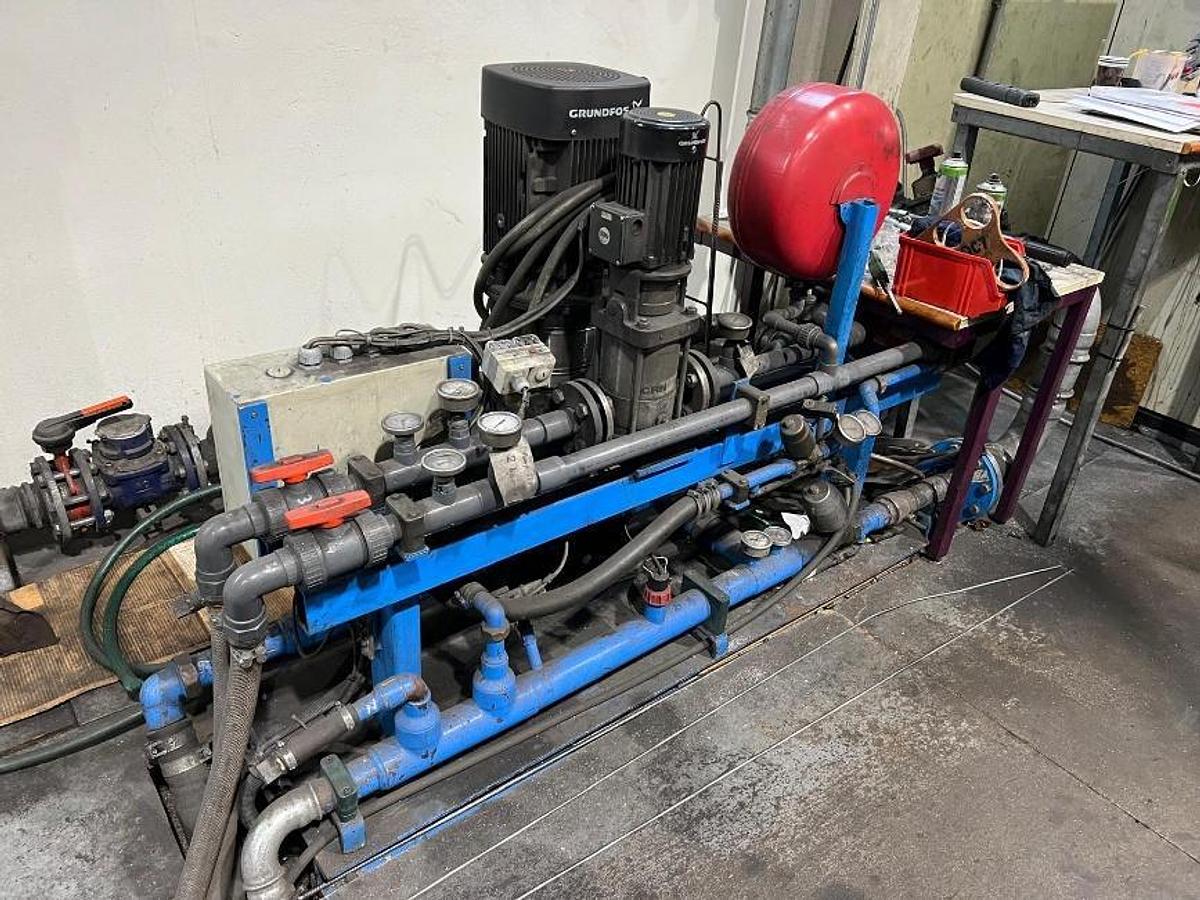

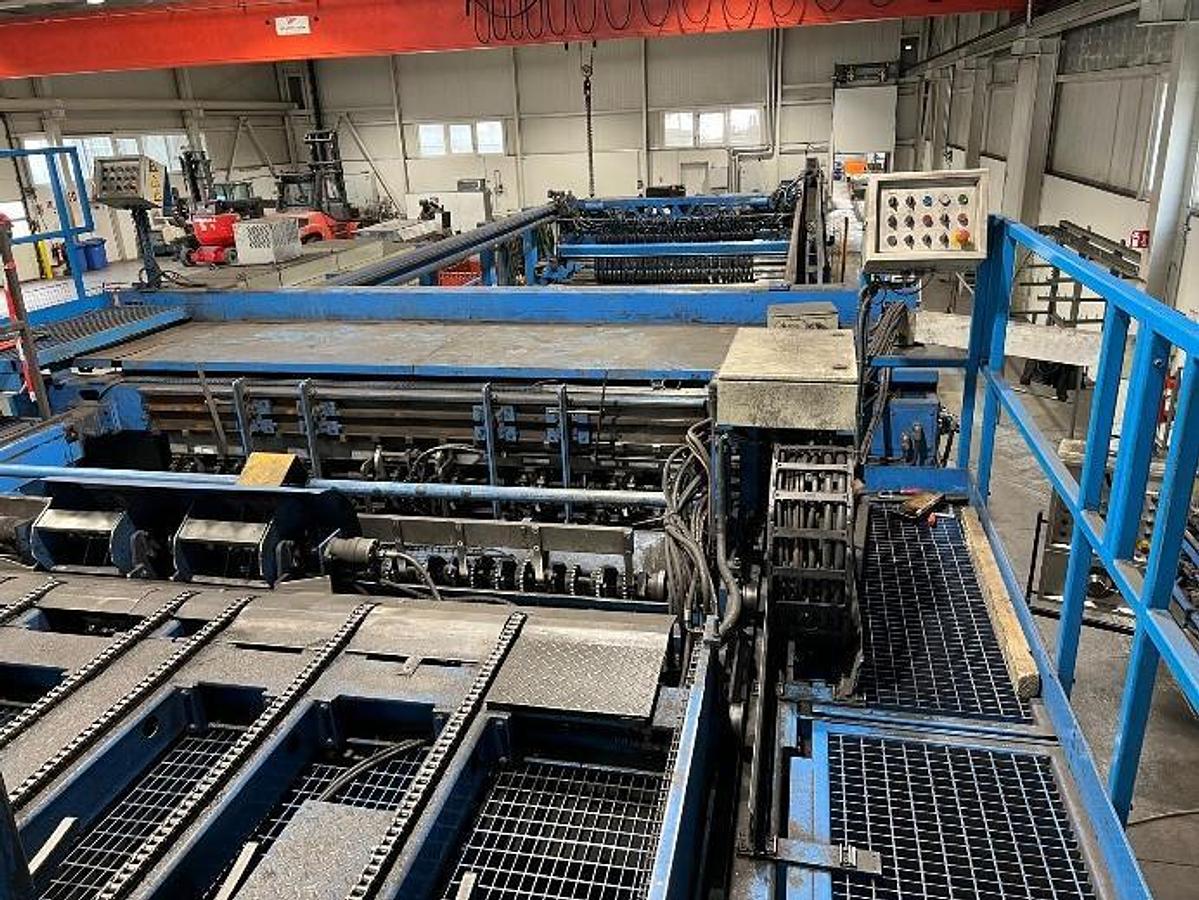

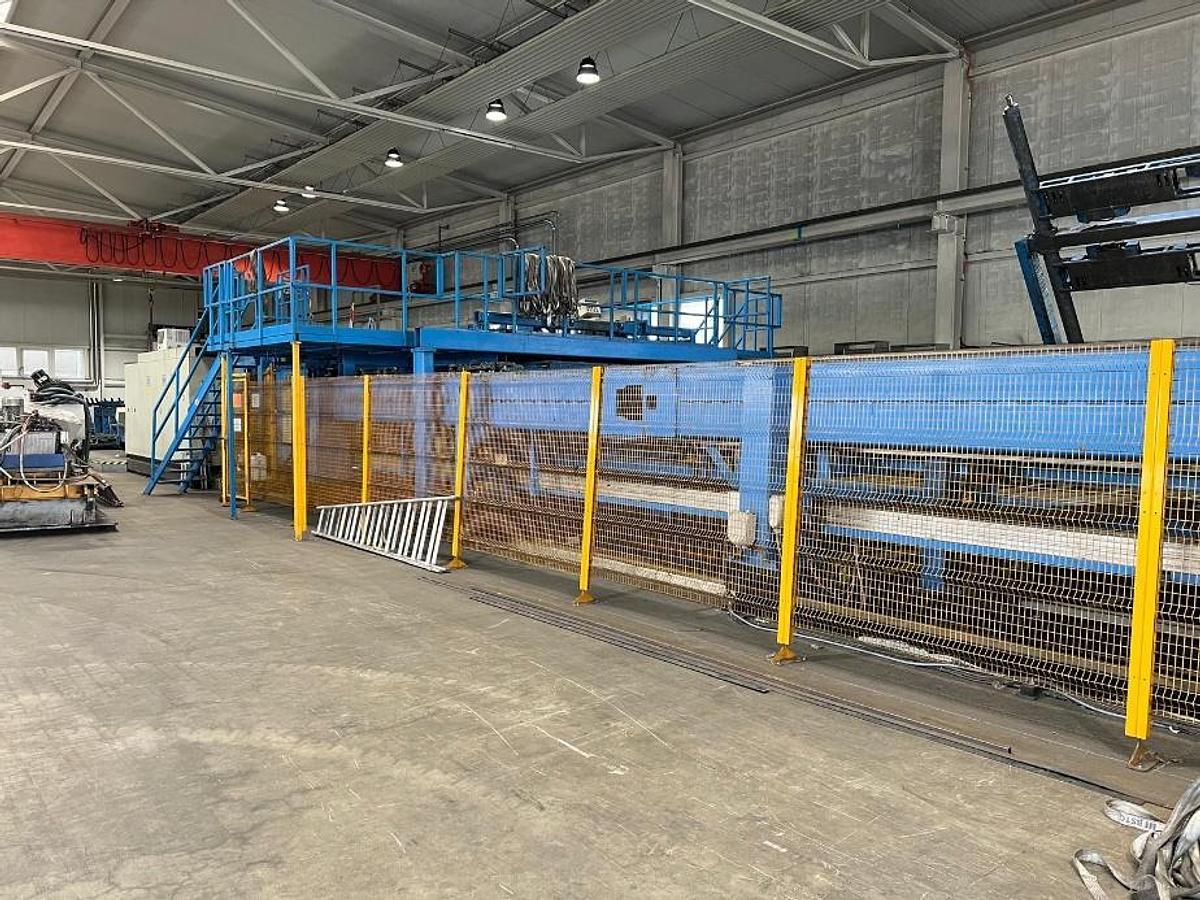

EVG QC 7/126-RV/PV Year: 2001

The line was in production until end of February 2026.

Before: in 2013 complete retrofit; in 2019, installation of a new CNC by from EVG

line wire Ø min: 5 mm

line wire Ø max: 16 mm

cross wire Ø min: 5 mm

cross wire Ø max: 16 mm

strokes (cross wire) min / max: 90

mesh width max: 3350 mm

no. of line wires max: 34

line wire feeding: prestraightened bars

cross wire feeding: prestraightened bars

line wire distance min: 50 mm

cross wire distance min: 50 mm

no. of welding transformers: 12

no. of welding heads: 34

welding width max: 3300 mm

mesh turner and stacker: existant

cross wire feeder: existant

total connected load: 2000 kVA

operation voltage: 400 V

electrical cabinet: existant

with a 50mm width for a minimum longitudinal wire pitch of 50 mm, larger pitches can be adjusted continuously

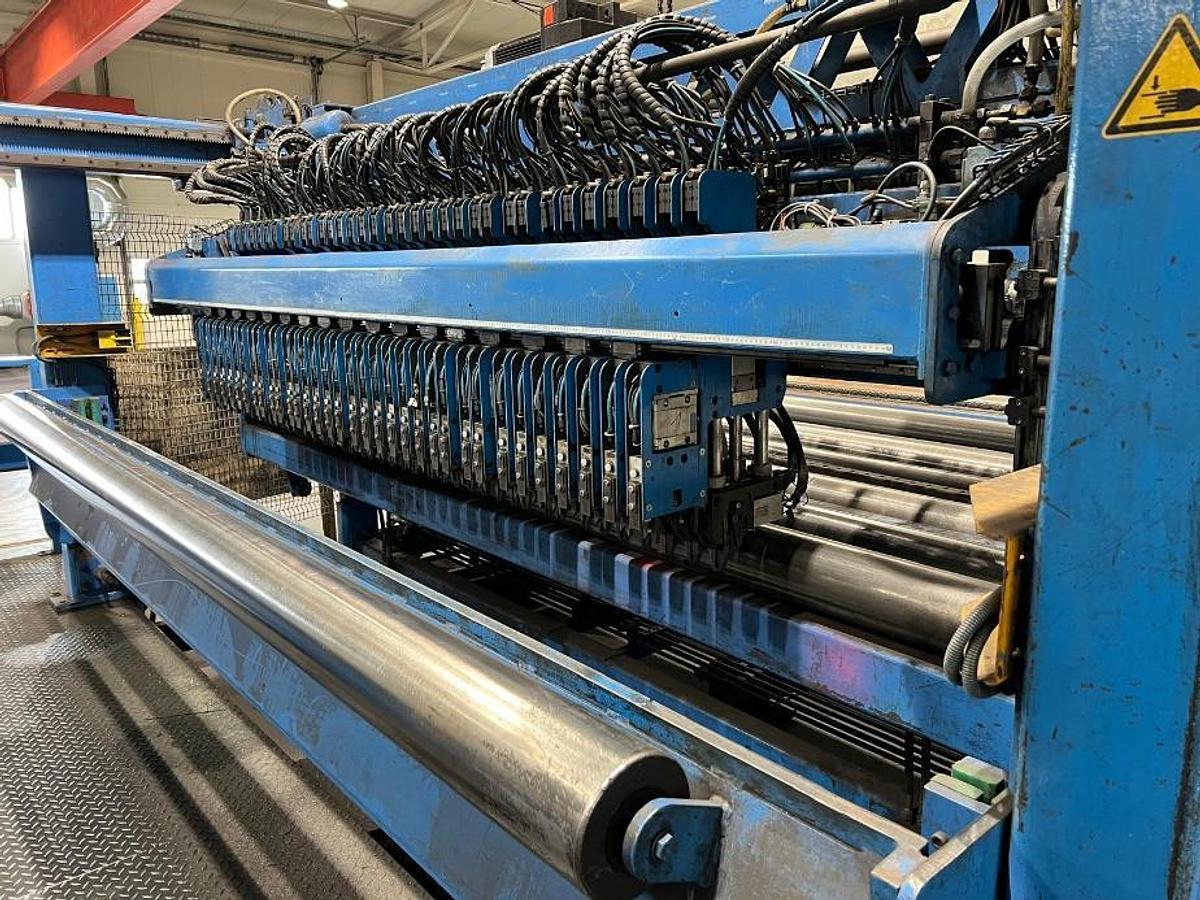

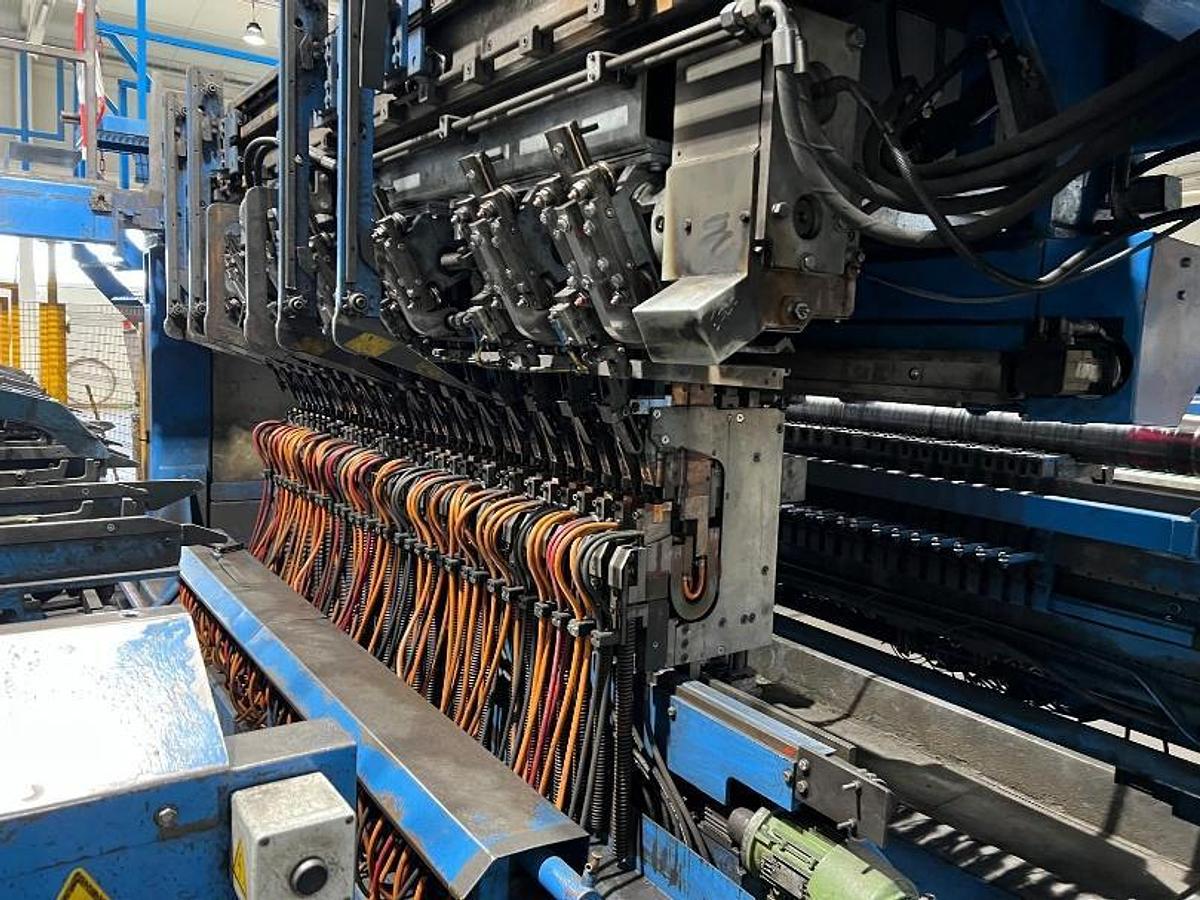

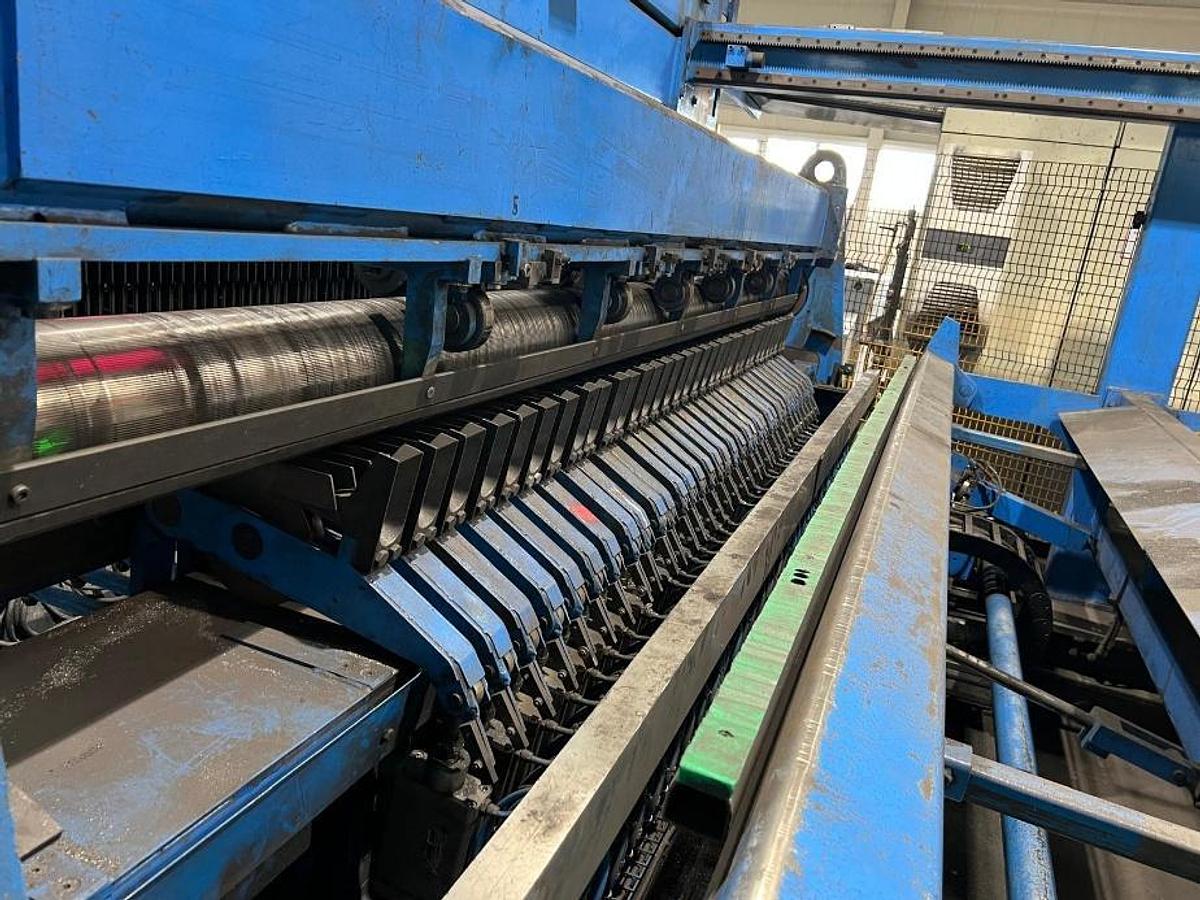

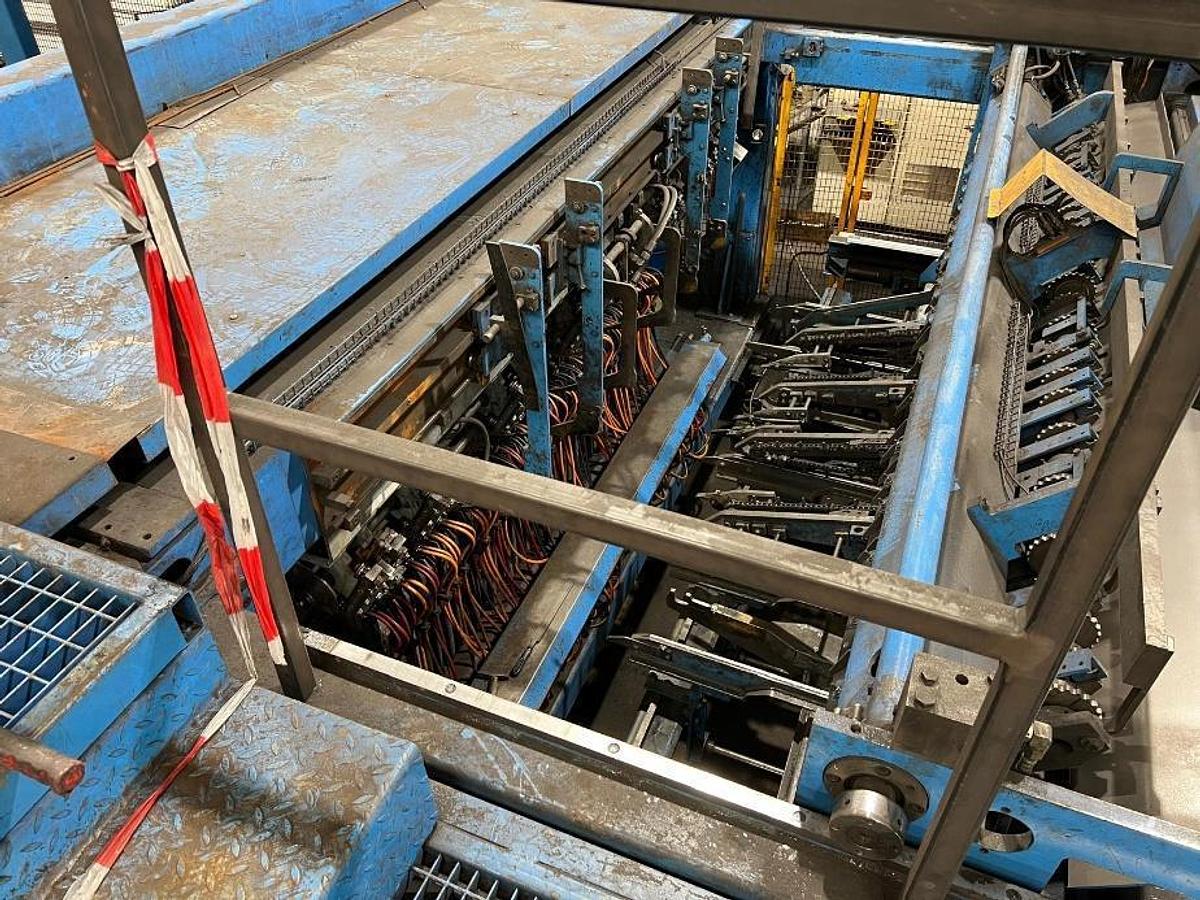

motorized, programcontrolled head adjustment with improved, precise positioning of welding heads

1 x cross wire storage:

of new design (“scratch” storage). Loading from right side

The main storage is designed for "single-lane" feeding of cross wires

It is equipped with automatic width-adjustment and automatic diameter-adjustment

Max. wire coil weight: 2000 kg

mesh extension

with RV/PV for continuous production of the RV to be designed as a continuous drive shaft with 34 moving pressure roller elements, which are moved by the welding heads. Positioning of the RV elements in accordance with the welding head position (i.e., no longitudinal wire switch).

the RV elements must be individually controllable for the production of mats with staggered longitudinal wires

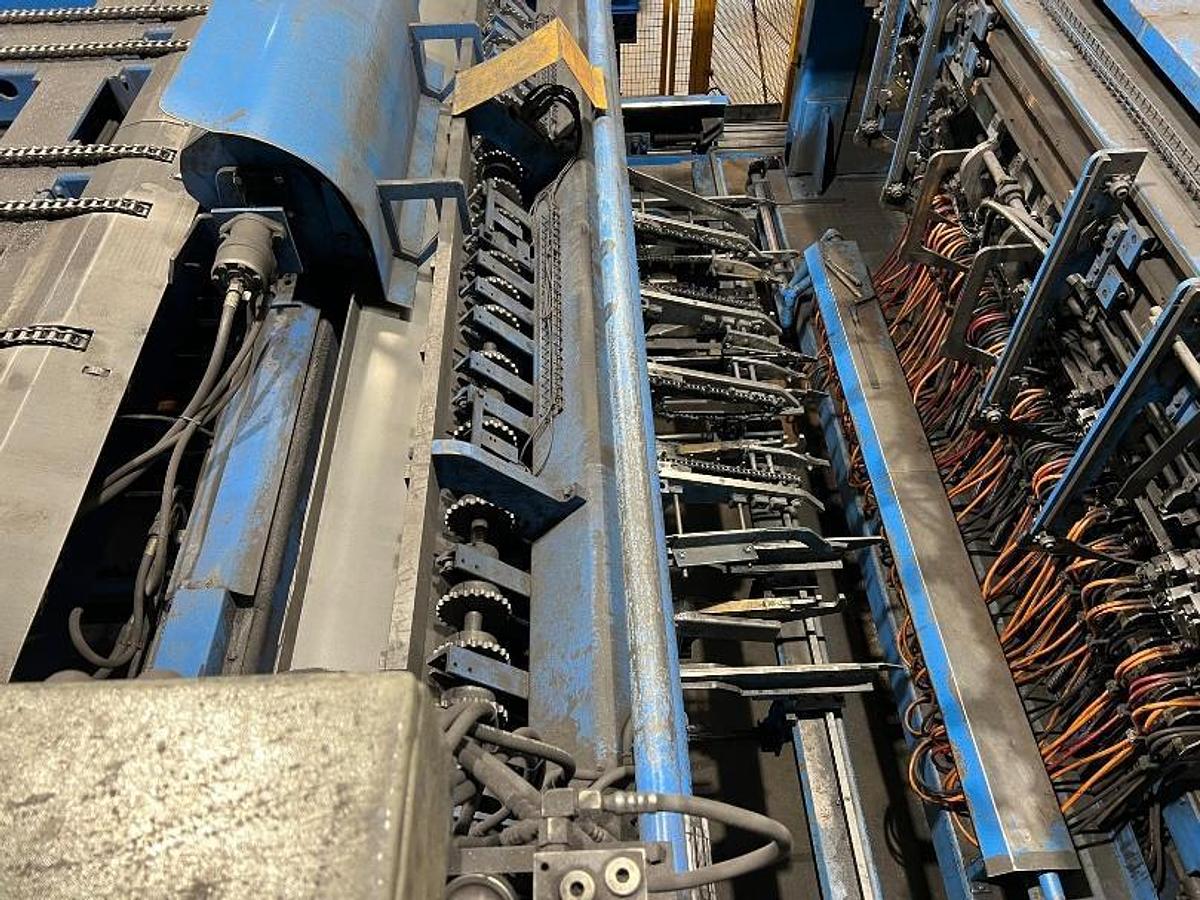

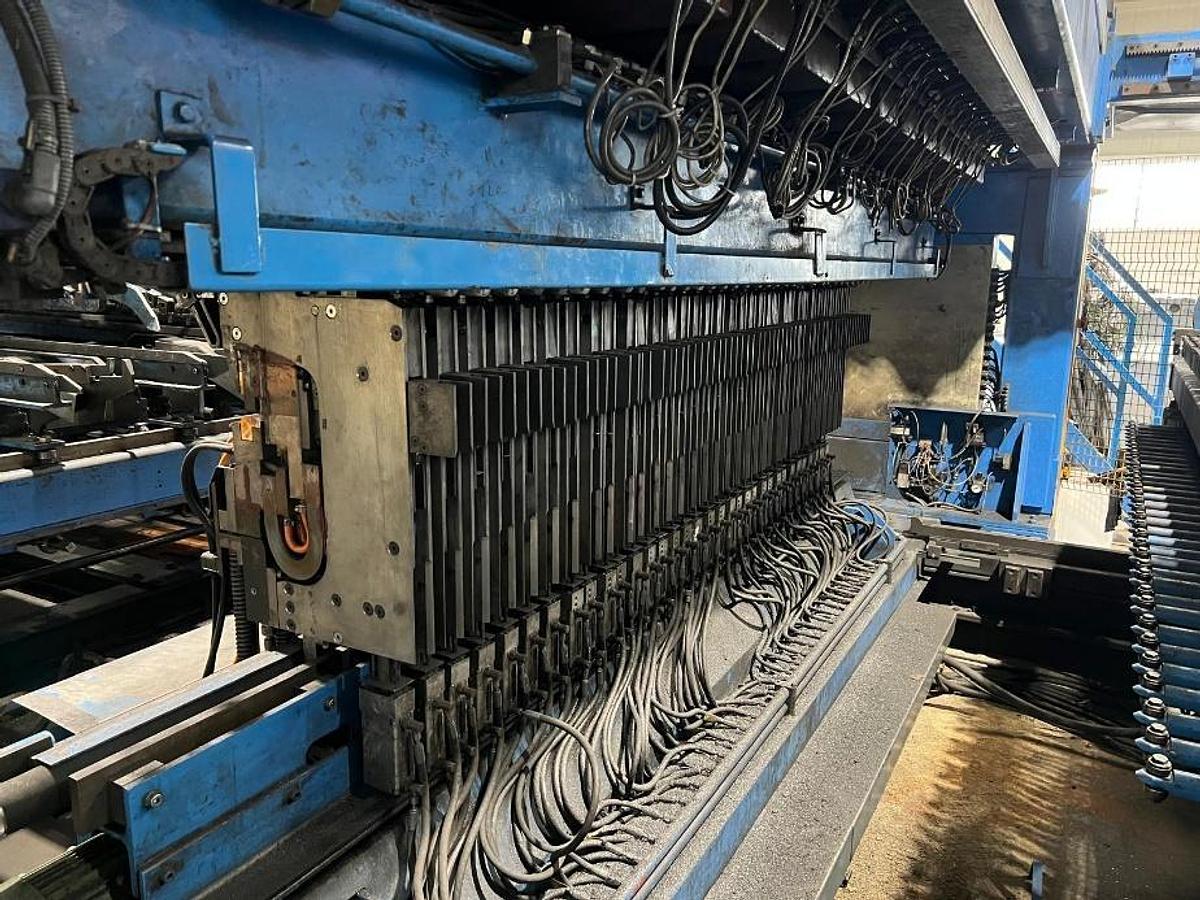

12 welding transformers with a total rated power of 2000 kVA

cascade welding

quadruple (cascading from mesh program 8 x 8 mm/100 mm longitudinal wire spacing)

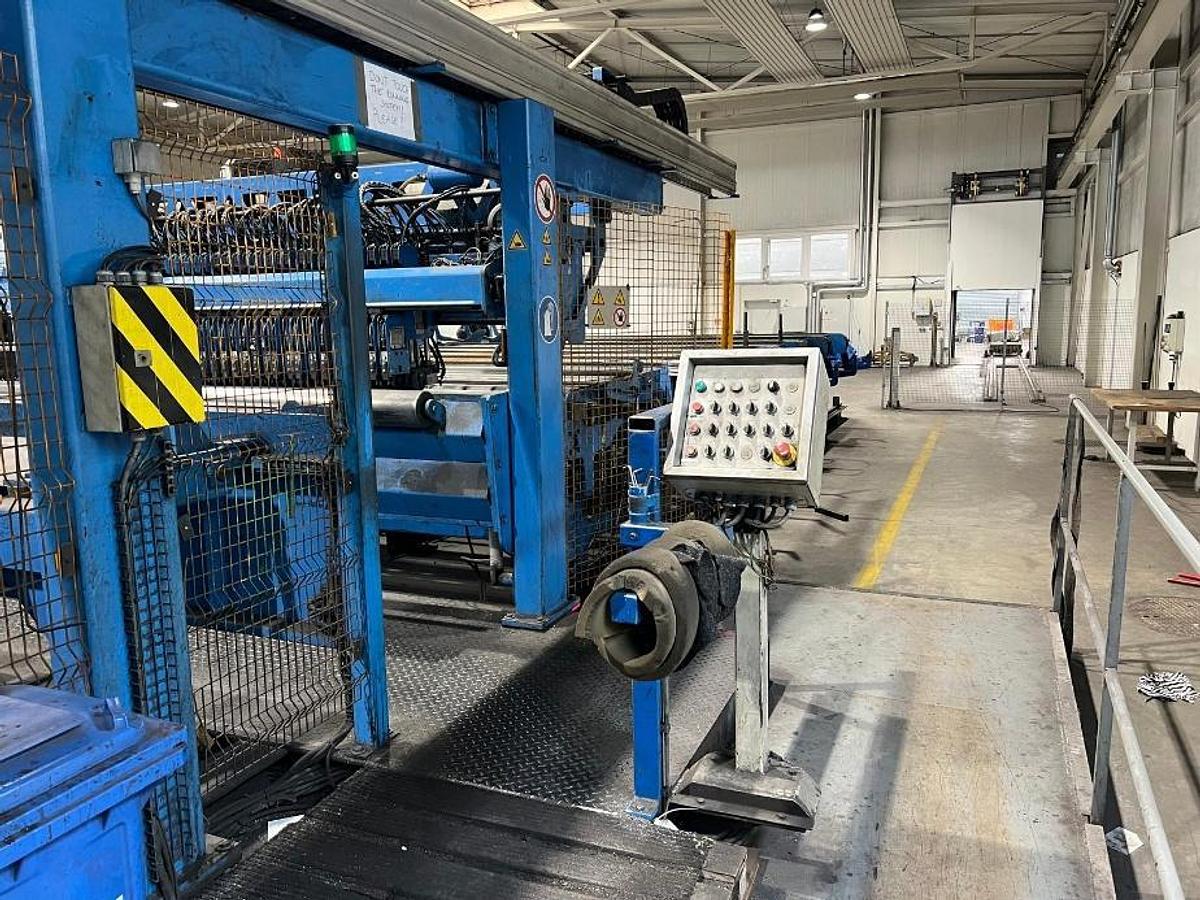

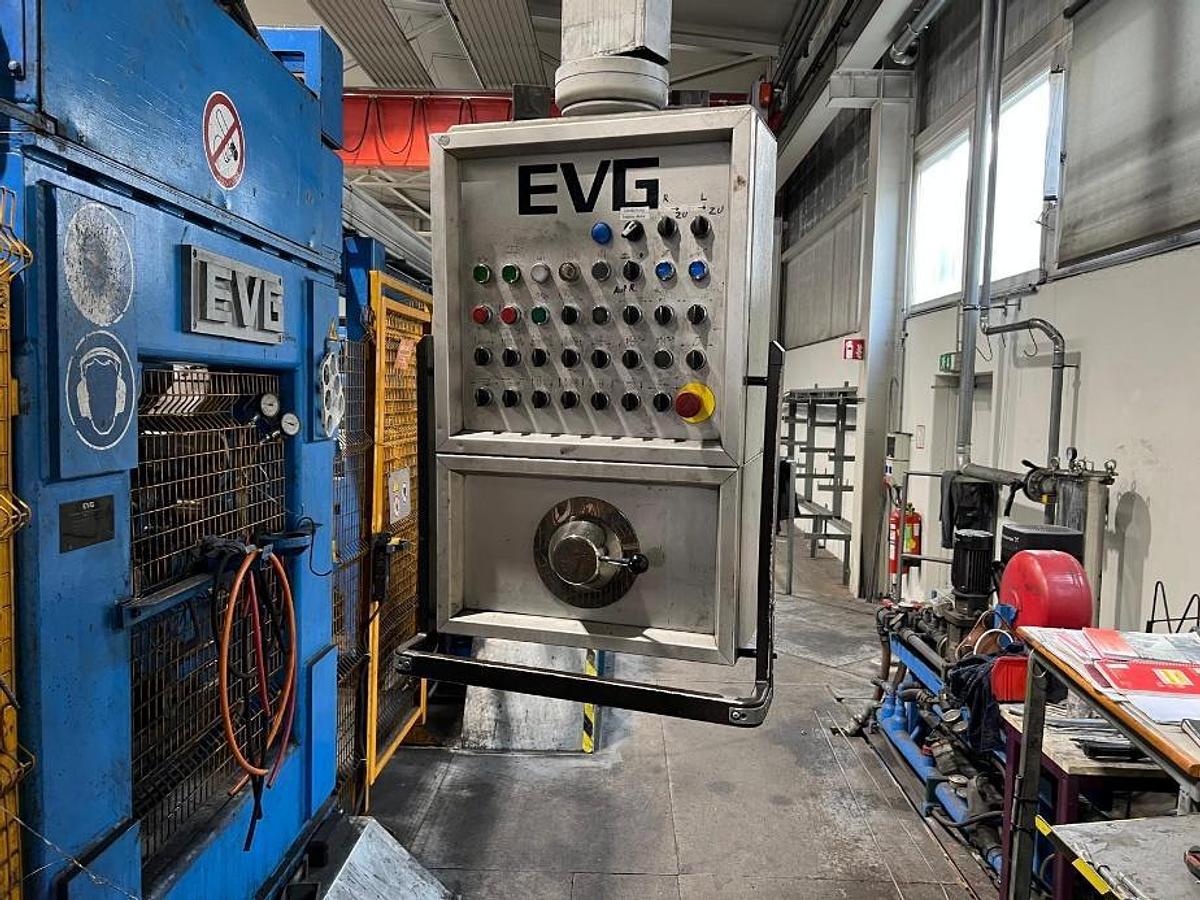

control cabinet

with SIMATIC S7 and EVG input computer, etc. (standard version)

longitudinal wire diameter: 516 mm

cross wire diameter: 516 mm

total welding capacity: 32 mm in 100 mm longitudinal wire pitch

longitudinal wire pitch: 50 mm and larger pitches infinitely variable

cross wire pitch: 50 mm and larger pitches continuously variable

max. welding width (longitudinal wire to cross wire): 3,300 mm

max. cross wire length: 3,350 mm

max. working speed: 90 cross wires per minute

geometry of the mats:

max. transverse wire spacing: 2,250 mm

transverse wire protrusions: 10 mm to 1,300 mm (this max. dimension from 8.0 mm transverse wire diameter)

Longitudinal wire protrusions at front: 15 mm to 1,500 mm (this max. dimension from 8.0 mm longitudinal wire diameter)

Longitudinal wire protrusions at rear: 15 mm to 2,000 mm

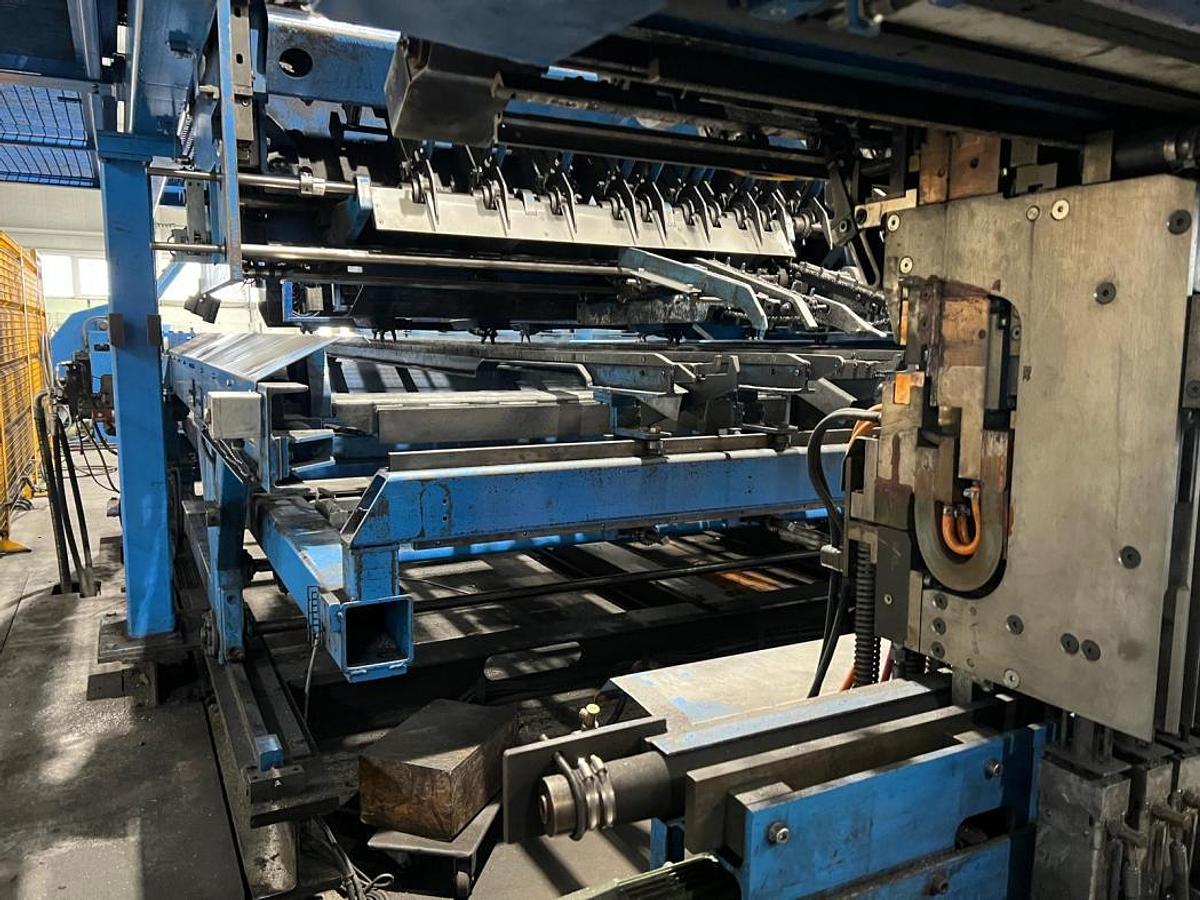

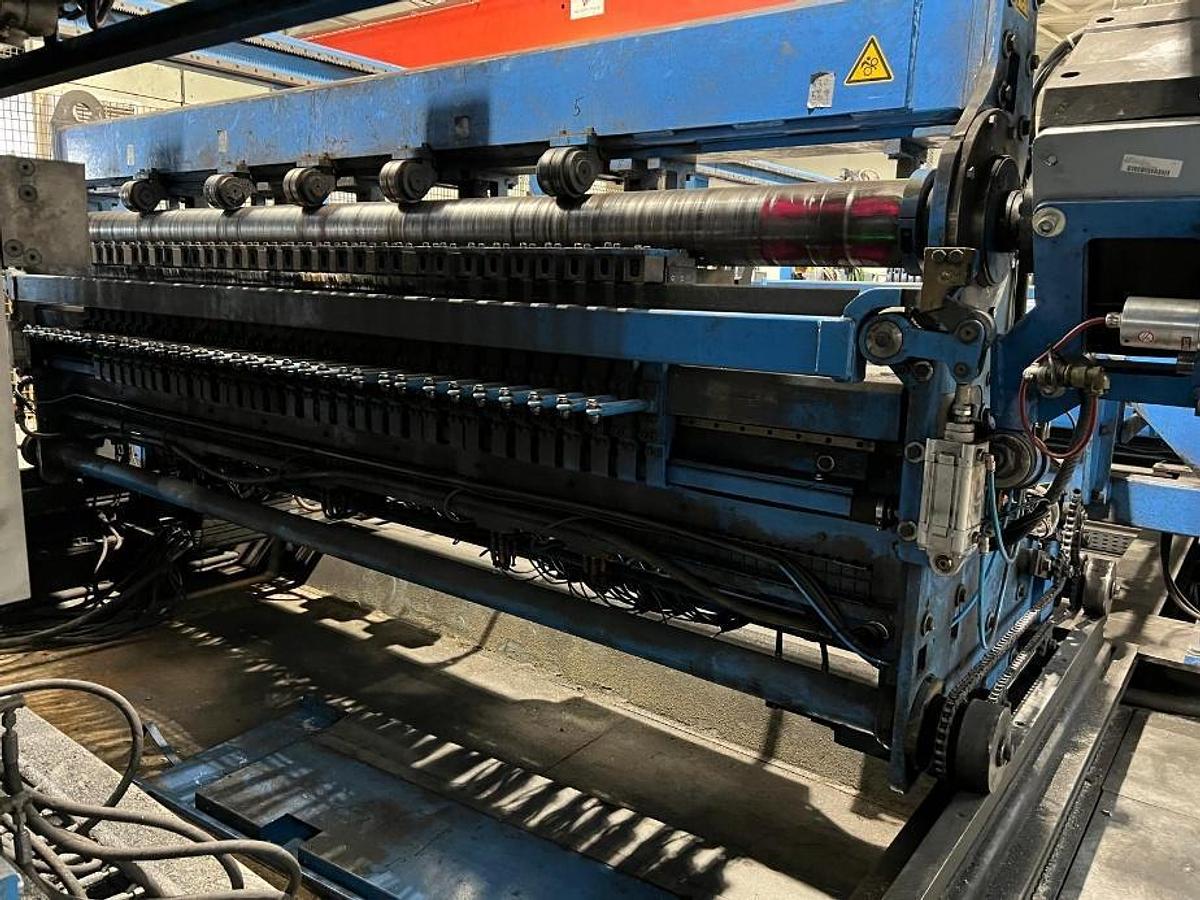

1 x RV roller feed

equipped with 34 continuously adjustable RV elements (construction width 50 mm)

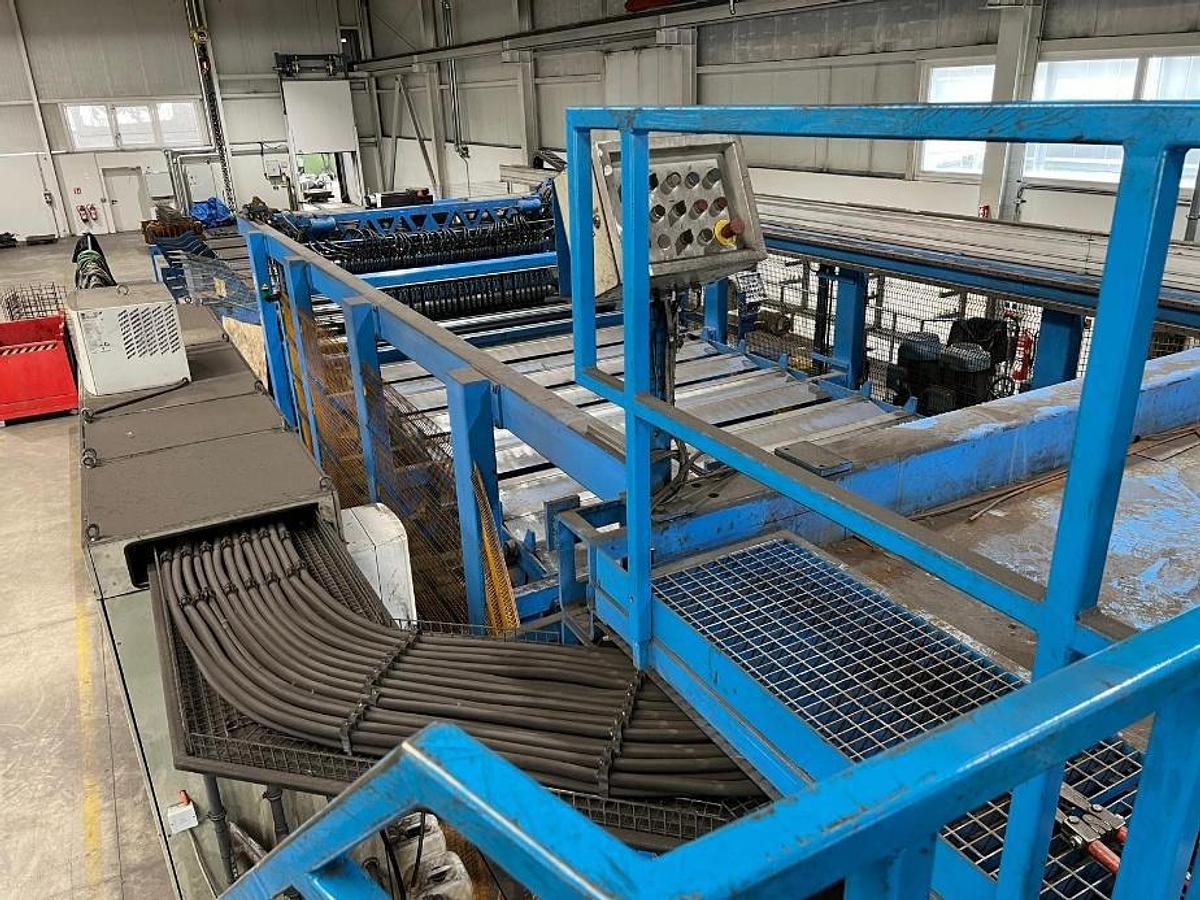

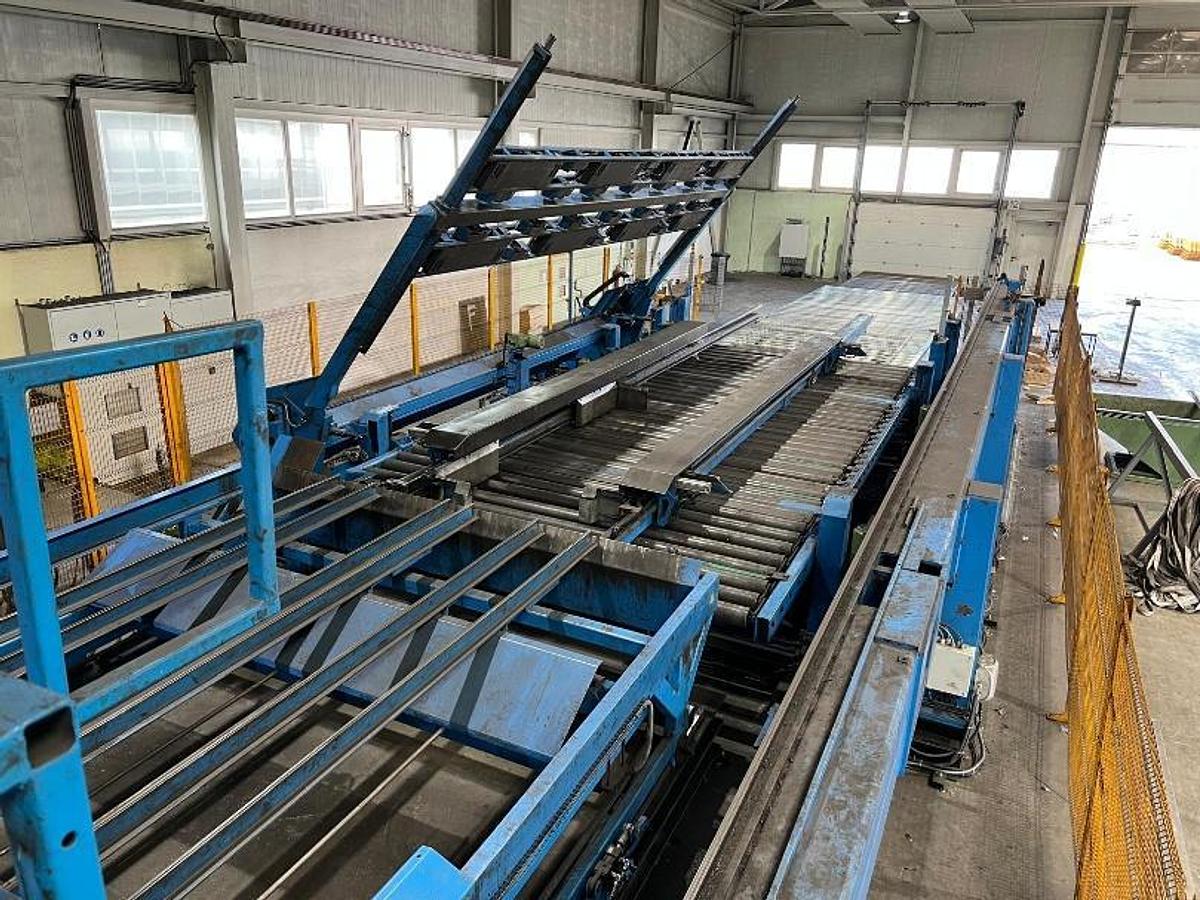

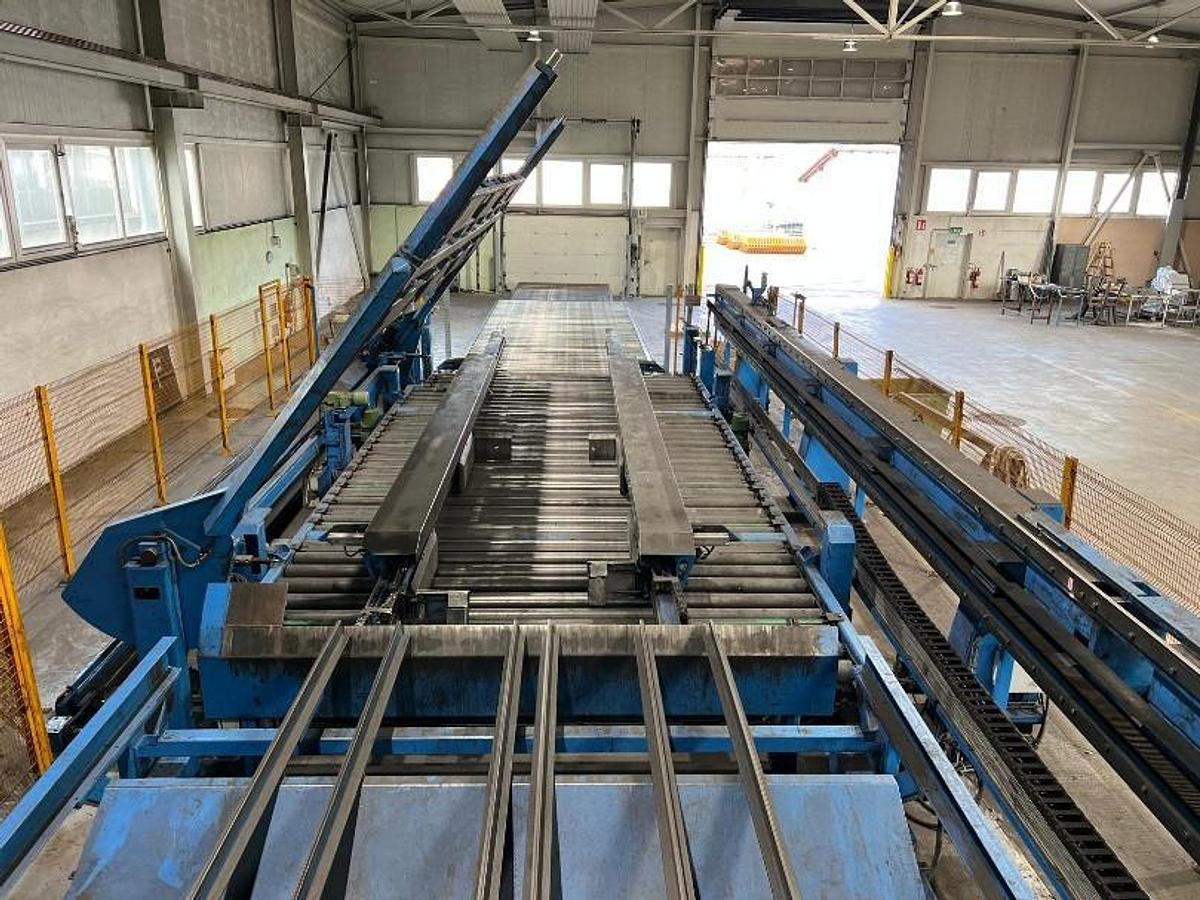

1 x LWM / 126 longitudinal bar distributor

for placing 8 m long longitudinal wire bundles into a sidemounted magazine using a crane. With motorized transverse and longitudinal distribution of the wires

10 m long longitudinal wire bundles are placed in the middle.

technical data:

Longitudinal wire length: 1500 – 10,000 mm

Diameter range: 516 mm

Approx. capacity: 6 tons

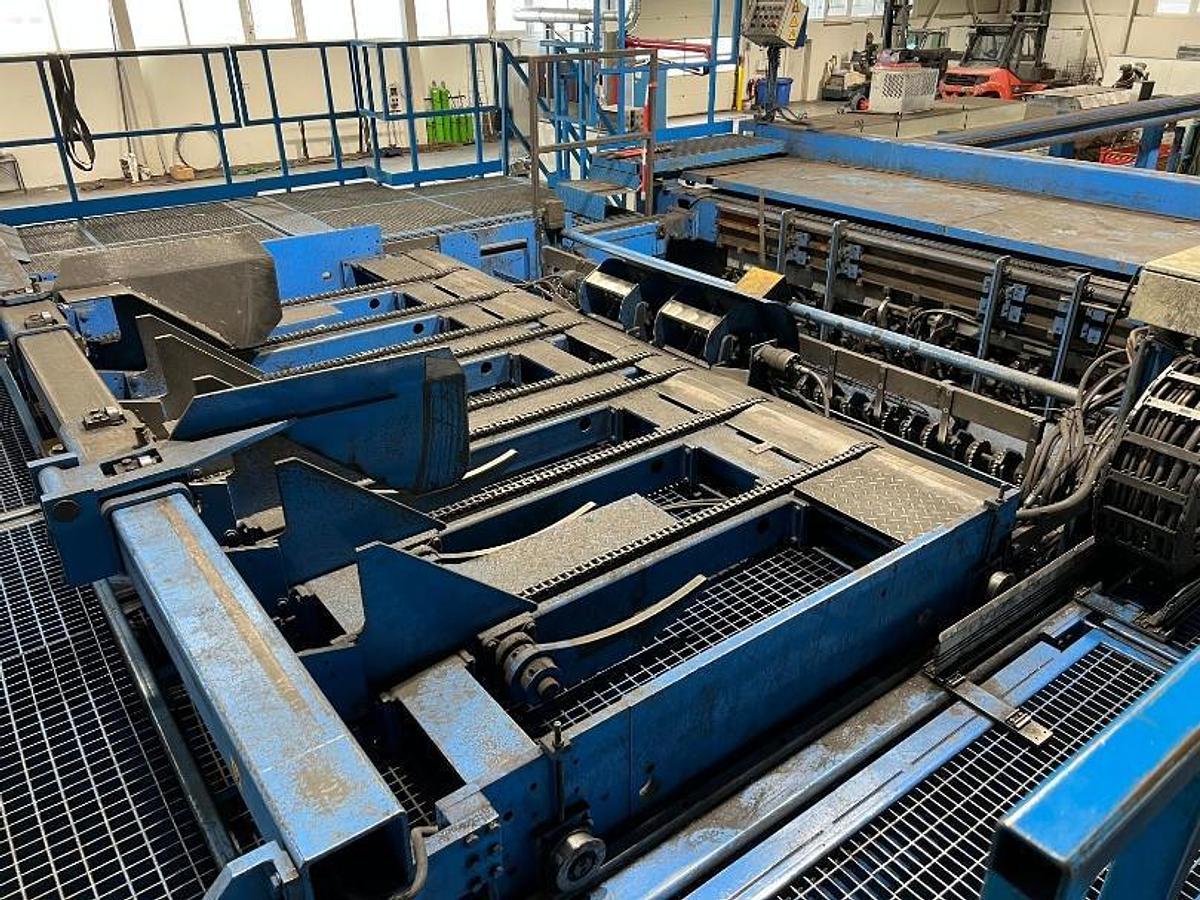

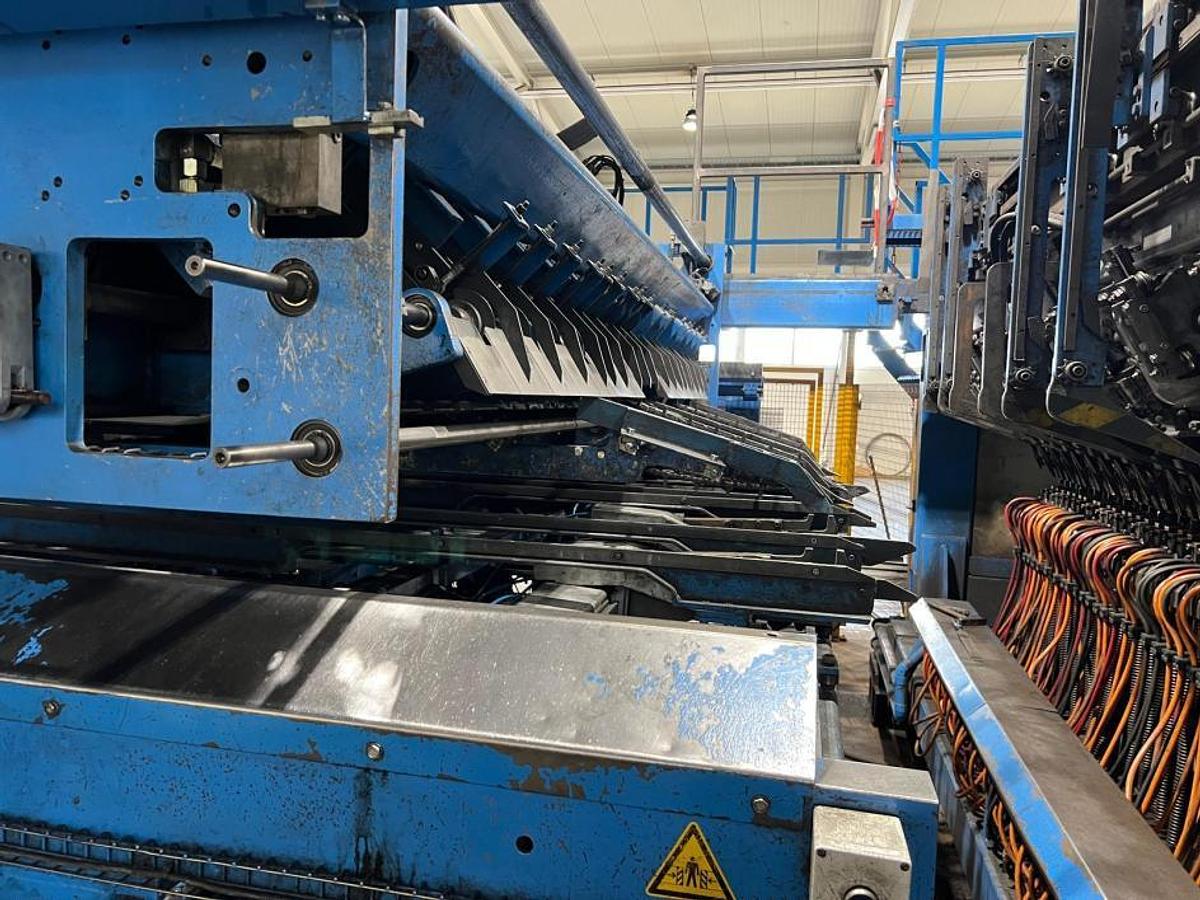

1 x AL 7/126 longitudinal wire feeding machine

equipped with motordriven, program-controlled gripper tongs that can be adjusted to the position of the welding heads (position of the longitudinal wires according to the mesh program

for automatic operation (robot function) and for manual insertion of the wires

technical data:

number of gripper tongs: 34

max. longitudinal wire length: 10000 mm

wire diameter range: 5 to 16 mm

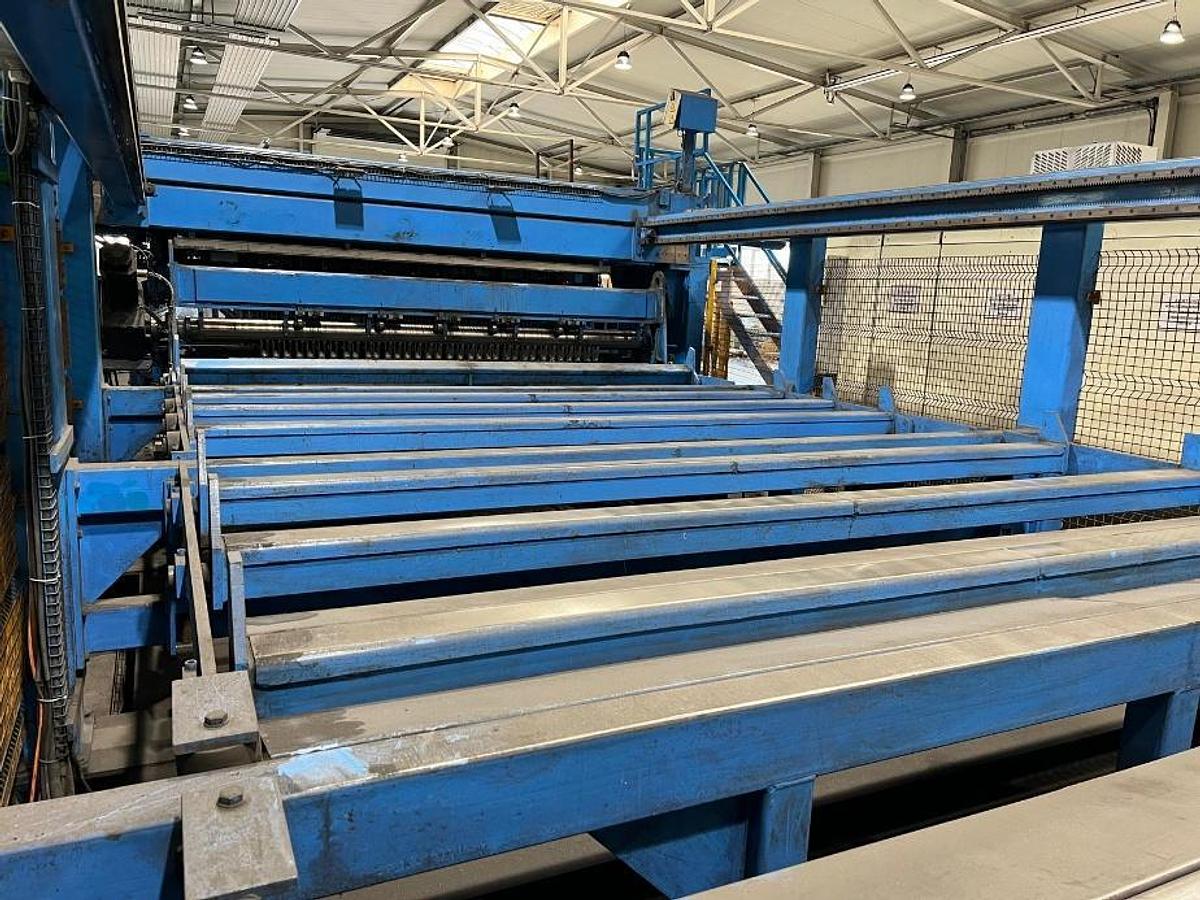

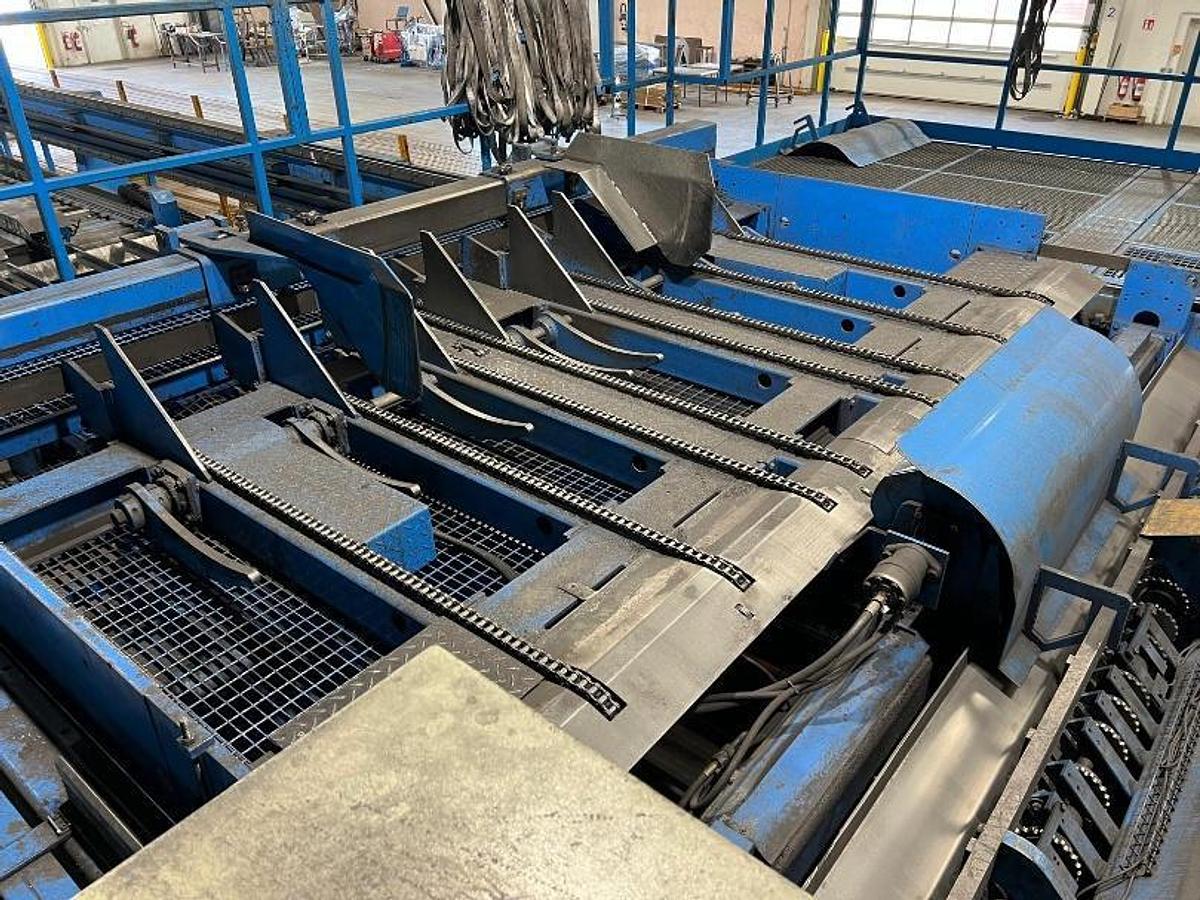

1 x LT/126QC mesh conveyor

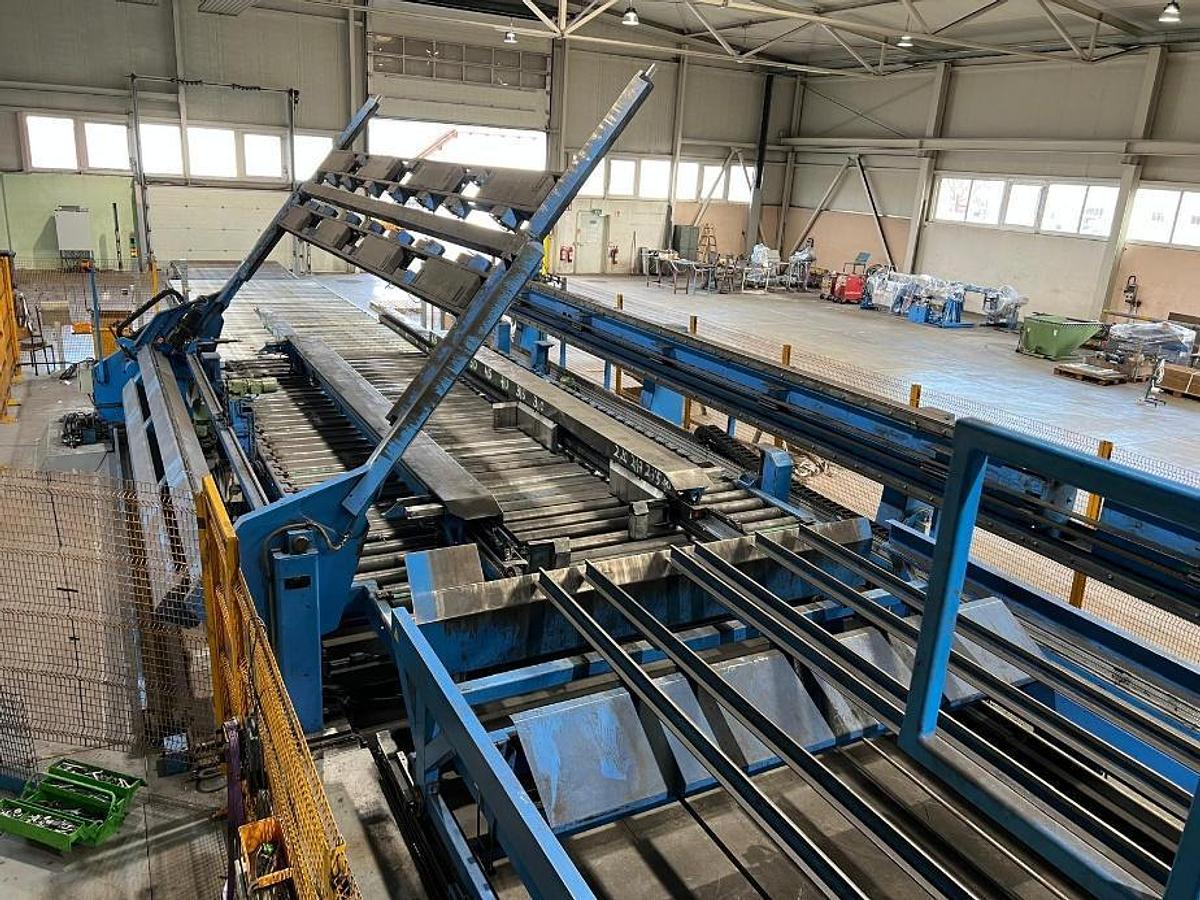

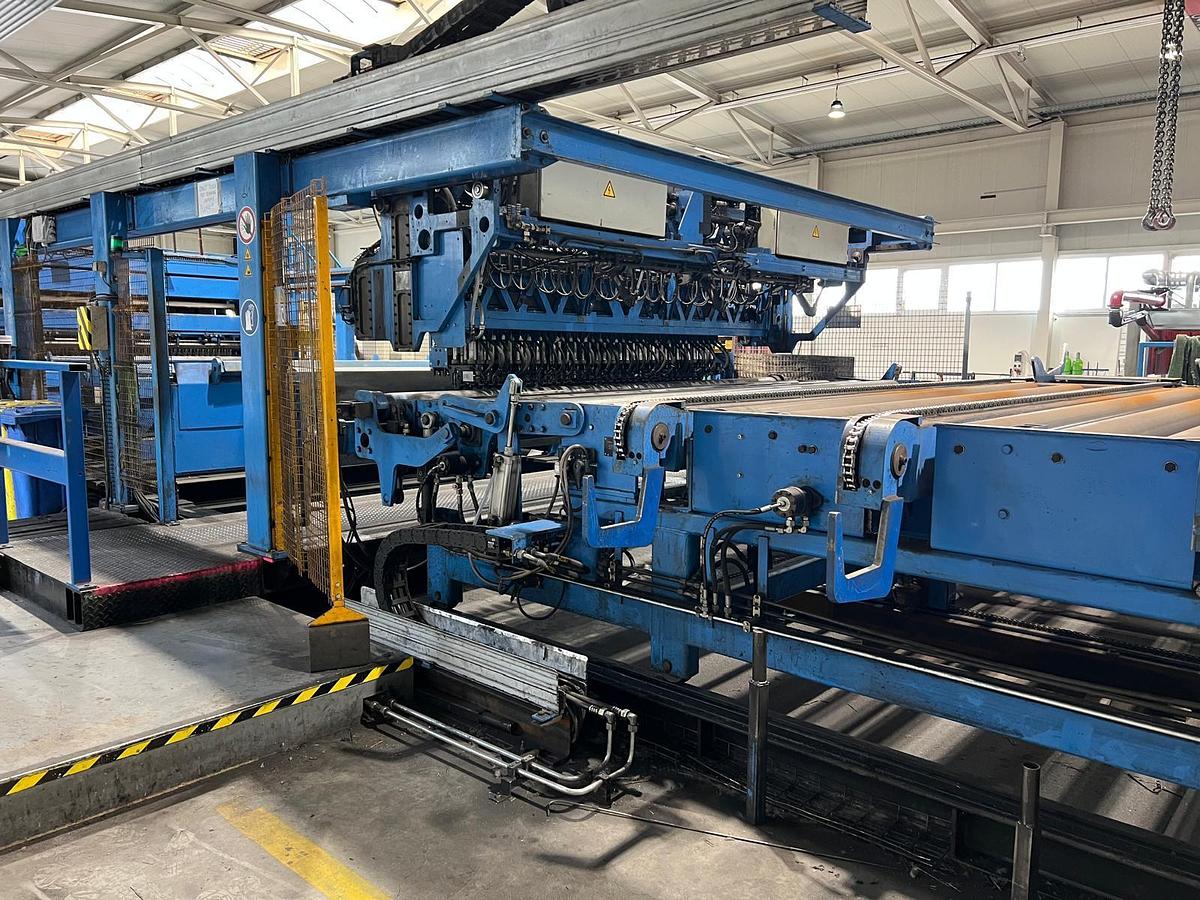

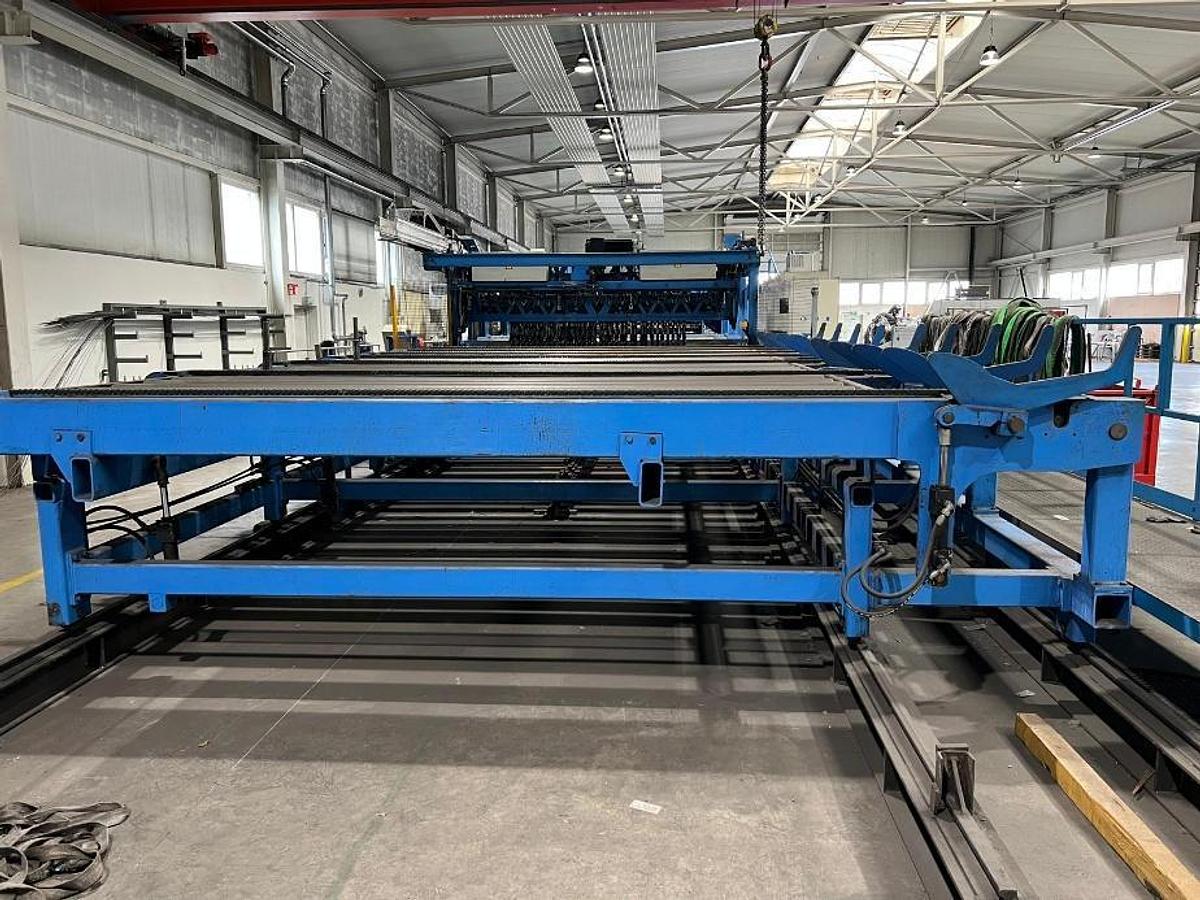

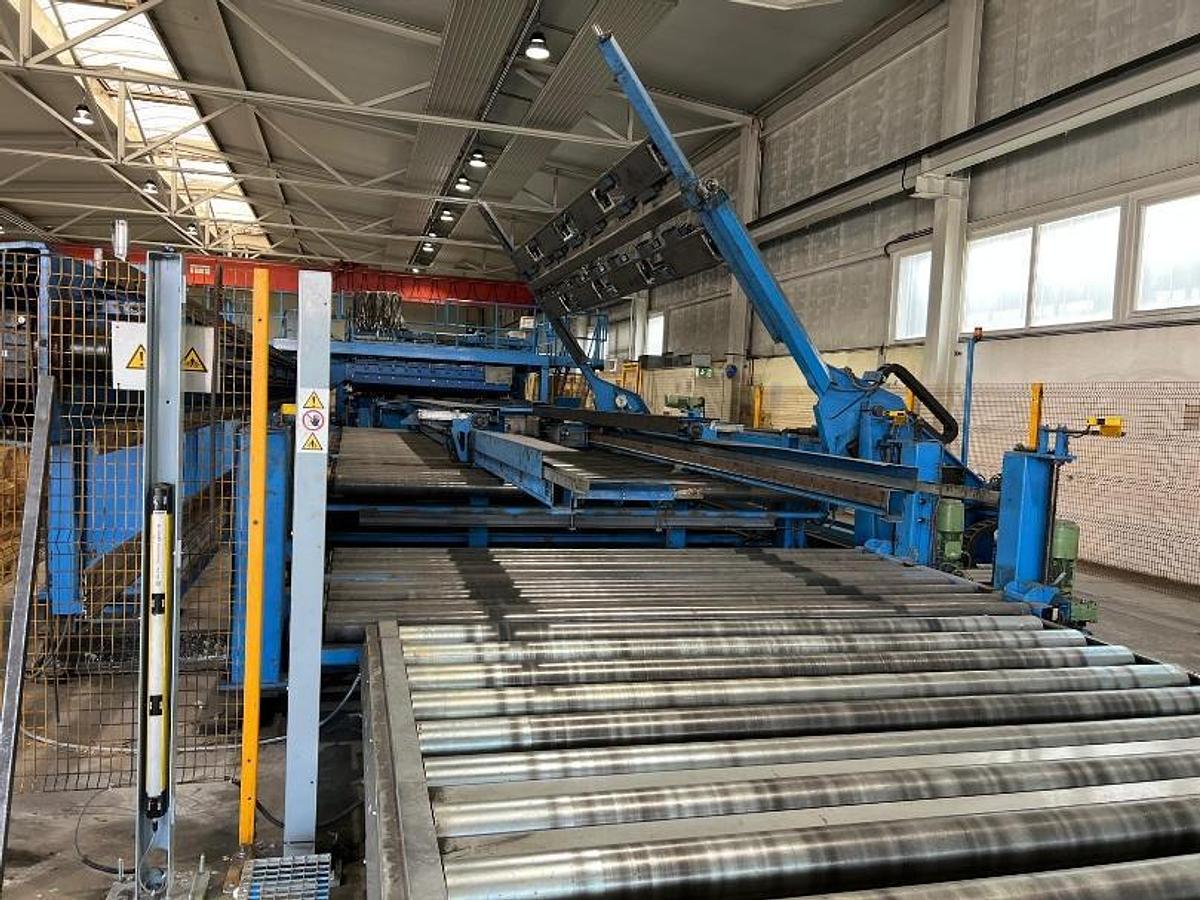

1 x T8/10B/126QC stacking and turning machine

stacking and turning:

1 and 2lane stacking and turning

mat lengths for stacking and turning: 1500–8000 mm

mat weight: 450 kg

stacking operation:

1 and 2lane stacking

mat lengths: 1500–10,000 mm

mat weight: 750 kg

-
